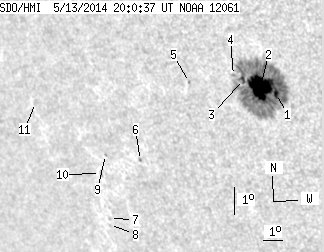

SDO HMI 2014-05-13 20:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.85 | 231.22 | 31.84 | 169.40 | -23.81 | 194.12 | -44.03 | 120.26 | 0.7379 | 666.6 | 271.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-13 20:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.96 | 220.54 | 2.13 | 160.26 | -23.98 | 195.19 | -42.97 | 120.90 | 0.7281 | 951.5 | 313.7 | |
| 38.83 | -1.00 | 28.20 | -1.00 | -23.73 | 194.56 | -43.59 | 120.31 | 0.7335 | 964.9 | 999999 | |
| 2.06 | -1.00 | 1.51 | -1.00 | -23.47 | 193.89 | -44.27 | 119.71 | 0.7395 | 398.4 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.19 | -23.33 | 193.48 | -44.67 | 119.37 | 0.7430 | -208.0 | -160.9 | |
| 0.00 | 0.81 | 0.00 | 0.62 | -23.48 | 191.32 | -46.83 | 118.75 | 0.7653 | -570.0 | -536.8 | |
| 0.00 | 1.08 | 0.00 | 0.90 | -25.92 | 187.55 | -50.61 | 120.43 | 0.8083 | -674.0 | -606.8 | |
| 0.00 | 0.81 | 0.00 | 0.73 | -27.75 | 184.62 | -53.53 | 121.67 | 0.8383 | -436.0 | -399.3 | |
| 0.00 | 0.72 | 0.00 | 0.65 | -27.95 | 184.48 | -53.68 | 121.86 | 0.8400 | -369.0 | -367.9 | |
| 0.00 | 1.08 | 0.00 | 0.93 | -25.65 | 185.81 | -52.35 | 119.58 | 0.8228 | -462.0 | -423.4 | |
| 0.00 | 1.79 | 0.00 | 1.58 | -26.26 | 185.14 | -53.02 | 120.10 | 0.8302 | -436.0 | -414.6 | |
| 0.00 | 2.78 | 0.00 | 2.54 | -23.83 | 182.99 | -55.16 | 116.70 | 0.8425 | -125.0 | -133.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
