SDO HMI 2014-05-13 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 147.71 | 810.91 | 76.06 | 417.45 | -14.49 | 227.92 | -9.68 | 143.14 | 0.2641 | 209.6 | 70.1 | |
|
previous
or next observation for the same group /

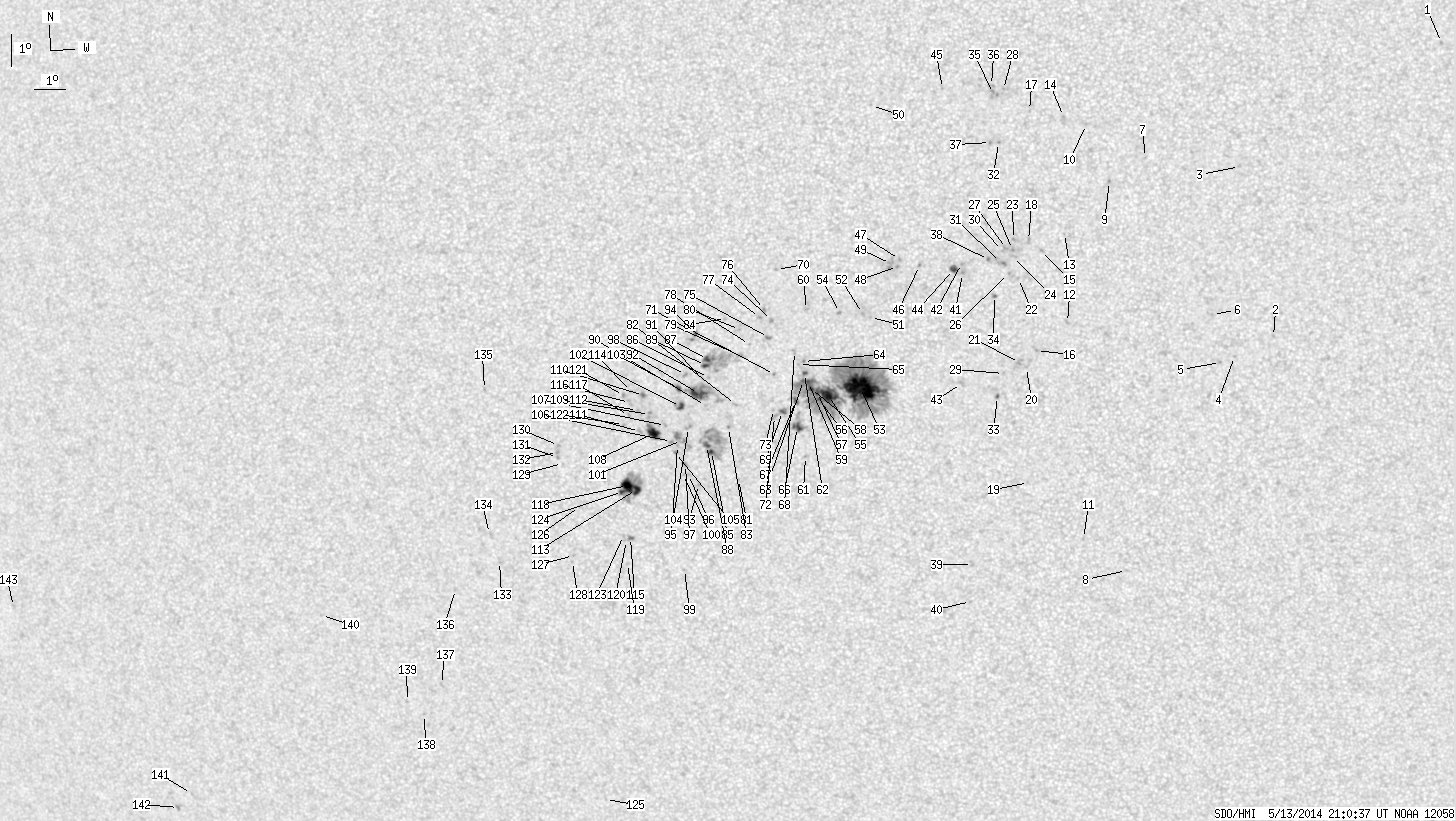

back to the solar disc SDO HMI 2014-05-13 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.63 | -3.71 | 248.15 | 10.55 | 264.97 | 0.1843 | 868.0 | 658.2 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -12.68 | 243.12 | 5.52 | 208.69 | 0.1962 | 853.0 | 617.9 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -7.50 | 241.99 | 4.39 | 222.97 | 0.1119 | 787.0 | 656.2 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -13.30 | 241.91 | 4.31 | 201.91 | 0.1969 | 809.0 | 623.1 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -13.49 | 241.48 | 3.88 | 199.56 | 0.1973 | 803.0 | 696.9 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -12.01 | 241.21 | 3.61 | 201.08 | 0.1719 | 825.0 | 672.8 | |
| 0.00 | 1.17 | 0.00 | 0.58 | -7.23 | 239.12 | 1.52 | 198.90 | 0.0814 | 830.0 | 644.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -19.98 | 238.57 | 0.97 | 183.10 | 0.2967 | 846.0 | 588.3 | |
| 0.00 | 1.26 | 0.00 | 0.62 | -7.96 | 238.02 | 0.42 | 184.62 | 0.0900 | 935.0 | 720.6 | |
| 0.00 | 1.17 | 0.00 | 0.58 | -6.22 | 237.32 | -0.28 | 175.27 | 0.0597 | 604.0 | 446.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -18.97 | 237.19 | -0.41 | 178.61 | 0.2793 | 725.0 | 536.6 | |
| 0.00 | 1.88 | 0.00 | 0.95 | -12.26 | 236.72 | -0.88 | 174.74 | 0.1653 | 930.0 | 656.4 | |
| 0.00 | 0.72 | 0.00 | 0.36 | -9.54 | 236.64 | -0.96 | 171.91 | 0.1185 | 774.0 | 622.9 | |
| 0.00 | 1.08 | 0.00 | 0.53 | -5.98 | 236.62 | -0.98 | 162.76 | 0.0578 | 913.0 | 577.5 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -10.05 | 235.93 | -1.67 | 167.12 | 0.1296 | 941.0 | 660.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -13.12 | 235.75 | -1.85 | 170.01 | 0.1822 | 982.0 | 780.5 | |
| 0.00 | 1.17 | 0.00 | 0.58 | -5.80 | 235.58 | -2.02 | 145.93 | 0.0628 | 752.0 | 583.9 | |
| 0.00 | 2.78 | 0.00 | 1.39 | -9.75 | 235.53 | -2.07 | 163.52 | 0.1262 | 819.0 | 672.1 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -17.21 | 235.45 | -2.15 | 171.80 | 0.2520 | 601.0 | 600.3 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -13.64 | 235.43 | -2.17 | 168.91 | 0.1920 | 744.0 | 603.4 | |
| 0.00 | 3.77 | 0.00 | 1.90 | -13.48 | 235.22 | -2.38 | 167.66 | 0.1902 | 881.0 | 817.3 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -10.91 | 235.21 | -2.39 | 163.76 | 0.1470 | 773.0 | 588.8 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -9.72 | 235.07 | -2.53 | 160.04 | 0.1282 | 882.0 | 703.6 | |
| 0.00 | 2.87 | 0.00 | 1.44 | -10.23 | 235.06 | -2.54 | 161.33 | 0.1367 | 810.0 | 652.9 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -10.02 | 235.04 | -2.57 | 160.60 | 0.1333 | 1126.0 | 912.1 | |
| 0.00 | 1.17 | 0.00 | 0.58 | -10.75 | 234.90 | -2.70 | 161.47 | 0.1461 | 920.0 | 803.3 | |
| 0.00 | 0.99 | 0.00 | 0.49 | -9.99 | 234.85 | -2.75 | 159.24 | 0.1339 | 934.0 | 735.3 | |
| 0.00 | 1.17 | 0.00 | 0.58 | -5.16 | 234.80 | -2.80 | 129.83 | 0.0638 | 872.0 | 716.3 | |
| 0.00 | 1.61 | 0.00 | 0.82 | -13.82 | 234.71 | -2.89 | 165.61 | 0.1978 | 689.0 | 457.9 | |
| 0.00 | 1.52 | 0.00 | 0.76 | -10.05 | 234.73 | -2.87 | 158.56 | 0.1357 | 771.0 | 647.5 | |
| 0.00 | 4.84 | 0.00 | 2.42 | -10.42 | 234.66 | -2.94 | 159.10 | 0.1420 | 920.0 | 860.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -6.76 | 234.63 | -2.97 | 143.17 | 0.0862 | 952.0 | 856.0 | |
| 0.63 | 1.79 | 0.32 | 0.91 | -14.53 | 234.52 | -3.09 | 165.60 | 0.2104 | 901.4 | 745.1 | |
| 0.36 | 1.97 | 0.18 | 0.99 | -11.42 | 234.46 | -3.14 | 160.27 | 0.1595 | 1060.0 | 843.0 | |
| 0.00 | 4.66 | 0.00 | 2.32 | -5.28 | 234.49 | -3.11 | 128.36 | 0.0692 | 973.0 | 892.3 | |
| 0.00 | 2.06 | 0.00 | 1.02 | -5.03 | 234.43 | -3.17 | 124.97 | 0.0675 | 941.0 | 803.9 | |
| 0.00 | 1.26 | 0.00 | 0.62 | -6.76 | 234.39 | -3.21 | 140.97 | 0.0888 | 898.0 | 732.6 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -10.32 | 234.29 | -3.31 | 156.48 | 0.1429 | 924.0 | 826.2 | |
| 0.00 | 1.79 | 0.00 | 0.93 | -19.78 | 233.61 | -3.99 | 167.36 | 0.3002 | 717.0 | 561.7 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -20.96 | 233.52 | -4.08 | 167.94 | 0.3197 | 725.0 | 614.0 | |
| 0.00 | 1.17 | 0.00 | 0.58 | -10.75 | 233.48 | -4.12 | 152.91 | 0.1555 | 815.0 | 675.3 | |
| 0.00 | 0.99 | 0.00 | 0.49 | -10.44 | 233.46 | -4.14 | 151.81 | 0.1511 | 914.0 | 722.1 | |
| 0.00 | 3.23 | 0.00 | 1.64 | -14.13 | 233.40 | -4.21 | 160.05 | 0.2094 | 842.0 | 628.2 | |
| 2.87 | 4.75 | 1.44 | 2.38 | -10.62 | 233.21 | -4.39 | 150.99 | 0.1559 | 1061.3 | 843.6 | |
| 0.00 | 0.99 | 0.00 | 0.49 | -5.12 | 232.94 | -4.66 | 116.34 | 0.0908 | 781.0 | 544.1 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -10.50 | 232.16 | -5.44 | 145.09 | 0.1637 | -848.0 | -505.1 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -10.31 | 231.54 | -6.06 | 141.48 | 0.1674 | -866.0 | -707.4 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -10.52 | 231.48 | -6.12 | 141.98 | 0.1710 | -1128.0 | -860.9 | |
| 0.00 | 5.65 | 0.00 | 2.84 | -10.43 | 231.26 | -6.34 | 140.68 | 0.1721 | -979.0 | -828.4 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -5.62 | 230.76 | -6.84 | 112.47 | 0.1288 | 627.0 | 567.2 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -12.08 | 230.60 | -7.00 | 143.50 | 0.2012 | -731.0 | -597.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -11.95 | 230.36 | -7.25 | 142.17 | 0.2021 | -871.0 | -634.8 | |
| 55.16 | 388.55 | 28.11 | 198.25 | -14.23 | 230.22 | -7.38 | 147.84 | 0.2350 | 1355.4 | 419.7 | |
| 0.00 | 1.88 | 0.00 | 0.95 | -11.92 | 229.64 | -7.96 | 139.44 | 0.2094 | -1102.0 | -783.0 | |
| 18.21 | -53.00 | 9.31 | -53.00 | -14.47 | 229.20 | -8.40 | 145.04 | 0.2479 | 1141.4 | 999999 | |
| 1.79 | -53.00 | 0.92 | -53.00 | -14.59 | 228.91 | -8.69 | 144.42 | 0.2524 | 912.9 | 999999 | |
| 2.87 | -53.00 | 1.47 | -53.00 | -14.37 | 228.86 | -8.74 | 143.73 | 0.2500 | 939.1 | 999999 | |
| 2.33 | -53.00 | 1.19 | -53.00 | -14.25 | 228.64 | -8.96 | 142.76 | 0.2505 | 975.5 | 999999 | |
| 1.61 | -53.00 | 0.83 | -53.00 | -14.06 | 228.59 | -9.01 | 142.12 | 0.2486 | 943.7 | 999999 | |
| 0.00 | 1.88 | 0.00 | 0.96 | -11.82 | 228.61 | -8.99 | 135.70 | 0.2200 | -798.0 | -693.6 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -16.36 | 228.39 | -9.21 | 146.77 | 0.2816 | 798.0 | 547.2 | |
| 0.90 | -53.00 | 0.46 | -53.00 | -13.78 | 228.47 | -9.13 | 141.05 | 0.2462 | 1040.8 | 999999 | |
| 0.99 | -53.00 | 0.50 | -53.00 | -14.00 | 228.43 | -9.17 | 141.49 | 0.2494 | 717.5 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -13.41 | 228.46 | -9.15 | 140.00 | 0.2416 | 890.0 | 722.5 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -13.50 | 228.29 | -9.31 | 139.76 | 0.2445 | 662.0 | 576.5 | |
| 4.48 | 14.98 | 2.31 | 7.70 | -15.45 | 228.18 | -9.42 | 144.24 | 0.2713 | -1016.6 | -232.8 | |
| 1.61 | -53.00 | 0.83 | -53.00 | -14.65 | 228.15 | -9.45 | 142.28 | 0.2608 | 845.1 | 999999 | |
| 0.00 | 2.42 | 0.00 | 1.24 | -13.10 | 228.18 | -9.42 | 138.32 | 0.2407 | 733.0 | 525.8 | |
| 1.44 | 3.95 | 0.74 | 2.03 | -14.95 | 227.72 | -9.88 | 141.81 | 0.2693 | 758.2 | 653.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -10.58 | 227.71 | -9.89 | 128.78 | 0.2175 | -872.0 | -676.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -13.81 | 227.52 | -10.08 | 138.36 | 0.2569 | -855.0 | -647.2 | |
| 0.00 | 2.69 | 0.00 | 1.39 | -15.10 | 227.46 | -10.14 | 141.45 | 0.2740 | -361.0 | -389.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -14.89 | 227.44 | -10.16 | 140.88 | 0.2714 | 395.0 | 272.9 | |
| 0.00 | 2.51 | 0.00 | 1.28 | -12.14 | 227.50 | -10.10 | 133.47 | 0.2374 | -985.0 | -764.3 | |
| 0.00 | 2.69 | 0.00 | 1.37 | -12.66 | 227.38 | -10.22 | 134.75 | 0.2448 | -1003.0 | -851.0 | |
| 0.00 | 1.79 | 0.00 | 0.91 | -11.80 | 227.29 | -10.31 | 131.82 | 0.2361 | -940.0 | -792.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -12.05 | 227.12 | -10.48 | 132.15 | 0.2409 | -824.0 | -706.1 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -12.87 | 226.77 | -10.83 | 133.74 | 0.2546 | -827.0 | -682.5 | |
| 0.00 | 2.69 | 0.00 | 1.38 | -13.21 | 226.44 | -11.16 | 133.86 | 0.2625 | 731.0 | 570.8 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -12.41 | 226.48 | -11.12 | 131.61 | 0.2531 | -1048.0 | -792.3 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -17.05 | 226.20 | -11.41 | 142.53 | 0.3121 | 704.0 | 512.0 | |
| 0.00 | 1.97 | 0.00 | 1.02 | -14.72 | 226.24 | -11.36 | 137.36 | 0.2826 | -931.0 | -669.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -15.43 | 225.97 | -11.63 | 138.43 | 0.2941 | -900.0 | -761.9 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -12.07 | 226.05 | -11.55 | 129.51 | 0.2549 | -711.0 | -575.0 | |
| 1.88 | 52.74 | 0.98 | 27.43 | -16.17 | 225.38 | -12.22 | 138.75 | 0.3097 | -808.3 | -431.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -13.88 | 225.42 | -12.18 | 133.25 | 0.2825 | -904.0 | -727.1 | |
| 2.33 | 38.30 | 1.20 | 19.72 | -13.32 | 225.42 | -12.18 | 131.73 | 0.2764 | -1151.2 | -498.0 | |
| 2.06 | -85.00 | 1.07 | -85.00 | -15.98 | 225.23 | -12.37 | 137.99 | 0.3090 | -1056.8 | 999999 | |
| 2.06 | -87.00 | 1.06 | -87.00 | -13.51 | 225.35 | -12.26 | 132.07 | 0.2793 | -1122.7 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -14.74 | 225.28 | -12.33 | 135.14 | 0.2940 | -671.0 | -475.9 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -13.90 | 225.23 | -12.37 | 132.89 | 0.2851 | 620.0 | 411.0 | |
| 9.78 | 40.72 | 5.06 | 21.08 | -14.37 | 225.07 | -12.53 | 133.74 | 0.2922 | -1184.8 | -679.7 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -17.19 | 224.89 | -12.71 | 139.85 | 0.3275 | -802.0 | -714.1 | |
| 0.81 | 4.93 | 0.42 | 2.54 | -12.52 | 225.08 | -12.52 | 128.67 | 0.2723 | -954.3 | -740.6 | |
| 0.00 | 2.87 | 0.00 | 1.49 | -15.42 | 224.69 | -12.91 | 135.48 | 0.3086 | -826.0 | -765.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -16.88 | 224.59 | -13.01 | 138.54 | 0.3269 | -808.0 | -653.8 | |
| 0.00 | 1.88 | 0.00 | 0.99 | -16.56 | 224.51 | -13.09 | 137.71 | 0.3240 | -890.0 | -790.0 | |
| 0.00 | 2.24 | 0.00 | 1.16 | -13.78 | 224.69 | -12.91 | 131.37 | 0.2904 | -1098.0 | -749.3 | |
| 0.00 | 1.52 | 0.00 | 0.81 | -19.86 | 224.22 | -13.38 | 143.50 | 0.3675 | -634.0 | -477.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -16.88 | 224.43 | -13.18 | 138.20 | 0.3287 | -552.0 | -423.7 | |
| 0.00 | 13.36 | 0.00 | 6.97 | -15.82 | 224.43 | -13.17 | 135.88 | 0.3162 | -521.0 | -793.4 | |
| 2.87 | 6.64 | 1.49 | 3.45 | -14.76 | 224.47 | -13.13 | 133.44 | 0.3038 | -1080.4 | -733.8 | |
| 1.88 | -92.00 | 0.98 | -92.00 | -14.20 | 224.44 | -13.16 | 131.96 | 0.2981 | -1151.3 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -15.97 | 224.29 | -13.31 | 135.93 | 0.3195 | -779.0 | -580.1 | |
| 0.00 | 1.70 | 0.00 | 0.89 | -16.19 | 224.21 | -13.39 | 136.26 | 0.3230 | -833.0 | -757.8 | |
| 0.00 | 1.61 | 0.00 | 0.84 | -15.84 | 224.11 | -13.49 | 135.26 | 0.3202 | -854.0 | -728.6 | |
| 0.00 | 1.79 | 0.00 | 0.94 | -15.34 | 223.95 | -13.65 | 133.77 | 0.3166 | -890.0 | -698.1 | |
| 8.07 | 13.72 | 4.22 | 7.18 | -15.59 | 223.54 | -14.06 | 133.53 | 0.3241 | -1105.1 | -817.4 | |
| 0.00 | 2.60 | 0.00 | 1.36 | -15.00 | 223.46 | -14.14 | 131.95 | 0.3188 | -802.0 | -888.4 | |
| 0.54 | 2.78 | 0.28 | 1.45 | -14.41 | 223.30 | -14.30 | 130.20 | 0.3146 | -1135.0 | -915.1 | |
| 0.00 | 2.24 | 0.00 | 1.18 | -15.52 | 223.10 | -14.51 | 132.50 | 0.3288 | -724.0 | -593.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -14.87 | 223.08 | -14.52 | 130.91 | 0.3222 | -895.0 | -728.8 | |
| 5.74 | 44.94 | 3.04 | 23.77 | -17.33 | 222.86 | -14.75 | 136.03 | 0.3515 | 1186.9 | 469.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -14.28 | 222.92 | -14.68 | 129.17 | 0.3181 | -738.0 | -610.5 | |
| 0.72 | 2.15 | 0.38 | 1.15 | -18.83 | 222.52 | -15.08 | 138.39 | 0.3723 | -1112.0 | -921.4 | |
| 0.00 | 3.14 | 0.00 | 1.64 | -14.62 | 222.84 | -14.77 | 129.85 | 0.3226 | -610.0 | -598.0 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -15.02 | 222.77 | -14.83 | 130.72 | 0.3275 | -749.0 | -618.4 | |
| 11.84 | -113.00 | 6.27 | -113.00 | -17.20 | 222.57 | -15.03 | 135.23 | 0.3533 | 1192.4 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -19.65 | 222.35 | -15.26 | 139.58 | 0.3838 | -630.0 | -498.9 | |
| 0.00 | 1.88 | 0.00 | 1.01 | -18.92 | 222.38 | -15.22 | 138.31 | 0.3749 | -688.0 | -616.1 | |
| 0.00 | 1.97 | 0.00 | 1.03 | -14.40 | 222.66 | -14.94 | 128.98 | 0.3227 | -713.0 | -579.6 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -15.30 | 222.59 | -15.01 | 131.04 | 0.3326 | -702.0 | -550.3 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -18.76 | 222.30 | -15.30 | 137.86 | 0.3740 | -767.0 | -575.7 | |
| 1.88 | -113.00 | 1.00 | -113.00 | -17.38 | 222.39 | -15.21 | 135.28 | 0.3574 | 865.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -27.28 | 220.62 | -16.99 | 148.02 | 0.4922 | 748.0 | 526.1 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -17.83 | 220.93 | -16.67 | 133.68 | 0.3793 | 727.0 | 510.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -19.37 | 220.57 | -17.03 | 136.05 | 0.3999 | -754.0 | -560.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -19.56 | 220.51 | -17.09 | 136.31 | 0.4026 | -707.0 | -596.2 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -16.48 | 220.49 | -17.11 | 130.16 | 0.3707 | -632.0 | -487.1 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -15.92 | 220.41 | -17.19 | 128.81 | 0.3662 | -1070.0 | -839.1 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -16.29 | 220.35 | -17.26 | 129.52 | 0.3707 | -726.0 | -618.8 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -16.13 | 220.36 | -17.24 | 129.20 | 0.3690 | -961.0 | -798.8 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -19.52 | 218.05 | -19.56 | 132.57 | 0.4302 | -631.0 | -613.6 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -18.63 | 217.82 | -19.78 | 130.61 | 0.4243 | -697.0 | -601.2 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -14.14 | 218.13 | -19.47 | 121.60 | 0.3812 | -779.0 | -655.8 | |
| 0.00 | 1.61 | 0.00 | 0.90 | -20.38 | 216.41 | -21.19 | 131.96 | 0.4575 | -628.0 | -545.8 | |
| 0.00 | 1.97 | 0.00 | 1.13 | -23.41 | 215.43 | -22.17 | 135.70 | 0.4978 | -746.0 | -553.7 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -24.37 | 214.64 | -22.96 | 136.22 | 0.5156 | -654.0 | -532.1 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -23.94 | 214.11 | -23.49 | 134.97 | 0.5169 | -546.0 | -459.8 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -21.11 | 211.55 | -26.05 | 127.85 | 0.5209 | -591.0 | -443.8 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -26.76 | 205.18 | -32.42 | 130.75 | 0.6342 | -755.0 | -608.8 | |
| 0.00 | 2.60 | 0.00 | 1.68 | -27.21 | 204.50 | -33.10 | 130.85 | 0.6443 | -837.0 | -684.3 | |
| 0.00 | 1.97 | 0.00 | 1.29 | -20.52 | 199.89 | -37.71 | 118.69 | 0.6553 | -723.0 | -420.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
