SDO HMI 2014-05-13 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.25 | 240.86 | 29.71 | 174.95 | -23.86 | 194.11 | -43.50 | 120.56 | 0.7327 | 538.6 | 256.0 | |
|
previous
or next observation for the same group /

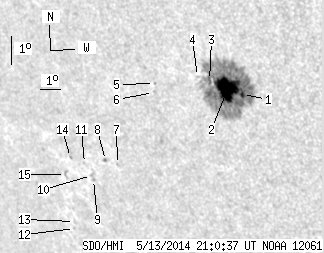

back to the solar disc SDO HMI 2014-05-13 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.79 | 228.36 | 1.28 | 164.58 | -23.96 | 195.14 | -42.47 | 121.11 | 0.7229 | 964.2 | 308.9 | |
| 37.85 | -1.00 | 27.26 | -1.00 | -23.74 | 194.55 | -43.06 | 120.57 | 0.7281 | 978.7 | 999999 | |
| 1.61 | -1.00 | 1.17 | -1.00 | -23.46 | 193.84 | -43.76 | 119.90 | 0.7342 | 399.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -23.31 | 193.35 | -44.25 | 119.51 | 0.7387 | -165.0 | -129.5 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -23.47 | 191.26 | -46.35 | 118.91 | 0.7604 | -622.0 | -501.7 | |
| 0.00 | 0.63 | 0.00 | 0.48 | -23.76 | 191.07 | -46.53 | 119.20 | 0.7632 | -547.0 | -478.6 | |
| 0.00 | 0.81 | 0.00 | 0.66 | -26.03 | 188.09 | -49.51 | 120.92 | 0.7989 | -669.0 | -540.7 | |
| 0.00 | 1.35 | 0.00 | 1.11 | -25.87 | 187.55 | -50.05 | 120.56 | 0.8033 | -702.0 | -582.7 | |
| 0.00 | 1.26 | 0.00 | 1.06 | -26.47 | 186.55 | -51.06 | 120.94 | 0.8139 | -505.0 | -459.0 | |
| 0.00 | 1.44 | 0.00 | 1.22 | -26.34 | 186.52 | -51.08 | 120.78 | 0.8138 | -610.0 | -492.9 | |
| 0.00 | 0.81 | 0.00 | 0.68 | -25.93 | 186.39 | -51.21 | 120.26 | 0.8137 | -387.0 | -355.3 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -28.04 | 184.44 | -53.17 | 122.11 | 0.8362 | -297.0 | -335.3 | |
| 0.00 | 0.90 | 0.00 | 0.80 | -27.81 | 184.60 | -53.00 | 121.90 | 0.8342 | -516.0 | -435.5 | |
| 0.00 | 1.26 | 0.00 | 1.08 | -25.71 | 185.77 | -51.83 | 119.80 | 0.8185 | -466.0 | -371.4 | |
| 0.00 | 1.88 | 0.00 | 1.64 | -26.25 | 185.15 | -52.45 | 120.25 | 0.8254 | -430.0 | -387.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
