SDO HMI 2014-05-13 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 133.92 | 778.06 | 68.90 | 399.49 | -14.36 | 228.27 | -8.78 | 145.63 | 0.2537 | 170.0 | 138.8 | |
|
previous
or next observation for the same group /

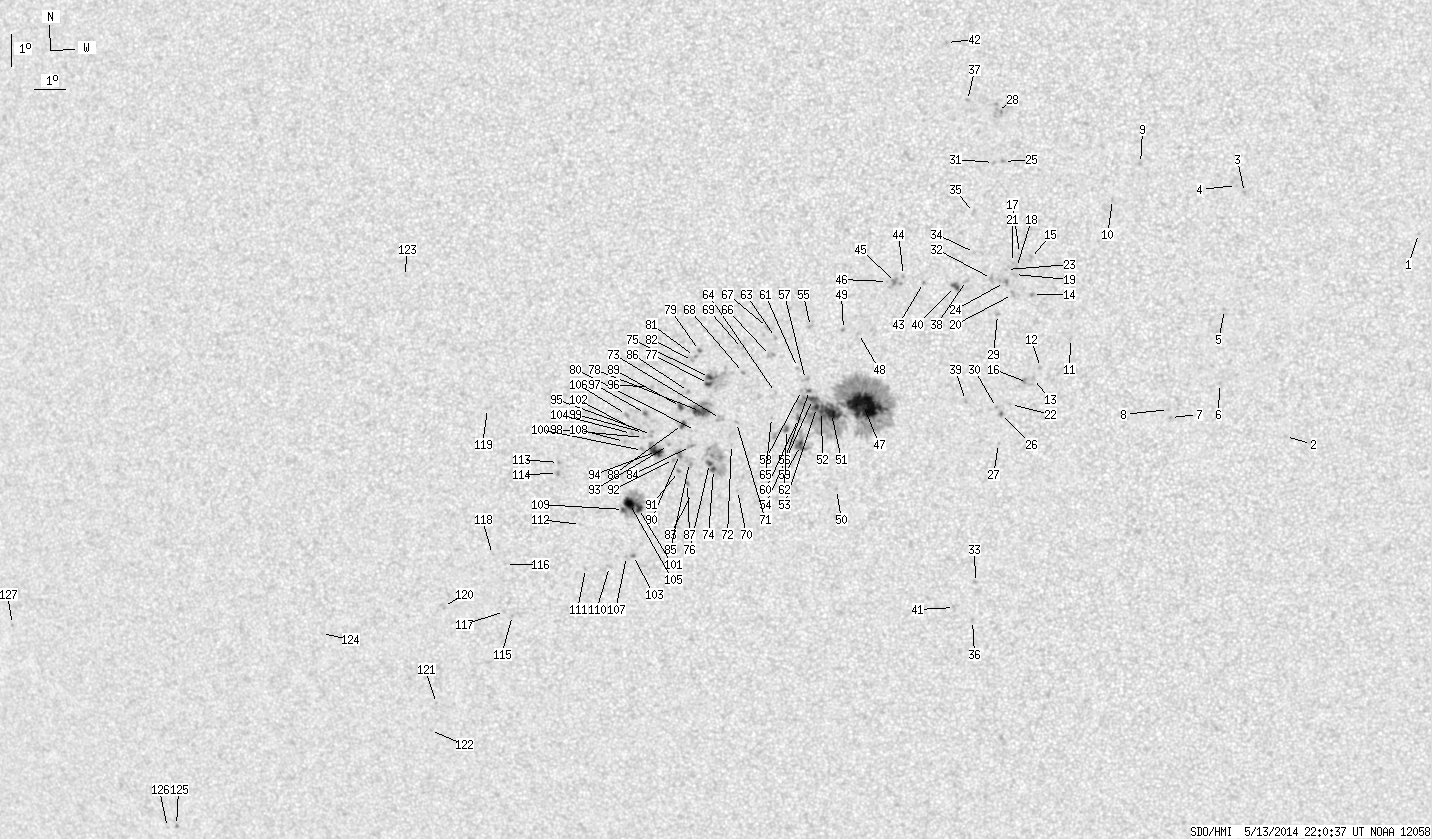

back to the solar disc SDO HMI 2014-05-13 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.55 | -8.95 | 247.45 | 10.41 | 238.93 | 0.2092 | 728.0 | 580.1 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -15.21 | 243.47 | 6.43 | 206.70 | 0.2414 | 808.0 | 541.7 | |
| 0.00 | 1.79 | 0.00 | 0.90 | -7.73 | 242.05 | 5.01 | 225.25 | 0.1223 | 853.0 | 570.2 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -7.52 | 241.81 | 4.76 | 225.08 | 0.1167 | 843.0 | 710.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -11.30 | 241.48 | 4.44 | 207.20 | 0.1667 | 922.0 | 638.4 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.58 | 241.36 | 4.32 | 201.40 | 0.2014 | 633.0 | 536.4 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -14.63 | 239.84 | 2.80 | 193.00 | 0.2109 | 905.0 | 717.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -14.38 | 239.78 | 2.73 | 192.98 | 0.2065 | 882.0 | 705.2 | |
| 0.00 | 1.35 | 0.00 | 0.67 | -6.86 | 238.87 | 1.82 | 204.16 | 0.0774 | 893.0 | 755.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -7.95 | 238.01 | 0.97 | 190.60 | 0.0913 | 816.0 | 683.8 | |
| 0.00 | 1.52 | 0.00 | 0.77 | -12.19 | 236.72 | -0.33 | 178.04 | 0.1636 | 758.0 | 699.8 | |
| 0.00 | 1.52 | 0.00 | 0.77 | -13.08 | 235.79 | -1.26 | 173.14 | 0.1802 | 908.0 | 785.2 | |
| 0.00 | 1.79 | 0.00 | 0.90 | -13.42 | 235.57 | -1.48 | 172.22 | 0.1864 | 774.0 | 564.2 | |
| 0.00 | 1.79 | 0.00 | 0.90 | -10.84 | 235.55 | -1.49 | 169.60 | 0.1425 | 1041.0 | 826.2 | |
| 0.00 | 3.59 | 0.00 | 1.79 | -9.74 | 235.50 | -1.55 | 167.53 | 0.1239 | 813.0 | 673.2 | |
| 0.00 | 4.49 | 0.00 | 2.26 | -13.54 | 235.38 | -1.67 | 171.35 | 0.1890 | 468.0 | 787.5 | |
| 0.00 | 0.45 | 0.00 | 0.22 | -9.59 | 235.16 | -1.89 | 164.60 | 0.1228 | 767.0 | 612.2 | |
| 0.00 | 1.70 | 0.00 | 0.85 | -10.02 | 235.07 | -1.98 | 164.79 | 0.1304 | 1092.0 | 880.5 | |
| 0.00 | 2.96 | 0.00 | 1.48 | -10.23 | 235.00 | -2.04 | 164.77 | 0.1342 | 771.0 | 716.5 | |
| 0.00 | 3.14 | 0.00 | 1.57 | -10.84 | 234.94 | -2.11 | 165.46 | 0.1448 | 852.0 | 761.4 | |
| 0.00 | 0.54 | 0.00 | 0.27 | -9.86 | 234.94 | -2.10 | 163.56 | 0.1284 | 746.0 | 642.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -14.22 | 234.84 | -2.21 | 169.31 | 0.2020 | 718.0 | 531.8 | |
| 0.00 | 0.99 | 0.00 | 0.49 | -10.08 | 234.76 | -2.29 | 162.70 | 0.1329 | 853.0 | 718.5 | |
| 0.00 | 3.95 | 0.00 | 1.97 | -10.47 | 234.69 | -2.35 | 163.12 | 0.1398 | 867.0 | 795.6 | |
| 0.00 | 1.52 | 0.00 | 0.76 | -6.79 | 234.69 | -2.36 | 149.44 | 0.0807 | 1090.0 | 911.9 | |
| 0.45 | 1.61 | 0.23 | 0.82 | -14.50 | 234.56 | -2.49 | 168.26 | 0.2076 | 978.6 | 818.8 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -15.43 | 234.45 | -2.60 | 168.68 | 0.2236 | 693.0 | 549.4 | |
| 0.00 | 9.42 | 0.00 | 4.67 | -5.27 | 234.51 | -2.53 | 134.19 | 0.0616 | 810.0 | 807.0 | |
| 0.00 | 1.79 | 0.00 | 0.90 | -11.45 | 234.47 | -2.58 | 163.61 | 0.1571 | 1116.0 | 843.0 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -14.31 | 234.40 | -2.64 | 167.35 | 0.2051 | 874.0 | 709.4 | |
| 0.00 | 1.61 | 0.00 | 0.80 | -6.82 | 234.38 | -2.66 | 146.50 | 0.0840 | 959.0 | 740.8 | |
| 0.00 | 3.95 | 0.00 | 1.97 | -10.35 | 234.29 | -2.75 | 160.16 | 0.1399 | 886.0 | 676.6 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -19.78 | 233.64 | -3.41 | 169.15 | 0.2983 | 795.0 | 594.7 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -9.56 | 233.78 | -3.27 | 154.38 | 0.1306 | 656.0 | 464.3 | |
| 0.00 | 2.78 | 0.00 | 1.39 | -8.34 | 233.76 | -3.29 | 149.45 | 0.1121 | 504.0 | 492.1 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -20.99 | 233.51 | -3.53 | 169.54 | 0.3184 | 795.0 | 635.8 | |
| 0.00 | 1.61 | 0.00 | 0.80 | -4.94 | 233.60 | -3.44 | 121.69 | 0.0706 | 952.0 | 749.8 | |
| 0.00 | 3.14 | 0.00 | 1.57 | -10.41 | 233.52 | -3.53 | 155.39 | 0.1459 | 869.0 | 643.6 | |
| 0.00 | 2.15 | 0.00 | 1.09 | -14.09 | 233.44 | -3.61 | 162.65 | 0.2057 | 818.0 | 691.0 | |
| 2.87 | 5.38 | 1.44 | 2.70 | -10.59 | 233.18 | -3.87 | 153.88 | 0.1513 | 988.9 | 783.7 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -20.57 | 232.94 | -4.11 | 167.60 | 0.3136 | 718.0 | 578.6 | |
| 0.00 | 1.35 | 0.00 | 0.67 | -3.18 | 232.98 | -4.07 | 95.05 | 0.0715 | 826.0 | 658.1 | |
| 0.00 | 1.17 | 0.00 | 0.58 | -10.46 | 232.19 | -4.85 | 147.99 | 0.1577 | -792.0 | -615.8 | |
| 0.00 | 1.52 | 0.00 | 0.77 | -10.25 | 231.58 | -5.47 | 144.07 | 0.1605 | -779.0 | -695.4 | |
| 0.00 | 7.80 | 0.00 | 3.92 | -10.46 | 231.33 | -5.72 | 143.63 | 0.1660 | -1102.0 | -885.3 | |
| 0.00 | 0.72 | 0.00 | 0.36 | -10.43 | 231.08 | -5.97 | 142.36 | 0.1681 | -846.0 | -674.6 | |
| 52.12 | 376.57 | 26.52 | 191.89 | -14.23 | 230.23 | -6.81 | 149.86 | 0.2300 | 1372.7 | 442.7 | |
| 0.00 | 1.88 | 0.00 | 0.95 | -12.01 | 230.14 | -6.90 | 143.69 | 0.1995 | -788.0 | -605.2 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -11.89 | 229.68 | -7.37 | 141.51 | 0.2026 | -1070.0 | -858.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -16.83 | 229.28 | -7.77 | 151.92 | 0.2760 | 872.0 | 678.8 | |
| 10.76 | -47.00 | 5.50 | -47.00 | -14.47 | 229.22 | -7.83 | 146.89 | 0.2426 | 1191.4 | 999999 | |
| 1.08 | -47.00 | 0.55 | -47.00 | -14.40 | 228.90 | -8.14 | 145.71 | 0.2446 | 977.3 | 999999 | |
| 2.51 | -47.00 | 1.28 | -47.00 | -14.28 | 228.75 | -8.30 | 144.92 | 0.2444 | 946.9 | 999999 | |
| 4.04 | -47.00 | 2.06 | -47.00 | -14.03 | 228.63 | -8.41 | 143.93 | 0.2422 | 933.8 | 999999 | |
| 0.00 | 2.51 | 0.00 | 1.27 | -11.79 | 228.65 | -8.40 | 137.55 | 0.2127 | -907.0 | -727.6 | |
| 0.81 | 2.69 | 0.41 | 1.37 | -13.75 | 228.55 | -8.50 | 142.95 | 0.2393 | 1027.3 | 761.0 | |
| 0.00 | 3.95 | 0.00 | 2.01 | -13.41 | 228.44 | -8.61 | 141.68 | 0.2359 | 779.0 | 622.2 | |
| 0.00 | 1.52 | 0.00 | 0.78 | -13.75 | 228.30 | -8.75 | 142.14 | 0.2418 | 452.0 | 333.0 | |
| 5.29 | 20.63 | 2.72 | 10.59 | -15.45 | 228.19 | -8.85 | 145.91 | 0.2658 | -1048.3 | -180.0 | |
| 0.81 | -47.00 | 0.41 | -47.00 | -14.62 | 228.17 | -8.88 | 143.91 | 0.2547 | 813.4 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -13.04 | 228.20 | -8.85 | 139.90 | 0.2337 | 691.0 | 591.7 | |
| 1.35 | 8.70 | 0.69 | 4.47 | -14.95 | 227.77 | -9.27 | 143.53 | 0.2632 | 827.9 | 51.5 | |
| 0.00 | 1.70 | 0.00 | 0.87 | -12.11 | 227.54 | -9.50 | 135.11 | 0.2298 | -962.0 | -756.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -13.81 | 227.47 | -9.57 | 139.80 | 0.2513 | -821.0 | -579.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -14.58 | 227.31 | -9.73 | 141.31 | 0.2630 | -802.0 | -589.5 | |
| 0.00 | 4.31 | 0.00 | 2.20 | -12.67 | 227.36 | -9.68 | 136.27 | 0.2385 | -729.0 | -790.4 | |
| 0.00 | 2.42 | 0.00 | 1.23 | -11.80 | 227.30 | -9.74 | 133.42 | 0.2291 | -883.0 | -764.4 | |
| 0.00 | 1.61 | 0.00 | 0.83 | -13.18 | 226.49 | -10.56 | 135.34 | 0.2549 | 868.0 | 710.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -12.44 | 226.49 | -10.56 | 133.17 | 0.2464 | -953.0 | -769.2 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -16.83 | 226.11 | -10.94 | 143.21 | 0.3047 | 753.0 | 531.6 | |
| 0.00 | 1.61 | 0.00 | 0.83 | -14.72 | 226.19 | -10.85 | 138.65 | 0.2769 | -856.0 | -617.0 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -15.40 | 226.00 | -11.05 | 139.79 | 0.2875 | -812.0 | -631.9 | |
| 0.00 | 5.47 | 0.00 | 2.82 | -14.59 | 225.69 | -11.36 | 137.06 | 0.2810 | -692.0 | -732.8 | |
| 1.79 | 39.74 | 0.93 | 20.62 | -16.17 | 225.37 | -11.67 | 140.03 | 0.3038 | -894.9 | -480.4 | |
| 2.60 | 29.78 | 1.34 | 15.31 | -13.32 | 225.40 | -11.64 | 133.01 | 0.2697 | -1131.1 | -590.1 | |
| 1.97 | -74.00 | 1.03 | -74.00 | -15.98 | 225.26 | -11.79 | 139.33 | 0.3028 | -1066.2 | 999999 | |
| 2.24 | -75.00 | 1.15 | -75.00 | -13.51 | 225.36 | -11.68 | 133.42 | 0.2723 | -1156.2 | 999999 | |
| 10.94 | 25.92 | 5.66 | 13.39 | -14.37 | 225.06 | -11.98 | 135.00 | 0.2857 | -1174.5 | -675.9 | |
| 0.54 | 2.15 | 0.28 | 1.11 | -12.49 | 225.13 | -11.92 | 129.95 | 0.2642 | -1074.5 | -782.4 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -14.95 | 224.87 | -12.18 | 136.02 | 0.2948 | -730.0 | -631.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -12.67 | 224.96 | -12.09 | 130.11 | 0.2683 | -1029.0 | -873.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -12.79 | 224.89 | -12.16 | 130.30 | 0.2705 | -970.0 | -794.0 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -16.91 | 224.61 | -12.43 | 139.89 | 0.3211 | -788.0 | -565.1 | |
| 0.00 | 2.96 | 0.00 | 1.54 | -15.45 | 224.68 | -12.37 | 136.77 | 0.3028 | -937.0 | -831.1 | |
| 0.00 | 6.37 | 0.00 | 3.32 | -15.94 | 224.61 | -12.43 | 137.77 | 0.3094 | -771.0 | -664.6 | |
| 0.00 | 1.52 | 0.00 | 0.79 | -13.75 | 224.71 | -12.33 | 132.56 | 0.2830 | -1068.0 | -804.5 | |
| 0.45 | 2.15 | 0.23 | 1.12 | -16.60 | 224.51 | -12.54 | 138.98 | 0.3184 | -920.4 | -737.3 | |
| 2.42 | 3.95 | 1.26 | 2.05 | -14.76 | 224.46 | -12.58 | 134.63 | 0.2974 | -1026.5 | -830.6 | |
| 2.15 | 3.86 | 1.11 | 2.00 | -14.21 | 224.43 | -12.62 | 133.15 | 0.2915 | -1113.2 | -843.7 | |
| 0.00 | 4.57 | 0.00 | 2.38 | -15.69 | 224.31 | -12.74 | 136.52 | 0.3099 | -1040.0 | -948.8 | |
| 0.00 | 1.70 | 0.00 | 0.89 | -16.22 | 224.24 | -12.81 | 137.57 | 0.3168 | -860.0 | -729.7 | |
| 0.00 | 2.15 | 0.00 | 1.12 | -15.85 | 224.10 | -12.94 | 136.43 | 0.3140 | -772.0 | -636.4 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -15.41 | 223.97 | -13.08 | 135.13 | 0.3105 | -810.0 | -645.0 | |
| 8.97 | 13.99 | 4.68 | 7.31 | -15.59 | 223.57 | -13.47 | 134.72 | 0.3173 | -1020.8 | -783.3 | |
| 0.00 | 3.68 | 0.00 | 1.92 | -15.06 | 223.45 | -13.60 | 133.20 | 0.3129 | -719.0 | -836.1 | |
| 0.00 | 2.15 | 0.00 | 1.12 | -13.61 | 223.54 | -13.51 | 129.69 | 0.2963 | -778.0 | -639.3 | |
| 0.90 | 2.33 | 0.47 | 1.21 | -14.41 | 223.30 | -13.75 | 131.29 | 0.3077 | -1127.0 | -943.4 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -15.15 | 223.18 | -13.87 | 132.89 | 0.3171 | -767.0 | -629.8 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -15.00 | 223.19 | -13.85 | 132.53 | 0.3153 | -794.0 | -622.3 | |
| 0.00 | 3.14 | 0.00 | 1.64 | -15.55 | 223.12 | -13.93 | 133.72 | 0.3222 | -703.0 | -557.9 | |
| 4.57 | 46.02 | 2.41 | 24.28 | -17.36 | 222.85 | -14.19 | 137.16 | 0.3457 | 1218.7 | 571.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -14.90 | 222.91 | -14.14 | 131.74 | 0.3177 | -682.0 | -569.1 | |
| 0.54 | 1.52 | 0.29 | 0.81 | -18.83 | 222.56 | -14.48 | 139.51 | 0.3661 | -1107.0 | -972.1 | |
| 0.00 | 1.52 | 0.00 | 0.80 | -15.02 | 222.80 | -14.24 | 131.83 | 0.3203 | -761.0 | -616.7 | |
| 9.33 | -101.00 | 4.93 | -101.00 | -17.20 | 222.57 | -14.47 | 136.29 | 0.3470 | 1197.7 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.08 | -14.43 | 222.68 | -14.37 | 130.15 | 0.3157 | -734.0 | -637.7 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -18.86 | 222.33 | -14.72 | 139.12 | 0.3689 | -884.0 | -738.3 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -15.27 | 222.56 | -14.49 | 131.95 | 0.3259 | -712.0 | -617.9 | |
| 2.06 | -101.00 | 1.09 | -101.00 | -17.38 | 222.36 | -14.69 | 136.27 | 0.3515 | 778.0 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.20 | -19.17 | 221.74 | -15.31 | 138.62 | 0.3788 | -735.0 | -597.9 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -19.22 | 220.93 | -16.11 | 137.31 | 0.3882 | -605.0 | -512.1 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -17.83 | 220.90 | -16.14 | 134.58 | 0.3732 | 612.0 | 459.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -15.89 | 220.35 | -16.69 | 129.53 | 0.3598 | -903.0 | -802.9 | |
| 0.00 | 2.06 | 0.00 | 1.10 | -16.23 | 220.29 | -16.76 | 130.19 | 0.3639 | -749.0 | -697.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -20.67 | 218.30 | -18.75 | 135.77 | 0.4329 | -759.0 | -571.9 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -19.05 | 218.26 | -18.79 | 132.81 | 0.4166 | -652.0 | -490.8 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -20.54 | 218.04 | -19.01 | 135.17 | 0.4344 | -664.0 | -586.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -18.73 | 217.86 | -19.19 | 131.63 | 0.4182 | -708.0 | -591.9 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -14.18 | 218.16 | -18.88 | 122.44 | 0.3734 | -758.0 | -537.8 | |
| 0.00 | 3.32 | 0.00 | 1.85 | -20.35 | 215.97 | -21.08 | 132.05 | 0.4560 | -678.0 | -460.4 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -23.45 | 215.23 | -21.82 | 136.19 | 0.4945 | -606.0 | -445.2 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -24.32 | 214.85 | -22.19 | 137.05 | 0.5072 | -696.0 | -547.9 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -10.08 | 215.78 | -21.26 | 109.95 | 0.3815 | -697.0 | -539.0 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -21.12 | 211.53 | -25.51 | 128.39 | 0.5147 | -671.0 | -490.6 | |
| 0.36 | 1.44 | 0.23 | 0.92 | -27.22 | 204.47 | -32.58 | 131.26 | 0.6391 | -706.2 | -620.9 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -27.28 | 204.09 | -32.96 | 131.05 | 0.6434 | -537.0 | -431.1 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -20.53 | 199.91 | -37.14 | 119.01 | 0.6488 | -581.0 | -544.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
