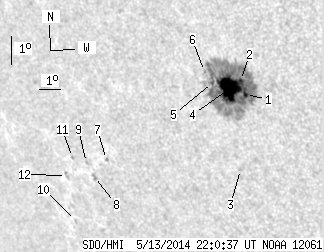

SDO HMI 2014-05-13 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.22 | 230.52 | 27.30 | 166.09 | -23.91 | 194.06 | -42.99 | 120.84 | 0.7277 | 682.3 | 298.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-13 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.15 | 217.08 | 1.53 | 155.05 | -23.97 | 195.11 | -41.94 | 121.37 | 0.7175 | 968.4 | 351.6 | |
| 1.35 | -1.00 | 0.95 | -1.00 | -23.52 | 195.07 | -41.98 | 120.75 | 0.7159 | 1072.3 | 999999 | |
| 0.00 | 1.52 | 0.00 | 1.12 | -26.41 | 193.82 | -43.23 | 123.89 | 0.7412 | 226.0 | 301.5 | |
| 33.82 | -1.00 | 24.17 | -1.00 | -23.76 | 194.48 | -42.57 | 120.81 | 0.7231 | 982.9 | 999999 | |
| 0.90 | -1.00 | 0.65 | -1.00 | -23.54 | 193.80 | -43.25 | 120.23 | 0.7293 | 388.2 | 999999 | |
| 0.00 | 1.52 | 0.00 | 1.10 | -23.17 | 193.59 | -43.46 | 119.66 | 0.7300 | 321.0 | 202.0 | |
| 0.00 | 1.52 | 0.00 | 1.25 | -25.86 | 187.52 | -49.52 | 120.72 | 0.7985 | -634.0 | -536.8 | |
| 0.00 | 2.87 | 0.00 | 2.41 | -26.39 | 186.57 | -50.47 | 121.04 | 0.8086 | -566.0 | -506.8 | |
| 0.00 | 1.44 | 0.00 | 1.20 | -25.92 | 186.43 | -50.61 | 120.43 | 0.8084 | -466.0 | -421.1 | |
| 0.00 | 1.61 | 0.00 | 1.42 | -27.80 | 184.62 | -52.43 | 122.06 | 0.8294 | -548.0 | -406.5 | |
| 0.00 | 0.63 | 0.00 | 0.53 | -25.73 | 185.79 | -51.25 | 120.01 | 0.8135 | -353.0 | -439.6 | |
| 0.00 | 2.33 | 0.00 | 2.01 | -26.30 | 185.11 | -51.94 | 120.47 | 0.8211 | -404.0 | -394.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
