SDO HMI 2014-05-13 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.95 | 131.05 | 49.60 | 124.60 | 10.37 | 179.75 | -57.30 | 76.03 | 0.8547 | 35.0 | 111.0 | |
|
previous
or next observation for the same group /

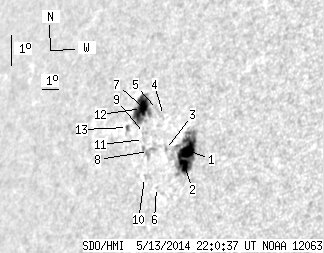

back to the solar disc SDO HMI 2014-05-13 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.48 | 68.62 | 16.87 | 62.79 | 9.94 | 181.13 | -55.92 | 76.26 | 0.8420 | -645.1 | -73.9 | |
| 8.97 | -1.00 | 8.19 | -1.00 | 9.51 | 181.07 | -55.98 | 76.77 | 0.8418 | -466.3 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.61 | 10.02 | 179.87 | -57.18 | 76.41 | 0.8535 | -265.0 | 22.1 | |
| 0.00 | 1.70 | 0.00 | 1.64 | 11.10 | 179.44 | -57.61 | 75.25 | 0.8589 | 304.0 | 315.5 | |
| 0.00 | 3.86 | 0.00 | 3.76 | 11.30 | 179.02 | -58.02 | 75.10 | 0.8628 | 383.0 | 340.1 | |
| 0.00 | 1.08 | 0.00 | 1.02 | 8.86 | 179.65 | -57.39 | 77.80 | 0.8536 | 462.0 | 374.6 | |
| 1.44 | 37.41 | 1.42 | 37.41 | 11.23 | 178.51 | -58.53 | 75.28 | 0.8670 | 666.8 | 411.0 | |
| 0.00 | 9.15 | 0.00 | 8.89 | 10.00 | 178.89 | -58.16 | 76.61 | 0.8620 | 452.0 | 163.3 | |
| 0.00 | 1.79 | 0.00 | 1.77 | 10.58 | 178.48 | -58.57 | 76.03 | 0.8663 | 431.0 | 453.7 | |
| 0.00 | 1.44 | 0.00 | 1.39 | 9.20 | 178.87 | -58.18 | 77.54 | 0.8610 | -258.0 | -154.1 | |
| 0.00 | 1.79 | 0.00 | 1.76 | 10.39 | 178.48 | -58.57 | 76.24 | 0.8661 | 302.0 | 308.0 | |
| 21.98 | -7.00 | 22.02 | -7.00 | 11.37 | 178.04 | -59.00 | 75.21 | 0.8711 | 612.8 | 999999 | |
| 1.08 | 2.51 | 1.10 | 2.56 | 10.81 | 177.38 | -59.67 | 75.97 | 0.8758 | 425.6 | 393.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
