SDO HMI 2014-05-14 02:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.93 | 16.15 | 3.86 | 10.65 | 8.25 | 194.94 | -39.89 | 74.14 | 0.6621 | -43.1 | 308.8 | |
|
previous
or next observation for the same group /

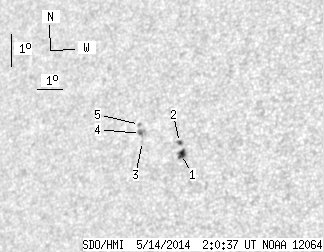

back to the solar disc SDO HMI 2014-05-14 02:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.13 | 6.01 | 2.68 | 3.91 | 7.84 | 195.81 | -39.02 | 74.43 | 0.6498 | -867.6 | -643.9 | |
| 1.17 | 2.24 | 0.76 | 1.46 | 8.21 | 195.69 | -39.14 | 73.92 | 0.6525 | -709.8 | -579.2 | |
| 0.00 | 0.90 | 0.00 | 0.60 | 8.29 | 194.20 | -40.63 | 74.34 | 0.6716 | 631.0 | 548.6 | |
| 0.63 | 5.56 | 0.42 | 3.72 | 8.54 | 194.09 | -40.75 | 74.01 | 0.6737 | 871.1 | 719.0 | |
| 0.00 | 1.44 | 0.00 | 0.96 | 8.82 | 194.01 | -40.82 | 73.63 | 0.6756 | 701.0 | 615.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
