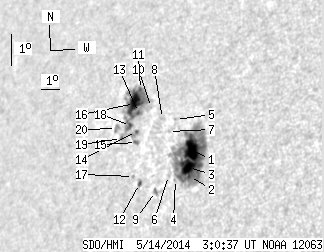

SDO HMI 2014-05-14 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.01 | 245.22 | 50.97 | 214.90 | 10.24 | 180.05 | -54.24 | 75.56 | 0.8263 | -95.7 | 67.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-14 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.73 | 144.95 | 17.53 | 122.56 | 9.86 | 181.44 | -52.85 | 75.71 | 0.8125 | -819.4 | -162.3 | |
| 0.27 | -1.00 | 0.23 | -1.00 | 9.06 | 181.51 | -52.77 | 76.67 | 0.8103 | -762.0 | 999999 | |
| 12.12 | -1.00 | 10.23 | -1.00 | 9.34 | 181.40 | -52.88 | 76.35 | 0.8119 | -835.7 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.38 | 8.99 | 180.81 | -53.48 | 76.90 | 0.8171 | 616.0 | 608.3 | |
| 0.00 | 0.99 | 0.00 | 0.86 | 10.87 | 180.36 | -53.93 | 74.74 | 0.8249 | 330.0 | 328.6 | |
| 0.00 | 1.53 | 0.00 | 1.32 | 9.13 | 180.41 | -53.87 | 76.81 | 0.8212 | 360.0 | 296.2 | |
| 0.00 | 1.08 | 0.00 | 0.94 | 10.51 | 180.08 | -54.20 | 75.24 | 0.8269 | 216.0 | 146.8 | |
| 0.00 | 2.24 | 0.00 | 1.99 | 10.93 | 179.65 | -54.63 | 74.83 | 0.8317 | 274.0 | 229.6 | |
| 0.81 | 2.96 | 0.71 | 2.59 | 8.66 | 179.83 | -54.46 | 77.50 | 0.8261 | 519.0 | 411.0 | |
| 0.00 | 0.54 | 0.00 | 0.49 | 11.30 | 178.95 | -55.33 | 74.55 | 0.8389 | 370.0 | 291.7 | |
| 0.90 | 81.86 | 0.83 | 75.90 | 11.90 | 178.16 | -56.12 | 74.03 | 0.8471 | 576.1 | 394.0 | |
| 1.35 | 2.60 | 1.21 | 2.33 | 8.95 | 178.90 | -55.38 | 77.34 | 0.8353 | -144.9 | -57.5 | |
| 1.26 | -11.00 | 1.16 | -11.00 | 11.18 | 178.27 | -56.02 | 74.85 | 0.8448 | 840.9 | 999999 | |
| 0.99 | -11.00 | 0.90 | -11.00 | 10.58 | 178.33 | -55.96 | 75.53 | 0.8433 | 720.5 | 999999 | |
| 0.99 | -11.00 | 0.90 | -11.00 | 10.24 | 178.42 | -55.86 | 75.91 | 0.8419 | -267.2 | 999999 | |
| 16.34 | -11.00 | 15.18 | -11.00 | 11.47 | 177.96 | -56.33 | 74.57 | 0.8482 | 749.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.06 | 9.18 | 178.52 | -55.76 | 77.14 | 0.8392 | 339.0 | 279.2 | |
| 1.62 | -11.00 | 1.50 | -11.00 | 10.78 | 177.94 | -56.35 | 75.37 | 0.8472 | 833.5 | 999999 | |
| 0.63 | -11.00 | 0.59 | -11.00 | 10.40 | 177.54 | -56.75 | 75.90 | 0.8501 | 516.1 | 999999 | |
| 0.00 | 3.68 | 0.00 | 3.48 | 10.72 | 177.16 | -57.12 | 75.60 | 0.8540 | 626.0 | 441.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
