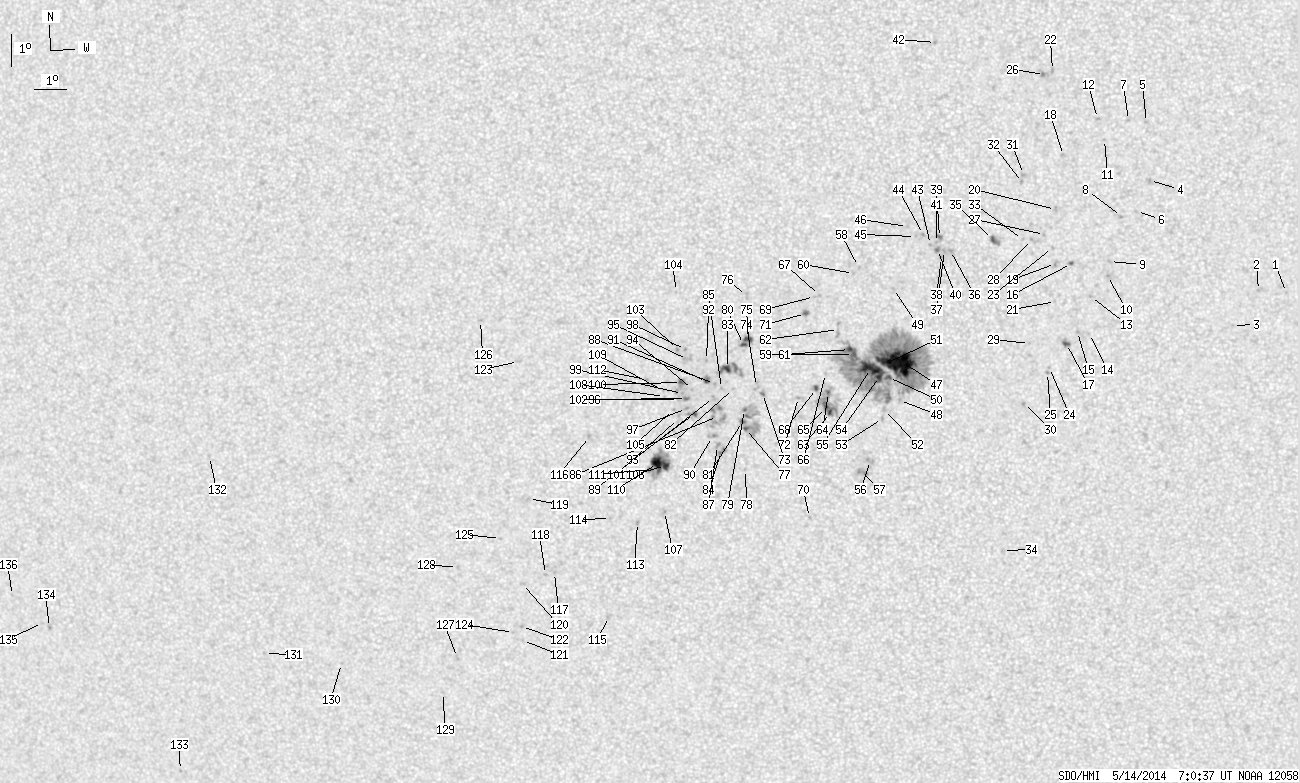

SDO HMI 2014-05-14 07:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.64 | 792.27 | 60.25 | 403.36 | -14.54 | 228.10 | -3.99 | 165.27 | 0.2235 | 189.5 | 112.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-14 07:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.46 | -11.94 | 242.37 | 10.28 | 227.44 | 0.2381 | 734.0 | 546.6 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -11.89 | 241.49 | 9.40 | 225.10 | 0.2266 | 947.0 | 805.9 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -12.97 | 240.71 | 8.62 | 219.41 | 0.2311 | 850.0 | 652.1 | |
| 0.00 | 1.98 | 0.00 | 0.99 | -8.54 | 238.03 | 5.94 | 225.35 | 0.1444 | 884.0 | 674.7 | |
| 0.00 | 1.35 | 0.00 | 0.67 | -6.78 | 237.91 | 5.82 | 235.06 | 0.1234 | 836.0 | 633.7 | |
| 0.00 | 1.35 | 0.00 | 0.67 | -9.49 | 237.64 | 5.55 | 219.09 | 0.1520 | 810.0 | 588.3 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -6.72 | 237.36 | 5.27 | 232.78 | 0.1151 | 923.0 | 684.6 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -9.64 | 237.18 | 5.09 | 216.07 | 0.1492 | 803.0 | 737.5 | |
| 0.00 | 1.62 | 0.00 | 0.81 | -11.02 | 236.83 | 4.74 | 209.41 | 0.1659 | 901.0 | 756.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -11.45 | 236.77 | 4.68 | 207.88 | 0.1719 | 1033.0 | 865.2 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -7.30 | 236.63 | 4.54 | 224.70 | 0.1121 | 931.0 | 716.3 | |
| 0.00 | 1.98 | 0.00 | 0.98 | -6.66 | 236.41 | 4.32 | 227.64 | 0.1017 | 815.0 | 703.7 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -12.09 | 236.26 | 4.16 | 203.63 | 0.1780 | 958.0 | 834.7 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -13.23 | 236.24 | 4.15 | 201.18 | 0.1959 | 685.0 | 513.5 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -13.17 | 235.87 | 3.78 | 199.52 | 0.1927 | 829.0 | 607.3 | |
| 0.63 | 2.33 | 0.32 | 1.17 | -11.08 | 235.65 | 3.56 | 202.83 | 0.1579 | 1046.4 | 822.6 | |
| 1.53 | 4.94 | 0.77 | 2.49 | -13.54 | 235.53 | 3.44 | 197.30 | 0.1969 | 1101.8 | 844.4 | |
| 0.00 | 1.98 | 0.00 | 0.98 | -7.79 | 235.38 | 3.29 | 212.92 | 0.1050 | 918.0 | 721.6 | |
| 0.00 | 2.69 | 0.00 | 1.35 | -11.08 | 235.16 | 3.07 | 199.93 | 0.1548 | 859.0 | 658.6 | |
| 0.00 | 1.98 | 0.00 | 0.99 | -9.43 | 235.14 | 3.05 | 204.32 | 0.1282 | 878.0 | 790.0 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -12.25 | 235.17 | 3.08 | 197.66 | 0.1739 | 777.0 | 548.9 | |
| 0.00 | 1.62 | 0.00 | 0.80 | -5.21 | 235.03 | 2.94 | 230.02 | 0.0669 | 987.0 | 853.1 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -10.60 | 235.06 | 2.97 | 200.48 | 0.1463 | 814.0 | 616.4 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -14.28 | 235.01 | 2.92 | 193.86 | 0.2067 | 821.0 | 668.9 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -14.44 | 234.95 | 2.85 | 193.40 | 0.2091 | 982.0 | 732.4 | |
| 0.00 | 3.14 | 0.00 | 1.56 | -5.33 | 234.79 | 2.70 | 226.19 | 0.0652 | 1184.0 | 943.2 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -10.20 | 234.81 | 2.72 | 199.84 | 0.1383 | 789.0 | 650.8 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -10.35 | 234.41 | 2.32 | 196.78 | 0.1386 | 1050.0 | 900.9 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -13.54 | 234.37 | 2.28 | 191.69 | 0.1920 | 931.0 | 736.0 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -15.40 | 234.20 | 2.11 | 189.22 | 0.2227 | 994.0 | 834.7 | |
| 0.00 | 2.42 | 0.00 | 1.21 | -8.37 | 234.16 | 2.07 | 200.04 | 0.1045 | 842.0 | 700.1 | |
| 0.00 | 0.81 | 0.00 | 0.40 | -8.61 | 234.13 | 2.04 | 199.00 | 0.1084 | 976.0 | 772.2 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -10.35 | 234.14 | 2.04 | 194.87 | 0.1373 | 803.0 | 624.9 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -20.01 | 233.57 | 1.48 | 184.69 | 0.2989 | 788.0 | 622.6 | |
| 1.80 | 6.28 | 0.90 | 3.14 | -10.35 | 233.21 | 1.12 | 188.28 | 0.1341 | 1010.0 | 821.6 | |
| 0.00 | 1.80 | 0.00 | 0.90 | -10.69 | 231.92 | -0.17 | 178.76 | 0.1386 | -922.0 | -794.2 | |
| 0.00 | 1.80 | 0.00 | 0.90 | -10.69 | 231.73 | -0.36 | 177.45 | 0.1387 | -1010.0 | -863.5 | |
| 0.00 | 1.17 | 0.00 | 0.58 | -10.90 | 231.64 | -0.45 | 176.87 | 0.1425 | -997.0 | -864.8 | |
| 0.00 | 3.41 | 0.00 | 1.70 | -10.29 | 231.58 | -0.51 | 176.17 | 0.1319 | -1239.0 | -932.1 | |
| 0.00 | 3.32 | 0.00 | 1.66 | -10.66 | 231.52 | -0.57 | 175.90 | 0.1383 | -1240.0 | -985.9 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -10.44 | 231.49 | -0.60 | 175.56 | 0.1347 | -968.0 | -731.7 | |
| 0.00 | 1.44 | 0.00 | 0.71 | -4.36 | 231.47 | -0.62 | 158.91 | 0.0301 | 1033.0 | 788.8 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -10.50 | 231.30 | -0.79 | 174.26 | 0.1360 | -936.0 | -728.9 | |
| 0.00 | 1.35 | 0.00 | 0.67 | -10.20 | 231.09 | -1.00 | 172.41 | 0.1312 | -1020.0 | -833.2 | |
| 0.00 | 0.81 | 0.00 | 0.40 | -10.26 | 230.84 | -1.25 | 170.66 | 0.1328 | -778.0 | -626.1 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -9.95 | 230.60 | -1.49 | 168.40 | 0.1284 | -789.0 | -572.2 | |
| 34.65 | 409.10 | 17.52 | 206.95 | -14.13 | 230.41 | -1.68 | 171.79 | 0.2000 | 1479.4 | 452.6 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -15.30 | 230.31 | -1.78 | 172.13 | 0.2202 | 699.0 | 550.0 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -11.85 | 230.15 | -1.94 | 168.15 | 0.1621 | -884.0 | -662.6 | |
| 1.98 | -47.00 | 1.00 | -47.00 | -14.59 | 229.97 | -2.12 | 170.08 | 0.2091 | 963.1 | 999999 | |
| 13.29 | -47.00 | 6.72 | -47.00 | -14.12 | 229.94 | -2.15 | 169.55 | 0.2013 | 1300.1 | 999999 | |
| 0.00 | 2.69 | 0.00 | 1.37 | -15.58 | 229.83 | -2.26 | 170.29 | 0.2262 | 304.0 | 216.8 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -15.86 | 229.77 | -2.33 | 170.23 | 0.2311 | 845.0 | 665.7 | |
| 4.58 | -47.00 | 2.32 | -47.00 | -14.56 | 229.69 | -2.40 | 168.77 | 0.2094 | 1026.3 | 999999 | |
| 16.88 | -47.00 | 8.54 | -47.00 | -14.31 | 229.41 | -2.68 | 167.24 | 0.2062 | 1199.4 | 999999 | |
| 0.00 | 3.95 | 0.00 | 2.02 | -17.17 | 229.37 | -2.72 | 169.66 | 0.2541 | 602.0 | 772.3 | |
| 0.00 | 5.03 | 0.00 | 2.58 | -17.51 | 229.11 | -2.98 | 168.97 | 0.2607 | 926.0 | 758.1 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -11.17 | 229.07 | -3.02 | 160.56 | 0.1558 | -775.0 | -630.4 | |
| 2.51 | -47.00 | 1.27 | -47.00 | -13.87 | 228.88 | -3.21 | 164.27 | 0.2012 | 1095.2 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -11.38 | 228.92 | -3.17 | 160.11 | 0.1602 | -791.0 | -707.8 | |
| 2.24 | -47.00 | 1.13 | -47.00 | -13.72 | 228.76 | -3.33 | 163.47 | 0.1993 | 1010.4 | 999999 | |
| 0.00 | 5.84 | 0.00 | 2.94 | -13.10 | 228.43 | -3.66 | 160.89 | 0.1909 | 670.0 | 659.4 | |
| 1.80 | 36.81 | 0.91 | 18.73 | -15.67 | 228.13 | -3.96 | 163.42 | 0.2342 | -848.7 | -118.5 | |
| 0.72 | -63.00 | 0.37 | -63.00 | -15.05 | 228.08 | -4.01 | 162.39 | 0.2244 | 827.1 | 999999 | |
| 1.44 | -63.00 | 0.73 | -63.00 | -15.51 | 228.01 | -4.08 | 162.73 | 0.2323 | -1100.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -14.46 | 228.00 | -4.09 | 161.18 | 0.2153 | 771.0 | 606.2 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -12.05 | 227.85 | -4.24 | 155.91 | 0.1778 | -879.0 | -694.2 | |
| 1.35 | 4.13 | 0.68 | 2.10 | -14.92 | 227.70 | -4.39 | 160.68 | 0.2244 | 821.8 | 505.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -12.08 | 227.70 | -4.39 | 155.20 | 0.1794 | -843.0 | -636.6 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -18.95 | 227.38 | -4.71 | 164.44 | 0.2909 | 770.0 | 565.4 | |
| 0.81 | 3.32 | 0.41 | 1.68 | -12.60 | 227.41 | -4.68 | 155.03 | 0.1896 | -1089.4 | -909.6 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -15.20 | 227.13 | -4.96 | 158.84 | 0.2322 | -855.0 | -692.3 | |
| 0.45 | 2.69 | 0.23 | 1.37 | -15.07 | 226.00 | -6.09 | 154.35 | 0.2378 | -1058.0 | -813.9 | |
| 0.00 | 4.13 | 0.00 | 2.10 | -14.85 | 225.82 | -6.27 | 153.26 | 0.2358 | -536.0 | -632.3 | |
| 3.14 | 8.44 | 1.59 | 4.28 | -13.39 | 225.61 | -6.48 | 149.28 | 0.2160 | -1153.5 | -932.4 | |
| 0.00 | 2.33 | 0.00 | 1.18 | -12.07 | 225.58 | -6.51 | 145.63 | 0.1973 | -664.0 | -633.3 | |
| 1.08 | 18.67 | 0.55 | 9.57 | -16.15 | 225.43 | -6.66 | 154.33 | 0.2584 | -841.6 | -267.6 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.43 | 225.38 | -6.71 | 156.26 | 0.2782 | -702.0 | -571.5 | |
| 0.36 | 16.25 | 0.18 | 8.31 | -15.56 | 225.42 | -6.68 | 153.21 | 0.2496 | -1070.5 | -445.0 | |
| 1.35 | -75.00 | 0.68 | -75.00 | -13.55 | 225.45 | -6.64 | 149.04 | 0.2196 | -1218.7 | 999999 | |
| 1.08 | -77.00 | 0.55 | -77.00 | -15.93 | 225.34 | -6.75 | 153.64 | 0.2558 | -1189.6 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -14.91 | 225.09 | -7.00 | 150.80 | 0.2425 | -754.0 | -515.9 | |
| 3.50 | 19.30 | 1.78 | 9.83 | -14.28 | 224.92 | -7.17 | 148.86 | 0.2349 | -1244.5 | -880.7 | |
| 0.00 | 3.86 | 0.00 | 1.99 | -16.86 | 224.64 | -7.46 | 153.03 | 0.2750 | -806.0 | -843.7 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -14.90 | 224.71 | -7.38 | 149.50 | 0.2457 | -960.0 | -768.4 | |
| 0.00 | 22.26 | 0.00 | 11.42 | -15.77 | 224.55 | -7.54 | 150.76 | 0.2596 | -245.0 | -817.9 | |
| 0.00 | 2.87 | 0.00 | 1.48 | -16.67 | 224.52 | -7.58 | 152.33 | 0.2732 | -853.0 | -713.8 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -14.75 | 224.49 | -7.60 | 148.43 | 0.2453 | -1043.0 | -916.1 | |
| 0.00 | 2.06 | 0.00 | 1.06 | -15.18 | 224.45 | -7.64 | 149.22 | 0.2519 | -910.0 | -788.8 | |
| 0.00 | 4.49 | 0.00 | 2.31 | -16.39 | 224.37 | -7.72 | 151.36 | 0.2702 | -742.0 | -642.7 | |
| 1.17 | 4.85 | 0.60 | 2.48 | -14.68 | 224.24 | -7.85 | 147.46 | 0.2467 | -1227.9 | -1010.6 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -14.03 | 224.27 | -7.82 | 146.02 | 0.2373 | -1057.0 | -820.7 | |
| 1.08 | 5.12 | 0.55 | 2.63 | -15.67 | 223.82 | -8.27 | 148.28 | 0.2644 | -1134.1 | -755.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -14.93 | 223.79 | -8.30 | 146.56 | 0.2543 | -896.0 | -783.2 | |
| 0.00 | 6.82 | 0.00 | 3.48 | -14.00 | 223.67 | -8.42 | 143.97 | 0.2427 | -935.0 | -723.9 | |
| 0.63 | 2.33 | 0.32 | 1.20 | -15.20 | 223.59 | -8.50 | 146.56 | 0.2600 | -1102.7 | -931.6 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -15.51 | 223.58 | -8.51 | 147.19 | 0.2645 | -1096.0 | -828.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -13.69 | 223.62 | -8.47 | 143.02 | 0.2390 | -1030.0 | -785.9 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -15.05 | 223.47 | -8.62 | 145.84 | 0.2590 | -972.0 | -866.7 | |
| 1.53 | 7.63 | 0.78 | 3.91 | -14.71 | 223.45 | -8.64 | 145.01 | 0.2545 | -1199.8 | -837.2 | |
| 0.00 | 3.50 | 0.00 | 1.80 | -15.82 | 223.31 | -8.78 | 147.04 | 0.2712 | -455.0 | -429.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -15.23 | 223.33 | -8.76 | 145.85 | 0.2628 | -631.0 | -542.5 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -13.69 | 223.37 | -8.72 | 142.21 | 0.2416 | -973.0 | -835.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -11.90 | 223.40 | -8.69 | 137.15 | 0.2184 | -908.0 | -713.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -15.54 | 223.16 | -8.93 | 146.01 | 0.2687 | -715.0 | -558.0 | |
| 4.13 | 41.74 | 2.14 | 21.65 | -17.29 | 222.82 | -9.27 | 148.54 | 0.2960 | 1246.0 | 499.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -18.73 | 222.71 | -9.38 | 150.76 | 0.3174 | -824.0 | -686.7 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -15.14 | 222.89 | -9.20 | 144.33 | 0.2657 | -699.0 | -519.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -14.95 | 222.84 | -9.25 | 143.74 | 0.2638 | -625.0 | -530.2 | |
| 12.03 | -106.00 | 6.24 | -106.00 | -17.22 | 222.57 | -9.52 | 147.74 | 0.2974 | 1205.1 | 999999 | |
| 0.90 | -106.00 | 0.47 | -106.00 | -17.41 | 222.33 | -9.76 | 147.46 | 0.3020 | 830.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -14.60 | 222.35 | -9.74 | 141.50 | 0.2643 | -804.0 | -652.5 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -19.07 | 221.81 | -10.28 | 149.08 | 0.3296 | -953.0 | -829.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -18.93 | 220.94 | -11.15 | 146.79 | 0.3354 | -797.0 | -593.2 | |
| 0.00 | 2.78 | 0.00 | 1.49 | -22.05 | 220.67 | -11.42 | 151.01 | 0.3803 | -625.0 | -555.4 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -16.36 | 220.43 | -11.66 | 140.59 | 0.3069 | -765.0 | -626.4 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -20.63 | 218.96 | -13.13 | 145.38 | 0.3758 | -911.0 | -737.0 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -20.69 | 218.66 | -13.43 | 144.88 | 0.3794 | -894.0 | -699.2 | |
| 0.00 | 2.15 | 0.00 | 1.14 | -18.27 | 218.30 | -13.79 | 139.91 | 0.3529 | -822.0 | -497.8 | |
| 0.00 | 2.15 | 0.00 | 1.16 | -20.96 | 217.86 | -14.23 | 143.81 | 0.3904 | -708.0 | -543.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -22.79 | 217.67 | -14.42 | 146.28 | 0.4152 | -723.0 | -528.3 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -22.34 | 217.69 | -14.40 | 145.64 | 0.4094 | -893.0 | -743.7 | |
| 0.00 | 2.15 | 0.00 | 1.12 | -14.00 | 218.29 | -13.80 | 130.31 | 0.3049 | -840.0 | -602.2 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -22.53 | 217.40 | -14.70 | 145.40 | 0.4144 | -779.0 | -607.6 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -19.52 | 217.27 | -14.82 | 140.25 | 0.3787 | -711.0 | -616.8 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -12.73 | 217.15 | -14.94 | 124.77 | 0.3076 | -917.0 | -706.6 | |
| 0.00 | 1.89 | 0.00 | 1.04 | -23.31 | 215.39 | -16.70 | 143.20 | 0.4425 | -411.0 | -411.6 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -20.42 | 215.74 | -16.36 | 139.16 | 0.4052 | -877.0 | -649.6 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -24.44 | 214.75 | -17.35 | 143.84 | 0.4619 | -686.0 | -535.2 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -23.44 | 211.32 | -20.77 | 137.58 | 0.4843 | -607.0 | -514.7 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -23.07 | 208.64 | -23.45 | 133.77 | 0.5090 | -663.0 | -527.5 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -16.78 | 207.72 | -24.37 | 121.96 | 0.4675 | -693.0 | -569.6 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -26.83 | 204.69 | -27.40 | 135.13 | 0.5844 | -645.0 | -627.4 | |
| 0.00 | 1.71 | 0.00 | 1.04 | -22.06 | 200.90 | -31.19 | 125.07 | 0.5886 | -848.0 | -669.1 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -21.89 | 200.68 | -31.41 | 124.65 | 0.5901 | -469.0 | -420.1 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -21.00 | 199.74 | -32.35 | 122.64 | 0.5954 | -515.0 | -445.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
