SDO HMI 2014-05-14 11:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.53 | 287.70 | 31.13 | 158.16 | 15.19 | 248.48 | 18.58 | 314.87 | 0.4356 | -583.6 | -336.9 | |
|
previous
or next observation for the same group /

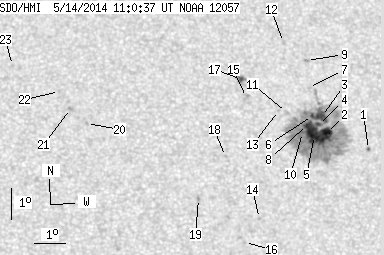

back to the solar disc SDO HMI 2014-05-14 11:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 1.35 | 0.25 | 0.75 | 14.52 | 250.41 | 20.51 | 310.89 | 0.4505 | 900.8 | 762.7 | |
| 11.49 | 257.87 | 6.33 | 141.90 | 15.00 | 249.06 | 19.16 | 313.63 | 0.4398 | -1077.3 | -416.7 | |
| 10.50 | -2.00 | 5.80 | -2.00 | 15.54 | 248.94 | 19.04 | 314.71 | 0.4442 | -891.5 | 999999 | |
| 2.06 | -2.00 | 1.14 | -2.00 | 15.29 | 248.82 | 18.92 | 314.46 | 0.4401 | -1073.8 | 999999 | |
| 24.05 | -2.00 | 13.22 | -2.00 | 14.93 | 248.65 | 18.75 | 314.11 | 0.4344 | -1312.2 | 999999 | |
| 2.06 | -2.00 | 1.14 | -2.00 | 15.57 | 248.65 | 18.75 | 315.20 | 0.4412 | -913.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 16.47 | 248.60 | 18.70 | 316.72 | 0.4504 | -501.0 | -359.7 | |
| 3.77 | -2.00 | 2.07 | -2.00 | 15.28 | 248.45 | 18.55 | 315.00 | 0.4359 | -1059.2 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.00 | 17.33 | 248.63 | 18.73 | 318.04 | 0.4602 | 805.0 | 600.3 | |
| 0.27 | -2.00 | 0.15 | -2.00 | 15.02 | 248.27 | 18.36 | 314.85 | 0.4310 | -1138.3 | 999999 | |
| 0.00 | 2.60 | 0.00 | 1.43 | 15.65 | 247.79 | 17.89 | 316.64 | 0.4327 | -643.0 | -535.1 | |
| 0.00 | 1.80 | 0.00 | 1.00 | 17.91 | 247.92 | 18.02 | 319.97 | 0.4595 | 612.0 | 541.2 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 15.71 | 247.53 | 17.63 | 317.15 | 0.4306 | -711.0 | -490.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 12.28 | 246.64 | 16.74 | 312.43 | 0.3830 | 894.0 | 717.7 | |
| 0.00 | 4.13 | 0.00 | 2.26 | 16.12 | 246.52 | 16.61 | 319.47 | 0.4245 | -799.0 | -539.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 11.53 | 246.11 | 16.21 | 311.80 | 0.3685 | 749.0 | 676.5 | |
| 1.88 | 6.19 | 1.03 | 3.39 | 16.69 | 246.40 | 16.50 | 320.56 | 0.4301 | 910.0 | 498.9 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 14.23 | 245.68 | 15.78 | 317.74 | 0.3936 | 712.0 | 593.8 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 12.89 | 244.71 | 14.81 | 317.07 | 0.3674 | 952.0 | 784.7 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 15.23 | 241.26 | 11.36 | 328.29 | 0.3631 | 935.0 | 767.2 | |
| 0.00 | 1.97 | 0.00 | 1.05 | 15.70 | 240.77 | 10.87 | 330.08 | 0.3656 | 1002.0 | 738.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 16.24 | 240.45 | 10.55 | 331.56 | 0.3707 | 734.0 | 557.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 17.07 | 238.99 | 9.09 | 335.95 | 0.3721 | 794.0 | 586.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
