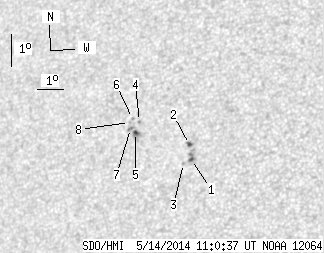

SDO HMI 2014-05-14 11:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.60 | 21.36 | 2.20 | 13.19 | 8.31 | 194.90 | -35.00 | 72.12 | 0.5985 | 242.4 | 34.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-14 11:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.08 | 6.01 | 0.65 | 3.65 | 7.70 | 196.18 | -33.72 | 72.52 | 0.5789 | -887.0 | -694.5 | |
| 1.17 | 2.42 | 0.71 | 1.47 | 8.16 | 196.06 | -33.84 | 71.80 | 0.5824 | -772.8 | -595.2 | |
| 0.00 | 1.17 | 0.00 | 0.71 | 7.58 | 195.90 | -34.00 | 72.85 | 0.5824 | -651.0 | -539.2 | |
| 0.00 | 1.17 | 0.00 | 0.73 | 8.93 | 194.11 | -35.79 | 71.49 | 0.6114 | 778.0 | 763.7 | |
| 1.35 | 6.37 | 0.84 | 3.98 | 8.59 | 194.00 | -35.90 | 72.07 | 0.6116 | 834.1 | 397.9 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 9.03 | 193.84 | -36.06 | 71.46 | 0.6154 | 744.0 | 581.2 | |
| 0.00 | 2.24 | 0.00 | 1.41 | 8.72 | 193.80 | -36.10 | 71.96 | 0.6148 | 860.0 | 637.6 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 8.91 | 193.74 | -36.16 | 71.69 | 0.6163 | 439.0 | 381.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
