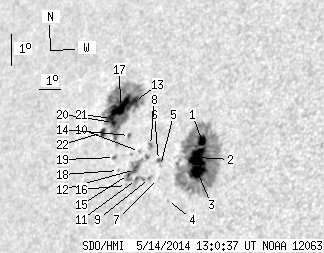

SDO HMI 2014-05-14 13:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.13 | 401.68 | 64.02 | 312.42 | 10.15 | 179.81 | -48.99 | 74.44 | 0.7729 | -47.6 | 38.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-14 13:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.01 | 216.64 | 4.51 | 162.10 | 10.15 | 181.72 | -47.08 | 73.91 | 0.7525 | -698.4 | -216.0 | |
| 21.90 | -1.00 | 16.41 | -1.00 | 9.65 | 181.59 | -47.21 | 74.59 | 0.7528 | -909.6 | 999999 | |
| 16.24 | -1.00 | 12.13 | -1.00 | 9.22 | 181.67 | -47.14 | 75.13 | 0.7508 | -951.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.75 | 8.37 | 180.44 | -48.37 | 76.56 | 0.7625 | 465.0 | 375.4 | |
| 0.00 | 1.79 | 0.00 | 1.39 | 9.47 | 179.91 | -48.89 | 75.28 | 0.7707 | -441.0 | -249.4 | |
| 0.72 | 3.14 | 0.56 | 2.44 | 9.63 | 179.79 | -49.01 | 75.11 | 0.7724 | -512.6 | -353.4 | |
| 0.00 | 0.72 | 0.00 | 0.56 | 9.07 | 179.90 | -48.91 | 75.79 | 0.7700 | 589.0 | 454.4 | |
| 0.63 | 3.68 | 0.49 | 2.89 | 10.11 | 179.31 | -49.49 | 74.62 | 0.7785 | 735.3 | 508.4 | |
| 0.00 | 2.06 | 0.00 | 1.61 | 9.08 | 179.47 | -49.33 | 75.88 | 0.7746 | 490.0 | 434.5 | |
| 0.00 | 1.17 | 0.00 | 0.93 | 9.94 | 178.82 | -49.98 | 74.96 | 0.7833 | -419.0 | -366.3 | |
| 0.81 | 6.73 | 0.64 | 5.31 | 9.08 | 178.85 | -49.95 | 76.04 | 0.7812 | 733.9 | 495.0 | |
| 3.14 | 20.55 | 2.49 | 16.30 | 9.39 | 178.74 | -50.06 | 75.67 | 0.7830 | 807.2 | 313.3 | |
| 3.95 | 138.83 | 3.20 | 113.79 | 11.52 | 178.22 | -50.58 | 73.15 | 0.7932 | 981.9 | 316.9 | |
| 0.63 | 1.79 | 0.51 | 1.45 | 10.46 | 178.22 | -50.58 | 74.46 | 0.7907 | 599.3 | 584.9 | |
| 0.99 | -12.00 | 0.79 | -12.00 | 9.25 | 178.43 | -50.37 | 75.93 | 0.7859 | 639.9 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.64 | 8.91 | 178.40 | -50.40 | 76.36 | 0.7856 | 708.0 | 590.0 | |
| 16.78 | -13.00 | 13.77 | -13.00 | 11.36 | 177.57 | -51.23 | 73.53 | 0.7994 | 824.9 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.65 | 9.39 | 177.92 | -50.89 | 75.87 | 0.7916 | 355.0 | 370.1 | |
| 0.63 | 1.97 | 0.51 | 1.61 | 9.80 | 177.63 | -51.17 | 75.43 | 0.7954 | 577.0 | 483.6 | |
| 1.71 | -13.00 | 1.40 | -13.00 | 10.90 | 177.33 | -51.47 | 74.15 | 0.8007 | 980.9 | 999999 | |
| 4.85 | -13.00 | 4.00 | -13.00 | 11.03 | 177.20 | -51.60 | 74.02 | 0.8023 | 722.5 | 999999 | |
| 3.14 | -13.00 | 2.61 | -13.00 | 10.61 | 176.85 | -51.95 | 74.63 | 0.8049 | 492.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
