SDO HMI 2014-05-14 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.75 | 692.92 | 52.60 | 351.81 | -14.25 | 229.12 | 0.87 | 185.72 | 0.2163 | 162.3 | 138.6 | |
|
previous
or next observation for the same group /

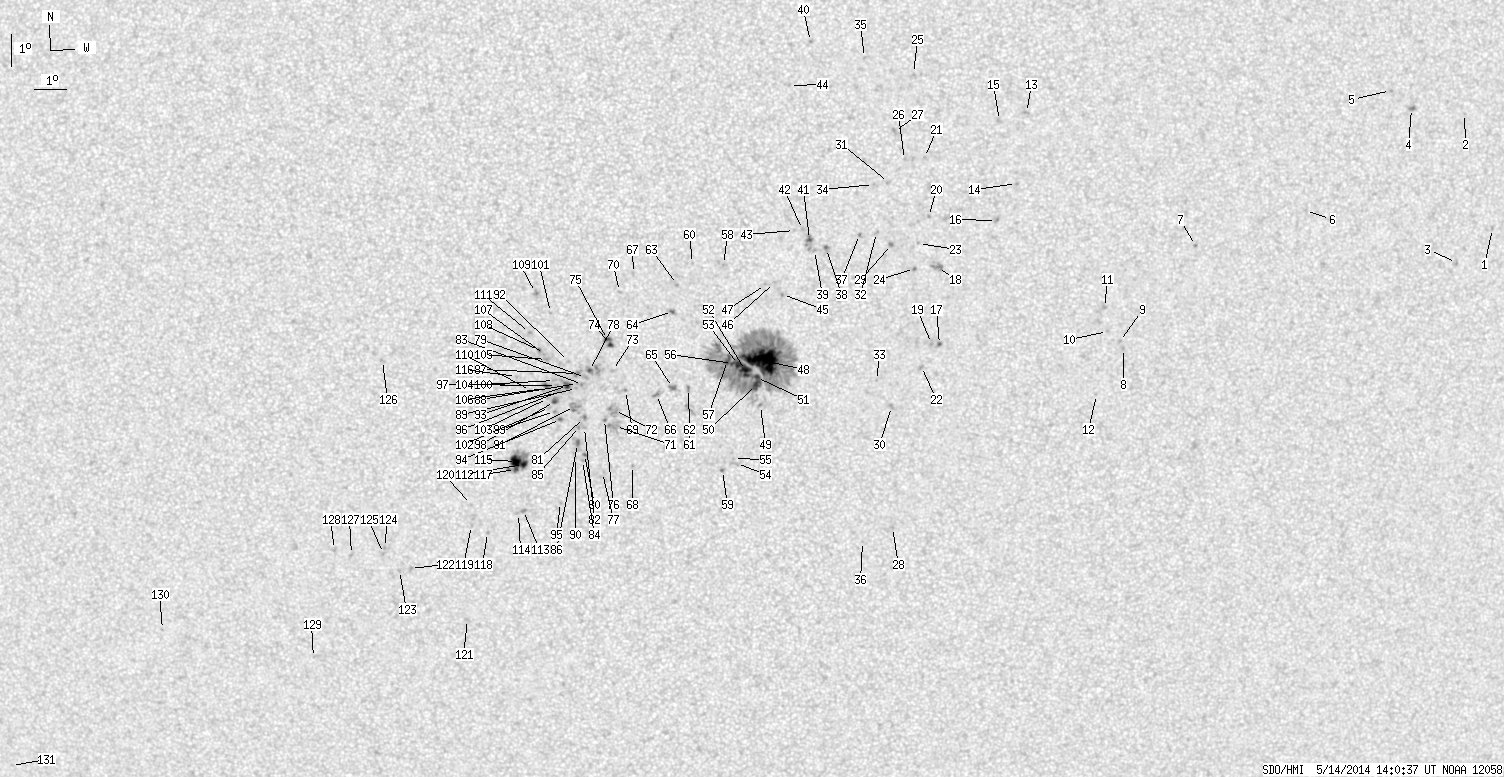

back to the solar disc SDO HMI 2014-05-14 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 0.94 | -9.79 | 253.56 | 25.30 | 253.18 | 0.4419 | 902.0 | 618.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -6.31 | 252.39 | 24.14 | 260.70 | 0.4136 | 738.0 | 605.7 | |
| 0.00 | 2.42 | 0.00 | 1.33 | -10.85 | 252.42 | 24.17 | 250.13 | 0.4294 | -652.0 | -526.4 | |
| 0.00 | 3.23 | 0.00 | 1.73 | -6.19 | 250.62 | 22.37 | 260.42 | 0.3854 | 1004.0 | 791.4 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -5.66 | 249.91 | 21.66 | 261.59 | 0.3729 | -788.0 | -698.0 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -9.34 | 247.31 | 19.06 | 249.94 | 0.3446 | 780.0 | 555.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -10.46 | 243.83 | 15.58 | 242.73 | 0.2984 | 894.0 | 743.4 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -13.64 | 241.70 | 13.44 | 229.86 | 0.2969 | 799.0 | 677.9 | |
| 0.00 | 1.70 | 0.00 | 0.88 | -13.43 | 241.56 | 13.30 | 230.15 | 0.2928 | 822.0 | 699.5 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -13.12 | 241.16 | 12.90 | 230.15 | 0.2845 | 840.0 | 671.6 | |
| 0.00 | 2.06 | 0.00 | 1.06 | -12.39 | 241.02 | 12.77 | 231.98 | 0.2753 | 852.0 | 748.4 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -15.07 | 240.91 | 12.66 | 224.57 | 0.3029 | 768.0 | 615.6 | |
| 0.00 | 2.33 | 0.00 | 1.18 | -6.46 | 238.38 | 10.13 | 249.40 | 0.1876 | 935.0 | 742.9 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -8.62 | 238.12 | 9.87 | 238.65 | 0.1993 | 736.0 | 595.9 | |
| 0.00 | 2.60 | 0.00 | 1.31 | -6.71 | 237.55 | 9.30 | 246.47 | 0.1759 | 840.0 | 696.3 | |
| 0.00 | 1.70 | 0.00 | 0.86 | -9.75 | 237.53 | 9.28 | 232.31 | 0.2017 | 1043.0 | 911.9 | |
| 0.63 | 1.62 | 0.32 | 0.82 | -13.56 | 235.86 | 7.61 | 214.35 | 0.2291 | 1038.0 | 885.6 | |
| 0.00 | 6.28 | 0.00 | 3.17 | -11.20 | 235.73 | 7.48 | 220.86 | 0.1960 | 1127.0 | 869.1 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.53 | 235.61 | 7.35 | 213.54 | 0.2263 | 903.0 | 789.6 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -9.64 | 235.41 | 7.16 | 225.55 | 0.1730 | 981.0 | 771.4 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -7.84 | 235.26 | 7.01 | 233.50 | 0.1510 | 920.0 | 758.9 | |
| 0.00 | 2.06 | 0.00 | 1.05 | -14.24 | 235.31 | 7.06 | 210.80 | 0.2338 | 750.0 | 652.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -10.47 | 235.12 | 6.87 | 221.09 | 0.1798 | -691.0 | -516.0 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -11.23 | 235.01 | 6.76 | 217.95 | 0.1887 | 980.0 | 885.5 | |
| 0.00 | 0.72 | 0.00 | 0.36 | -5.30 | 234.89 | 6.64 | 248.64 | 0.1241 | 727.0 | 671.0 | |
| 0.00 | 1.35 | 0.00 | 0.67 | -7.91 | 234.64 | 6.39 | 230.64 | 0.1433 | 744.0 | 605.1 | |
| 0.00 | 2.87 | 0.00 | 1.43 | -7.06 | 234.33 | 6.07 | 234.23 | 0.1300 | 947.0 | 727.5 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -19.28 | 234.56 | 6.31 | 200.00 | 0.3046 | 730.0 | 576.1 | |
| 0.00 | 2.24 | 0.00 | 1.13 | -10.50 | 234.29 | 6.03 | 217.36 | 0.1711 | 1025.0 | 906.1 | |
| 0.00 | 2.42 | 0.00 | 1.24 | -15.49 | 234.40 | 6.15 | 205.04 | 0.2450 | 911.0 | 750.6 | |
| 0.00 | 2.06 | 0.00 | 1.03 | -8.61 | 234.16 | 5.91 | 224.78 | 0.1452 | 871.0 | 700.0 | |
| 0.00 | 1.97 | 0.00 | 0.99 | -10.13 | 233.82 | 5.56 | 216.49 | 0.1612 | 799.0 | 673.9 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -14.68 | 233.91 | 5.66 | 204.70 | 0.2292 | 892.0 | 711.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -8.67 | 233.70 | 5.45 | 222.17 | 0.1405 | 843.0 | 703.7 | |
| 0.00 | 1.62 | 0.00 | 0.80 | -4.82 | 233.39 | 5.14 | 247.73 | 0.0968 | 834.0 | 569.1 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -19.72 | 233.61 | 5.35 | 196.72 | 0.3066 | 833.0 | 691.2 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -10.20 | 233.29 | 5.04 | 213.61 | 0.1569 | 830.0 | 698.2 | |
| 0.00 | 3.32 | 0.00 | 1.66 | -10.63 | 232.28 | 4.03 | 206.66 | 0.1545 | -1046.0 | -775.5 | |
| 0.00 | 1.97 | 0.00 | 0.99 | -10.69 | 231.91 | 3.66 | 204.34 | 0.1527 | -1025.0 | -805.4 | |
| 0.00 | 1.08 | 0.00 | 0.53 | -4.34 | 231.74 | 3.49 | 245.20 | 0.0671 | 960.0 | 802.2 | |
| 0.99 | 8.17 | 0.49 | 4.09 | -10.35 | 231.75 | 3.50 | 204.34 | 0.1463 | -1147.2 | -898.5 | |
| 0.00 | 1.62 | 0.00 | 0.81 | -10.05 | 231.53 | 3.28 | 203.85 | 0.1399 | -864.0 | -731.8 | |
| 0.00 | 1.17 | 0.00 | 0.58 | -10.08 | 231.28 | 3.03 | 202.16 | 0.1387 | -782.0 | -476.2 | |
| 0.00 | 1.53 | 0.00 | 0.76 | -5.67 | 231.11 | 2.85 | 224.02 | 0.0716 | 861.0 | 580.5 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -12.04 | 230.93 | 2.68 | 195.78 | 0.1688 | -948.0 | -739.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -11.67 | 230.68 | 2.43 | 194.95 | 0.1616 | -1017.0 | -757.3 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -11.73 | 230.40 | 2.15 | 193.21 | 0.1614 | -1023.0 | -719.1 | |
| 46.12 | 390.80 | 23.32 | 197.64 | -14.07 | 230.33 | 2.07 | 190.12 | 0.2006 | 1399.4 | 450.7 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -15.47 | 230.27 | 2.02 | 188.77 | 0.2240 | 976.0 | 762.0 | |
| 6.55 | -48.00 | 3.32 | -48.00 | -14.81 | 230.14 | 1.89 | 188.67 | 0.2127 | 818.4 | 999999 | |
| 2.78 | -48.00 | 1.41 | -48.00 | -14.60 | 230.14 | 1.89 | 188.82 | 0.2090 | 1081.0 | 999999 | |
| 9.60 | -48.00 | 4.86 | -48.00 | -14.38 | 229.80 | 1.54 | 187.37 | 0.2045 | 1175.5 | 999999 | |
| 4.58 | -48.00 | 2.31 | -48.00 | -14.20 | 229.58 | 1.32 | 186.44 | 0.2009 | 1118.7 | 999999 | |
| 0.00 | 4.58 | 0.00 | 2.34 | -17.27 | 229.53 | 1.28 | 184.85 | 0.2531 | 799.0 | 628.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -17.12 | 229.43 | 1.18 | 184.54 | 0.2503 | 840.0 | 668.1 | |
| 1.53 | -48.00 | 0.77 | -48.00 | -14.16 | 229.39 | 1.14 | 185.55 | 0.2000 | 1039.8 | 999999 | |
| 3.77 | -48.00 | 1.90 | -48.00 | -14.07 | 229.23 | 0.98 | 184.83 | 0.1982 | 1011.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.49 | -11.12 | 229.10 | 0.85 | 185.70 | 0.1472 | -922.0 | -758.7 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -17.49 | 229.09 | 0.83 | 183.12 | 0.2563 | 992.0 | 819.9 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -11.09 | 228.14 | -0.11 | 179.28 | 0.1460 | -827.0 | -614.7 | |
| 0.00 | 5.56 | 0.00 | 2.83 | -15.62 | 228.04 | -0.21 | 179.10 | 0.2240 | -604.0 | -478.0 | |
| 0.00 | 2.15 | 0.00 | 1.09 | -14.94 | 228.01 | -0.24 | 178.91 | 0.2124 | 938.0 | 779.7 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -11.73 | 227.68 | -0.57 | 176.42 | 0.1574 | -822.0 | -711.7 | |
| 0.54 | 2.60 | 0.27 | 1.31 | -12.56 | 227.52 | -0.73 | 175.83 | 0.1719 | -1137.8 | -916.3 | |
| 0.00 | 4.22 | 0.00 | 2.14 | -14.90 | 227.51 | -0.74 | 176.61 | 0.2122 | 905.0 | 691.6 | |
| 0.00 | 3.05 | 0.00 | 1.55 | -15.12 | 227.01 | -1.24 | 174.42 | 0.2165 | -857.0 | -668.1 | |
| 0.00 | 2.06 | 0.00 | 1.03 | -11.39 | 226.32 | -1.93 | 167.63 | 0.1548 | -835.0 | -636.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.33 | 226.23 | -2.02 | 172.39 | 0.2554 | 784.0 | 610.0 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -14.99 | 226.04 | -2.21 | 170.03 | 0.2166 | -1025.0 | -788.4 | |
| 0.00 | 1.62 | 0.00 | 0.81 | -11.94 | 225.88 | -2.37 | 165.82 | 0.1658 | -868.0 | -711.1 | |
| 0.00 | 14.45 | 0.00 | 7.36 | -16.11 | 225.71 | -2.54 | 169.56 | 0.2364 | -180.0 | -205.8 | |
| 0.00 | 12.11 | 0.00 | 6.16 | -15.61 | 225.68 | -2.57 | 169.04 | 0.2281 | -621.0 | -532.3 | |
| 0.00 | 1.79 | 0.00 | 0.91 | -14.37 | 225.64 | -2.61 | 167.65 | 0.2075 | -800.0 | -558.1 | |
| 1.53 | 6.91 | 0.77 | 3.49 | -13.57 | 225.58 | -2.67 | 166.48 | 0.1943 | -1023.2 | -877.2 | |
| 1.79 | -74.00 | 0.91 | -74.00 | -13.42 | 225.49 | -2.76 | 165.83 | 0.1921 | -1140.0 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -15.89 | 225.36 | -2.89 | 167.99 | 0.2338 | -945.0 | -849.6 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -17.55 | 225.27 | -2.98 | 169.04 | 0.2616 | -481.0 | -579.2 | |
| 0.99 | 10.41 | 0.50 | 5.27 | -14.37 | 224.92 | -3.33 | 164.40 | 0.2105 | -1297.4 | -856.4 | |
| 0.00 | 3.14 | 0.00 | 1.59 | -14.59 | 224.79 | -3.46 | 164.12 | 0.2146 | -957.0 | -795.2 | |
| 0.36 | 1.88 | 0.18 | 0.97 | -16.98 | 224.71 | -3.54 | 166.51 | 0.2543 | -1003.5 | -785.5 | |
| 0.00 | 2.87 | 0.00 | 1.46 | -15.83 | 224.73 | -3.52 | 165.40 | 0.2352 | -984.0 | -824.9 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -16.14 | 224.73 | -3.52 | 165.72 | 0.2404 | -659.0 | -613.3 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -14.80 | 224.69 | -3.56 | 163.98 | 0.2186 | -945.0 | -827.4 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -17.17 | 224.64 | -3.61 | 166.45 | 0.2577 | -732.0 | -582.1 | |
| 0.00 | 1.88 | 0.00 | 0.96 | -16.11 | 224.57 | -3.68 | 165.08 | 0.2405 | -921.0 | -829.4 | |
| 0.00 | 5.56 | 0.00 | 2.85 | -16.64 | 224.50 | -3.75 | 165.37 | 0.2495 | -1019.0 | -837.6 | |
| 0.00 | 4.67 | 0.00 | 2.37 | -14.46 | 224.54 | -3.71 | 162.87 | 0.2138 | -1209.0 | -975.0 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -14.77 | 224.53 | -3.72 | 163.27 | 0.2189 | -955.0 | -799.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -14.93 | 224.50 | -3.75 | 163.34 | 0.2215 | -905.0 | -776.7 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -17.07 | 224.42 | -3.83 | 165.56 | 0.2570 | -650.0 | -526.0 | |
| 0.00 | 6.82 | 0.00 | 3.47 | -15.48 | 224.43 | -3.83 | 163.76 | 0.2310 | -1049.0 | -895.3 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -14.09 | 224.26 | -3.99 | 161.10 | 0.2092 | -1014.0 | -692.7 | |
| 2.78 | 6.91 | 1.41 | 3.51 | -14.83 | 224.22 | -4.03 | 162.04 | 0.2214 | -1241.5 | -913.3 | |
| 0.45 | 1.62 | 0.23 | 0.82 | -15.89 | 223.98 | -4.28 | 162.52 | 0.2398 | -1008.6 | -849.6 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -18.48 | 223.91 | -4.34 | 165.20 | 0.2821 | -620.0 | -501.2 | |
| 0.00 | 3.50 | 0.00 | 1.78 | -15.02 | 223.96 | -4.29 | 161.26 | 0.2258 | -951.0 | -808.9 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -14.83 | 223.87 | -4.38 | 160.61 | 0.2233 | -864.0 | -742.8 | |
| 1.44 | 4.49 | 0.73 | 2.28 | -15.33 | 223.80 | -4.45 | 161.06 | 0.2317 | -1079.8 | -893.9 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -15.64 | 223.79 | -4.46 | 161.47 | 0.2367 | -770.0 | -690.7 | |
| 0.00 | 2.15 | 0.00 | 1.09 | -14.68 | 223.81 | -4.44 | 160.12 | 0.2212 | -892.0 | -739.4 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -12.58 | 223.73 | -4.52 | 155.79 | 0.1884 | -722.0 | -570.7 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -15.51 | 223.64 | -4.61 | 160.70 | 0.2356 | -603.0 | -533.1 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -15.23 | 223.58 | -4.67 | 160.06 | 0.2314 | -648.0 | -531.7 | |
| 1.53 | 3.14 | 0.78 | 1.60 | -14.83 | 223.56 | -4.69 | 159.34 | 0.2251 | -1160.6 | -926.3 | |
| 0.00 | 1.70 | 0.00 | 0.86 | -14.03 | 223.58 | -4.67 | 158.02 | 0.2123 | -1100.0 | -917.4 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -14.92 | 223.49 | -4.76 | 159.23 | 0.2270 | -668.0 | -658.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -13.87 | 223.52 | -4.73 | 157.49 | 0.2102 | -1025.0 | -827.2 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -13.75 | 223.36 | -4.89 | 156.59 | 0.2093 | -1172.0 | -993.2 | |
| 0.00 | 3.05 | 0.00 | 1.54 | -11.96 | 223.28 | -4.97 | 152.14 | 0.1824 | -943.0 | -840.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -14.98 | 223.05 | -5.20 | 157.59 | 0.2307 | -857.0 | -640.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.19 | 223.06 | -5.19 | 154.14 | 0.2028 | -867.0 | -723.6 | |
| 3.68 | 31.41 | 1.89 | 16.14 | -17.29 | 222.76 | -5.49 | 160.04 | 0.2687 | 1159.5 | 584.4 | |
| 0.00 | 2.33 | 0.00 | 1.21 | -18.73 | 222.72 | -5.53 | 161.68 | 0.2918 | -1042.0 | -786.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -18.82 | 222.55 | -5.70 | 161.28 | 0.2941 | -596.0 | -461.5 | |
| 10.41 | -112.00 | 5.35 | -112.00 | -17.19 | 222.54 | -5.71 | 159.18 | 0.2685 | 1188.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -14.55 | 222.62 | -5.63 | 155.14 | 0.2269 | -689.0 | -620.6 | |
| 1.70 | -112.00 | 0.88 | -112.00 | -17.44 | 222.50 | -5.75 | 159.39 | 0.2727 | 827.6 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -19.42 | 221.53 | -6.72 | 158.99 | 0.3092 | -862.0 | -712.6 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -19.19 | 221.02 | -7.23 | 157.27 | 0.3089 | -788.0 | -651.3 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -18.53 | 221.05 | -7.20 | 156.45 | 0.2987 | -535.0 | -391.7 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -22.19 | 220.74 | -7.51 | 160.05 | 0.3562 | -807.0 | -605.4 | |
| 0.00 | 2.33 | 0.00 | 1.23 | -20.54 | 218.97 | -9.29 | 153.75 | 0.3431 | -842.0 | -655.0 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -20.60 | 218.60 | -9.65 | 152.96 | 0.3467 | -712.0 | -606.2 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -19.87 | 218.16 | -10.09 | 150.83 | 0.3396 | -1045.0 | -853.7 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -20.06 | 218.11 | -10.14 | 151.01 | 0.3427 | -833.0 | -574.9 | |
| 0.00 | 1.97 | 0.00 | 1.01 | -14.02 | 218.41 | -9.84 | 139.83 | 0.2581 | -792.0 | -696.6 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -20.08 | 217.06 | -11.19 | 148.62 | 0.3517 | -767.0 | -655.0 | |
| 0.00 | 2.42 | 0.00 | 1.28 | -19.91 | 216.51 | -11.74 | 147.15 | 0.3542 | -861.0 | -662.0 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -23.36 | 215.51 | -12.74 | 150.19 | 0.4090 | -717.0 | -574.7 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -22.39 | 210.47 | -17.78 | 140.17 | 0.4426 | -601.0 | -510.2 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -26.74 | 204.31 | -23.94 | 138.56 | 0.5496 | -689.0 | -578.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
