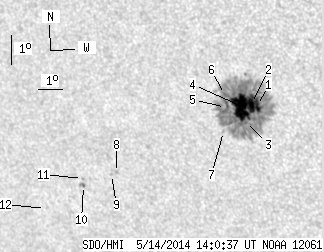

SDO HMI 2014-05-14 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.73 | 265.81 | 35.61 | 170.28 | -23.72 | 193.85 | -34.40 | 125.29 | 0.6356 | 695.6 | 285.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-14 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.83 | 258.35 | 3.70 | 165.02 | -23.65 | 194.62 | -33.63 | 125.69 | 0.6269 | 1145.7 | 314.6 | |
| 10.86 | -1.00 | 6.90 | -1.00 | -23.58 | 194.40 | -33.85 | 125.44 | 0.6289 | 1114.2 | 999999 | |
| 0.27 | -1.00 | 0.17 | -1.00 | -24.19 | 193.98 | -34.28 | 126.01 | 0.6373 | 689.7 | 999999 | |
| 33.65 | -1.00 | 21.51 | -1.00 | -23.67 | 193.97 | -34.28 | 125.28 | 0.6341 | 966.5 | 999999 | |
| 4.31 | -1.00 | 2.77 | -1.00 | -23.68 | 193.33 | -34.93 | 124.88 | 0.6414 | 144.3 | 999999 | |
| 0.27 | -1.00 | 0.17 | -1.00 | -23.26 | 193.41 | -34.84 | 124.34 | 0.6379 | 140.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -24.46 | 193.00 | -35.25 | 125.74 | 0.6496 | -233.0 | -198.5 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -25.67 | 188.02 | -40.24 | 124.48 | 0.7086 | -709.0 | -573.1 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -25.73 | 187.77 | -40.48 | 124.43 | 0.7114 | -667.0 | -549.2 | |
| 0.54 | 2.69 | 0.39 | 1.94 | -26.05 | 186.38 | -41.88 | 124.15 | 0.7269 | -755.2 | -571.1 | |
| 0.00 | 1.17 | 0.00 | 0.84 | -25.82 | 186.43 | -41.82 | 123.88 | 0.7253 | -638.0 | -527.9 | |
| 0.00 | 0.36 | 0.00 | 0.27 | -26.75 | 184.29 | -43.96 | 124.05 | 0.7505 | -456.0 | -464.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
