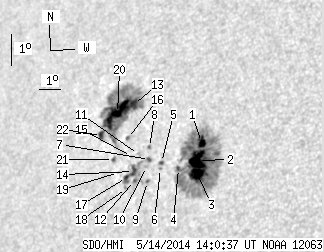

SDO HMI 2014-05-14 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.71 | 396.72 | 73.09 | 304.78 | 10.17 | 179.86 | -48.39 | 74.25 | 0.7664 | 114.1 | -39.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-14 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.91 | 223.26 | 5.13 | 165.27 | 10.19 | 181.67 | -46.58 | 73.71 | 0.7471 | -700.1 | -264.0 | |
| 18.04 | -1.00 | 13.38 | -1.00 | 9.63 | 181.59 | -46.66 | 74.46 | 0.7466 | -934.5 | 999999 | |
| 10.68 | -1.00 | 7.90 | -1.00 | 9.23 | 181.66 | -46.59 | 74.97 | 0.7448 | -1007.4 | 999999 | |
| 1.53 | -1.00 | 1.15 | -1.00 | 9.42 | 180.77 | -47.48 | 74.97 | 0.7552 | -319.3 | 999999 | |
| 1.08 | 2.24 | 0.82 | 1.72 | 9.63 | 179.95 | -48.31 | 74.92 | 0.7647 | -406.9 | -175.2 | |
| 0.00 | 1.26 | 0.00 | 0.96 | 9.45 | 179.93 | -48.32 | 75.16 | 0.7644 | -312.0 | -205.5 | |
| 1.17 | 2.69 | 0.90 | 2.09 | 9.75 | 179.36 | -48.89 | 74.92 | 0.7713 | -335.8 | -155.1 | |
| 0.45 | 1.70 | 0.35 | 1.33 | 10.12 | 179.29 | -48.96 | 74.47 | 0.7730 | 686.8 | 527.2 | |
| 0.63 | 1.79 | 0.49 | 1.39 | 9.06 | 179.40 | -48.85 | 75.79 | 0.7694 | 607.4 | 495.3 | |
| 0.00 | 1.53 | 0.00 | 1.18 | 9.53 | 179.26 | -48.99 | 75.22 | 0.7719 | 353.0 | 374.9 | |
| 0.00 | 1.17 | 0.00 | 0.91 | 9.92 | 178.81 | -49.44 | 74.85 | 0.7776 | -433.0 | -312.5 | |
| 0.81 | 4.31 | 0.63 | 3.36 | 9.12 | 178.77 | -49.48 | 75.87 | 0.7762 | 766.7 | 585.1 | |
| 6.28 | 133.53 | 5.02 | 108.23 | 11.50 | 178.21 | -50.04 | 73.03 | 0.7875 | 981.4 | 274.8 | |
| 3.77 | 16.51 | 2.96 | 12.97 | 9.40 | 178.67 | -49.58 | 75.54 | 0.7779 | 626.2 | 425.5 | |
| 0.00 | 0.72 | 0.00 | 0.57 | 9.87 | 178.48 | -49.77 | 74.99 | 0.7809 | -180.0 | -120.0 | |
| 0.63 | 2.24 | 0.50 | 1.79 | 10.44 | 178.17 | -50.08 | 74.36 | 0.7855 | 676.6 | 559.3 | |
| 2.15 | -14.00 | 1.70 | -14.00 | 9.23 | 178.37 | -49.88 | 75.83 | 0.7807 | 688.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.92 | 8.88 | 178.44 | -49.81 | 76.25 | 0.7793 | 685.0 | 572.2 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 9.40 | 177.95 | -50.30 | 75.72 | 0.7855 | 390.0 | 441.0 | |
| 35.18 | -13.00 | 28.57 | -13.00 | 11.25 | 177.50 | -50.76 | 73.54 | 0.7943 | 742.7 | 999999 | |
| 0.81 | 2.33 | 0.65 | 1.88 | 9.81 | 177.63 | -50.63 | 75.28 | 0.7898 | 554.8 | 486.8 | |
| 3.59 | -13.00 | 2.94 | -13.00 | 10.59 | 176.86 | -51.39 | 74.52 | 0.7992 | 553.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
