SDO HMI 2014-05-14 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.18 | 666.78 | 50.26 | 338.76 | -14.44 | 228.99 | 1.29 | 187.67 | 0.2187 | 260.6 | 162.7 | |
|
previous
or next observation for the same group /

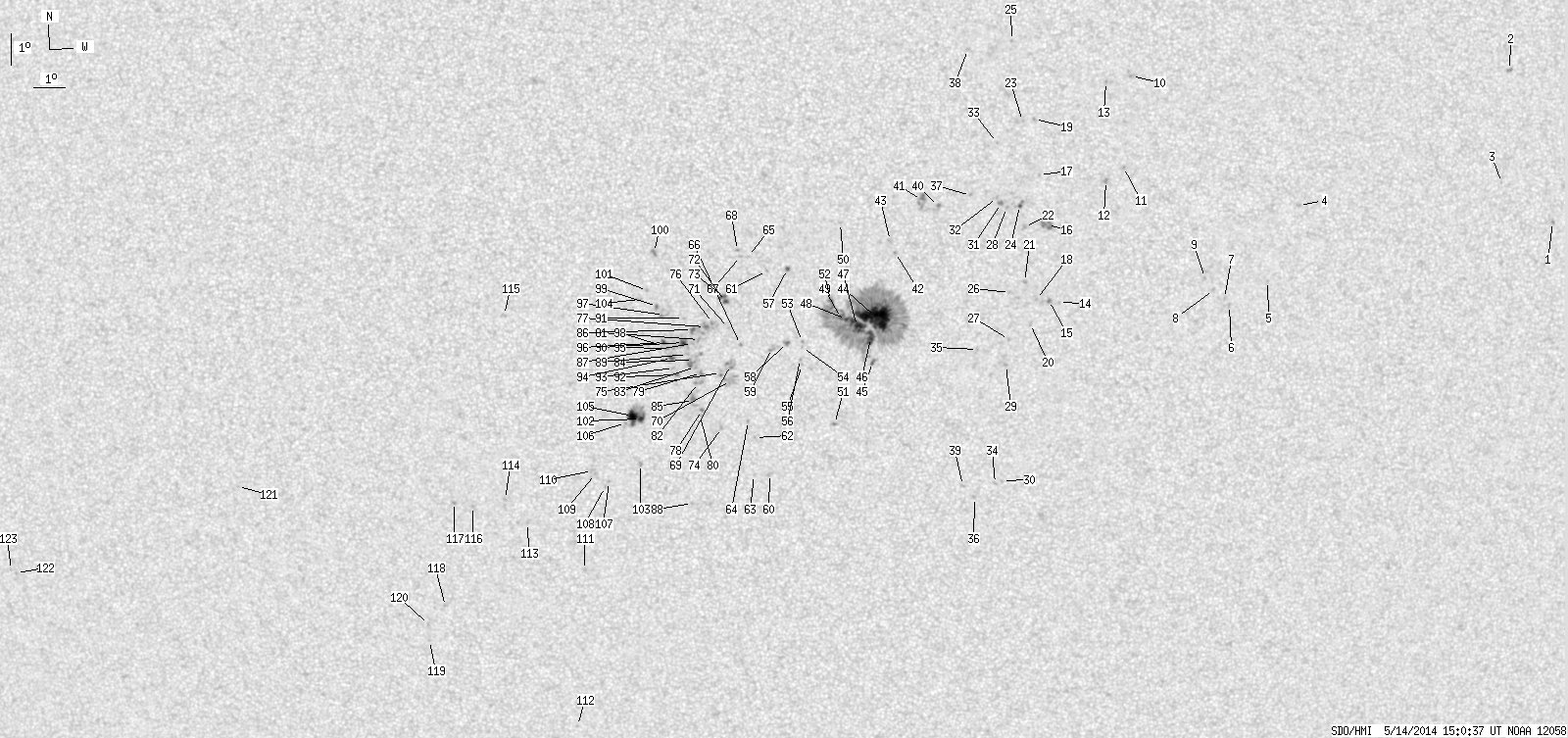

back to the solar disc SDO HMI 2014-05-14 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.84 | -10.87 | 252.38 | 24.68 | 250.42 | 0.4371 | -841.0 | -735.2 | |
| 0.00 | 2.15 | 0.00 | 1.16 | -6.18 | 250.60 | 22.90 | 260.62 | 0.3938 | 936.0 | 819.1 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -9.68 | 250.54 | 22.84 | 251.95 | 0.4041 | 775.0 | 646.2 | |
| 0.00 | 1.70 | 0.00 | 0.89 | -10.48 | 243.82 | 16.12 | 243.41 | 0.3067 | 886.0 | 618.7 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -12.85 | 242.93 | 15.23 | 235.30 | 0.3129 | 724.0 | 594.6 | |
| 0.00 | 1.88 | 0.00 | 0.98 | -13.64 | 241.72 | 14.02 | 231.02 | 0.3043 | 759.0 | 629.8 | |
| 0.00 | 1.70 | 0.00 | 0.88 | -13.42 | 241.55 | 13.85 | 231.26 | 0.2999 | 866.0 | 724.6 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -13.15 | 241.18 | 13.48 | 231.27 | 0.2923 | 789.0 | 659.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -12.78 | 240.88 | 13.18 | 231.67 | 0.2846 | 911.0 | 803.4 | |
| 0.00 | 2.42 | 0.00 | 1.22 | -6.52 | 238.30 | 10.60 | 249.93 | 0.1955 | 960.0 | 735.6 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -9.35 | 238.12 | 10.42 | 236.99 | 0.2138 | 837.0 | 729.2 | |
| 0.00 | 2.06 | 0.00 | 1.05 | -9.78 | 237.57 | 9.87 | 233.87 | 0.2101 | 1068.0 | 840.7 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -6.70 | 237.50 | 9.80 | 247.52 | 0.1837 | 878.0 | 720.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -13.59 | 236.19 | 8.49 | 217.23 | 0.2382 | 683.0 | 537.8 | |
| 0.00 | 2.33 | 0.00 | 1.19 | -13.53 | 235.87 | 8.17 | 216.36 | 0.2342 | 1083.0 | 839.0 | |
| 0.00 | 8.97 | 0.00 | 4.54 | -11.16 | 235.74 | 8.04 | 223.01 | 0.2020 | 1080.0 | 913.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -9.61 | 235.45 | 7.75 | 227.92 | 0.1800 | 864.0 | 755.0 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -13.50 | 235.46 | 7.76 | 215.05 | 0.2297 | 907.0 | 672.8 | |
| 0.00 | 1.62 | 0.00 | 0.81 | -7.87 | 235.26 | 7.56 | 235.40 | 0.1592 | 1020.0 | 766.4 | |
| 0.00 | 1.97 | 0.00 | 1.01 | -14.27 | 235.30 | 7.60 | 212.59 | 0.2390 | 837.0 | 626.4 | |
| 0.00 | 1.88 | 0.00 | 0.96 | -12.95 | 235.07 | 7.37 | 215.13 | 0.2183 | 975.0 | 834.1 | |
| 0.00 | 3.23 | 0.00 | 1.63 | -11.23 | 235.02 | 7.32 | 220.17 | 0.1947 | 987.0 | 663.3 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -7.93 | 234.90 | 7.20 | 233.73 | 0.1546 | 984.0 | 843.4 | |
| 1.08 | 4.40 | 0.54 | 2.22 | -10.56 | 234.85 | 7.15 | 221.89 | 0.1842 | -589.0 | -261.3 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -5.45 | 234.52 | 6.82 | 248.05 | 0.1281 | 1008.0 | 773.2 | |
| 0.00 | 2.06 | 0.00 | 1.05 | -13.29 | 234.61 | 6.91 | 212.54 | 0.2187 | 909.0 | 707.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -14.77 | 234.62 | 6.92 | 209.15 | 0.2403 | 936.0 | 749.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -10.62 | 234.45 | 6.75 | 220.04 | 0.1804 | 826.0 | 672.5 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -15.58 | 234.55 | 6.85 | 207.30 | 0.2517 | 807.0 | 657.4 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -19.27 | 234.56 | 6.86 | 201.58 | 0.3079 | 725.0 | 558.6 | |
| 0.00 | 2.87 | 0.00 | 1.44 | -10.50 | 234.26 | 6.56 | 219.69 | 0.1768 | 1062.0 | 901.5 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -10.31 | 234.14 | 6.44 | 219.82 | 0.1730 | 958.0 | 765.2 | |
| 0.00 | 0.99 | 0.00 | 0.49 | -8.61 | 234.11 | 6.41 | 227.06 | 0.1514 | 860.0 | 652.5 | |
| 0.00 | 1.70 | 0.00 | 0.89 | -19.37 | 234.34 | 6.64 | 200.83 | 0.3080 | 780.0 | 638.0 | |
| 0.00 | 1.70 | 0.00 | 0.87 | -15.08 | 233.62 | 5.92 | 204.94 | 0.2372 | 853.0 | 685.8 | |
| 0.00 | 1.70 | 0.00 | 0.89 | -19.82 | 233.67 | 5.97 | 198.42 | 0.3112 | 747.0 | 621.7 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -10.26 | 233.30 | 5.60 | 216.20 | 0.1633 | 723.0 | 639.0 | |
| 0.00 | 2.06 | 0.00 | 1.03 | -5.72 | 233.15 | 5.45 | 240.99 | 0.1086 | 879.0 | 630.3 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -19.44 | 233.27 | 5.57 | 197.66 | 0.3032 | 652.0 | 555.5 | |
| 0.00 | 3.32 | 0.00 | 1.67 | -10.60 | 232.28 | 4.58 | 209.84 | 0.1586 | -971.0 | -778.3 | |
| 0.00 | 9.06 | 0.00 | 4.54 | -10.41 | 231.76 | 4.06 | 207.48 | 0.1515 | -779.0 | -914.6 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -12.04 | 230.94 | 3.24 | 198.86 | 0.1717 | -946.0 | -782.4 | |
| 0.00 | 2.15 | 0.00 | 1.08 | -11.67 | 230.78 | 3.08 | 198.71 | 0.1648 | -797.0 | -545.6 | |
| 47.47 | 375.87 | 24.01 | 190.15 | -14.07 | 230.34 | 2.64 | 192.79 | 0.2026 | 1401.8 | 460.5 | |
| 0.99 | 3.41 | 0.50 | 1.73 | -15.50 | 230.26 | 2.56 | 191.02 | 0.2261 | 786.9 | 551.1 | |
| 8.26 | -44.00 | 4.18 | -44.00 | -14.72 | 230.19 | 2.49 | 191.43 | 0.2129 | 964.1 | 999999 | |
| 15.25 | -44.00 | 7.72 | -44.00 | -14.35 | 229.75 | 2.05 | 189.75 | 0.2053 | 1122.3 | 999999 | |
| 1.70 | -44.00 | 0.86 | -44.00 | -14.13 | 229.40 | 1.70 | 188.29 | 0.2007 | 1019.6 | 999999 | |
| 1.53 | -44.00 | 0.77 | -44.00 | -14.10 | 229.25 | 1.55 | 187.56 | 0.1998 | 990.5 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.76 | -11.12 | 229.20 | 1.50 | 189.99 | 0.1488 | -815.0 | -572.3 | |
| 0.00 | 1.70 | 0.00 | 0.87 | -17.46 | 229.04 | 1.34 | 185.03 | 0.2564 | 916.0 | 709.5 | |
| 0.90 | -44.00 | 0.45 | -44.00 | -13.55 | 228.90 | 1.20 | 186.19 | 0.1896 | 1108.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -14.84 | 228.00 | 0.30 | 181.36 | 0.2108 | 981.0 | 787.1 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -15.03 | 228.00 | 0.30 | 181.34 | 0.2140 | 764.0 | 594.0 | |
| 0.00 | 0.72 | 0.00 | 0.36 | -15.59 | 228.00 | 0.30 | 181.28 | 0.2235 | -551.0 | -428.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -15.40 | 227.93 | 0.23 | 181.03 | 0.2203 | -490.0 | -467.7 | |
| 0.90 | 1.88 | 0.45 | 0.95 | -12.56 | 227.53 | -0.17 | 179.03 | 0.1715 | -1099.4 | -968.8 | |
| 0.45 | 3.14 | 0.23 | 1.59 | -14.87 | 227.53 | -0.17 | 179.20 | 0.2113 | 923.4 | 668.6 | |
| 0.00 | 3.50 | 0.00 | 1.77 | -15.06 | 227.02 | -0.68 | 176.94 | 0.2148 | -535.0 | -574.3 | |
| 0.00 | 2.87 | 0.00 | 1.48 | -19.06 | 226.94 | -0.76 | 177.45 | 0.2827 | 849.0 | 643.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -12.62 | 226.88 | -0.82 | 175.34 | 0.1731 | -951.0 | -765.6 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -17.90 | 226.47 | -1.23 | 175.53 | 0.2636 | 840.0 | 631.3 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -19.09 | 226.43 | -1.27 | 175.74 | 0.2837 | 770.0 | 592.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -17.36 | 226.25 | -1.45 | 174.54 | 0.2549 | 869.0 | 700.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -12.16 | 226.29 | -1.41 | 171.66 | 0.1663 | -743.0 | -601.9 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -14.93 | 226.02 | -1.68 | 172.37 | 0.2142 | -945.0 | -809.0 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -12.16 | 226.04 | -1.66 | 170.21 | 0.1669 | -835.0 | -677.4 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -11.97 | 225.95 | -1.75 | 169.48 | 0.1641 | -996.0 | -780.9 | |
| 0.00 | 9.15 | 0.00 | 4.65 | -15.58 | 225.70 | -2.00 | 171.41 | 0.2260 | -438.0 | -581.3 | |
| 0.00 | 12.11 | 0.00 | 6.17 | -16.08 | 225.70 | -2.00 | 171.72 | 0.2344 | -158.0 | -201.9 | |
| 0.00 | 0.72 | 0.00 | 0.36 | -14.41 | 225.65 | -2.05 | 170.29 | 0.2062 | -763.0 | -638.8 | |
| 1.26 | 6.82 | 0.63 | 3.44 | -13.57 | 225.57 | -2.13 | 169.10 | 0.1924 | -1070.9 | -856.5 | |
| 1.79 | -72.00 | 0.91 | -72.00 | -13.42 | 225.47 | -2.23 | 168.48 | 0.1901 | -1080.7 | 999999 | |
| 0.00 | 1.79 | 0.00 | 0.92 | -17.58 | 225.39 | -2.31 | 171.48 | 0.2603 | -867.0 | -705.7 | |
| 0.00 | 2.24 | 0.00 | 1.14 | -15.83 | 225.38 | -2.32 | 170.26 | 0.2310 | -800.0 | -776.2 | |
| 0.00 | 1.97 | 0.00 | 1.00 | -14.25 | 225.15 | -2.55 | 167.82 | 0.2052 | -936.0 | -803.8 | |
| 0.00 | 2.60 | 0.00 | 1.32 | -14.37 | 224.90 | -2.80 | 166.80 | 0.2082 | -1484.0 | -1131.6 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -17.01 | 224.76 | -2.94 | 168.78 | 0.2527 | -1005.0 | -876.7 | |
| 0.00 | 2.69 | 0.00 | 1.37 | -15.83 | 224.75 | -2.95 | 167.69 | 0.2330 | -965.0 | -785.7 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -17.20 | 224.70 | -3.00 | 168.68 | 0.2560 | -767.0 | -637.4 | |
| 0.00 | 1.97 | 0.00 | 1.00 | -14.77 | 224.71 | -2.99 | 166.40 | 0.2157 | -928.0 | -794.1 | |
| 0.00 | 3.86 | 0.00 | 1.97 | -16.14 | 224.65 | -3.05 | 167.58 | 0.2386 | -756.0 | -742.6 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -15.64 | 224.57 | -3.13 | 166.75 | 0.2306 | -774.0 | -752.8 | |
| 0.00 | 10.05 | 0.00 | 5.11 | -15.42 | 224.51 | -3.19 | 166.27 | 0.2273 | -527.0 | -892.6 | |
| 0.00 | 8.34 | 0.00 | 4.27 | -16.70 | 224.49 | -3.21 | 167.46 | 0.2485 | -1000.0 | -804.0 | |
| 1.26 | 8.26 | 0.64 | 4.18 | -14.46 | 224.49 | -3.21 | 165.08 | 0.2114 | -1109.9 | -866.9 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -14.90 | 224.48 | -3.22 | 165.58 | 0.2186 | -954.0 | -739.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -20.00 | 224.39 | -3.31 | 169.64 | 0.3032 | -684.0 | -523.4 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -15.24 | 224.32 | -3.38 | 165.29 | 0.2249 | -987.0 | -804.8 | |
| 2.51 | 9.78 | 1.28 | 4.97 | -14.87 | 224.20 | -3.50 | 164.34 | 0.2194 | -1276.4 | -874.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -14.09 | 224.22 | -3.48 | 163.35 | 0.2066 | -868.0 | -754.0 | |
| 0.45 | 3.23 | 0.23 | 1.65 | -15.89 | 223.96 | -3.74 | 164.61 | 0.2372 | -933.2 | -686.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -15.67 | 223.87 | -3.83 | 163.99 | 0.2341 | -934.0 | -613.0 | |
| 1.44 | 4.67 | 0.73 | 2.37 | -15.36 | 223.82 | -3.88 | 163.37 | 0.2293 | -1058.4 | -807.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -15.05 | 223.67 | -4.03 | 162.34 | 0.2250 | -914.0 | -792.6 | |
| 1.44 | 2.78 | 0.73 | 1.41 | -14.86 | 223.57 | -4.13 | 161.70 | 0.2224 | -1150.0 | -969.7 | |
| 0.00 | 3.77 | 0.00 | 1.91 | -14.00 | 223.59 | -4.11 | 160.42 | 0.2084 | -904.0 | -877.0 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -14.95 | 223.48 | -4.22 | 161.44 | 0.2245 | -545.0 | -650.9 | |
| 0.00 | 1.88 | 0.00 | 0.95 | -13.72 | 223.38 | -4.32 | 159.00 | 0.2052 | -1056.0 | -934.1 | |
| 0.00 | 3.05 | 0.00 | 1.54 | -12.02 | 223.32 | -4.38 | 155.18 | 0.1789 | -1175.0 | -916.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -13.22 | 223.08 | -4.62 | 156.70 | 0.1993 | -904.0 | -689.0 | |
| 2.87 | 27.64 | 1.48 | 14.19 | -17.29 | 222.76 | -4.94 | 161.88 | 0.2658 | 1165.7 | 751.7 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -18.73 | 222.71 | -4.99 | 163.38 | 0.2891 | -930.0 | -727.7 | |
| 0.00 | 2.33 | 0.00 | 1.18 | -13.50 | 222.82 | -4.88 | 156.13 | 0.2054 | -791.0 | -668.8 | |
| 7.63 | -102.00 | 3.92 | -102.00 | -17.19 | 222.51 | -5.19 | 160.91 | 0.2656 | 1207.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -17.41 | 222.28 | -5.42 | 160.42 | 0.2703 | 738.0 | 629.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -19.29 | 221.66 | -6.04 | 160.82 | 0.3034 | -864.0 | -663.6 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -19.45 | 221.53 | -6.17 | 160.61 | 0.3066 | -887.0 | -701.3 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -19.04 | 221.22 | -6.48 | 159.22 | 0.3019 | -891.0 | -766.1 | |
| 0.00 | 2.60 | 0.00 | 1.35 | -18.94 | 221.13 | -6.57 | 158.83 | 0.3010 | -798.0 | -751.2 | |
| 0.00 | 1.70 | 0.00 | 0.90 | -22.16 | 220.72 | -6.98 | 161.32 | 0.3529 | -697.0 | -536.8 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -27.35 | 220.17 | -7.53 | 164.41 | 0.4347 | 641.0 | 528.9 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -20.61 | 218.90 | -8.80 | 155.03 | 0.3406 | -902.0 | -741.1 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -19.84 | 218.20 | -9.50 | 152.22 | 0.3346 | -1016.0 | -819.8 | |
| 0.00 | 2.51 | 0.00 | 1.29 | -13.96 | 218.47 | -9.23 | 141.45 | 0.2509 | -817.0 | -632.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -20.05 | 217.10 | -10.60 | 149.94 | 0.3463 | -808.0 | -714.9 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -19.92 | 216.49 | -11.21 | 148.33 | 0.3497 | -804.0 | -714.2 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -23.31 | 215.91 | -11.79 | 151.97 | 0.4009 | -788.0 | -553.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -24.44 | 215.26 | -12.44 | 152.13 | 0.4213 | -587.0 | -491.6 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -23.92 | 215.28 | -12.42 | 151.52 | 0.4141 | -787.0 | -607.5 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -19.32 | 209.19 | -18.51 | 133.84 | 0.4172 | -618.0 | -506.5 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -21.97 | 200.82 | -26.88 | 128.56 | 0.5383 | -629.0 | -516.4 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -21.87 | 200.66 | -27.04 | 128.25 | 0.5394 | -661.0 | -478.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
