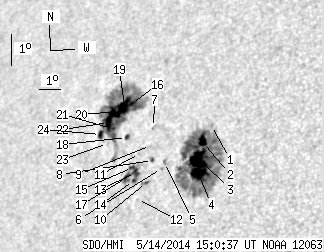

SDO HMI 2014-05-14 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.88 | 406.21 | 71.75 | 309.23 | 10.20 | 179.76 | -47.94 | 74.08 | 0.7615 | 114.0 | -50.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-14 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 1.18 | 10.69 | 181.96 | -45.74 | 72.79 | 0.7390 | -118.0 | -110.4 | |
| 6.19 | 219.57 | 4.55 | 160.88 | 10.20 | 181.66 | -46.04 | 73.53 | 0.7411 | -759.5 | -295.6 | |
| 17.14 | -2.00 | 12.59 | -2.00 | 9.64 | 181.58 | -46.12 | 74.29 | 0.7405 | -959.1 | 999999 | |
| 12.29 | -2.00 | 9.00 | -2.00 | 9.21 | 181.65 | -46.05 | 74.84 | 0.7385 | -986.4 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.22 | 9.61 | 180.05 | -47.65 | 74.77 | 0.7575 | -517.0 | -383.4 | |
| 0.00 | 1.08 | 0.00 | 0.81 | 9.43 | 179.95 | -47.75 | 75.04 | 0.7582 | -297.0 | -190.2 | |
| 0.00 | 2.06 | 0.00 | 1.59 | 10.72 | 179.32 | -48.38 | 73.55 | 0.7682 | -389.0 | -319.0 | |
| 0.81 | 2.06 | 0.62 | 1.58 | 9.69 | 179.48 | -48.22 | 74.82 | 0.7639 | -258.1 | -173.5 | |
| 0.00 | 0.99 | 0.00 | 0.76 | 10.16 | 179.30 | -48.40 | 74.27 | 0.7670 | 513.0 | 404.0 | |
| 0.54 | 1.97 | 0.41 | 1.51 | 9.02 | 179.33 | -48.37 | 75.73 | 0.7640 | 660.7 | 577.1 | |
| 0.00 | 1.17 | 0.00 | 0.90 | 9.93 | 178.83 | -48.87 | 74.69 | 0.7715 | -358.0 | -326.5 | |
| 0.00 | 0.63 | 0.00 | 0.48 | 8.50 | 179.00 | -48.70 | 76.47 | 0.7665 | -178.0 | -185.4 | |
| 3.86 | 22.16 | 2.99 | 17.22 | 9.35 | 178.75 | -48.95 | 75.45 | 0.7710 | 829.1 | 531.9 | |
| 1.08 | -13.00 | 0.83 | -13.00 | 9.10 | 178.70 | -49.00 | 75.78 | 0.7710 | 685.5 | 999999 | |
| 1.97 | -13.00 | 1.54 | -13.00 | 9.51 | 178.58 | -49.12 | 75.29 | 0.7732 | 106.0 | 999999 | |
| 4.94 | 147.51 | 3.91 | 118.12 | 11.51 | 178.10 | -49.60 | 72.89 | 0.7830 | 986.0 | 276.2 | |
| 2.87 | -13.00 | 2.24 | -13.00 | 9.21 | 178.35 | -49.35 | 75.73 | 0.7750 | 683.3 | 999999 | |
| 1.35 | 2.69 | 1.06 | 2.12 | 10.46 | 178.10 | -49.60 | 74.22 | 0.7805 | 642.3 | 565.9 | |
| 10.68 | -16.00 | 8.52 | -16.00 | 11.46 | 177.77 | -49.93 | 73.05 | 0.7863 | 841.8 | 999999 | |
| 13.28 | -16.00 | 10.67 | -16.00 | 11.29 | 177.43 | -50.27 | 73.36 | 0.7894 | 773.6 | 999999 | |
| 2.96 | -16.00 | 2.38 | -16.00 | 10.77 | 177.31 | -50.39 | 74.04 | 0.7894 | 919.0 | 999999 | |
| 9.33 | -16.00 | 7.53 | -16.00 | 10.96 | 177.12 | -50.58 | 73.85 | 0.7918 | 714.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.86 | 10.30 | 177.22 | -50.48 | 74.64 | 0.7893 | 424.0 | 342.7 | |
| 3.59 | -16.00 | 2.91 | -16.00 | 10.60 | 176.81 | -50.89 | 74.38 | 0.7942 | 511.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
