SDO HMI 2014-05-14 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.39 | 33.94 | 3.23 | 20.29 | 8.31 | 194.84 | -32.31 | 70.79 | 0.5620 | 57.0 | -104.1 | |
|
previous
or next observation for the same group /

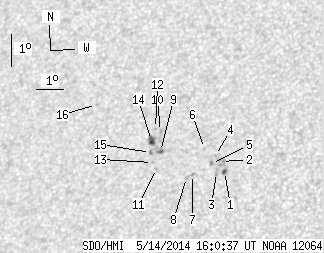

back to the solar disc SDO HMI 2014-05-14 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.17 | 2.15 | 0.68 | 1.26 | 7.74 | 196.48 | -30.67 | 70.88 | 0.5370 | -941.1 | -783.0 | |
| 0.00 | 5.47 | 0.00 | 3.22 | 8.05 | 196.35 | -30.80 | 70.41 | 0.5402 | -639.0 | -743.1 | |
| 0.00 | 3.05 | 0.00 | 1.79 | 7.72 | 196.20 | -30.95 | 71.08 | 0.5408 | -628.0 | -617.4 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 8.24 | 196.12 | -31.03 | 70.20 | 0.5443 | -611.0 | -536.1 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 8.00 | 196.00 | -31.15 | 70.70 | 0.5449 | -738.0 | -597.5 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 8.47 | 195.70 | -31.44 | 70.04 | 0.5511 | -576.0 | -487.7 | |
| 0.00 | 1.35 | 0.00 | 0.80 | 7.68 | 195.34 | -31.81 | 71.62 | 0.5526 | -815.0 | -687.6 | |
| 0.00 | 1.26 | 0.00 | 0.75 | 7.59 | 195.13 | -32.02 | 71.87 | 0.5551 | -565.0 | -496.9 | |
| 0.72 | 5.20 | 0.43 | 3.14 | 8.42 | 194.11 | -33.04 | 70.99 | 0.5726 | 690.6 | 360.4 | |
| 0.00 | 1.62 | 0.00 | 0.98 | 9.04 | 194.05 | -33.10 | 69.99 | 0.5761 | 814.0 | 682.0 | |
| 0.00 | 1.26 | 0.00 | 0.76 | 7.90 | 194.01 | -33.13 | 71.91 | 0.5717 | 555.0 | 444.1 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 9.14 | 193.86 | -33.29 | 69.93 | 0.5791 | 470.0 | 392.2 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 8.09 | 193.85 | -33.30 | 71.68 | 0.5747 | 330.0 | 307.0 | |
| 3.50 | 5.92 | 2.12 | 3.59 | 8.77 | 193.75 | -33.40 | 70.60 | 0.5790 | 866.1 | 611.5 | |
| 0.00 | 1.26 | 0.00 | 0.76 | 8.40 | 193.75 | -33.40 | 71.21 | 0.5774 | 684.0 | 602.1 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 9.95 | 191.56 | -35.59 | 69.81 | 0.6129 | 518.0 | 364.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
