SDO HMI 2014-05-14 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.59 | 281.72 | 32.21 | 176.61 | -23.76 | 193.67 | -32.37 | 126.76 | 0.6134 | 734.9 | 301.1 | |
|
previous
or next observation for the same group /

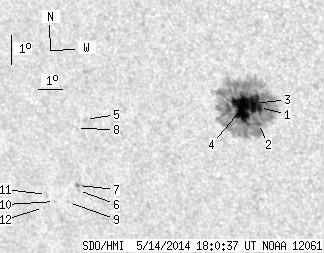

back to the solar disc SDO HMI 2014-05-14 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.77 | 270.86 | 2.34 | 169.01 | -23.70 | 194.49 | -31.55 | 127.24 | 0.6042 | 1130.5 | 336.4 | |
| 1.70 | -1.00 | 1.06 | -1.00 | -24.21 | 194.30 | -31.74 | 127.85 | 0.6098 | 537.6 | 999999 | |
| 13.19 | -1.00 | 8.19 | -1.00 | -23.56 | 194.33 | -31.71 | 126.93 | 0.6050 | 1183.7 | 999999 | |
| 32.39 | -1.00 | 20.24 | -1.00 | -23.68 | 193.83 | -32.21 | 126.73 | 0.6114 | 1021.2 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.34 | -23.90 | 187.36 | -38.68 | 122.97 | 0.6834 | -217.0 | -290.6 | |
| 0.00 | 0.90 | 0.00 | 0.63 | -26.20 | 186.17 | -39.87 | 125.36 | 0.7077 | -585.0 | -452.3 | |
| 0.54 | 1.79 | 0.38 | 1.25 | -26.04 | 186.19 | -39.85 | 125.16 | 0.7066 | -735.2 | -605.0 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -24.18 | 186.87 | -39.17 | 123.09 | 0.6900 | -439.0 | -294.1 | |
| 0.00 | 1.44 | 0.00 | 1.01 | -26.58 | 185.56 | -40.48 | 125.53 | 0.7157 | -477.0 | -388.2 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -26.53 | 184.95 | -41.09 | 125.16 | 0.7215 | -667.0 | -548.7 | |
| 0.00 | 2.51 | 0.00 | 1.80 | -26.29 | 184.70 | -41.34 | 124.72 | 0.7228 | -155.0 | -230.5 | |
| 0.00 | 0.36 | 0.00 | 0.26 | -26.71 | 184.38 | -41.66 | 125.10 | 0.7281 | -476.0 | -468.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
