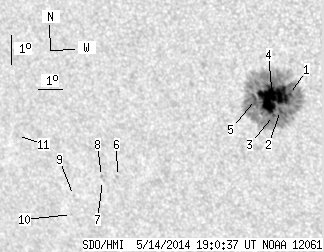

SDO HMI 2014-05-14 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.86 | 281.11 | 32.16 | 174.91 | -23.72 | 193.73 | -31.76 | 127.16 | 0.6065 | 794.9 | 305.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-14 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 275.17 | 0.55 | 170.73 | -23.55 | 194.63 | -30.86 | 127.57 | 0.5954 | 1173.4 | 330.4 | |
| 2.06 | -1.00 | 1.28 | -1.00 | -24.06 | 194.14 | -31.35 | 127.93 | 0.6044 | 635.7 | 999999 | |
| 0.27 | -1.00 | 0.17 | -1.00 | -24.22 | 193.82 | -31.66 | 127.91 | 0.6090 | 787.0 | 999999 | |
| 48.36 | -1.00 | 29.99 | -1.00 | -23.63 | 193.95 | -31.54 | 127.17 | 0.6036 | 1079.9 | 999999 | |
| 0.27 | -1.00 | 0.17 | -1.00 | -23.68 | 193.27 | -32.22 | 126.74 | 0.6114 | 584.0 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.99 | -26.04 | 186.81 | -38.67 | 125.81 | 0.6947 | -620.0 | -551.9 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -26.15 | 186.11 | -39.37 | 125.57 | 0.7024 | -469.0 | -533.2 | |
| 0.00 | 1.17 | 0.00 | 0.81 | -26.02 | 186.12 | -39.36 | 125.41 | 0.7016 | -745.0 | -604.5 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -26.61 | 184.64 | -40.85 | 125.38 | 0.7195 | -580.0 | -440.2 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -27.23 | 184.27 | -41.22 | 125.98 | 0.7263 | -604.0 | -535.9 | |
| 0.00 | 1.17 | 0.00 | 0.84 | -24.57 | 182.98 | -42.50 | 121.97 | 0.7266 | -507.0 | -481.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
