SDO HMI 2014-05-14 20:00:37 UT

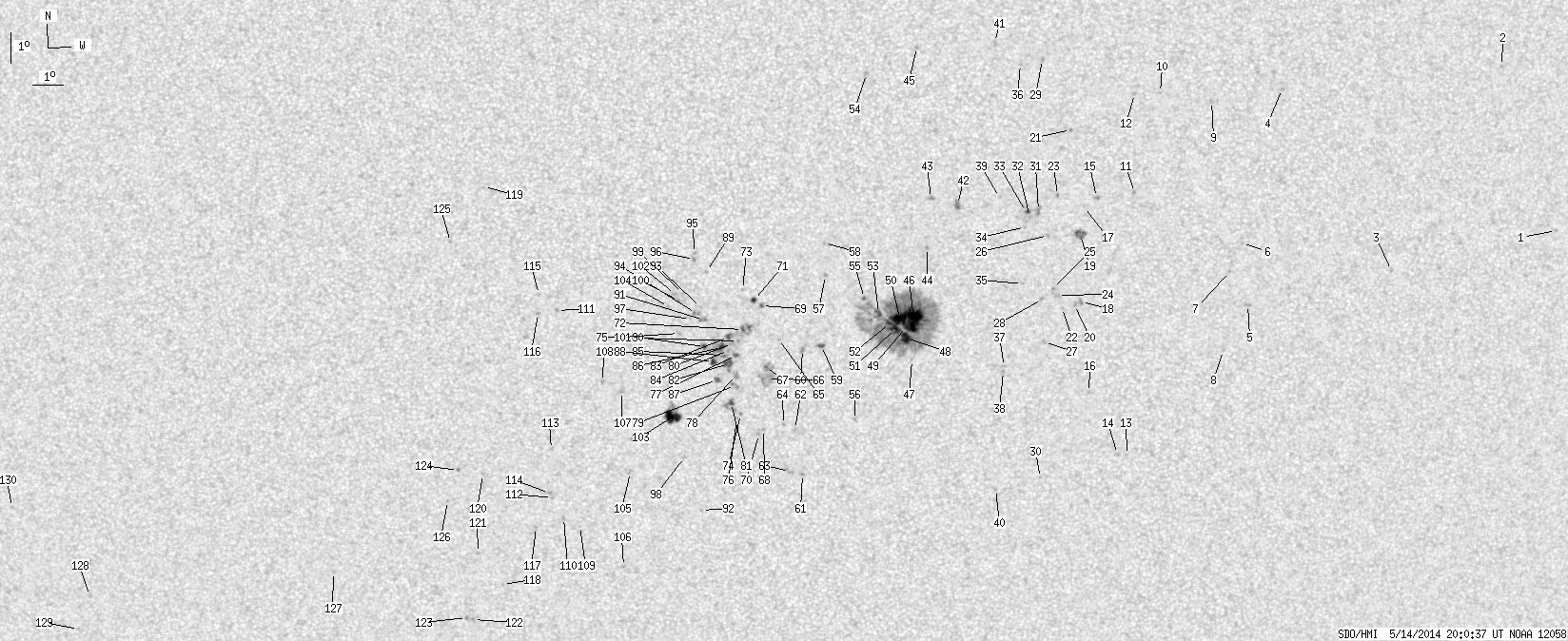

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.15 | 719.73 | 57.97 | 366.56 | -14.45 | 228.49 | 3.56 | 197.47 | 0.2294 | 192.9 | 98.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-14 20:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.61 | -10.90 | 252.33 | 27.40 | 251.92 | 0.4773 | -728.0 | -605.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -5.68 | 250.01 | 25.08 | 262.44 | 0.4273 | -789.0 | -629.7 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -12.29 | 246.57 | 21.64 | 244.80 | 0.3999 | 747.0 | 590.0 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -6.52 | 242.48 | 17.55 | 257.12 | 0.3087 | 838.0 | 658.8 | |
| 0.00 | 2.78 | 0.00 | 1.46 | -13.47 | 241.69 | 16.76 | 236.10 | 0.3394 | 843.0 | 697.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -11.48 | 241.37 | 16.44 | 240.94 | 0.3186 | 619.0 | 530.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -12.40 | 241.00 | 16.07 | 237.85 | 0.3208 | 879.0 | 691.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -14.96 | 240.95 | 16.02 | 231.27 | 0.3433 | 638.0 | 505.2 | |
| 0.00 | 1.97 | 0.00 | 1.02 | -6.95 | 240.14 | 15.21 | 253.87 | 0.2723 | 853.0 | 653.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -6.69 | 238.43 | 13.50 | 253.09 | 0.2435 | 833.0 | 606.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -9.89 | 237.69 | 12.76 | 239.92 | 0.2526 | 886.0 | 728.9 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -6.73 | 237.59 | 12.66 | 251.93 | 0.2300 | 956.0 | 742.3 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -18.43 | 237.92 | 12.99 | 218.10 | 0.3470 | 769.0 | 577.8 | |
| 0.00 | 2.24 | 0.00 | 1.18 | -18.40 | 237.59 | 12.66 | 217.46 | 0.3434 | 840.0 | 615.2 | |
| 0.00 | 2.51 | 0.00 | 1.28 | -10.06 | 236.44 | 11.51 | 236.78 | 0.2358 | 1042.0 | 870.7 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -16.38 | 236.48 | 11.55 | 219.03 | 0.3064 | 675.0 | 592.7 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -10.37 | 236.04 | 11.11 | 234.76 | 0.2331 | 836.0 | 663.8 | |
| 0.00 | 2.33 | 0.00 | 1.20 | -13.43 | 236.07 | 11.14 | 225.18 | 0.2661 | 932.0 | 768.0 | |
| 0.00 | 8.52 | 0.00 | 4.35 | -11.25 | 235.95 | 11.02 | 231.47 | 0.2406 | 996.0 | 939.6 | |
| 0.00 | 1.97 | 0.00 | 1.01 | -13.53 | 235.85 | 10.92 | 224.37 | 0.2646 | 827.0 | 749.4 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -7.90 | 235.53 | 10.60 | 243.44 | 0.2046 | 902.0 | 718.3 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -13.62 | 235.44 | 10.51 | 223.04 | 0.2610 | 822.0 | 605.6 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -10.01 | 235.15 | 10.22 | 233.88 | 0.2173 | -813.0 | -609.2 | |
| 0.00 | 2.87 | 0.00 | 1.47 | -13.22 | 235.27 | 10.34 | 223.67 | 0.2542 | 769.0 | 620.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.01 | 235.10 | 10.17 | 223.81 | 0.2496 | 940.0 | 746.4 | |
| 0.00 | 1.97 | 0.00 | 1.00 | -11.29 | 234.88 | 9.95 | 228.54 | 0.2271 | 1032.0 | 757.0 | |
| 0.00 | 1.88 | 0.00 | 0.97 | -14.74 | 234.89 | 9.96 | 218.68 | 0.2688 | 845.0 | 646.4 | |
| 0.00 | 1.88 | 0.00 | 0.96 | -13.35 | 234.77 | 9.84 | 221.92 | 0.2499 | 932.0 | 770.7 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -5.66 | 234.56 | 9.63 | 252.67 | 0.1751 | 878.0 | 753.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -19.21 | 235.00 | 10.07 | 210.12 | 0.3304 | 720.0 | 498.3 | |
| 0.00 | 5.20 | 0.00 | 2.64 | -10.50 | 234.54 | 9.61 | 230.37 | 0.2141 | -757.0 | -270.7 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -10.71 | 234.27 | 9.34 | 228.78 | 0.2129 | 795.0 | 655.6 | |
| 0.36 | 2.69 | 0.18 | 1.36 | -10.53 | 234.14 | 9.21 | 229.05 | 0.2092 | 1009.5 | 880.0 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -11.02 | 234.12 | 9.19 | 227.24 | 0.2145 | 469.0 | 381.0 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -12.86 | 234.09 | 9.16 | 221.29 | 0.2362 | 818.0 | 613.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -5.82 | 233.85 | 8.92 | 250.52 | 0.1643 | 830.0 | 715.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -15.56 | 233.59 | 8.66 | 213.08 | 0.2669 | 865.0 | 577.3 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -15.71 | 233.56 | 8.63 | 212.68 | 0.2688 | 791.0 | 683.1 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -10.08 | 233.25 | 8.32 | 227.95 | 0.1928 | 435.0 | 388.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -19.60 | 233.49 | 8.56 | 205.74 | 0.3243 | 782.0 | 625.0 | |
| 0.00 | 2.96 | 0.00 | 1.48 | -5.12 | 233.01 | 8.08 | 253.15 | 0.1469 | 762.0 | 612.1 | |
| 0.00 | 5.38 | 0.00 | 2.71 | -10.33 | 231.89 | 6.96 | 221.94 | 0.1793 | -1104.0 | -933.6 | |
| 0.00 | 3.50 | 0.00 | 1.76 | -10.12 | 231.02 | 6.09 | 218.99 | 0.1668 | -1077.0 | -814.4 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -11.71 | 230.93 | 6.00 | 213.17 | 0.1878 | -937.0 | -723.3 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -5.29 | 230.50 | 5.57 | 245.04 | 0.1071 | 888.0 | 700.1 | |
| 30.78 | 390.48 | 15.62 | 198.18 | -14.02 | 230.54 | 5.61 | 205.81 | 0.2189 | 1374.5 | 429.4 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -15.35 | 230.51 | 5.58 | 203.19 | 0.2392 | 639.0 | 438.9 | |
| 9.78 | -46.00 | 4.97 | -46.00 | -14.64 | 230.30 | 5.37 | 203.67 | 0.2267 | 1000.0 | 999999 | |
| 3.68 | -46.00 | 1.87 | -46.00 | -14.27 | 230.30 | 5.37 | 204.34 | 0.2209 | 1193.1 | 999999 | |
| 17.32 | -46.00 | 8.78 | -46.00 | -13.99 | 230.07 | 5.14 | 203.96 | 0.2150 | 1507.1 | 999999 | |
| 7.90 | -46.00 | 4.01 | -46.00 | -14.33 | 229.95 | 5.02 | 202.84 | 0.2195 | 1176.7 | 999999 | |
| 2.60 | -46.00 | 1.32 | -46.00 | -14.15 | 229.76 | 4.83 | 202.39 | 0.2154 | 1105.4 | 999999 | |
| 3.05 | -46.00 | 1.54 | -46.00 | -13.84 | 229.38 | 4.45 | 201.32 | 0.2081 | 1052.6 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.07 | -6.14 | 228.89 | 3.96 | 228.95 | 0.0914 | 944.0 | 741.4 | |
| 0.54 | 1.79 | 0.27 | 0.91 | -13.35 | 228.90 | 3.97 | 200.07 | 0.1973 | 1055.8 | 868.4 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -17.32 | 228.66 | 3.73 | 193.82 | 0.2608 | 837.0 | 636.6 | |
| 0.00 | 1.88 | 0.00 | 0.95 | -12.61 | 227.62 | 2.69 | 194.91 | 0.1786 | -1069.0 | -819.0 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -11.57 | 227.58 | 2.65 | 196.39 | 0.1610 | -877.0 | -716.9 | |
| 1.44 | 3.05 | 0.73 | 1.55 | -14.89 | 227.51 | 2.58 | 191.68 | 0.2163 | 897.6 | 686.1 | |
| 0.00 | 3.77 | 0.00 | 1.91 | -15.02 | 226.89 | 1.96 | 188.81 | 0.2165 | -752.0 | -559.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -19.11 | 226.93 | 2.00 | 186.65 | 0.2854 | 899.0 | 693.5 | |
| 0.00 | 1.79 | 0.00 | 0.92 | -17.64 | 226.66 | 1.73 | 186.37 | 0.2601 | 751.0 | 624.8 | |
| 0.00 | 3.86 | 0.00 | 1.99 | -19.02 | 226.48 | 1.55 | 185.20 | 0.2831 | 611.0 | 580.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.48 | 226.28 | 1.34 | 185.02 | 0.2569 | 871.0 | 691.8 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -14.68 | 226.10 | 1.17 | 185.46 | 0.2090 | -854.0 | -671.2 | |
| 0.00 | 15.97 | 0.00 | 8.13 | -15.98 | 225.73 | 0.80 | 183.35 | 0.2308 | -447.0 | -316.8 | |
| 0.36 | 7.54 | 0.18 | 3.83 | -15.58 | 225.67 | 0.74 | 183.19 | 0.2238 | -1079.2 | -597.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.64 | 225.61 | 0.68 | 182.51 | 0.2588 | -815.0 | -661.3 | |
| 0.63 | 2.42 | 0.32 | 1.22 | -13.60 | 225.54 | 0.61 | 183.13 | 0.1898 | -938.1 | -522.5 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -17.79 | 225.45 | 0.52 | 181.90 | 0.2613 | -815.0 | -671.8 | |
| 2.06 | 3.68 | 1.04 | 1.85 | -13.41 | 225.29 | 0.36 | 181.88 | 0.1864 | -963.6 | -689.1 | |
| 1.08 | 19.47 | 0.54 | 9.85 | -14.37 | 224.92 | -0.01 | 179.93 | 0.2027 | -1184.8 | -843.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -13.07 | 224.92 | -0.01 | 179.93 | 0.1804 | -875.0 | -600.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.13 | 224.85 | -0.08 | 179.68 | 0.2500 | -875.0 | -756.7 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -14.74 | 224.76 | -0.17 | 179.19 | 0.2091 | -972.0 | -849.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -17.26 | 224.72 | -0.21 | 179.20 | 0.2521 | -769.0 | -581.6 | |
| 0.81 | 3.77 | 0.41 | 1.91 | -15.20 | 224.69 | -0.24 | 178.94 | 0.2171 | -958.8 | -810.4 | |
| 0.00 | 4.31 | 0.00 | 2.19 | -15.85 | 224.69 | -0.24 | 178.99 | 0.2283 | -848.0 | -711.7 | |
| 0.00 | 4.31 | 0.00 | 2.19 | -16.20 | 224.66 | -0.27 | 178.88 | 0.2341 | -727.0 | -767.3 | |
| 0.00 | 3.23 | 0.00 | 1.64 | -14.83 | 224.57 | -0.36 | 178.33 | 0.2108 | -771.0 | -753.6 | |
| 1.53 | 10.77 | 0.78 | 5.50 | -16.76 | 224.53 | -0.40 | 178.42 | 0.2437 | -1086.6 | -792.3 | |
| 4.58 | 16.24 | 2.32 | 8.25 | -15.48 | 224.44 | -0.49 | 177.87 | 0.2220 | -1014.2 | -772.9 | |
| 1.70 | -72.00 | 0.86 | -72.00 | -14.61 | 224.44 | -0.49 | 177.72 | 0.2072 | -1235.9 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -15.05 | 224.44 | -0.49 | 177.79 | 0.2146 | -983.0 | -793.4 | |
| 0.00 | 2.06 | 0.00 | 1.05 | -15.20 | 224.29 | -0.65 | 177.12 | 0.2173 | -1011.0 | -940.5 | |
| 2.60 | 16.69 | 1.32 | 8.46 | -14.95 | 224.22 | -0.71 | 176.78 | 0.2132 | -1337.4 | -909.8 | |
| 1.44 | 3.86 | 0.73 | 1.96 | -16.01 | 224.06 | -0.87 | 176.37 | 0.2313 | -921.1 | -623.5 | |
| 2.69 | -82.00 | 1.37 | -82.00 | -15.42 | 223.94 | -0.99 | 175.66 | 0.2214 | -950.7 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -12.48 | 223.74 | -1.19 | 173.17 | 0.1716 | -743.0 | -623.8 | |
| 1.70 | 5.83 | 0.86 | 2.96 | -14.92 | 223.66 | -1.27 | 174.21 | 0.2134 | -1117.7 | -803.9 | |
| 0.00 | 4.04 | 0.00 | 2.04 | -14.06 | 223.63 | -1.30 | 173.63 | 0.1986 | -948.0 | -890.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -20.32 | 223.52 | -1.41 | 175.62 | 0.3045 | -848.0 | -670.3 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -13.65 | 223.54 | -1.39 | 172.93 | 0.1920 | -893.0 | -733.4 | |
| 0.00 | 3.41 | 0.00 | 1.72 | -13.84 | 223.39 | -1.54 | 172.27 | 0.1955 | -1000.0 | -945.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -11.90 | 223.37 | -1.56 | 170.51 | 0.1625 | -985.0 | -722.6 | |
| 0.00 | 2.15 | 0.00 | 1.08 | -12.08 | 223.34 | -1.59 | 170.51 | 0.1657 | -1165.0 | -917.2 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -14.02 | 223.20 | -1.73 | 171.49 | 0.1991 | -704.0 | -595.8 | |
| 0.00 | 1.97 | 0.00 | 1.02 | -18.54 | 222.96 | -1.97 | 173.18 | 0.2758 | -80.0 | -81.0 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -13.19 | 222.96 | -1.97 | 169.54 | 0.1856 | -740.0 | -564.9 | |
| 0.00 | 2.60 | 0.00 | 1.31 | -13.44 | 222.83 | -2.10 | 169.14 | 0.1902 | -1034.0 | -825.0 | |
| 0.00 | 1.97 | 0.00 | 1.00 | -14.49 | 222.82 | -2.11 | 170.07 | 0.2079 | -771.0 | -611.7 | |
| 0.00 | 2.33 | 0.00 | 1.18 | -13.22 | 222.71 | -2.22 | 168.29 | 0.1870 | -924.0 | -693.8 | |
| 15.52 | 25.84 | 7.95 | 13.23 | -17.22 | 222.56 | -2.37 | 171.05 | 0.2546 | 1157.6 | 579.7 | |
| 0.00 | 2.06 | 0.00 | 1.04 | -13.62 | 222.48 | -2.45 | 167.63 | 0.1945 | -923.0 | -675.9 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -19.04 | 221.12 | -3.81 | 167.41 | 0.2893 | -826.0 | -764.4 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -22.19 | 220.81 | -4.12 | 168.72 | 0.3415 | -764.0 | -660.0 | |
| 0.00 | 2.06 | 0.00 | 1.05 | -16.37 | 220.90 | -4.03 | 164.06 | 0.2467 | -798.0 | -705.8 | |
| 0.00 | 1.97 | 0.00 | 1.01 | -16.06 | 220.27 | -4.66 | 161.33 | 0.2447 | -760.0 | -603.3 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -20.84 | 219.35 | -5.58 | 163.73 | 0.3256 | -623.0 | -552.0 | |
| 0.00 | 1.97 | 0.00 | 1.03 | -20.55 | 218.81 | -6.12 | 161.96 | 0.3237 | -849.0 | -623.5 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -13.73 | 218.82 | -6.11 | 151.60 | 0.2183 | -992.0 | -830.8 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -19.88 | 218.45 | -6.48 | 160.23 | 0.3152 | -725.0 | -600.6 | |
| 0.00 | 2.15 | 0.00 | 1.11 | -18.27 | 218.48 | -6.45 | 158.33 | 0.2900 | -779.0 | -542.1 | |
| 0.00 | 2.06 | 0.00 | 1.08 | -19.72 | 218.36 | -6.57 | 159.80 | 0.3132 | -1125.0 | -881.7 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.20 | 218.24 | -6.69 | 148.10 | 0.2155 | -828.0 | -704.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -13.81 | 218.19 | -6.74 | 149.41 | 0.2249 | -837.0 | -727.2 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -20.86 | 217.85 | -7.08 | 159.73 | 0.3337 | -895.0 | -691.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -22.78 | 216.59 | -8.34 | 158.73 | 0.3701 | -524.0 | -373.7 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -9.72 | 216.53 | -8.40 | 130.37 | 0.1898 | -46.0 | -42.0 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -19.07 | 216.12 | -8.81 | 152.84 | 0.3184 | -840.0 | -665.1 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -21.71 | 215.80 | -9.13 | 155.67 | 0.3593 | -720.0 | -599.9 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -23.97 | 215.48 | -9.45 | 157.53 | 0.3944 | -877.0 | -756.1 | |
| 0.00 | 1.70 | 0.00 | 0.92 | -23.90 | 215.25 | -9.68 | 156.98 | 0.3949 | -874.0 | -702.3 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -18.94 | 215.29 | -9.64 | 150.49 | 0.3230 | -856.0 | -725.5 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -11.49 | 215.39 | -9.54 | 133.28 | 0.2242 | -967.0 | -690.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -19.95 | 214.87 | -10.06 | 151.04 | 0.3407 | -773.0 | -652.3 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -22.30 | 210.68 | -14.25 | 145.90 | 0.4080 | -786.0 | -562.5 | |
| 0.00 | 1.97 | 0.00 | 1.13 | -22.97 | 201.70 | -23.23 | 133.90 | 0.5061 | -306.0 | -318.3 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -24.09 | 201.05 | -23.88 | 134.88 | 0.5237 | -139.0 | -174.3 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -19.94 | 199.31 | -25.62 | 126.46 | 0.5075 | -732.0 | -550.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
