SDO HMI 2014-05-14 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.81 | 267.86 | 30.54 | 164.98 | -23.73 | 193.68 | -30.70 | 127.98 | 0.5948 | 756.3 | 324.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-14 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

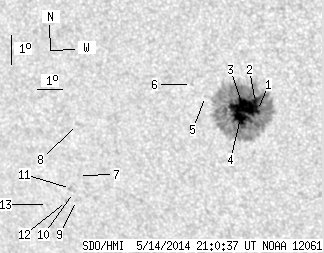

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.51 | 259.32 | 1.53 | 159.28 | -23.70 | 194.40 | -29.98 | 128.49 | 0.5868 | 1155.7 | 355.4 | |
| 4.85 | -1.00 | 2.95 | -1.00 | -23.44 | 194.39 | -29.99 | 128.10 | 0.5850 | 1238.7 | 999999 | |
| 28.09 | -1.00 | 17.22 | -1.00 | -23.59 | 193.89 | -30.49 | 127.92 | 0.5916 | 1133.5 | 999999 | |
| 14.36 | -1.00 | 8.84 | -1.00 | -23.91 | 193.69 | -30.69 | 128.23 | 0.5961 | 951.2 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -23.20 | 192.52 | -31.85 | 126.31 | 0.6042 | 311.0 | 346.3 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -22.80 | 192.09 | -32.29 | 125.41 | 0.6064 | 620.0 | 440.7 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -25.63 | 186.59 | -37.79 | 125.79 | 0.6833 | -626.0 | -595.7 | |
| 0.00 | 1.44 | 0.00 | 0.95 | -23.97 | 187.14 | -37.24 | 123.88 | 0.6683 | -681.0 | -463.6 | |
| 0.00 | 1.35 | 0.00 | 0.92 | -26.45 | 186.19 | -38.19 | 126.63 | 0.6921 | -635.0 | -524.5 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -26.18 | 186.16 | -38.21 | 126.26 | 0.6908 | -664.0 | -604.2 | |
| 0.00 | 1.97 | 0.00 | 1.35 | -26.05 | 186.08 | -38.29 | 126.04 | 0.6908 | -760.0 | -572.2 | |
| 0.00 | 1.17 | 0.00 | 0.80 | -26.47 | 185.74 | -38.63 | 126.40 | 0.6966 | -552.0 | -503.7 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -26.54 | 184.88 | -39.49 | 126.02 | 0.7057 | -458.0 | -530.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
