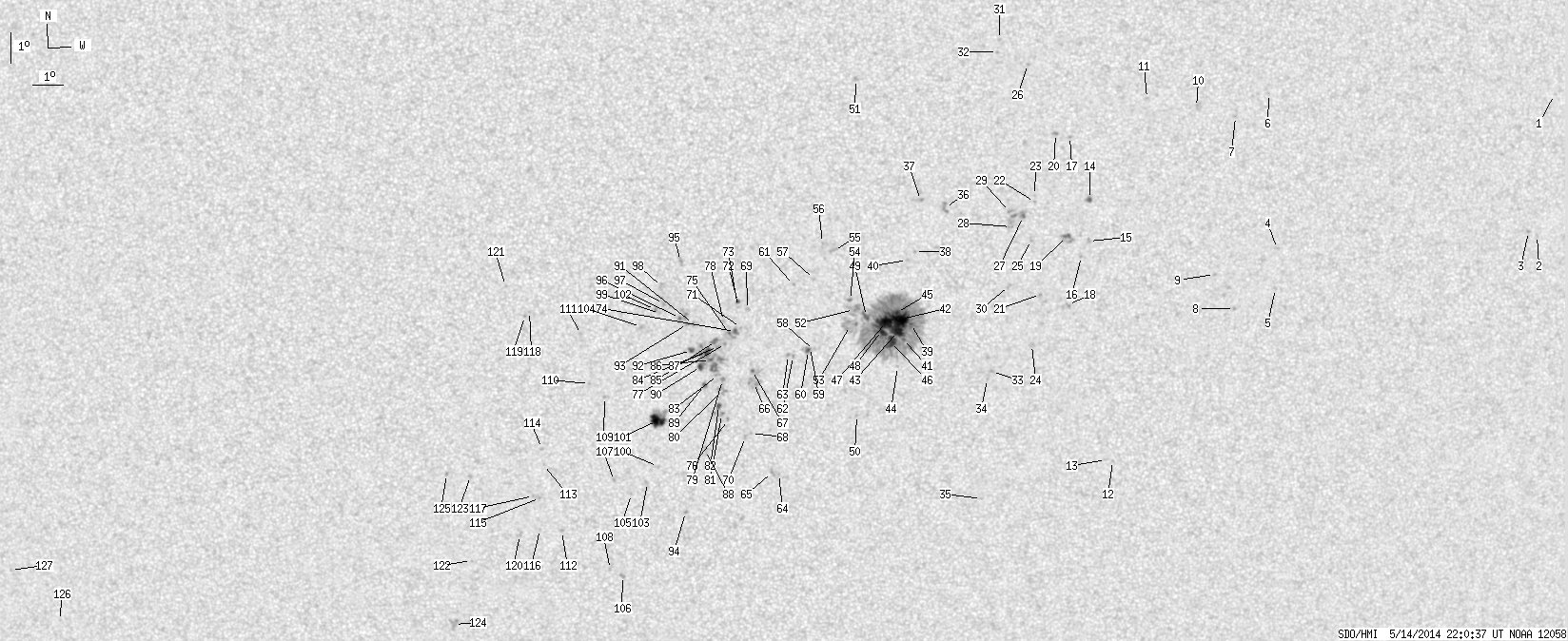

SDO HMI 2014-05-14 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.47 | 702.15 | 59.78 | 358.08 | -14.39 | 228.60 | 4.78 | 201.97 | 0.2347 | 165.4 | 77.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-14 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.30 | -6.39 | 252.53 | 28.71 | 261.68 | 0.4845 | 438.0 | 318.5 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -10.90 | 252.27 | 28.45 | 252.43 | 0.4927 | -644.0 | -496.8 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -10.79 | 251.95 | 28.12 | 252.50 | 0.4875 | -785.0 | -606.6 | |
| 0.00 | 2.15 | 0.00 | 1.14 | -11.49 | 243.09 | 19.27 | 244.35 | 0.3602 | 803.0 | 603.0 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -12.78 | 243.12 | 19.30 | 241.16 | 0.3695 | 618.0 | 483.8 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -6.53 | 242.53 | 18.71 | 257.77 | 0.3275 | 739.0 | 584.2 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -7.28 | 241.43 | 17.61 | 254.76 | 0.3124 | 816.0 | 647.9 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -13.45 | 241.76 | 17.94 | 237.81 | 0.3554 | 802.0 | 677.3 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -12.35 | 240.99 | 17.17 | 239.56 | 0.3360 | 681.0 | 592.0 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -6.99 | 240.11 | 16.29 | 254.65 | 0.2900 | 547.0 | 405.1 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -6.73 | 238.46 | 14.64 | 254.07 | 0.2622 | 811.0 | 609.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -18.48 | 237.96 | 14.14 | 220.32 | 0.3597 | 702.0 | 571.5 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -18.45 | 237.73 | 13.91 | 219.92 | 0.3569 | 643.0 | 537.3 | |
| 1.26 | 3.59 | 0.64 | 1.84 | -9.98 | 236.68 | 12.86 | 239.79 | 0.2548 | 1089.5 | 859.3 | |
| 0.00 | 2.24 | 0.00 | 1.15 | -11.32 | 236.70 | 12.88 | 235.39 | 0.2668 | 823.0 | 694.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -11.82 | 236.47 | 12.65 | 233.38 | 0.2683 | 840.0 | 674.6 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -7.97 | 235.95 | 12.13 | 245.99 | 0.2289 | 695.0 | 568.0 | |
| 0.00 | 2.60 | 0.00 | 1.34 | -13.39 | 236.10 | 12.28 | 228.01 | 0.2797 | 857.0 | 684.1 | |
| 1.79 | 9.87 | 0.92 | 5.06 | -11.18 | 235.97 | 12.15 | 234.33 | 0.2553 | 1004.2 | 804.1 | |
| 0.00 | 2.24 | 0.00 | 1.14 | -7.89 | 235.48 | 11.66 | 245.52 | 0.2210 | 1094.0 | 868.6 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -13.06 | 235.17 | 11.35 | 226.72 | 0.2644 | 940.0 | 657.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -10.09 | 234.86 | 11.04 | 235.58 | 0.2296 | -550.0 | -381.4 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -9.87 | 234.85 | 11.03 | 236.35 | 0.2275 | 599.0 | 427.0 | |
| 0.00 | 3.05 | 0.00 | 1.57 | -14.70 | 234.96 | 11.14 | 221.87 | 0.2812 | 835.0 | 668.1 | |
| 0.00 | 2.60 | 0.00 | 1.33 | -11.31 | 234.78 | 10.96 | 231.11 | 0.2405 | 748.0 | 535.0 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -5.68 | 234.53 | 10.71 | 254.14 | 0.1931 | 798.0 | 648.9 | |
| 0.72 | 11.31 | 0.37 | 5.75 | -10.55 | 234.50 | 10.68 | 233.04 | 0.2290 | -606.6 | 397.0 | |
| 0.00 | 2.15 | 0.00 | 1.10 | -10.89 | 234.10 | 10.28 | 230.81 | 0.2272 | 650.0 | 649.9 | |
| 0.00 | 2.42 | 0.00 | 1.23 | -10.40 | 234.06 | 10.24 | 232.43 | 0.2215 | 920.0 | 788.7 | |
| 0.00 | 2.78 | 0.00 | 1.42 | -12.79 | 234.11 | 10.29 | 224.76 | 0.2485 | 685.0 | 652.2 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -4.90 | 233.59 | 9.77 | 257.09 | 0.1742 | 798.0 | 548.3 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -5.29 | 233.53 | 9.71 | 254.80 | 0.1749 | 849.0 | 672.8 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -15.57 | 233.66 | 9.84 | 216.41 | 0.2786 | 878.0 | 712.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -15.82 | 233.51 | 9.69 | 215.45 | 0.2805 | 789.0 | 658.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -19.78 | 233.53 | 9.71 | 208.36 | 0.3357 | 695.0 | 559.9 | |
| 0.00 | 5.56 | 0.00 | 2.81 | -10.29 | 231.93 | 8.11 | 226.38 | 0.1926 | -877.0 | -870.2 | |
| 0.00 | 2.15 | 0.00 | 1.08 | -10.05 | 231.12 | 7.30 | 224.33 | 0.1798 | -1021.0 | -847.1 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -11.70 | 230.97 | 7.15 | 217.90 | 0.1993 | -921.0 | -674.3 | |
| 2.06 | 337.78 | 1.05 | 171.82 | -14.04 | 230.91 | 7.09 | 211.32 | 0.2314 | 930.0 | 442.3 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -11.98 | 230.73 | 6.91 | 216.10 | 0.2006 | -726.0 | -568.4 | |
| 1.97 | -39.00 | 1.01 | -39.00 | -14.54 | 230.67 | 6.85 | 209.37 | 0.2365 | 900.3 | 999999 | |
| 22.35 | -39.00 | 11.36 | -39.00 | -13.89 | 230.56 | 6.74 | 210.41 | 0.2261 | 1404.3 | 999999 | |
| 12.47 | -39.00 | 6.35 | -39.00 | -14.29 | 230.48 | 6.66 | 209.20 | 0.2313 | 1199.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -15.44 | 230.51 | 6.69 | 206.99 | 0.2486 | 639.0 | 438.7 | |
| 3.32 | -39.00 | 1.69 | -39.00 | -13.67 | 230.43 | 6.61 | 210.42 | 0.2218 | 1364.6 | 999999 | |
| 9.87 | -39.00 | 5.03 | -39.00 | -14.63 | 230.27 | 6.45 | 207.71 | 0.2346 | 1026.8 | 999999 | |
| 18.31 | -39.00 | 9.30 | -39.00 | -13.98 | 230.09 | 6.27 | 208.44 | 0.2235 | 1459.5 | 999999 | |
| 8.88 | -39.00 | 4.52 | -39.00 | -14.26 | 229.94 | 6.12 | 207.27 | 0.2265 | 1171.8 | 999999 | |
| 2.78 | -39.00 | 1.41 | -39.00 | -13.80 | 229.43 | 5.61 | 206.24 | 0.2156 | 1061.5 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.03 | 229.19 | 5.37 | 199.89 | 0.2643 | 812.0 | 658.2 | |
| 0.00 | 2.60 | 0.00 | 1.30 | -6.19 | 228.97 | 5.15 | 235.70 | 0.1085 | 925.0 | 723.3 | |
| 0.00 | 11.40 | 0.00 | 5.77 | -13.58 | 229.02 | 5.20 | 205.00 | 0.2092 | 653.0 | 541.6 | |
| 0.00 | 21.72 | 0.00 | 11.02 | -14.11 | 228.90 | 5.08 | 203.48 | 0.2166 | 319.0 | 275.2 | |
| 0.00 | 1.88 | 0.00 | 0.95 | -13.28 | 228.88 | 5.06 | 205.09 | 0.2035 | 1074.0 | 839.3 | |
| 0.00 | 3.86 | 0.00 | 1.94 | -11.68 | 228.33 | 4.51 | 206.26 | 0.1747 | -954.0 | -701.2 | |
| 0.00 | 0.72 | 0.00 | 0.36 | -11.43 | 227.95 | 4.13 | 204.95 | 0.1681 | -909.0 | -666.1 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -12.60 | 227.69 | 3.87 | 200.96 | 0.1849 | -975.0 | -732.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -14.92 | 227.72 | 3.90 | 197.28 | 0.2225 | 502.0 | 309.0 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -14.82 | 227.60 | 3.78 | 196.88 | 0.2203 | 582.0 | 395.2 | |
| 1.53 | 5.20 | 0.77 | 2.64 | -14.92 | 227.54 | 3.72 | 196.49 | 0.2216 | 835.6 | 520.1 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -12.79 | 227.04 | 3.22 | 197.37 | 0.1842 | -1021.0 | -772.0 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -15.10 | 227.04 | 3.22 | 194.16 | 0.2224 | -725.0 | -532.5 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -15.07 | 226.88 | 3.06 | 193.53 | 0.2212 | -811.0 | -721.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -18.98 | 226.62 | 2.80 | 189.35 | 0.2852 | 691.0 | 617.7 | |
| 0.00 | 2.78 | 0.00 | 1.44 | -18.92 | 226.39 | 2.57 | 188.65 | 0.2836 | 799.0 | 613.2 | |
| 0.00 | 13.19 | 0.00 | 6.72 | -15.97 | 225.76 | 1.94 | 188.06 | 0.2327 | -285.0 | -323.8 | |
| 0.36 | 6.01 | 0.18 | 3.06 | -15.57 | 225.69 | 1.87 | 188.04 | 0.2258 | -1098.2 | -518.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -17.63 | 225.68 | 1.85 | 186.83 | 0.2604 | -786.0 | -601.5 | |
| 0.00 | 2.42 | 0.00 | 1.22 | -13.59 | 225.52 | 1.70 | 188.68 | 0.1918 | -768.0 | -601.7 | |
| 0.00 | 1.97 | 0.00 | 1.01 | -17.76 | 225.49 | 1.67 | 186.09 | 0.2622 | -892.0 | -715.8 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -14.18 | 225.30 | 1.48 | 187.20 | 0.2012 | -794.0 | -705.2 | |
| 0.81 | 1.79 | 0.41 | 0.90 | -13.34 | 225.21 | 1.39 | 187.27 | 0.1868 | -948.6 | -817.0 | |
| 0.00 | 1.71 | 0.00 | 0.86 | -13.50 | 225.21 | 1.39 | 187.17 | 0.1894 | -803.0 | -544.3 | |
| 1.44 | 8.88 | 0.73 | 4.50 | -14.30 | 225.12 | 1.30 | 186.23 | 0.2030 | -1070.4 | -808.8 | |
| 0.45 | -74.00 | 0.23 | -74.00 | -14.36 | 224.93 | 1.11 | 185.31 | 0.2037 | -1210.6 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -17.19 | 224.91 | 1.09 | 184.16 | 0.2518 | -780.0 | -689.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -14.70 | 224.81 | 0.99 | 184.58 | 0.2093 | -897.0 | -794.1 | |
| 0.00 | 1.79 | 0.00 | 0.91 | -13.96 | 224.74 | 0.92 | 184.57 | 0.1965 | -908.0 | -695.2 | |
| 0.00 | 3.05 | 0.00 | 1.55 | -15.88 | 224.72 | 0.90 | 183.77 | 0.2293 | -804.0 | -689.7 | |
| 0.00 | 5.56 | 0.00 | 2.84 | -16.22 | 224.72 | 0.90 | 183.68 | 0.2352 | -615.0 | -694.4 | |
| 0.00 | 2.15 | 0.00 | 1.10 | -17.00 | 224.69 | 0.87 | 183.36 | 0.2484 | -871.0 | -802.0 | |
| 1.88 | 6.01 | 0.96 | 3.07 | -16.72 | 224.59 | 0.77 | 183.05 | 0.2435 | -1086.4 | -788.0 | |
| 0.00 | 2.33 | 0.00 | 1.19 | -15.73 | 224.56 | 0.74 | 183.15 | 0.2265 | -887.0 | -715.0 | |
| 0.00 | 2.78 | 0.00 | 1.41 | -14.79 | 224.56 | 0.74 | 183.39 | 0.2106 | -968.0 | -805.6 | |
| 0.00 | 5.20 | 0.00 | 2.64 | -14.61 | 224.49 | 0.67 | 183.15 | 0.2074 | -1176.0 | -973.9 | |
| 0.99 | 47.83 | 0.50 | 24.27 | -15.23 | 224.31 | 0.49 | 182.16 | 0.2178 | -1103.4 | -822.7 | |
| 3.77 | -86.00 | 1.91 | -86.00 | -14.95 | 224.21 | 0.39 | 181.78 | 0.2130 | -1285.7 | 999999 | |
| 0.00 | 4.31 | 0.00 | 2.21 | -18.19 | 224.15 | 0.33 | 181.17 | 0.2682 | -497.0 | -308.8 | |
| 0.99 | 2.87 | 0.50 | 1.46 | -16.04 | 224.12 | 0.30 | 181.24 | 0.2315 | -947.4 | -757.9 | |
| 2.78 | -86.00 | 1.41 | -86.00 | -15.45 | 223.99 | 0.17 | 180.75 | 0.2214 | -959.0 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -14.05 | 223.74 | -0.08 | 179.61 | 0.1975 | -1084.0 | -863.9 | |
| 1.97 | -86.00 | 1.00 | -86.00 | -14.92 | 223.68 | -0.14 | 179.35 | 0.2124 | -1088.7 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -14.05 | 223.56 | -0.27 | 178.69 | 0.1975 | -1071.0 | -917.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -20.25 | 223.47 | -0.35 | 178.92 | 0.3027 | -799.0 | -675.2 | |
| 0.00 | 4.04 | 0.00 | 2.03 | -12.02 | 223.34 | -0.48 | 177.11 | 0.1626 | -1110.0 | -842.6 | |
| 0.45 | 6.37 | 0.23 | 3.22 | -13.87 | 223.31 | -0.51 | 177.42 | 0.1945 | -1114.8 | -890.8 | |
| 0.00 | 1.79 | 0.00 | 0.91 | -13.40 | 222.78 | -1.04 | 174.55 | 0.1872 | -1060.0 | -868.4 | |
| 0.00 | 4.76 | 0.00 | 2.39 | -12.85 | 222.72 | -1.10 | 173.92 | 0.1778 | -743.0 | -652.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -13.71 | 222.65 | -1.17 | 174.07 | 0.1927 | -768.0 | -689.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -18.73 | 222.55 | -1.27 | 175.65 | 0.2779 | -541.0 | -541.5 | |
| 14.27 | 25.85 | 7.30 | 13.22 | -17.22 | 222.53 | -1.29 | 175.10 | 0.2525 | 1155.5 | 621.7 | |
| 0.00 | 1.88 | 0.00 | 0.95 | -13.59 | 222.50 | -1.32 | 173.21 | 0.1908 | -885.0 | -744.1 | |
| 0.00 | 1.79 | 0.00 | 0.93 | -19.26 | 222.19 | -1.63 | 174.62 | 0.2874 | -684.0 | -561.2 | |
| 0.00 | 1.79 | 0.00 | 0.91 | -14.14 | 222.02 | -1.80 | 171.28 | 0.2014 | -869.0 | -644.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -19.64 | 221.64 | -2.18 | 172.99 | 0.2947 | -809.0 | -657.0 | |
| 0.00 | 2.60 | 0.00 | 1.37 | -22.39 | 221.30 | -2.52 | 173.12 | 0.3406 | -839.0 | -682.1 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -19.20 | 221.07 | -2.75 | 170.93 | 0.2887 | -875.0 | -771.1 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -22.16 | 220.88 | -2.94 | 171.88 | 0.3378 | -738.0 | -564.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -16.43 | 220.80 | -3.02 | 167.98 | 0.2437 | -912.0 | -689.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -16.00 | 220.30 | -3.52 | 165.61 | 0.2383 | -796.0 | -621.8 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -14.38 | 220.05 | -3.77 | 162.52 | 0.2131 | -740.0 | -591.4 | |
| 0.00 | 1.88 | 0.00 | 0.99 | -20.87 | 219.25 | -4.57 | 166.58 | 0.3219 | -849.0 | -686.8 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -18.65 | 218.71 | -5.11 | 162.92 | 0.2887 | -630.0 | -521.4 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -18.11 | 218.66 | -5.16 | 162.17 | 0.2804 | -730.0 | -616.9 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -19.75 | 218.54 | -5.28 | 163.56 | 0.3071 | -1045.0 | -856.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -20.80 | 218.51 | -5.31 | 164.43 | 0.3240 | -750.0 | -558.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -19.69 | 218.32 | -5.50 | 162.84 | 0.3072 | -869.0 | -669.8 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -13.63 | 218.38 | -5.45 | 154.06 | 0.2118 | -738.0 | -627.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.78 | 218.21 | -5.61 | 153.73 | 0.2154 | -904.0 | -678.7 | |
| 0.00 | 3.05 | 0.00 | 1.60 | -20.99 | 217.82 | -6.01 | 162.71 | 0.3302 | -864.0 | -597.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -12.80 | 217.61 | -6.21 | 148.98 | 0.2055 | -761.0 | -579.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -21.84 | 216.10 | -7.72 | 159.20 | 0.3525 | -646.0 | -581.0 | |
| 0.00 | 2.15 | 0.00 | 1.12 | -19.01 | 216.22 | -7.61 | 156.00 | 0.3090 | -876.0 | -635.0 | |
| 0.00 | 7.45 | 0.00 | 4.00 | -24.00 | 215.37 | -8.45 | 159.73 | 0.3892 | -694.0 | -651.6 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -18.94 | 215.41 | -8.41 | 153.71 | 0.3137 | -832.0 | -654.8 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -23.69 | 201.13 | -22.69 | 135.65 | 0.5073 | -633.0 | -497.5 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -21.94 | 199.59 | -24.23 | 131.20 | 0.5079 | -626.0 | -520.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
