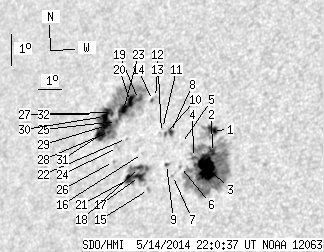

SDO HMI 2014-05-14 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.30 | 409.25 | 84.49 | 291.50 | 10.16 | 179.47 | -44.35 | 73.07 | 0.7211 | 108.4 | -62.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-14 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.92 | 18.94 | 4.08 | 13.08 | 10.55 | 181.59 | -42.23 | 71.80 | 0.6979 | -747.3 | -209.6 | |
| 3.86 | 182.62 | 2.65 | 125.31 | 9.86 | 181.70 | -42.12 | 72.71 | 0.6943 | -789.8 | -410.0 | |
| 32.49 | -2.00 | 22.32 | -2.00 | 9.40 | 181.52 | -42.30 | 73.42 | 0.6951 | -1089.8 | 999999 | |
| 0.90 | -2.00 | 0.62 | -2.00 | 9.73 | 180.93 | -42.89 | 73.16 | 0.7032 | -419.1 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.38 | 10.19 | 180.35 | -43.48 | 72.74 | 0.7115 | 657.0 | 592.0 | |
| 0.00 | 1.17 | 0.00 | 0.82 | 9.47 | 180.42 | -43.40 | 73.69 | 0.7084 | -411.0 | -295.5 | |
| 0.00 | 1.35 | 0.00 | 0.95 | 9.20 | 180.12 | -43.70 | 74.16 | 0.7112 | -482.0 | -363.4 | |
| 2.33 | 5.74 | 1.66 | 4.08 | 10.55 | 179.81 | -44.01 | 72.43 | 0.7188 | -736.5 | -474.5 | |
| 0.81 | 2.24 | 0.57 | 1.59 | 9.55 | 179.81 | -44.01 | 73.78 | 0.7159 | -336.7 | -231.8 | |
| 0.72 | -8.00 | 0.51 | -8.00 | 10.52 | 179.60 | -44.22 | 72.53 | 0.7211 | -522.4 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.58 | 10.68 | 179.44 | -44.38 | 72.37 | 0.7235 | -348.0 | -281.3 | |
| 0.00 | 1.35 | 0.00 | 0.96 | 10.56 | 179.42 | -44.40 | 72.54 | 0.7233 | -280.0 | -266.5 | |
| 0.00 | 1.53 | 0.00 | 1.11 | 11.67 | 178.94 | -44.88 | 71.23 | 0.7321 | 530.0 | 531.4 | |
| 0.63 | 1.71 | 0.46 | 1.24 | 11.58 | 178.83 | -44.99 | 71.39 | 0.7331 | 697.0 | 647.7 | |
| 0.00 | 1.71 | 0.00 | 1.22 | 8.80 | 179.15 | -44.67 | 75.00 | 0.7215 | 661.0 | 584.3 | |
| 0.00 | 1.17 | 0.00 | 0.84 | 9.93 | 178.71 | -45.12 | 73.62 | 0.7298 | -253.0 | -211.7 | |
| 6.46 | 34.28 | 4.65 | 24.74 | 9.22 | 178.69 | -45.13 | 74.57 | 0.7280 | 916.7 | 484.7 | |
| 2.60 | -17.00 | 1.88 | -17.00 | 9.50 | 178.65 | -45.17 | 74.21 | 0.7292 | -415.9 | 999999 | |
| 3.05 | 148.07 | 2.24 | 110.15 | 11.63 | 178.20 | -45.62 | 71.53 | 0.7403 | 918.1 | 304.2 | |
| 7.00 | -19.00 | 5.17 | -19.00 | 11.58 | 177.86 | -45.96 | 71.71 | 0.7440 | 949.6 | 999999 | |
| 6.37 | -17.00 | 4.62 | -17.00 | 9.17 | 178.26 | -45.56 | 74.76 | 0.7328 | 742.9 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.79 | 10.43 | 177.91 | -45.91 | 73.21 | 0.7402 | 746.0 | 557.4 | |
| 8.08 | -19.00 | 5.99 | -19.00 | 11.34 | 177.59 | -46.23 | 72.11 | 0.7463 | 977.9 | 999999 | |
| 0.00 | 3.23 | 0.00 | 2.38 | 10.16 | 177.56 | -46.26 | 73.67 | 0.7434 | 775.0 | 656.1 | |
| 0.90 | -19.00 | 0.67 | -19.00 | 10.97 | 177.35 | -46.47 | 72.66 | 0.7479 | 903.9 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.46 | 9.73 | 177.46 | -46.36 | 74.26 | 0.7434 | 575.0 | 431.7 | |
| 2.24 | -19.00 | 1.68 | -19.00 | 11.27 | 177.07 | -46.75 | 72.38 | 0.7518 | 634.5 | 999999 | |
| 3.50 | -19.00 | 2.61 | -19.00 | 10.67 | 177.10 | -46.72 | 73.14 | 0.7499 | 924.6 | 999999 | |
| 8.35 | -19.00 | 6.25 | -19.00 | 10.87 | 176.92 | -46.90 | 72.94 | 0.7523 | 874.3 | 999999 | |
| 11.58 | -19.00 | 8.71 | -19.00 | 11.15 | 176.77 | -47.05 | 72.61 | 0.7548 | 474.6 | 999999 | |
| 9.51 | -19.00 | 7.15 | -19.00 | 10.59 | 176.71 | -47.11 | 73.36 | 0.7540 | 724.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.82 | 11.23 | 176.25 | -47.57 | 72.67 | 0.7606 | 187.0 | 156.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
