SDO HMI 2014-05-14 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.17 | 703.34 | 55.07 | 358.87 | -14.32 | 228.61 | 5.34 | 204.14 | 0.2372 | 155.1 | 96.4 | |
|
previous
or next observation for the same group /

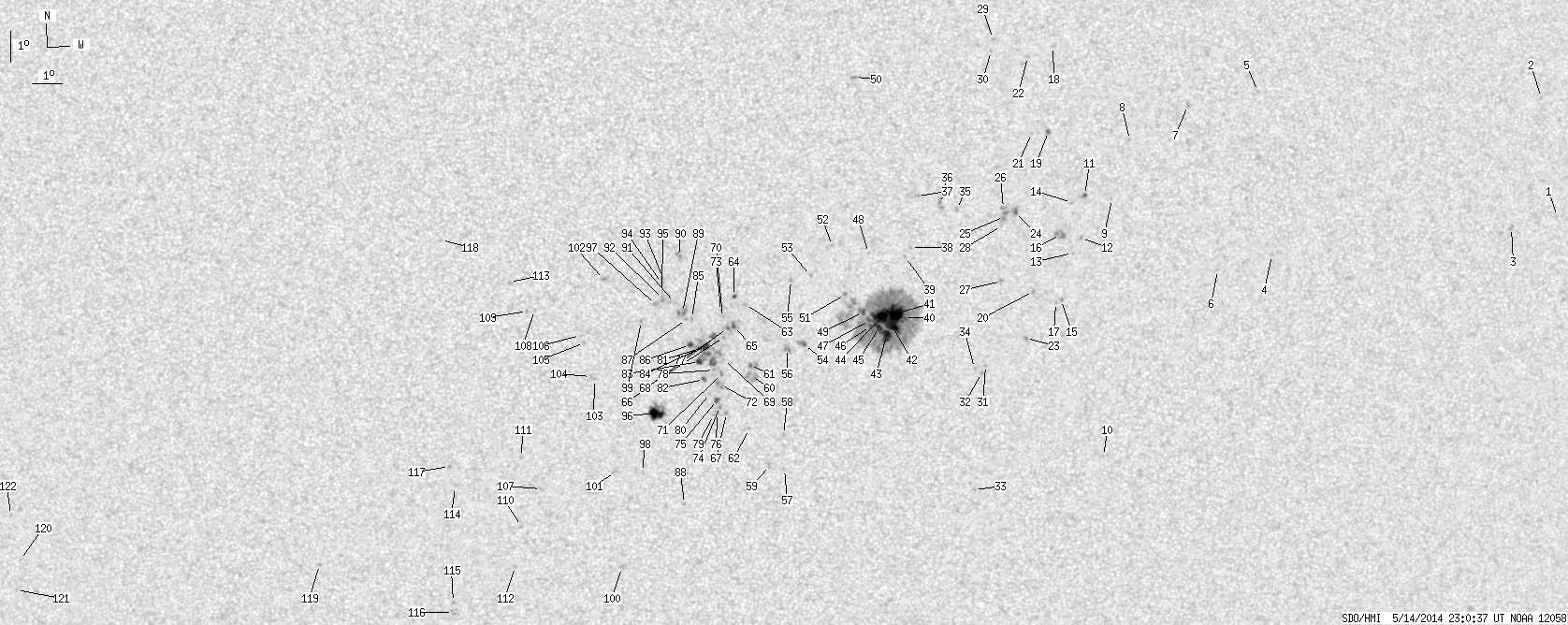

back to the solar disc SDO HMI 2014-05-14 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.36 | -10.37 | 253.65 | 30.38 | 254.31 | 0.5188 | 628.0 | 508.6 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -6.52 | 252.72 | 29.45 | 261.55 | 0.4959 | 597.0 | 431.8 | |
| 0.00 | 2.42 | 0.00 | 1.38 | -10.78 | 251.95 | 28.68 | 252.79 | 0.4956 | -836.0 | -607.7 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -11.82 | 243.34 | 20.08 | 244.37 | 0.3743 | 767.0 | 584.5 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -6.49 | 242.55 | 19.29 | 258.19 | 0.3367 | 724.0 | 625.2 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -12.34 | 241.48 | 18.21 | 240.95 | 0.3508 | 703.0 | 514.9 | |
| 0.00 | 2.42 | 0.00 | 1.26 | -6.98 | 240.16 | 16.90 | 255.15 | 0.2998 | 802.0 | 622.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -8.13 | 238.23 | 14.97 | 249.42 | 0.2743 | 758.0 | 548.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -10.05 | 237.71 | 14.44 | 242.23 | 0.2788 | 673.0 | 529.1 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -18.57 | 237.98 | 14.71 | 221.22 | 0.3668 | 718.0 | 559.0 | |
| 0.81 | 2.15 | 0.41 | 1.11 | -9.94 | 236.79 | 13.52 | 241.09 | 0.2642 | 971.7 | 850.0 | |
| 0.00 | 1.97 | 0.00 | 1.02 | -11.35 | 236.72 | 13.45 | 236.41 | 0.2751 | 862.0 | 701.0 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -11.84 | 236.46 | 13.19 | 234.39 | 0.2759 | 846.0 | 663.8 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -10.19 | 236.35 | 13.09 | 239.48 | 0.2599 | 566.0 | 534.0 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -13.38 | 236.15 | 12.89 | 229.34 | 0.2873 | 941.0 | 761.1 | |
| 0.00 | 7.81 | 0.00 | 4.01 | -11.23 | 236.02 | 12.75 | 235.40 | 0.2642 | 767.0 | 837.6 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -13.48 | 235.97 | 12.70 | 228.68 | 0.2859 | 845.0 | 722.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -5.12 | 235.58 | 12.31 | 258.53 | 0.2177 | 636.0 | 500.0 | |
| 0.63 | 2.69 | 0.32 | 1.37 | -7.88 | 235.49 | 12.22 | 246.49 | 0.2297 | 1028.0 | 835.5 | |
| 0.00 | 2.15 | 0.00 | 1.11 | -13.11 | 235.19 | 11.92 | 227.92 | 0.2722 | 910.0 | 664.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -7.94 | 234.93 | 11.66 | 245.26 | 0.2214 | 777.0 | 531.9 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -5.46 | 234.75 | 11.48 | 256.13 | 0.2050 | 856.0 | 697.1 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -14.66 | 235.01 | 11.74 | 223.42 | 0.2877 | 931.0 | 772.5 | |
| 0.72 | 5.12 | 0.37 | 2.61 | -10.51 | 234.48 | 11.21 | 234.44 | 0.2360 | -564.2 | -116.0 | |
| 0.00 | 5.92 | 0.00 | 3.02 | -10.67 | 234.10 | 10.84 | 232.99 | 0.2324 | 800.0 | 803.6 | |
| 0.00 | 2.51 | 0.00 | 1.28 | -10.39 | 234.06 | 10.80 | 233.87 | 0.2292 | 985.0 | 795.1 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -12.78 | 234.09 | 10.83 | 226.18 | 0.2550 | 906.0 | 760.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -10.97 | 234.02 | 10.75 | 231.72 | 0.2344 | 694.0 | 509.4 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -4.89 | 233.59 | 10.32 | 257.73 | 0.1836 | 715.0 | 591.5 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -5.28 | 233.53 | 10.27 | 255.56 | 0.1841 | 806.0 | 624.6 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -15.57 | 233.68 | 10.41 | 217.94 | 0.2844 | 760.0 | 663.5 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -15.82 | 233.57 | 10.30 | 217.08 | 0.2865 | 853.0 | 716.9 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -19.74 | 233.53 | 10.26 | 209.73 | 0.3396 | 778.0 | 558.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -15.66 | 233.30 | 10.03 | 216.72 | 0.2818 | 756.0 | 655.2 | |
| 0.00 | 2.60 | 0.00 | 1.32 | -10.43 | 232.50 | 9.23 | 229.45 | 0.2086 | -796.0 | -552.1 | |
| 0.00 | 5.21 | 0.00 | 2.63 | -10.25 | 231.97 | 8.70 | 228.47 | 0.1997 | -841.0 | -764.2 | |
| 0.00 | 2.15 | 0.00 | 1.09 | -10.01 | 231.18 | 7.92 | 226.75 | 0.1871 | -903.0 | -749.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -11.70 | 231.01 | 7.74 | 220.10 | 0.2057 | -886.0 | -712.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -12.00 | 230.83 | 7.56 | 218.48 | 0.2078 | -870.0 | -708.6 | |
| 0.99 | 396.52 | 0.50 | 201.87 | -14.00 | 230.86 | 7.59 | 213.14 | 0.2355 | 952.6 | 423.0 | |
| 24.23 | -40.00 | 12.34 | -40.00 | -13.88 | 230.54 | 7.27 | 212.32 | 0.2308 | 1388.0 | 999999 | |
| 9.87 | -40.00 | 5.03 | -40.00 | -14.32 | 230.49 | 7.22 | 211.14 | 0.2366 | 1135.6 | 999999 | |
| 9.69 | -40.00 | 4.94 | -40.00 | -14.59 | 230.28 | 7.01 | 209.78 | 0.2388 | 1015.0 | 999999 | |
| 20.64 | -40.00 | 10.50 | -40.00 | -13.98 | 230.10 | 6.83 | 210.53 | 0.2283 | 1424.1 | 999999 | |
| 4.67 | -40.00 | 2.38 | -40.00 | -14.35 | 230.02 | 6.75 | 209.40 | 0.2330 | 1201.0 | 999999 | |
| 1.17 | -40.00 | 0.59 | -40.00 | -14.29 | 229.73 | 6.47 | 208.49 | 0.2298 | 1063.6 | 999999 | |
| 1.71 | -40.00 | 0.87 | -40.00 | -14.10 | 229.70 | 6.43 | 208.76 | 0.2267 | 1040.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -11.89 | 229.61 | 6.34 | 214.08 | 0.1938 | -671.0 | -508.6 | |
| 2.42 | -40.00 | 1.23 | -40.00 | -13.83 | 229.47 | 6.20 | 208.51 | 0.2207 | 1048.6 | 999999 | |
| 0.00 | 3.32 | 0.00 | 1.66 | -6.16 | 229.06 | 5.79 | 238.94 | 0.1176 | 973.0 | 725.2 | |
| 0.00 | 1.88 | 0.00 | 0.95 | -13.24 | 228.86 | 5.59 | 207.40 | 0.2071 | 1053.0 | 805.3 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -11.64 | 228.39 | 5.13 | 209.36 | 0.1793 | -904.0 | -761.6 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -12.63 | 227.69 | 4.43 | 203.59 | 0.1890 | -923.0 | -713.3 | |
| 0.63 | 4.94 | 0.32 | 2.51 | -14.91 | 227.51 | 4.25 | 198.69 | 0.2243 | 1000.4 | 596.3 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -12.78 | 227.04 | 3.78 | 200.14 | 0.1873 | -935.0 | -738.2 | |
| 0.00 | 5.30 | 0.00 | 2.69 | -15.04 | 226.95 | 3.68 | 196.19 | 0.2235 | -722.0 | -483.1 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -19.07 | 226.93 | 3.66 | 192.09 | 0.2895 | 799.0 | 599.0 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -17.91 | 226.87 | 3.61 | 192.86 | 0.2703 | 737.0 | 661.6 | |
| 0.00 | 2.51 | 0.00 | 1.30 | -18.95 | 226.41 | 3.15 | 190.52 | 0.2858 | 789.0 | 652.2 | |
| 0.00 | 12.57 | 0.00 | 6.40 | -15.97 | 225.77 | 2.50 | 190.36 | 0.2344 | -257.0 | -330.5 | |
| 0.36 | 6.37 | 0.18 | 3.24 | -15.60 | 225.70 | 2.43 | 190.39 | 0.2279 | -1065.2 | -624.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -17.72 | 225.69 | 2.43 | 188.85 | 0.2634 | -752.0 | -552.5 | |
| 0.00 | 1.97 | 0.00 | 1.00 | -13.59 | 225.52 | 2.26 | 191.47 | 0.1935 | -779.0 | -571.5 | |
| 1.08 | 2.42 | 0.54 | 1.22 | -13.31 | 225.15 | 1.88 | 189.85 | 0.1876 | -907.2 | -686.1 | |
| 0.99 | 7.99 | 0.50 | 4.04 | -14.30 | 225.16 | 1.89 | 189.03 | 0.2044 | -1003.9 | -781.8 | |
| 0.36 | -65.00 | 0.18 | -65.00 | -14.36 | 224.94 | 1.67 | 187.96 | 0.2049 | -1211.0 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -17.19 | 224.93 | 1.66 | 186.31 | 0.2528 | -852.0 | -776.3 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -14.67 | 224.81 | 1.55 | 187.18 | 0.2099 | -829.0 | -720.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -15.41 | 224.82 | 1.55 | 186.77 | 0.2225 | -599.0 | -485.7 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -14.02 | 224.78 | 1.51 | 187.43 | 0.1987 | -641.0 | -658.5 | |
| 0.00 | 2.24 | 0.00 | 1.14 | -15.88 | 224.76 | 1.49 | 186.27 | 0.2303 | -791.0 | -737.1 | |
| 0.00 | 6.46 | 0.00 | 3.29 | -16.25 | 224.73 | 1.46 | 185.97 | 0.2366 | -637.0 | -721.7 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -13.80 | 224.72 | 1.45 | 187.27 | 0.1949 | -813.0 | -598.7 | |
| 0.00 | 1.97 | 0.00 | 1.01 | -16.97 | 224.70 | 1.44 | 185.55 | 0.2487 | -988.0 | -790.9 | |
| 1.53 | 3.32 | 0.78 | 1.70 | -16.75 | 224.61 | 1.34 | 185.27 | 0.2448 | -1101.5 | -901.6 | |
| 0.00 | 2.15 | 0.00 | 1.10 | -17.19 | 224.61 | 1.34 | 185.11 | 0.2522 | -732.0 | -630.3 | |
| 0.00 | 6.64 | 0.00 | 3.36 | -14.70 | 224.50 | 1.23 | 185.72 | 0.2098 | -1089.0 | -931.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -15.75 | 224.51 | 1.24 | 185.27 | 0.2277 | -973.0 | -742.6 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.25 | 224.48 | 1.21 | 184.61 | 0.2531 | -664.0 | -550.1 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -16.53 | 224.35 | 1.08 | 184.34 | 0.2408 | -707.0 | -516.3 | |
| 4.04 | 48.29 | 2.05 | 24.50 | -14.98 | 224.22 | 0.95 | 184.32 | 0.2141 | -1289.9 | -839.9 | |
| 0.99 | 2.96 | 0.50 | 1.51 | -16.07 | 224.16 | 0.89 | 183.71 | 0.2326 | -980.2 | -798.8 | |
| 3.05 | -81.00 | 1.55 | -81.00 | -15.47 | 224.00 | 0.73 | 183.20 | 0.2223 | -911.0 | 999999 | |
| 0.81 | -81.00 | 0.41 | -81.00 | -15.04 | 224.00 | 0.73 | 183.31 | 0.2149 | -967.3 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -14.05 | 223.75 | 0.48 | 182.37 | 0.1977 | -1125.0 | -861.8 | |
| 2.15 | -81.00 | 1.09 | -81.00 | -14.92 | 223.69 | 0.42 | 181.92 | 0.2126 | -1040.4 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -14.08 | 223.56 | 0.29 | 181.45 | 0.1982 | -1081.0 | -864.1 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -20.25 | 223.50 | 0.23 | 180.72 | 0.3027 | -837.0 | -650.2 | |
| 0.00 | 8.17 | 0.00 | 4.12 | -13.83 | 223.44 | 0.17 | 180.85 | 0.1939 | -902.0 | -894.8 | |
| 0.00 | 3.86 | 0.00 | 1.94 | -12.02 | 223.31 | 0.05 | 180.28 | 0.1625 | -804.0 | -810.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -13.52 | 223.19 | -0.08 | 179.59 | 0.1885 | -691.0 | -610.3 | |
| 0.00 | 2.87 | 0.00 | 1.45 | -13.40 | 222.78 | -0.48 | 177.46 | 0.1866 | -1055.0 | -880.7 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -12.69 | 222.79 | -0.48 | 177.29 | 0.1744 | -796.0 | -672.7 | |
| 0.00 | 1.62 | 0.00 | 0.81 | -12.88 | 222.75 | -0.51 | 177.17 | 0.1776 | -954.0 | -713.5 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -13.18 | 222.75 | -0.51 | 177.25 | 0.1829 | -1092.0 | -884.0 | |
| 14.63 | 24.50 | 7.49 | 12.53 | -17.19 | 222.55 | -0.72 | 177.25 | 0.2515 | 1116.5 | 626.6 | |
| 0.00 | 2.06 | 0.00 | 1.04 | -13.59 | 222.53 | -0.73 | 176.23 | 0.1900 | -932.0 | -748.5 | |
| 0.00 | 1.88 | 0.00 | 0.97 | -19.17 | 222.06 | -1.21 | 175.97 | 0.2853 | -814.0 | -628.9 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -14.14 | 222.06 | -1.20 | 174.13 | 0.2002 | -941.0 | -669.7 | |
| 0.00 | 2.51 | 0.00 | 1.32 | -22.42 | 221.30 | -1.96 | 174.64 | 0.3403 | -778.0 | -655.5 | |
| 0.00 | 3.14 | 0.00 | 1.62 | -19.17 | 221.13 | -2.14 | 172.90 | 0.2868 | -778.0 | -669.0 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -12.75 | 220.83 | -2.44 | 166.61 | 0.1801 | -975.0 | -736.4 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -16.06 | 220.47 | -2.80 | 168.53 | 0.2367 | -820.0 | -601.8 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -15.96 | 220.35 | -2.92 | 167.95 | 0.2356 | -782.0 | -521.0 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -14.85 | 220.14 | -3.12 | 165.95 | 0.2178 | -814.0 | -572.8 | |
| 0.00 | 0.54 | 0.00 | 0.27 | -14.60 | 220.02 | -3.24 | 165.12 | 0.2142 | -653.0 | -522.8 | |
| 0.00 | 1.88 | 0.00 | 0.98 | -19.72 | 218.57 | -4.70 | 165.25 | 0.3041 | -1013.0 | -808.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.76 | 218.50 | -4.76 | 157.20 | 0.2090 | -838.0 | -629.2 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -13.79 | 218.25 | -5.01 | 156.19 | 0.2112 | -767.0 | -642.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -20.99 | 217.85 | -5.42 | 164.31 | 0.3275 | -814.0 | -660.5 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -18.65 | 217.93 | -5.34 | 162.21 | 0.2899 | -685.0 | -509.0 | |
| 0.00 | 2.33 | 0.00 | 1.23 | -22.37 | 217.56 | -5.71 | 164.73 | 0.3505 | -681.0 | -549.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -12.83 | 217.68 | -5.59 | 151.66 | 0.2008 | -836.0 | -617.7 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -19.64 | 215.60 | -7.67 | 156.69 | 0.3190 | -524.0 | -503.4 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -23.58 | 215.31 | -7.96 | 160.42 | 0.3803 | -713.0 | -610.7 | |
| 0.00 | 3.50 | 0.00 | 1.88 | -23.94 | 215.29 | -7.98 | 160.71 | 0.3858 | -638.0 | -672.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -18.95 | 215.44 | -7.83 | 155.29 | 0.3096 | -859.0 | -696.8 | |
| 0.00 | 1.88 | 0.00 | 0.95 | -11.43 | 215.44 | -7.83 | 138.74 | 0.2033 | -687.0 | -542.1 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -22.25 | 210.63 | -12.64 | 148.89 | 0.3935 | -801.0 | -616.3 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -21.92 | 199.64 | -23.62 | 131.83 | 0.5009 | -585.0 | -547.8 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -22.95 | 199.31 | -23.96 | 133.08 | 0.5140 | -589.0 | -473.1 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -20.38 | 199.55 | -23.71 | 129.19 | 0.4884 | -700.0 | -594.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
