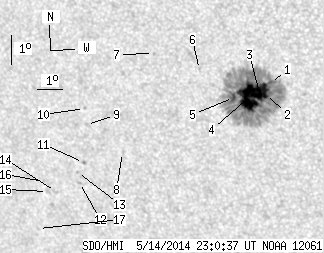

SDO HMI 2014-05-14 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.26 | 288.30 | 35.40 | 176.16 | -23.79 | 193.37 | -29.90 | 128.75 | 0.5864 | 668.0 | 278.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-14 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.08 | 272.30 | 0.65 | 165.49 | -23.27 | 194.61 | -28.66 | 128.98 | 0.5690 | 839.0 | 332.4 | |
| 3.95 | -1.00 | 2.39 | -1.00 | -23.65 | 194.32 | -28.94 | 129.31 | 0.5750 | 1195.8 | 999999 | |
| 15.89 | -1.00 | 9.62 | -1.00 | -23.58 | 194.11 | -29.15 | 129.02 | 0.5768 | 1228.1 | 999999 | |
| 33.75 | -1.00 | 20.54 | -1.00 | -23.74 | 193.66 | -29.61 | 128.86 | 0.5831 | 1017.9 | 999999 | |
| 3.59 | -1.00 | 2.20 | -1.00 | -23.72 | 193.09 | -30.18 | 128.38 | 0.5893 | 415.9 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -22.79 | 192.02 | -31.24 | 126.17 | 0.5946 | 595.0 | 451.3 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -22.23 | 190.38 | -32.88 | 124.17 | 0.6097 | -690.0 | -570.2 | |
| 0.00 | 1.44 | 0.00 | 0.94 | -25.40 | 188.19 | -35.08 | 127.17 | 0.6537 | -710.0 | -530.6 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -24.45 | 187.03 | -36.24 | 125.14 | 0.6604 | -335.0 | -303.5 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -23.93 | 187.12 | -36.15 | 124.48 | 0.6564 | -618.0 | -476.8 | |
| 0.00 | 1.71 | 0.00 | 1.14 | -25.69 | 186.47 | -36.80 | 126.46 | 0.6735 | -756.0 | -636.6 | |
| 0.00 | 1.35 | 0.00 | 0.91 | -26.34 | 186.06 | -37.21 | 127.08 | 0.6816 | -620.0 | -477.4 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -26.01 | 186.10 | -37.17 | 126.66 | 0.6792 | -656.0 | -564.7 | |
| 0.00 | 1.88 | 0.00 | 1.29 | -26.61 | 184.92 | -38.34 | 126.75 | 0.6946 | -114.0 | -231.8 | |
| 0.00 | 2.69 | 0.00 | 1.86 | -26.60 | 184.58 | -38.69 | 126.55 | 0.6980 | -553.0 | -414.2 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -26.26 | 184.54 | -38.73 | 126.09 | 0.6966 | -559.0 | -461.7 | |
| 0.00 | 0.90 | 0.00 | 0.63 | -27.81 | 183.67 | -39.60 | 127.58 | 0.7137 | -362.0 | -327.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
