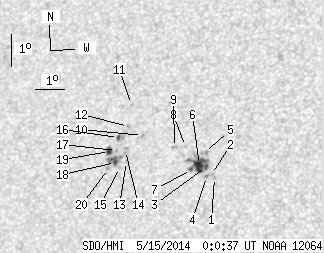

SDO HMI 2014-05-15 00:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.31 | 68.68 | 10.96 | 39.13 | 8.24 | 195.18 | -27.54 | 68.01 | 0.4952 | -97.3 | 86.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-15 00:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.55 | 7.59 | 197.05 | -25.66 | 67.94 | 0.4651 | -837.0 | -628.0 | |
| 0.00 | 2.15 | 0.00 | 1.21 | 7.68 | 196.94 | -25.77 | 67.83 | 0.4672 | -911.0 | -620.0 | |
| 1.44 | 26.84 | 0.81 | 15.10 | 7.93 | 196.76 | -25.96 | 67.47 | 0.4713 | -1154.9 | -555.6 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 7.62 | 196.78 | -25.94 | 68.07 | 0.4692 | -878.0 | -752.7 | |
| 0.00 | 3.23 | 0.00 | 1.82 | 8.37 | 196.66 | -26.06 | 66.69 | 0.4751 | -557.0 | -507.8 | |
| 11.04 | -3.00 | 6.21 | -3.00 | 7.97 | 196.51 | -26.20 | 67.59 | 0.4749 | -929.2 | 999999 | |
| 0.99 | -3.00 | 0.56 | -3.00 | 7.85 | 196.25 | -26.46 | 68.02 | 0.4780 | -631.9 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 8.57 | 195.99 | -26.72 | 66.82 | 0.4856 | -586.0 | -405.2 | |
| 0.00 | 2.24 | 0.00 | 1.27 | 8.54 | 195.62 | -27.10 | 67.14 | 0.4908 | -781.0 | -670.8 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 8.94 | 194.47 | -28.24 | 67.22 | 0.5090 | 837.0 | 607.0 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 9.91 | 194.00 | -28.71 | 65.80 | 0.5209 | 709.0 | 498.0 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 9.23 | 193.96 | -28.75 | 67.05 | 0.5177 | 766.0 | 567.2 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 8.15 | 193.98 | -28.73 | 69.02 | 0.5117 | 802.0 | 657.3 | |
| 0.00 | 3.32 | 0.00 | 1.92 | 8.49 | 193.92 | -28.80 | 68.43 | 0.5143 | 828.0 | 732.4 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 7.97 | 193.75 | -28.97 | 69.50 | 0.5141 | 780.0 | 612.0 | |
| 1.17 | 3.77 | 0.68 | 2.18 | 8.90 | 193.64 | -29.08 | 67.87 | 0.5203 | 662.8 | 731.7 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 8.50 | 193.60 | -29.11 | 68.62 | 0.5188 | 949.0 | 836.0 | |
| 1.53 | 15.89 | 0.88 | 9.20 | 8.13 | 193.60 | -29.12 | 69.30 | 0.5170 | 1038.2 | 736.2 | |
| 3.14 | -18.00 | 1.82 | -18.00 | 8.47 | 193.36 | -29.36 | 68.83 | 0.5220 | 784.3 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.09 | 7.95 | 193.36 | -29.35 | 69.78 | 0.5194 | 718.0 | 543.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
