SDO HMI 2014-05-15 01:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.56 | 65.66 | 11.60 | 37.21 | 8.26 | 195.20 | -26.96 | 67.56 | 0.4871 | -71.8 | 58.3 | |
|
previous
or next observation for the same group /

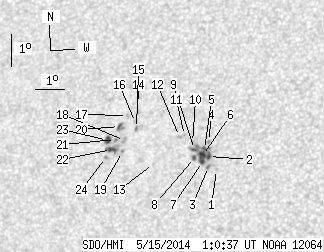

back to the solar disc SDO HMI 2014-05-15 01:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.55 | 7.52 | 197.11 | -25.05 | 67.61 | 0.4559 | -819.0 | -615.4 | |
| 2.33 | 25.76 | 1.30 | 14.42 | 7.93 | 196.81 | -25.35 | 67.02 | 0.4625 | -1124.7 | -637.6 | |
| 0.00 | 2.69 | 0.00 | 1.50 | 7.62 | 196.83 | -25.33 | 67.63 | 0.4604 | -907.0 | -722.2 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 8.39 | 196.78 | -25.38 | 66.12 | 0.4656 | -721.0 | -528.4 | |
| 1.44 | -2.00 | 0.80 | -2.00 | 8.15 | 196.66 | -25.50 | 66.70 | 0.4659 | -910.4 | 999999 | |
| 5.12 | -2.00 | 2.86 | -2.00 | 7.96 | 196.61 | -25.56 | 67.11 | 0.4656 | -1010.6 | 999999 | |
| 1.97 | -2.00 | 1.10 | -2.00 | 7.78 | 196.62 | -25.54 | 67.48 | 0.4644 | -901.0 | 999999 | |
| 1.08 | -2.00 | 0.60 | -2.00 | 7.91 | 196.34 | -25.82 | 67.43 | 0.4691 | -686.6 | 999999 | |
| 1.26 | -2.00 | 0.70 | -2.00 | 8.15 | 196.32 | -25.84 | 66.96 | 0.4708 | -646.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 8.37 | 196.24 | -25.92 | 66.59 | 0.4732 | -504.0 | -399.8 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 8.59 | 195.95 | -26.21 | 66.38 | 0.4786 | -553.0 | -503.0 | |
| 0.00 | 1.89 | 0.00 | 1.06 | 8.57 | 195.78 | -26.38 | 66.57 | 0.4808 | -832.0 | -673.9 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 7.75 | 194.94 | -27.22 | 68.76 | 0.4882 | -518.0 | -422.3 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 9.34 | 194.27 | -27.89 | 66.25 | 0.5064 | 766.0 | 672.2 | |
| 0.00 | 1.80 | 0.00 | 1.03 | 8.85 | 194.27 | -27.89 | 67.16 | 0.5035 | 924.0 | 795.7 | |
| 0.00 | 1.89 | 0.00 | 1.08 | 9.04 | 194.22 | -27.94 | 66.85 | 0.5052 | 426.0 | 567.3 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 9.26 | 193.93 | -28.23 | 66.65 | 0.5106 | 703.0 | 569.8 | |
| 0.00 | 2.69 | 0.00 | 1.55 | 8.49 | 193.89 | -28.28 | 68.10 | 0.5070 | 930.0 | 831.2 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 8.15 | 193.84 | -28.32 | 68.76 | 0.5058 | 868.0 | 692.8 | |
| 1.44 | 4.22 | 0.83 | 2.43 | 8.92 | 193.68 | -28.49 | 67.44 | 0.5122 | 828.0 | 776.2 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 8.53 | 193.57 | -28.59 | 68.24 | 0.5116 | 884.0 | 765.4 | |
| 2.87 | 8.17 | 1.65 | 4.70 | 8.22 | 193.45 | -28.71 | 68.88 | 0.5117 | 1006.2 | 800.1 | |
| 3.05 | 4.49 | 1.76 | 2.59 | 8.50 | 193.29 | -28.87 | 68.47 | 0.5154 | 766.1 | 520.0 | |
| 0.00 | 1.44 | 0.00 | 0.83 | 7.98 | 193.26 | -28.90 | 69.45 | 0.5131 | 684.0 | 600.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
