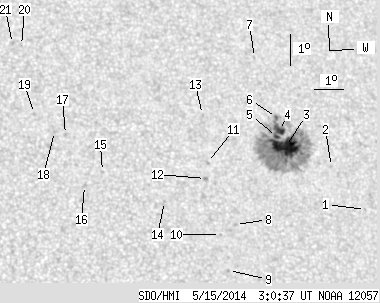

SDO HMI 2014-05-15 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.72 | 214.74 | 26.38 | 126.02 | 15.16 | 248.51 | 27.45 | 304.17 | 0.5397 | -352.1 | -320.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-15 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.75 | 13.16 | 251.57 | 30.51 | 298.33 | 0.5639 | 529.0 | 367.4 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 14.49 | 250.54 | 29.48 | 301.27 | 0.5596 | 721.0 | 541.6 | |
| 35.38 | 192.60 | 20.87 | 113.47 | 15.09 | 248.98 | 27.92 | 303.56 | 0.5447 | -1049.6 | -443.1 | |
| 6.55 | -3.00 | 3.87 | -3.00 | 15.60 | 248.84 | 27.78 | 304.49 | 0.5468 | -833.8 | 999999 | |
| 1.98 | -3.00 | 1.16 | -3.00 | 15.40 | 248.71 | 27.65 | 304.31 | 0.5437 | -985.2 | 999999 | |
| 0.81 | -3.00 | 0.48 | -3.00 | 16.01 | 248.80 | 27.74 | 305.17 | 0.5494 | -601.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 17.93 | 248.32 | 27.26 | 308.53 | 0.5592 | 687.0 | 550.2 | |
| 0.00 | 1.53 | 0.00 | 0.87 | 12.58 | 246.91 | 25.85 | 301.29 | 0.5000 | 719.0 | 575.6 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 11.14 | 246.52 | 25.46 | 299.05 | 0.4845 | 635.0 | 438.4 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 12.26 | 246.36 | 25.30 | 301.25 | 0.4904 | 607.0 | 546.1 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 14.53 | 246.17 | 25.11 | 305.36 | 0.5057 | 607.0 | 484.9 | |
| 0.00 | 2.07 | 0.00 | 1.18 | 14.02 | 246.04 | 24.98 | 304.64 | 0.5000 | 817.0 | 686.6 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 16.05 | 246.19 | 25.14 | 307.82 | 0.5188 | 398.0 | 398.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 13.26 | 244.55 | 23.49 | 304.92 | 0.4751 | 742.0 | 560.7 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 14.18 | 242.55 | 21.49 | 308.92 | 0.4584 | 624.0 | 467.8 | |
| 0.00 | 1.98 | 0.00 | 1.09 | 13.72 | 241.90 | 20.84 | 308.95 | 0.4463 | 661.0 | 445.0 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 15.33 | 241.43 | 20.37 | 312.39 | 0.4563 | 826.0 | 631.6 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 15.42 | 241.07 | 20.01 | 313.03 | 0.4531 | 906.0 | 705.3 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 15.99 | 240.46 | 19.40 | 314.84 | 0.4521 | 708.0 | 470.8 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 18.17 | 240.26 | 19.20 | 318.53 | 0.4737 | 582.0 | 390.5 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 18.23 | 239.96 | 18.90 | 319.05 | 0.4713 | 768.0 | 671.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
