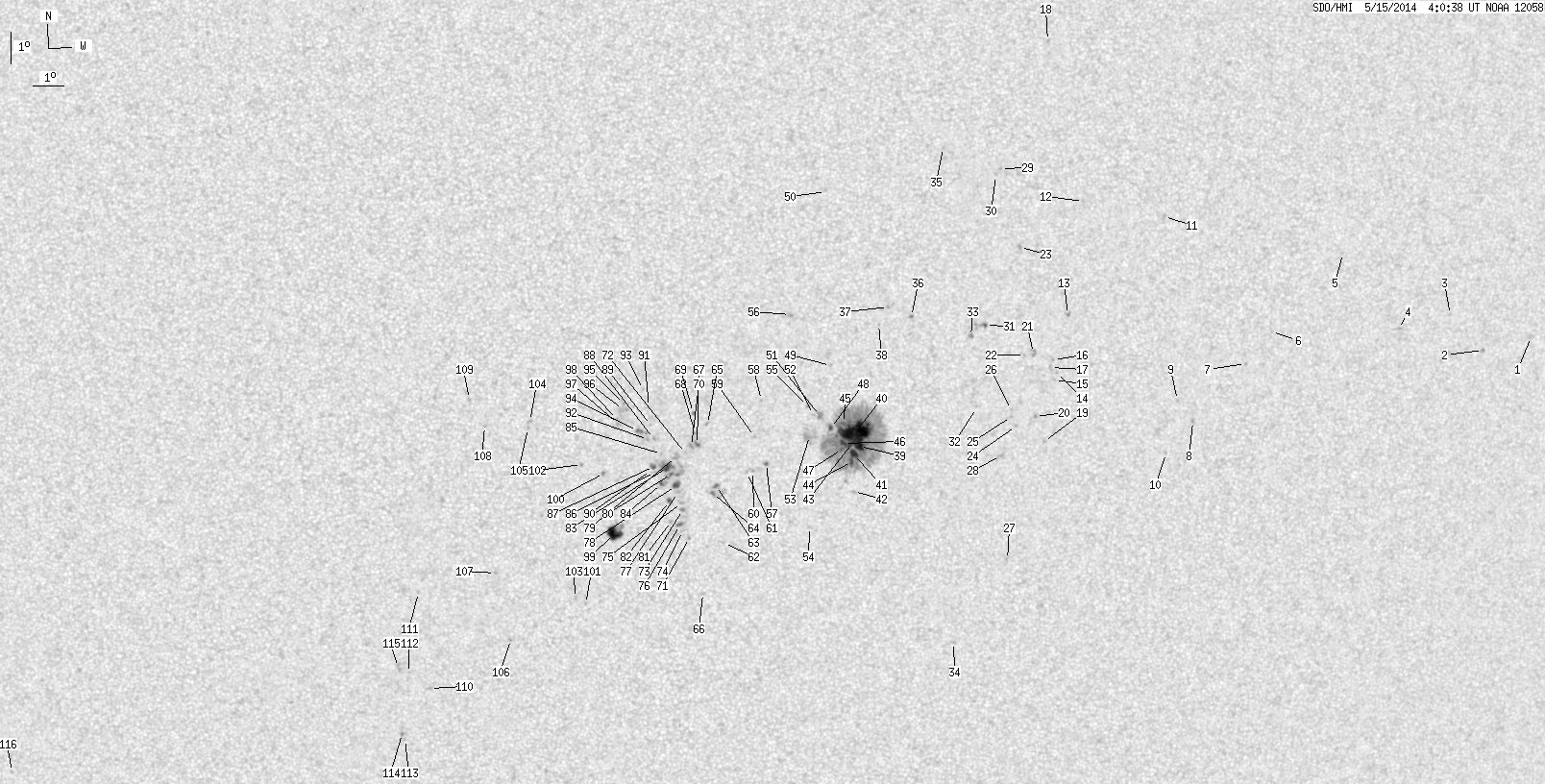

SDO HMI 2014-05-15 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.36 | 619.01 | 53.43 | 318.13 | -14.20 | 229.22 | 8.71 | 214.78 | 0.2627 | 182.2 | 161.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-15 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.05 | 0.00 | 1.82 | -10.46 | 253.70 | 33.19 | 255.13 | 0.5591 | 650.0 | 509.6 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -10.93 | 251.93 | 31.42 | 253.63 | 0.5355 | -823.0 | -660.7 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -9.82 | 250.59 | 30.08 | 255.17 | 0.5128 | 763.0 | 576.2 | |
| 0.00 | 3.68 | 0.00 | 2.09 | -10.32 | 248.73 | 28.22 | 253.41 | 0.4874 | 171.0 | 101.3 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -7.95 | 246.53 | 26.02 | 257.44 | 0.4470 | 659.0 | 531.9 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -10.50 | 244.21 | 23.71 | 250.49 | 0.4211 | 494.0 | 462.8 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -11.52 | 243.39 | 22.88 | 247.54 | 0.4140 | 731.0 | 635.8 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -13.40 | 241.71 | 21.20 | 241.73 | 0.4012 | 877.0 | 602.0 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -12.73 | 241.12 | 20.61 | 242.66 | 0.3882 | 830.0 | 634.5 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -14.43 | 240.87 | 20.36 | 238.48 | 0.3970 | 671.0 | 579.4 | |
| 0.00 | 2.51 | 0.00 | 1.33 | -6.90 | 240.30 | 19.79 | 257.17 | 0.3462 | 782.0 | 644.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -6.45 | 237.58 | 17.07 | 256.87 | 0.3008 | 775.0 | 625.6 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -10.05 | 237.22 | 16.71 | 245.27 | 0.3131 | 984.0 | 730.8 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -11.89 | 236.94 | 16.43 | 239.63 | 0.3221 | 756.0 | 718.9 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -12.14 | 236.89 | 16.38 | 238.89 | 0.3234 | 734.0 | 605.1 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -11.49 | 236.82 | 16.31 | 240.57 | 0.3173 | 835.0 | 713.9 | |
| 0.00 | 2.69 | 0.00 | 1.41 | -11.74 | 236.73 | 16.23 | 239.76 | 0.3181 | 799.0 | 654.4 | |
| 0.00 | 1.98 | 0.00 | 1.02 | -1.40 | 236.31 | 15.80 | 274.27 | 0.2742 | 55.0 | 97.1 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -14.11 | 236.66 | 16.15 | 233.42 | 0.3375 | 716.0 | 610.2 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -13.32 | 236.32 | 15.81 | 234.88 | 0.3255 | 923.0 | 774.5 | |
| 0.00 | 4.31 | 0.00 | 2.24 | -11.29 | 236.13 | 15.62 | 240.15 | 0.3058 | 783.0 | 783.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -11.35 | 235.84 | 15.34 | 239.52 | 0.3022 | 977.0 | 713.7 | |
| 0.00 | 1.89 | 0.00 | 0.97 | -7.94 | 235.53 | 15.02 | 250.01 | 0.2744 | 930.0 | 812.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -13.63 | 235.69 | 15.18 | 233.01 | 0.3200 | 799.0 | 684.0 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -13.32 | 235.51 | 15.00 | 233.49 | 0.3147 | 822.0 | 607.8 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -13.11 | 235.50 | 14.99 | 234.04 | 0.3125 | 810.0 | 673.7 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -17.96 | 235.72 | 15.22 | 223.27 | 0.3658 | 710.0 | 562.9 | |
| 0.00 | 4.49 | 0.00 | 2.35 | -14.59 | 235.24 | 14.73 | 229.77 | 0.3236 | 779.0 | 605.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -5.45 | 234.83 | 14.32 | 258.52 | 0.2523 | 801.0 | 690.8 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -5.67 | 234.68 | 14.17 | 257.57 | 0.2505 | 631.0 | 461.3 | |
| 0.90 | 5.84 | 0.46 | 3.00 | -10.42 | 234.49 | 13.98 | 240.19 | 0.2751 | -596.1 | 313.5 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -13.06 | 234.34 | 13.83 | 232.04 | 0.2966 | 442.0 | 572.4 | |
| 0.00 | 3.14 | 0.00 | 1.62 | -10.76 | 234.03 | 13.52 | 238.28 | 0.2712 | 843.0 | 740.6 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -20.70 | 234.11 | 13.60 | 215.30 | 0.3823 | 627.0 | 511.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -4.80 | 232.94 | 12.43 | 259.87 | 0.2188 | 718.0 | 600.8 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -10.16 | 232.05 | 11.54 | 236.29 | 0.2378 | -1037.0 | -808.6 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -9.86 | 231.29 | 10.78 | 235.62 | 0.2242 | -1093.0 | -930.7 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -10.42 | 230.99 | 10.48 | 232.85 | 0.2255 | -687.0 | -538.3 | |
| 7.18 | 354.71 | 3.69 | 181.94 | -14.32 | 230.51 | 10.00 | 219.70 | 0.2646 | 1152.2 | 444.6 | |
| 43.64 | -39.00 | 22.37 | -39.00 | -13.86 | 230.36 | 9.85 | 220.47 | 0.2572 | 1417.1 | 999999 | |
| 5.39 | -39.00 | 2.77 | -39.00 | -14.57 | 230.33 | 9.82 | 218.58 | 0.2659 | 1027.5 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -15.78 | 230.39 | 9.88 | 215.96 | 0.2824 | 705.0 | 451.6 | |
| 4.58 | -39.00 | 2.35 | -39.00 | -14.23 | 230.25 | 9.74 | 219.20 | 0.2607 | 1215.7 | 999999 | |
| 2.60 | -39.00 | 1.34 | -39.00 | -14.82 | 230.28 | 9.77 | 217.84 | 0.2686 | 895.4 | 999999 | |
| 1.53 | -39.00 | 0.78 | -39.00 | -13.59 | 229.97 | 9.46 | 220.07 | 0.2494 | 1029.9 | 999999 | |
| 3.50 | -39.00 | 1.80 | -39.00 | -14.24 | 229.97 | 9.46 | 218.38 | 0.2577 | 1201.9 | 999999 | |
| 2.33 | -39.00 | 1.20 | -39.00 | -14.42 | 229.94 | 9.43 | 217.85 | 0.2599 | 984.5 | 999999 | |
| 1.80 | -39.00 | 0.92 | -39.00 | -13.74 | 229.54 | 9.03 | 218.35 | 0.2467 | 1079.9 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -11.74 | 229.47 | 8.96 | 223.93 | 0.2207 | -891.0 | -627.0 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -6.23 | 229.18 | 8.67 | 247.35 | 0.1632 | 398.0 | 347.3 | |
| 0.00 | 5.39 | 0.00 | 2.75 | -13.34 | 229.18 | 8.67 | 218.28 | 0.2377 | 1080.0 | 841.3 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -13.31 | 228.95 | 8.44 | 217.65 | 0.2350 | 218.0 | 172.2 | |
| 0.00 | 16.43 | 0.00 | 8.39 | -13.99 | 228.85 | 8.34 | 215.57 | 0.2431 | 398.0 | 320.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -16.95 | 228.97 | 8.46 | 209.66 | 0.2856 | 802.0 | 591.3 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -13.04 | 228.76 | 8.25 | 217.75 | 0.2293 | 851.0 | 713.9 | |
| 0.00 | 3.23 | 0.00 | 1.63 | -10.13 | 228.11 | 7.60 | 225.01 | 0.1850 | -859.0 | -714.3 | |
| 0.54 | 1.62 | 0.28 | 0.83 | -14.90 | 227.46 | 6.95 | 208.87 | 0.2433 | 969.7 | 816.8 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -12.86 | 227.25 | 6.74 | 212.83 | 0.2119 | -829.0 | -622.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -14.03 | 227.06 | 6.55 | 209.27 | 0.2273 | 632.0 | 445.5 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -15.15 | 227.03 | 6.52 | 206.85 | 0.2436 | -652.0 | -456.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -15.18 | 226.84 | 6.33 | 206.12 | 0.2427 | -881.0 | -707.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -17.49 | 226.14 | 5.63 | 200.09 | 0.2738 | -554.0 | -411.8 | |
| 0.99 | 2.78 | 0.50 | 1.42 | -15.62 | 225.84 | 5.33 | 201.74 | 0.2425 | -942.7 | -744.7 | |
| 0.72 | 2.96 | 0.37 | 1.51 | -15.87 | 225.72 | 5.21 | 200.91 | 0.2457 | -939.0 | -675.9 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -13.64 | 225.51 | 5.00 | 203.99 | 0.2094 | -712.0 | -620.5 | |
| 0.00 | 2.25 | 0.00 | 1.16 | -19.13 | 225.49 | 4.98 | 196.13 | 0.2964 | 157.0 | 204.4 | |
| 0.81 | 2.60 | 0.41 | 1.32 | -14.29 | 225.18 | 4.67 | 201.38 | 0.2174 | -991.0 | -836.7 | |
| 0.00 | 1.71 | 0.00 | 0.86 | -13.92 | 225.11 | 4.60 | 201.74 | 0.2111 | -979.0 | -739.6 | |
| 0.36 | 1.44 | 0.18 | 0.73 | -13.27 | 225.04 | 4.53 | 202.65 | 0.2004 | -868.8 | -726.8 | |
| 0.00 | 2.16 | 0.00 | 1.09 | -14.35 | 224.99 | 4.48 | 200.50 | 0.2173 | -1213.0 | -959.5 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -17.31 | 224.99 | 4.48 | 196.44 | 0.2648 | -753.0 | -634.6 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -14.57 | 224.81 | 4.30 | 199.38 | 0.2197 | -850.0 | -653.9 | |
| 0.00 | 2.42 | 0.00 | 1.24 | -16.40 | 224.75 | 4.24 | 196.63 | 0.2490 | -906.0 | -807.2 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -17.09 | 224.76 | 4.25 | 195.89 | 0.2602 | -684.0 | -512.8 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -16.18 | 224.71 | 4.20 | 196.76 | 0.2452 | -956.0 | -790.9 | |
| 0.00 | 3.05 | 0.00 | 1.56 | -16.90 | 224.66 | 4.16 | 195.74 | 0.2567 | -1188.0 | -1018.9 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -15.84 | 224.58 | 4.07 | 196.68 | 0.2390 | -995.0 | -719.5 | |
| 3.32 | 5.66 | 1.69 | 2.88 | -15.62 | 224.51 | 4.00 | 196.69 | 0.2352 | -989.6 | -774.4 | |
| 0.00 | 4.67 | 0.00 | 2.37 | -14.69 | 224.50 | 3.99 | 197.89 | 0.2200 | -824.0 | -809.8 | |
| 0.81 | 38.97 | 0.41 | 19.82 | -15.25 | 224.35 | 3.84 | 196.51 | 0.2283 | -1012.1 | -833.6 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -16.78 | 224.38 | 3.87 | 194.83 | 0.2534 | -976.0 | -807.9 | |
| 1.35 | 2.78 | 0.69 | 1.42 | -16.12 | 224.30 | 3.79 | 195.27 | 0.2423 | -1012.3 | -770.4 | |
| 5.48 | -80.00 | 2.78 | -80.00 | -15.03 | 224.22 | 3.71 | 196.26 | 0.2241 | -1192.1 | 999999 | |
| 0.99 | -80.00 | 0.50 | -80.00 | -15.56 | 224.04 | 3.53 | 194.88 | 0.2320 | -984.4 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -14.60 | 224.02 | 3.51 | 196.01 | 0.2161 | -1004.0 | -757.5 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -15.19 | 223.81 | 3.30 | 194.38 | 0.2249 | -589.0 | -558.1 | |
| 1.26 | -80.00 | 0.64 | -80.00 | -15.00 | 223.78 | 3.27 | 194.46 | 0.2216 | -1015.9 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -14.10 | 223.77 | 3.26 | 195.53 | 0.2068 | -990.0 | -800.9 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -13.67 | 223.67 | 3.16 | 195.66 | 0.1992 | -891.0 | -720.8 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -15.13 | 223.69 | 3.18 | 193.93 | 0.2233 | -245.0 | -326.0 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -13.09 | 223.60 | 3.09 | 196.18 | 0.1892 | -786.0 | -564.4 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -14.14 | 223.58 | 3.07 | 194.64 | 0.2065 | -941.0 | -809.1 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -12.53 | 223.41 | 2.90 | 196.06 | 0.1791 | -884.0 | -676.6 | |
| 0.54 | 4.40 | 0.27 | 2.22 | -13.86 | 223.23 | 2.72 | 193.37 | 0.2004 | -1197.8 | -979.5 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -12.99 | 222.79 | 2.28 | 192.19 | 0.1842 | -1026.0 | -824.6 | |
| 0.00 | 5.12 | 0.00 | 2.58 | -13.18 | 222.76 | 2.25 | 191.83 | 0.1872 | -977.0 | -840.0 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -13.64 | 222.61 | 2.10 | 190.58 | 0.1945 | -965.0 | -793.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -13.49 | 222.57 | 2.06 | 190.57 | 0.1918 | -934.0 | -718.9 | |
| 13.74 | 23.35 | 7.03 | 11.95 | -17.18 | 222.51 | 2.00 | 187.58 | 0.2540 | 1162.5 | 591.2 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -15.22 | 222.15 | 1.64 | 187.23 | 0.2201 | -985.0 | -780.3 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -19.48 | 221.57 | 1.06 | 183.45 | 0.2911 | -952.0 | -739.6 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -14.94 | 221.42 | 0.92 | 184.15 | 0.2141 | -990.0 | -752.3 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -19.29 | 221.25 | 0.74 | 182.44 | 0.2876 | -781.0 | -648.4 | |
| 0.00 | 1.89 | 0.00 | 0.95 | -13.55 | 219.74 | -0.77 | 176.03 | 0.1900 | -946.0 | -817.7 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -13.76 | 219.67 | -0.83 | 175.79 | 0.1938 | -928.0 | -763.8 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -20.65 | 219.05 | -1.46 | 175.59 | 0.3111 | -771.0 | -655.2 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -18.47 | 218.56 | -1.95 | 173.25 | 0.2754 | -907.0 | -684.6 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -13.70 | 218.27 | -2.24 | 168.78 | 0.1959 | -842.0 | -658.9 | |
| 0.00 | 2.25 | 0.00 | 1.13 | -12.83 | 217.78 | -2.73 | 165.28 | 0.1833 | -882.0 | -602.0 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -22.28 | 216.28 | -4.23 | 168.50 | 0.3441 | -940.0 | -701.7 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -19.09 | 215.98 | -4.52 | 165.23 | 0.2938 | -737.0 | -567.7 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -21.76 | 215.57 | -4.94 | 166.28 | 0.3383 | -580.0 | -421.9 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -23.99 | 215.36 | -5.15 | 167.29 | 0.3745 | -707.0 | -583.4 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -23.79 | 215.26 | -5.25 | 166.94 | 0.3717 | -860.0 | -697.7 | |
| 0.00 | 4.13 | 0.00 | 2.17 | -21.57 | 215.22 | -5.29 | 165.18 | 0.3367 | -629.0 | -617.3 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -24.95 | 201.29 | -19.22 | 141.97 | 0.4864 | -728.0 | -554.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
