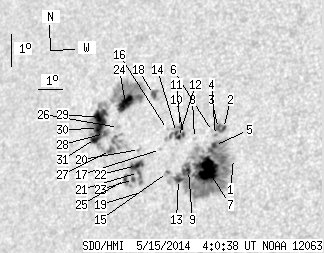

SDO HMI 2014-05-15 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.53 | 434.39 | 76.65 | 293.49 | 10.11 | 179.39 | -41.12 | 72.03 | 0.6825 | 24.2 | -93.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-15 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.93 | 9.68 | 182.39 | -38.12 | 71.47 | 0.6441 | -366.0 | -303.1 | |
| 1.44 | 8.44 | 0.94 | 5.53 | 10.62 | 181.86 | -38.65 | 70.29 | 0.6544 | -877.0 | -614.6 | |
| 2.51 | -2.00 | 1.65 | -2.00 | 10.63 | 181.66 | -38.85 | 70.37 | 0.6569 | -837.9 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.88 | 10.41 | 181.57 | -38.94 | 70.72 | 0.6571 | -772.0 | -673.0 | |
| 1.89 | 201.69 | 1.23 | 132.12 | 10.10 | 181.58 | -38.93 | 71.17 | 0.6559 | -824.8 | -419.8 | |
| 0.00 | 1.89 | 0.00 | 1.24 | 10.54 | 181.43 | -39.08 | 70.59 | 0.6593 | -354.0 | -384.2 | |
| 31.34 | -5.00 | 20.50 | -5.00 | 9.37 | 181.40 | -39.11 | 72.33 | 0.6555 | -1142.9 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.95 | 10.35 | 180.74 | -39.77 | 71.17 | 0.6672 | 227.0 | 202.6 | |
| 2.25 | -5.00 | 1.48 | -5.00 | 9.36 | 180.64 | -39.87 | 72.64 | 0.6649 | -696.4 | 999999 | |
| 1.17 | 18.59 | 0.78 | 12.48 | 10.49 | 180.28 | -40.23 | 71.15 | 0.6734 | -692.1 | -340.9 | |
| 1.17 | -10.00 | 0.78 | -10.00 | 10.71 | 180.12 | -40.39 | 70.90 | 0.6761 | -521.7 | 999999 | |
| 1.62 | -10.00 | 1.08 | -10.00 | 10.40 | 180.09 | -40.42 | 71.36 | 0.6754 | -744.6 | 999999 | |
| 4.04 | -5.00 | 2.68 | -5.00 | 9.09 | 180.28 | -40.23 | 73.17 | 0.6686 | -212.0 | 999999 | |
| 1.53 | -10.00 | 1.02 | -10.00 | 10.56 | 179.98 | -40.53 | 71.17 | 0.6772 | -621.4 | 999999 | |
| 0.63 | 2.87 | 0.42 | 1.92 | 9.32 | 179.80 | -40.71 | 73.01 | 0.6753 | -124.9 | 266.6 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 10.66 | 179.60 | -40.91 | 71.17 | 0.6823 | -288.0 | -224.2 | |
| 0.00 | 1.08 | 0.00 | 0.73 | 10.05 | 179.41 | -41.10 | 72.12 | 0.6825 | -486.0 | -364.2 | |
| 2.60 | 6.38 | 1.79 | 4.38 | 11.78 | 178.82 | -41.68 | 69.92 | 0.6955 | 871.1 | 683.4 | |
| 0.00 | 1.53 | 0.00 | 1.03 | 8.77 | 178.90 | -41.61 | 74.13 | 0.6847 | 760.0 | 590.2 | |
| 0.00 | 1.71 | 0.00 | 1.17 | 10.08 | 178.54 | -41.97 | 72.40 | 0.6931 | -341.0 | -310.2 | |
| 0.99 | 31.43 | 0.67 | 21.50 | 9.36 | 178.60 | -41.91 | 73.38 | 0.6900 | 652.8 | 462.9 | |
| 6.91 | -21.00 | 4.73 | -21.00 | 9.58 | 178.49 | -42.02 | 73.11 | 0.6921 | 74.4 | 999999 | |
| 1.53 | -21.00 | 1.04 | -21.00 | 9.15 | 178.43 | -42.08 | 73.74 | 0.6915 | 833.3 | 999999 | |
| 15.36 | 151.49 | 10.73 | 106.51 | 11.54 | 177.70 | -42.81 | 70.70 | 0.7079 | 996.6 | 295.1 | |
| 1.53 | -21.00 | 1.05 | -21.00 | 9.16 | 178.09 | -42.42 | 73.84 | 0.6956 | 623.1 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.51 | 10.79 | 177.54 | -42.97 | 71.77 | 0.7073 | 375.0 | 392.6 | |
| 2.33 | -24.00 | 1.63 | -24.00 | 10.09 | 177.32 | -43.19 | 72.82 | 0.7077 | 790.4 | 999999 | |
| 2.60 | -24.00 | 1.83 | -24.00 | 10.63 | 176.97 | -43.54 | 72.20 | 0.7134 | 937.7 | 999999 | |
| 14.10 | -24.00 | 10.00 | -24.00 | 11.13 | 176.71 | -43.80 | 71.60 | 0.7180 | 744.0 | 999999 | |
| 8.17 | -24.00 | 5.79 | -24.00 | 10.79 | 176.68 | -43.83 | 72.07 | 0.7172 | 889.3 | 999999 | |
| 6.82 | -24.00 | 4.83 | -24.00 | 10.48 | 176.61 | -43.90 | 72.52 | 0.7172 | 827.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
