SDO HMI 2014-05-15 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.24 | 70.59 | 14.07 | 39.42 | 8.23 | 195.23 | -25.28 | 66.34 | 0.4630 | -21.2 | -1.9 | |
|
previous
or next observation for the same group /

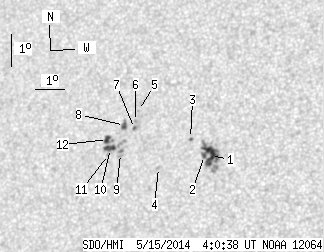

back to the solar disc SDO HMI 2014-05-15 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.47 | 35.65 | 7.42 | 19.65 | 7.98 | 196.76 | -23.75 | 65.60 | 0.4397 | -1004.4 | -689.5 | |
| 1.35 | -1.00 | 0.74 | -1.00 | 7.98 | 196.56 | -23.95 | 65.77 | 0.4426 | -718.1 | 999999 | |
| 0.36 | 1.26 | 0.20 | 0.70 | 8.52 | 196.06 | -24.45 | 65.11 | 0.4531 | -768.0 | -634.4 | |
| 0.00 | 1.98 | 0.00 | 1.10 | 7.65 | 195.03 | -25.48 | 67.73 | 0.4626 | -717.0 | -511.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 9.42 | 194.22 | -26.29 | 64.89 | 0.4844 | 747.0 | 620.7 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 9.09 | 194.15 | -26.36 | 65.60 | 0.4834 | 931.0 | 731.3 | |
| 0.45 | 2.87 | 0.25 | 1.62 | 8.87 | 194.13 | -26.38 | 66.02 | 0.4824 | 968.2 | 719.9 | |
| 2.16 | 5.12 | 1.22 | 2.90 | 8.97 | 193.78 | -26.73 | 66.11 | 0.4879 | 934.0 | 607.3 | |
| 0.00 | 3.68 | 0.00 | 2.08 | 8.11 | 193.71 | -26.80 | 67.82 | 0.4841 | 802.0 | 811.8 | |
| 4.40 | 16.97 | 2.50 | 9.64 | 8.27 | 193.35 | -27.16 | 67.76 | 0.4900 | 957.0 | 725.9 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 8.09 | 193.29 | -27.21 | 68.16 | 0.4898 | 592.0 | 595.4 | |
| 3.05 | -10.00 | 1.74 | -10.00 | 8.55 | 193.23 | -27.28 | 67.32 | 0.4933 | 782.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
