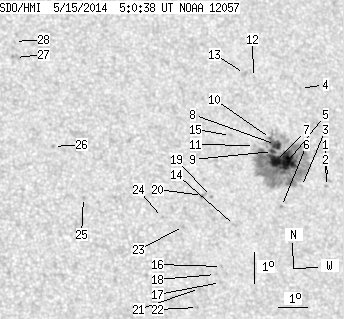

SDO HMI 2014-05-15 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.03 | 231.29 | 25.06 | 137.29 | 15.18 | 248.56 | 28.60 | 303.13 | 0.5537 | -327.4 | -264.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-15 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.95 | 0.00 | 2.39 | 14.60 | 250.54 | 30.58 | 300.54 | 0.5738 | 611.0 | 520.7 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 14.34 | 250.46 | 30.50 | 300.20 | 0.5711 | 767.0 | 558.7 | |
| 0.00 | 1.35 | 0.00 | 0.80 | 14.32 | 249.56 | 29.60 | 300.88 | 0.5597 | -278.0 | -217.8 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 17.46 | 250.04 | 30.08 | 305.26 | 0.5878 | 312.0 | 235.8 | |
| 20.30 | 197.04 | 12.12 | 117.37 | 15.10 | 249.17 | 29.21 | 302.44 | 0.5604 | -972.8 | -415.9 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 13.67 | 248.75 | 28.79 | 300.50 | 0.5452 | -762.0 | -595.3 | |
| 12.39 | -5.00 | 7.37 | -5.00 | 15.09 | 248.74 | 28.78 | 302.79 | 0.5550 | -1226.5 | 999999 | |
| 7.00 | -5.00 | 4.18 | -5.00 | 15.64 | 248.82 | 28.86 | 303.57 | 0.5600 | -845.7 | 999999 | |
| 1.89 | -5.00 | 1.12 | -5.00 | 15.41 | 248.68 | 28.72 | 303.34 | 0.5566 | -1030.4 | 999999 | |
| 0.45 | -5.00 | 0.27 | -5.00 | 15.83 | 248.67 | 28.71 | 303.99 | 0.5595 | -729.0 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 15.59 | 248.06 | 28.10 | 304.16 | 0.5504 | -763.0 | -681.5 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 17.78 | 248.38 | 28.42 | 307.19 | 0.5711 | 444.0 | 522.8 | |
| 0.00 | 3.05 | 0.00 | 1.84 | 17.90 | 248.08 | 28.12 | 307.65 | 0.5686 | 779.0 | 608.3 | |
| 0.00 | 1.44 | 0.00 | 0.83 | 13.03 | 247.01 | 27.05 | 300.94 | 0.5185 | 507.0 | 516.8 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 15.89 | 247.25 | 27.29 | 305.38 | 0.5430 | -433.0 | -477.7 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 11.73 | 246.41 | 26.45 | 299.22 | 0.5016 | 757.0 | 612.6 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 11.23 | 246.32 | 26.36 | 298.39 | 0.4971 | 580.0 | 396.3 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 11.48 | 246.17 | 26.21 | 298.97 | 0.4968 | 711.0 | 621.2 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 13.93 | 246.31 | 26.35 | 303.11 | 0.5164 | 685.0 | 581.0 | |
| 0.00 | 2.60 | 0.00 | 1.50 | 13.96 | 246.00 | 26.04 | 303.45 | 0.5127 | 845.0 | 731.0 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 11.03 | 245.58 | 25.62 | 298.69 | 0.4857 | 802.0 | 661.4 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 10.44 | 245.46 | 25.50 | 297.69 | 0.4800 | 701.0 | 587.8 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 12.97 | 245.23 | 25.27 | 302.50 | 0.4952 | 619.0 | 469.6 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 13.24 | 244.54 | 24.58 | 303.68 | 0.4885 | 731.0 | 571.7 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 13.82 | 241.92 | 21.96 | 307.68 | 0.4606 | 693.0 | 607.3 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 15.42 | 241.07 | 21.11 | 311.52 | 0.4657 | 848.0 | 671.2 | |
| 0.00 | 4.13 | 0.00 | 2.34 | 18.27 | 240.12 | 20.16 | 317.30 | 0.4844 | 643.0 | 613.2 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 18.79 | 240.15 | 20.19 | 318.02 | 0.4904 | 582.0 | 475.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
