SDO HMI 2014-05-15 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.60 | 427.43 | 82.10 | 286.37 | 10.12 | 179.41 | -40.55 | 71.81 | 0.6756 | 25.5 | -106.1 | |
|
previous
or next observation for the same group /

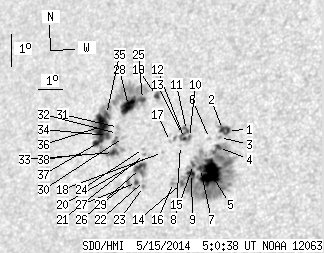

back to the solar disc SDO HMI 2014-05-15 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.87 | 10.15 | 1.86 | 6.59 | 10.64 | 181.86 | -38.10 | 70.03 | 0.6475 | -884.4 | -510.5 | |
| 2.96 | -1.00 | 1.93 | -1.00 | 10.68 | 181.65 | -38.31 | 70.06 | 0.6502 | -781.3 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.82 | 10.43 | 181.57 | -38.39 | 70.46 | 0.6503 | -841.0 | -691.9 | |
| 2.33 | 200.27 | 1.52 | 130.10 | 10.12 | 181.58 | -38.38 | 70.92 | 0.6490 | -823.7 | -430.8 | |
| 34.76 | -4.00 | 22.57 | -4.00 | 9.35 | 181.37 | -38.59 | 72.15 | 0.6489 | -1128.9 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.00 | 10.41 | 181.18 | -38.78 | 70.66 | 0.6551 | -451.0 | -319.6 | |
| 1.62 | -4.00 | 1.06 | -4.00 | 9.49 | 180.95 | -39.01 | 72.12 | 0.6546 | -573.4 | 999999 | |
| 1.26 | -4.00 | 0.83 | -4.00 | 9.62 | 180.66 | -39.30 | 72.04 | 0.6588 | -412.6 | 999999 | |
| 3.05 | -4.00 | 2.00 | -4.00 | 9.35 | 180.62 | -39.35 | 72.47 | 0.6583 | -685.6 | 999999 | |
| 0.99 | 16.08 | 0.65 | 10.68 | 10.47 | 180.37 | -39.59 | 70.92 | 0.6653 | -738.2 | -412.5 | |
| 2.07 | -10.00 | 1.37 | -10.00 | 10.69 | 180.22 | -39.74 | 70.66 | 0.6681 | -507.9 | 999999 | |
| 1.17 | -10.00 | 0.77 | -10.00 | 10.45 | 180.18 | -39.78 | 71.04 | 0.6677 | -860.0 | 999999 | |
| 1.17 | -10.00 | 0.78 | -10.00 | 10.57 | 180.08 | -39.88 | 70.90 | 0.6694 | -573.0 | 999999 | |
| 1.44 | -4.00 | 0.95 | -4.00 | 9.05 | 180.26 | -39.71 | 73.04 | 0.6619 | -403.2 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.60 | 10.23 | 180.05 | -39.91 | 71.40 | 0.6685 | -394.0 | -283.3 | |
| 0.00 | 4.40 | 0.00 | 2.91 | 9.09 | 179.93 | -40.03 | 73.10 | 0.6661 | 384.0 | 222.8 | |
| 0.00 | 1.08 | 0.00 | 0.72 | 10.37 | 179.62 | -40.34 | 71.37 | 0.6742 | -446.0 | -372.5 | |
| 0.00 | 1.08 | 0.00 | 0.72 | 10.04 | 179.35 | -40.61 | 71.96 | 0.6764 | -547.0 | -410.0 | |
| 2.25 | 4.94 | 1.53 | 3.36 | 11.83 | 178.80 | -41.16 | 69.64 | 0.6894 | 858.5 | 653.8 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 9.93 | 178.75 | -41.21 | 72.33 | 0.6834 | -505.0 | -265.7 | |
| 0.00 | 1.08 | 0.00 | 0.73 | 10.00 | 178.62 | -41.34 | 72.29 | 0.6852 | -664.0 | -539.2 | |
| 0.00 | 1.44 | 0.00 | 0.97 | 9.19 | 178.74 | -41.22 | 73.39 | 0.6811 | 440.0 | 510.1 | |
| 0.00 | 1.80 | 0.00 | 1.21 | 9.00 | 178.72 | -41.24 | 73.66 | 0.6807 | 821.0 | 656.2 | |
| 0.00 | 1.08 | 0.00 | 0.73 | 10.19 | 178.55 | -41.41 | 72.05 | 0.6867 | -428.0 | -329.0 | |
| 2.78 | 146.83 | 1.91 | 102.37 | 11.72 | 178.24 | -41.72 | 70.02 | 0.6956 | 891.8 | 272.3 | |
| 7.27 | 20.03 | 4.93 | 13.58 | 9.57 | 178.52 | -41.44 | 72.93 | 0.6850 | 300.1 | 384.9 | |
| 1.53 | -26.00 | 1.04 | -26.00 | 9.14 | 178.42 | -41.54 | 73.58 | 0.6849 | 818.9 | 999999 | |
| 14.91 | -25.00 | 10.33 | -25.00 | 11.55 | 177.69 | -42.27 | 70.47 | 0.7015 | 978.6 | 999999 | |
| 0.00 | 4.85 | 0.00 | 3.30 | 9.15 | 178.09 | -41.88 | 73.68 | 0.6890 | 792.0 | 584.4 | |
| 0.00 | 2.07 | 0.00 | 1.43 | 10.56 | 177.66 | -42.30 | 71.86 | 0.6986 | 781.0 | 664.9 | |
| 0.00 | 2.25 | 0.00 | 1.56 | 10.88 | 177.39 | -42.57 | 71.51 | 0.7028 | 768.0 | 632.2 | |
| 0.00 | 2.69 | 0.00 | 1.87 | 10.69 | 177.38 | -42.58 | 71.77 | 0.7023 | 600.0 | 594.0 | |
| 4.04 | -25.00 | 2.80 | -25.00 | 10.10 | 177.31 | -42.65 | 72.61 | 0.7012 | 853.6 | 999999 | |
| 2.87 | -25.00 | 2.01 | -25.00 | 10.64 | 176.97 | -42.99 | 71.99 | 0.7070 | 935.2 | 999999 | |
| 3.59 | -25.00 | 2.52 | -25.00 | 11.30 | 176.81 | -43.15 | 71.15 | 0.7110 | 704.6 | 999999 | |
| 21.55 | -25.00 | 15.15 | -25.00 | 10.93 | 176.66 | -43.30 | 71.70 | 0.7115 | 810.6 | 999999 | |
| 5.12 | -25.00 | 3.59 | -25.00 | 10.44 | 176.62 | -43.34 | 72.39 | 0.7104 | 782.8 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.57 | 10.11 | 176.12 | -43.84 | 73.01 | 0.7153 | 470.0 | 346.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
