SDO HMI 2014-05-15 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.20 | 572.77 | 49.04 | 295.48 | -14.27 | 228.57 | 10.25 | 219.67 | 0.2787 | 157.8 | 172.2 | |
|
previous
or next observation for the same group /

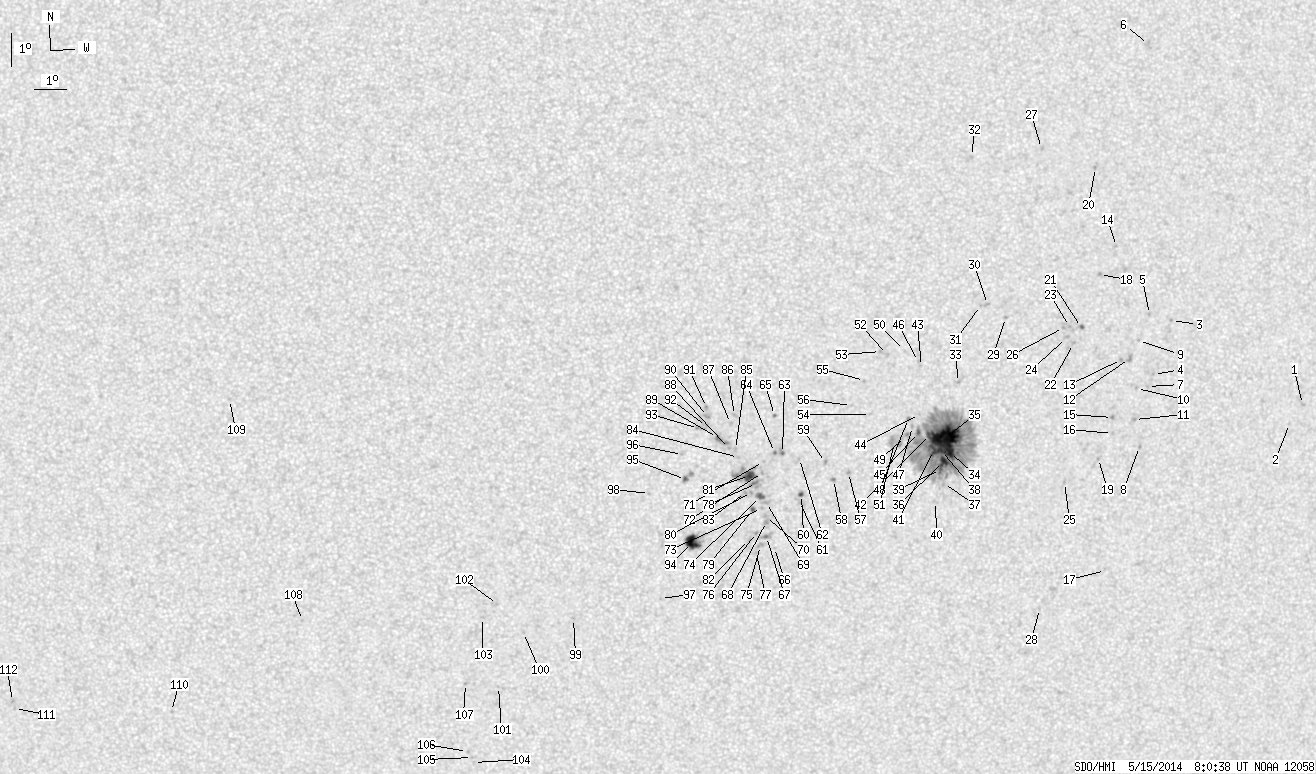

back to the solar disc SDO HMI 2014-05-15 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.89 | -12.68 | 242.01 | 23.70 | 245.57 | 0.4324 | 771.0 | 628.4 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -13.27 | 241.63 | 23.31 | 243.97 | 0.4305 | 614.0 | 421.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -10.17 | 237.46 | 19.14 | 247.52 | 0.3508 | 1000.0 | 783.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -11.83 | 236.98 | 18.67 | 242.64 | 0.3542 | 800.0 | 669.2 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -10.00 | 236.74 | 18.42 | 247.27 | 0.3388 | 769.0 | 645.7 | |
| 0.00 | 4.40 | 0.00 | 2.29 | -1.80 | 236.43 | 18.12 | 272.29 | 0.3124 | 729.0 | 624.5 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -12.20 | 236.81 | 18.50 | 241.49 | 0.3544 | 767.0 | 622.9 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -14.05 | 236.69 | 18.37 | 236.79 | 0.3671 | 831.0 | 694.6 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -10.80 | 236.43 | 18.11 | 244.73 | 0.3391 | 766.0 | 550.6 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -12.27 | 236.46 | 18.14 | 240.88 | 0.3498 | 798.0 | 712.0 | |
| 0.00 | 1.98 | 0.00 | 1.05 | -13.22 | 236.46 | 18.14 | 238.49 | 0.3571 | 841.0 | 632.7 | |
| 0.00 | 3.59 | 0.00 | 1.89 | -11.35 | 236.17 | 17.85 | 242.93 | 0.3390 | 1032.0 | 865.6 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -11.39 | 235.91 | 17.59 | 242.52 | 0.3355 | 1106.0 | 887.4 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -7.94 | 235.57 | 17.25 | 252.19 | 0.3099 | 985.0 | 805.2 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -13.17 | 235.74 | 17.42 | 237.63 | 0.3467 | 965.0 | 804.2 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -13.66 | 235.78 | 17.46 | 236.46 | 0.3513 | 721.0 | 569.6 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -17.93 | 235.92 | 17.60 | 227.28 | 0.3934 | 480.0 | 441.4 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -8.80 | 235.06 | 16.74 | 249.02 | 0.3063 | 896.0 | 761.5 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -14.44 | 235.38 | 17.06 | 233.99 | 0.3527 | 825.0 | 658.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -5.55 | 234.82 | 16.50 | 259.46 | 0.2888 | 880.0 | 750.4 | |
| 0.81 | 1.71 | 0.42 | 0.89 | -10.42 | 234.57 | 16.25 | 243.50 | 0.3088 | -849.7 | -659.6 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -10.91 | 234.33 | 16.02 | 241.74 | 0.3089 | 774.0 | 629.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -10.40 | 234.18 | 15.86 | 243.06 | 0.3029 | 837.0 | 736.8 | |
| 0.00 | 2.16 | 0.00 | 1.12 | -10.73 | 234.10 | 15.78 | 241.94 | 0.3042 | 848.0 | 703.2 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -15.20 | 234.32 | 16.01 | 230.52 | 0.3462 | 842.0 | 635.9 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -10.43 | 233.99 | 15.67 | 242.69 | 0.3003 | 817.0 | 737.1 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -4.99 | 233.10 | 14.78 | 260.51 | 0.2588 | 891.0 | 797.1 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -19.15 | 233.84 | 15.52 | 221.49 | 0.3832 | 796.0 | 624.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -10.14 | 232.13 | 13.81 | 240.70 | 0.2706 | -971.0 | -813.8 | |
| 0.00 | 2.07 | 0.00 | 1.06 | -9.75 | 231.54 | 13.22 | 241.00 | 0.2589 | -981.0 | -779.0 | |
| 0.00 | 0.36 | 0.00 | 0.18 | -9.78 | 231.32 | 13.00 | 240.50 | 0.2559 | -915.0 | -888.5 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -5.25 | 230.91 | 12.59 | 257.87 | 0.2230 | 790.0 | 655.2 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -12.15 | 230.73 | 12.41 | 231.65 | 0.2690 | -908.0 | -731.4 | |
| 7.63 | 331.67 | 3.95 | 171.38 | -14.31 | 230.55 | 12.23 | 225.29 | 0.2901 | 1150.4 | 480.6 | |
| 37.09 | -34.00 | 19.15 | -34.00 | -13.84 | 230.40 | 12.08 | 226.14 | 0.2830 | 1461.4 | 999999 | |
| 6.74 | -34.00 | 3.49 | -34.00 | -14.59 | 230.37 | 12.05 | 224.18 | 0.2913 | 1033.8 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -15.27 | 230.41 | 12.09 | 222.62 | 0.2997 | 551.0 | 432.3 | |
| 5.03 | -34.00 | 2.60 | -34.00 | -14.25 | 230.29 | 11.97 | 224.84 | 0.2864 | 1211.2 | 999999 | |
| 0.27 | -34.00 | 0.14 | -34.00 | -14.83 | 230.29 | 11.97 | 223.38 | 0.2932 | 955.0 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.07 | -15.83 | 230.19 | 11.87 | 220.81 | 0.3040 | 579.0 | 557.5 | |
| 5.12 | -34.00 | 2.64 | -34.00 | -14.25 | 230.03 | 11.72 | 224.24 | 0.2834 | 1176.6 | 999999 | |
| 3.14 | -34.00 | 1.62 | -34.00 | -13.75 | 229.88 | 11.56 | 225.15 | 0.2758 | 1125.7 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -11.66 | 229.54 | 11.22 | 230.38 | 0.2484 | -627.0 | -508.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -13.14 | 229.53 | 11.22 | 225.98 | 0.2646 | 800.0 | 605.3 | |
| 1.35 | -34.00 | 0.69 | -34.00 | -13.70 | 229.53 | 11.21 | 224.44 | 0.2710 | 1112.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -11.51 | 229.43 | 11.12 | 230.63 | 0.2455 | -835.0 | -645.6 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -13.51 | 229.33 | 11.01 | 224.43 | 0.2665 | 960.0 | 755.9 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -13.27 | 229.19 | 10.87 | 224.75 | 0.2619 | 1080.0 | 865.3 | |
| 0.00 | 5.30 | 0.00 | 2.72 | -13.82 | 229.12 | 10.80 | 223.07 | 0.2677 | 686.0 | 657.7 | |
| 0.00 | 0.36 | 0.00 | 0.18 | -11.18 | 228.98 | 10.66 | 230.58 | 0.2360 | -620.0 | -655.2 | |
| 0.00 | 10.78 | 0.00 | 5.54 | -14.01 | 228.78 | 10.46 | 221.68 | 0.2661 | 397.0 | 347.6 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -11.30 | 228.45 | 10.13 | 228.75 | 0.2305 | -830.0 | -714.7 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -11.21 | 228.23 | 9.91 | 228.43 | 0.2267 | -962.0 | -795.4 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -13.15 | 227.98 | 9.67 | 221.77 | 0.2465 | 723.0 | 512.4 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -12.11 | 227.76 | 9.44 | 224.17 | 0.2312 | -870.0 | -696.2 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -12.88 | 227.38 | 9.06 | 220.72 | 0.2363 | -742.0 | -479.0 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -14.95 | 227.36 | 9.04 | 215.40 | 0.2633 | 984.0 | 802.8 | |
| 0.00 | 2.07 | 0.00 | 1.06 | -15.17 | 226.89 | 8.57 | 213.50 | 0.2619 | -920.0 | -775.6 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -14.64 | 226.62 | 8.30 | 213.83 | 0.2520 | -924.0 | -772.7 | |
| 1.17 | 2.25 | 0.60 | 1.15 | -15.64 | 225.89 | 7.58 | 209.40 | 0.2598 | -878.1 | -722.7 | |
| 0.00 | 4.49 | 0.00 | 2.30 | -15.86 | 225.84 | 7.52 | 208.80 | 0.2625 | -627.0 | -384.6 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -14.52 | 225.79 | 7.48 | 211.41 | 0.2428 | -587.0 | -435.1 | |
| 0.54 | 3.14 | 0.27 | 1.60 | -14.37 | 225.25 | 6.93 | 209.87 | 0.2359 | -936.3 | -810.0 | |
| 0.36 | 1.26 | 0.18 | 0.64 | -14.34 | 225.00 | 6.68 | 209.03 | 0.2333 | -1147.0 | -970.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.20 | 224.97 | 6.65 | 211.57 | 0.2163 | -754.0 | -649.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.30 | 225.09 | 6.78 | 203.98 | 0.2785 | -618.0 | -494.5 | |
| 0.45 | 6.11 | 0.23 | 3.14 | -16.95 | 224.83 | 6.51 | 203.66 | 0.2714 | -984.8 | -666.1 | |
| 0.00 | 3.77 | 0.00 | 1.94 | -16.49 | 224.81 | 6.49 | 204.36 | 0.2641 | -968.0 | -751.8 | |
| 0.00 | 3.50 | 0.00 | 1.79 | -15.89 | 224.79 | 6.48 | 205.29 | 0.2550 | -701.0 | -628.2 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -16.33 | 224.78 | 6.46 | 204.49 | 0.2615 | -993.0 | -813.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -14.62 | 224.66 | 6.34 | 207.22 | 0.2348 | -988.0 | -830.1 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -14.96 | 224.64 | 6.32 | 206.47 | 0.2397 | -920.0 | -792.8 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -16.08 | 224.64 | 6.32 | 204.45 | 0.2568 | -797.0 | -673.5 | |
| 2.42 | 4.76 | 1.24 | 2.44 | -15.71 | 224.60 | 6.28 | 204.95 | 0.2507 | -979.4 | -801.2 | |
| 0.00 | 3.23 | 0.00 | 1.67 | -17.24 | 224.65 | 6.33 | 202.65 | 0.2745 | -709.0 | -660.0 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -16.83 | 224.50 | 6.19 | 202.80 | 0.2674 | -928.0 | -763.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.49 | 224.53 | 6.21 | 201.91 | 0.2777 | -734.0 | -608.2 | |
| 0.00 | 7.10 | 0.00 | 3.62 | -15.30 | 224.46 | 6.14 | 205.18 | 0.2436 | -941.0 | -777.9 | |
| 0.99 | 2.51 | 0.51 | 1.29 | -16.11 | 224.36 | 6.04 | 203.43 | 0.2553 | -998.1 | -804.9 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -15.58 | 224.31 | 5.99 | 204.15 | 0.2468 | -866.0 | -778.6 | |
| 7.72 | 23.44 | 3.94 | 11.95 | -15.06 | 224.23 | 5.91 | 204.81 | 0.2382 | -1156.4 | -847.2 | |
| 0.00 | 2.34 | 0.00 | 1.20 | -17.05 | 224.29 | 5.97 | 201.77 | 0.2694 | -831.0 | -634.2 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -15.58 | 224.12 | 5.80 | 203.47 | 0.2455 | -933.0 | -798.8 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -14.50 | 223.87 | 5.55 | 204.49 | 0.2270 | -738.0 | -586.0 | |
| 0.00 | 2.16 | 0.00 | 1.10 | -14.25 | 223.77 | 5.45 | 204.57 | 0.2225 | -846.0 | -748.7 | |
| 0.00 | 2.07 | 0.00 | 1.05 | -13.20 | 223.72 | 5.40 | 206.53 | 0.2060 | -895.0 | -671.5 | |
| 0.00 | 1.89 | 0.00 | 0.96 | -13.45 | 223.60 | 5.28 | 205.49 | 0.2089 | -920.0 | -755.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -14.22 | 223.58 | 5.26 | 203.87 | 0.2207 | -926.0 | -770.8 | |
| 0.63 | 6.47 | 0.32 | 3.28 | -13.88 | 223.20 | 4.88 | 202.94 | 0.2128 | -1138.4 | -956.1 | |
| 0.00 | 2.96 | 0.00 | 1.50 | -13.23 | 222.87 | 4.56 | 202.79 | 0.2005 | -964.0 | -891.5 | |
| 0.00 | 1.98 | 0.00 | 1.00 | -12.96 | 222.84 | 4.52 | 203.19 | 0.1959 | -1028.0 | -771.7 | |
| 0.00 | 2.51 | 0.00 | 1.27 | -13.54 | 222.85 | 4.53 | 202.08 | 0.2052 | -948.0 | -801.9 | |
| 0.00 | 2.69 | 0.00 | 1.36 | -13.61 | 222.60 | 4.28 | 200.86 | 0.2046 | -930.0 | -802.4 | |
| 12.66 | 21.11 | 6.50 | 10.83 | -17.15 | 222.48 | 4.16 | 195.46 | 0.2612 | 1185.9 | 612.7 | |
| 1.08 | 6.47 | 0.55 | 3.29 | -15.18 | 222.22 | 3.90 | 196.81 | 0.2280 | -773.9 | 6.0 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -14.41 | 222.11 | 3.79 | 197.43 | 0.2149 | -824.0 | -676.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -18.91 | 221.49 | 3.17 | 190.58 | 0.2863 | -926.0 | -791.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -15.62 | 221.09 | 2.77 | 191.72 | 0.2305 | -851.0 | -636.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -19.54 | 218.70 | 0.38 | 181.25 | 0.2921 | -948.0 | -749.4 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -19.99 | 217.09 | -1.23 | 176.14 | 0.3001 | -700.0 | -549.0 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -21.71 | 216.26 | -2.06 | 174.16 | 0.3298 | -752.0 | -583.2 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -19.10 | 216.26 | -2.05 | 173.18 | 0.2866 | -848.0 | -689.7 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -19.51 | 215.78 | -2.54 | 171.80 | 0.2944 | -824.0 | -621.0 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -24.16 | 215.39 | -2.93 | 172.75 | 0.3714 | -578.0 | -452.5 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -24.00 | 215.36 | -2.96 | 172.62 | 0.3689 | -692.0 | -497.6 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -23.80 | 215.20 | -3.12 | 172.14 | 0.3660 | -747.0 | -684.0 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -21.61 | 215.18 | -3.13 | 171.11 | 0.3305 | -868.0 | -746.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -19.57 | 209.96 | -8.36 | 154.84 | 0.3236 | -755.0 | -627.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -12.66 | 207.96 | -10.36 | 134.88 | 0.2487 | -800.0 | -578.2 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -22.44 | 205.42 | -12.90 | 148.72 | 0.3992 | -762.0 | -551.4 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -22.27 | 200.09 | -18.23 | 139.43 | 0.4469 | -721.0 | -648.2 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -22.04 | 200.05 | -18.26 | 139.02 | 0.4448 | -862.0 | -717.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
