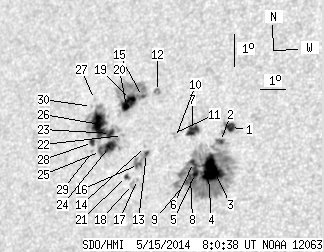

SDO HMI 2014-05-15 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.43 | 428.14 | 84.64 | 280.40 | 10.12 | 179.40 | -38.92 | 71.17 | 0.6553 | 38.9 | -72.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-15 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.02 | 12.03 | 3.82 | 7.64 | 10.65 | 181.88 | -36.44 | 69.26 | 0.6264 | -875.7 | -566.0 | |
| 2.51 | 213.93 | 1.60 | 136.16 | 10.22 | 181.55 | -36.76 | 70.07 | 0.6288 | -813.5 | -370.3 | |
| 23.98 | -2.00 | 15.23 | -2.00 | 9.45 | 181.35 | -36.97 | 71.34 | 0.6284 | -1152.4 | 999999 | |
| 10.78 | -2.00 | 6.85 | -2.00 | 9.15 | 181.23 | -37.09 | 71.86 | 0.6288 | -1119.2 | 999999 | |
| 2.87 | -2.00 | 1.84 | -2.00 | 9.26 | 180.71 | -37.61 | 71.91 | 0.6359 | -772.2 | 999999 | |
| 2.78 | -2.00 | 1.79 | -2.00 | 9.60 | 180.59 | -37.73 | 71.44 | 0.6387 | -459.2 | 999999 | |
| 7.81 | 10.69 | 5.05 | 6.91 | 10.60 | 180.41 | -37.90 | 70.03 | 0.6448 | -762.1 | -468.8 | |
| 3.23 | -2.00 | 2.07 | -2.00 | 9.14 | 180.53 | -37.79 | 72.17 | 0.6377 | -557.2 | 999999 | |
| 2.25 | -2.00 | 1.44 | -2.00 | 9.02 | 180.39 | -37.93 | 72.41 | 0.6391 | -435.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 10.40 | 179.77 | -38.54 | 70.60 | 0.6520 | -568.0 | -446.9 | |
| 0.00 | 1.26 | 0.00 | 0.82 | 10.53 | 179.68 | -38.64 | 70.46 | 0.6537 | -312.0 | -280.9 | |
| 0.00 | 4.13 | 0.00 | 2.75 | 11.86 | 178.82 | -39.50 | 68.90 | 0.6694 | 785.0 | 713.0 | |
| 1.71 | 12.39 | 1.13 | 8.21 | 9.94 | 178.69 | -39.63 | 71.74 | 0.6639 | -225.2 | 231.1 | |
| 0.00 | 1.08 | 0.00 | 0.71 | 10.16 | 178.61 | -39.70 | 71.45 | 0.6656 | -274.0 | -287.8 | |
| 0.99 | 63.32 | 0.66 | 42.79 | 11.73 | 178.24 | -40.08 | 69.35 | 0.6759 | 861.8 | 287.1 | |
| 2.16 | -13.00 | 1.43 | -13.00 | 9.60 | 178.41 | -39.90 | 72.33 | 0.6661 | 759.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.77 | 9.14 | 178.44 | -39.88 | 73.00 | 0.6643 | 811.0 | 668.5 | |
| 0.00 | 3.77 | 0.00 | 2.50 | 8.99 | 178.26 | -40.06 | 73.28 | 0.6661 | 534.0 | 584.4 | |
| 6.83 | -15.00 | 4.61 | -15.00 | 11.65 | 177.77 | -40.55 | 69.67 | 0.6814 | 1021.4 | 999999 | |
| 6.47 | -15.00 | 4.37 | -15.00 | 11.43 | 177.64 | -40.68 | 70.02 | 0.6821 | 1031.7 | 999999 | |
| 1.53 | 3.14 | 1.02 | 2.09 | 9.25 | 177.98 | -40.34 | 73.01 | 0.6703 | 690.9 | 559.2 | |
| 0.00 | 1.53 | 0.00 | 1.03 | 10.53 | 177.63 | -40.69 | 71.31 | 0.6790 | 856.0 | 710.9 | |
| 4.76 | 95.83 | 3.23 | 65.39 | 10.61 | 177.12 | -41.20 | 71.39 | 0.6854 | 1049.1 | 353.1 | |
| 9.52 | -23.00 | 6.44 | -23.00 | 10.20 | 177.15 | -41.17 | 71.95 | 0.6837 | 934.6 | 999999 | |
| 3.23 | -23.00 | 2.20 | -23.00 | 10.06 | 176.80 | -41.52 | 72.29 | 0.6875 | 637.8 | 999999 | |
| 26.58 | -23.00 | 18.20 | -23.00 | 10.90 | 176.62 | -41.70 | 71.17 | 0.6925 | 839.6 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.74 | 11.70 | 176.27 | -42.05 | 70.21 | 0.6993 | 393.0 | 240.9 | |
| 2.42 | -23.00 | 1.66 | -23.00 | 10.35 | 176.42 | -41.90 | 72.02 | 0.6930 | 594.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.80 | 10.07 | 176.47 | -41.85 | 72.39 | 0.6915 | 478.0 | 434.1 | |
| 0.00 | 0.72 | 0.00 | 0.50 | 11.48 | 176.18 | -42.14 | 70.54 | 0.6996 | 317.0 | 227.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
