SDO HMI 2014-05-15 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.25 | 196.52 | 28.22 | 119.31 | 15.27 | 248.56 | 30.79 | 301.45 | 0.5809 | -445.0 | -273.3 | |
|
previous
or next observation for the same group /

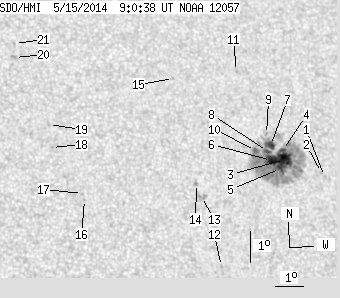

back to the solar disc SDO HMI 2014-05-15 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.78 | 14.68 | 250.65 | 32.88 | 298.95 | 0.6024 | 607.0 | 523.7 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 14.81 | 250.56 | 32.79 | 299.20 | 0.6020 | 777.0 | 603.5 | |
| 17.15 | 176.74 | 10.49 | 107.73 | 15.19 | 249.25 | 31.48 | 300.72 | 0.5885 | -931.3 | -390.8 | |
| 2.87 | -3.00 | 1.76 | -3.00 | 15.47 | 249.23 | 31.46 | 301.18 | 0.5900 | -701.8 | 999999 | |
| 5.57 | -3.00 | 3.39 | -3.00 | 14.90 | 249.06 | 31.29 | 300.43 | 0.5842 | -986.0 | 999999 | |
| 10.78 | -3.00 | 6.56 | -3.00 | 15.14 | 248.77 | 31.00 | 301.03 | 0.5823 | -1192.6 | 999999 | |
| 5.57 | -3.00 | 3.40 | -3.00 | 15.62 | 248.81 | 31.04 | 301.72 | 0.5860 | -830.8 | 999999 | |
| 2.42 | -3.00 | 1.48 | -3.00 | 15.43 | 248.67 | 30.90 | 301.54 | 0.5829 | -1043.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.77 | 15.97 | 248.72 | 30.95 | 302.31 | 0.5873 | -584.0 | -473.5 | |
| 1.89 | -3.00 | 1.14 | -3.00 | 15.45 | 248.23 | 30.46 | 301.91 | 0.5778 | -708.3 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 17.98 | 247.98 | 30.21 | 305.87 | 0.5929 | 680.0 | 639.5 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 11.75 | 246.49 | 28.72 | 297.31 | 0.5316 | 697.0 | 580.8 | |
| 0.00 | 4.49 | 0.00 | 2.64 | 13.94 | 246.06 | 28.29 | 301.33 | 0.5406 | 719.0 | 651.6 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 14.35 | 245.94 | 28.17 | 302.10 | 0.5419 | 805.0 | 682.2 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 17.70 | 245.64 | 27.87 | 307.56 | 0.5639 | 622.0 | 479.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 13.76 | 241.96 | 24.19 | 304.97 | 0.4877 | 654.0 | 550.2 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 13.95 | 241.91 | 24.14 | 305.35 | 0.4886 | 742.0 | 577.9 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 15.40 | 241.02 | 23.25 | 308.79 | 0.4903 | 755.0 | 610.2 | |
| 0.00 | 1.53 | 0.00 | 0.87 | 16.13 | 241.01 | 23.24 | 310.01 | 0.4968 | 669.0 | 542.5 | |
| 0.00 | 2.51 | 0.00 | 1.44 | 18.27 | 240.12 | 22.35 | 314.40 | 0.5074 | 828.0 | 692.2 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 18.73 | 240.18 | 22.41 | 314.99 | 0.5126 | 589.0 | 494.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
