SDO HMI 2014-05-15 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.10 | 587.04 | 46.08 | 304.64 | -14.15 | 229.31 | 12.08 | 224.26 | 0.2970 | 244.5 | 221.2 | |
|
previous
or next observation for the same group /

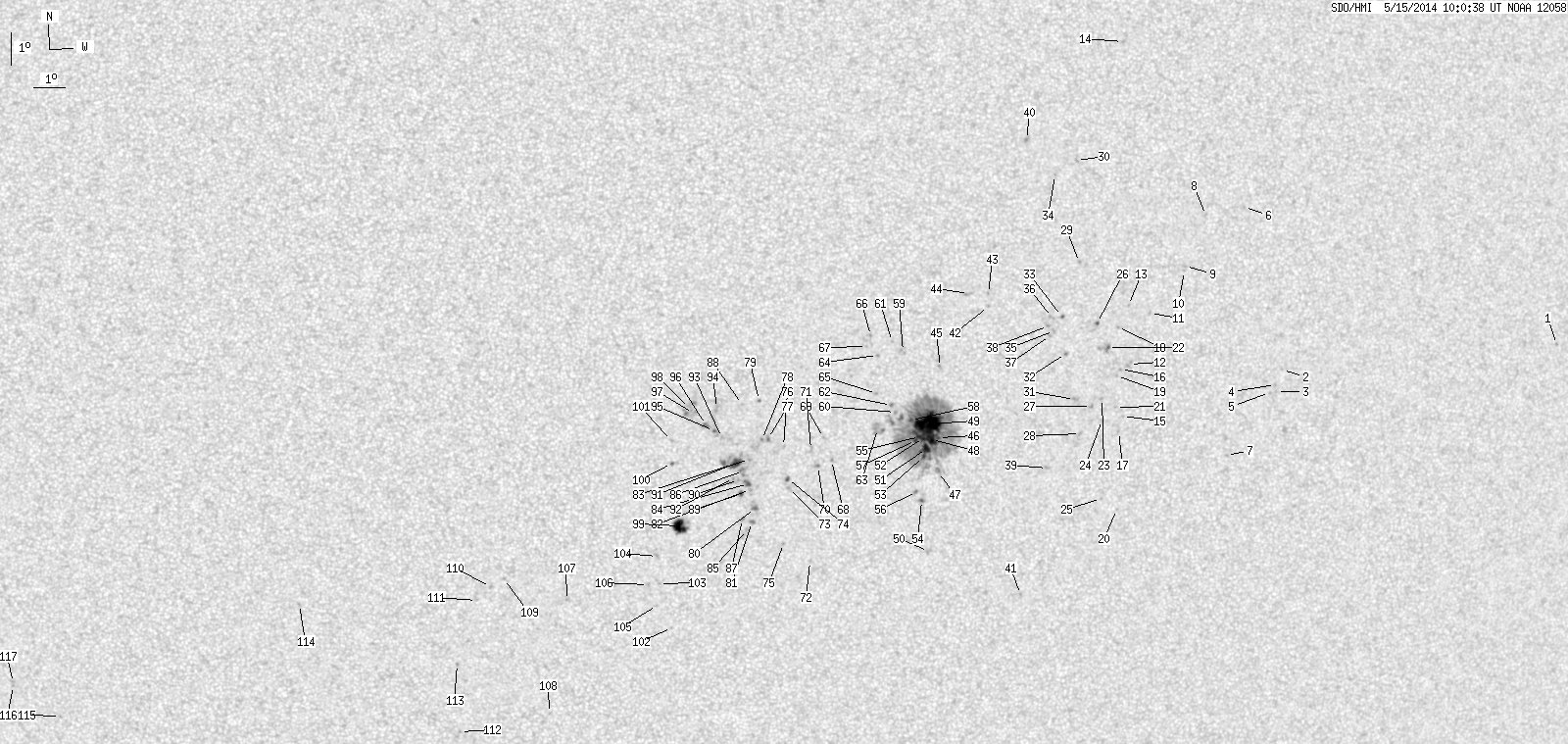

back to the solar disc SDO HMI 2014-05-15 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.60 | -10.97 | 252.08 | 34.86 | 254.74 | 0.5838 | -639.0 | -491.7 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -11.97 | 242.18 | 24.96 | 248.03 | 0.4469 | 583.0 | 468.5 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -12.65 | 242.04 | 24.82 | 246.49 | 0.4485 | 787.0 | 607.3 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -12.44 | 241.99 | 24.76 | 246.90 | 0.4465 | 809.0 | 589.7 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -12.69 | 241.81 | 24.58 | 246.24 | 0.4453 | 635.0 | 467.8 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -6.93 | 240.49 | 23.27 | 258.65 | 0.4017 | 778.0 | 649.7 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -14.69 | 240.52 | 23.29 | 240.94 | 0.4394 | 846.0 | 665.8 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -7.20 | 239.22 | 21.99 | 257.42 | 0.3823 | 718.0 | 565.7 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -8.79 | 238.61 | 21.39 | 252.97 | 0.3785 | 785.0 | 629.1 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -8.94 | 238.59 | 21.36 | 252.56 | 0.3788 | 773.0 | 587.6 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -10.27 | 237.52 | 20.30 | 248.31 | 0.3689 | 931.0 | 621.9 | |
| 0.00 | 2.87 | 0.00 | 1.53 | -11.87 | 236.94 | 19.72 | 243.69 | 0.3699 | 697.0 | 696.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -10.04 | 236.78 | 19.56 | 248.25 | 0.3565 | 674.0 | 557.3 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -1.87 | 236.30 | 19.08 | 271.89 | 0.3283 | 736.0 | 582.2 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -13.51 | 236.84 | 19.62 | 239.63 | 0.3800 | 668.0 | 509.3 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -12.03 | 236.66 | 19.43 | 242.99 | 0.3668 | 793.0 | 672.7 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -14.00 | 236.75 | 19.53 | 238.37 | 0.3825 | 868.0 | 647.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -10.71 | 236.47 | 19.24 | 246.16 | 0.3556 | 752.0 | 672.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -12.25 | 236.54 | 19.32 | 242.32 | 0.3666 | 819.0 | 732.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -16.46 | 236.92 | 19.70 | 233.23 | 0.4052 | 495.0 | 356.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -13.23 | 236.59 | 19.36 | 239.98 | 0.3744 | 737.0 | 610.4 | |
| 0.54 | 7.18 | 0.29 | 3.80 | -11.36 | 236.18 | 18.96 | 244.16 | 0.3554 | 971.3 | 799.9 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -12.96 | 236.10 | 18.88 | 240.04 | 0.3655 | 679.0 | 581.8 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -13.64 | 236.16 | 18.93 | 238.48 | 0.3715 | 665.0 | 519.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -16.12 | 236.35 | 19.13 | 233.17 | 0.3949 | 704.0 | 569.8 | |
| 0.45 | 1.44 | 0.24 | 0.76 | -10.60 | 235.78 | 18.55 | 245.73 | 0.3445 | 924.6 | 763.6 | |
| 0.00 | 2.07 | 0.00 | 1.10 | -13.21 | 235.76 | 18.54 | 239.00 | 0.3626 | 884.0 | 770.7 | |
| 0.00 | 2.07 | 0.00 | 1.10 | -14.08 | 235.47 | 18.25 | 236.53 | 0.3656 | 841.0 | 580.7 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -8.72 | 235.09 | 17.87 | 250.36 | 0.3234 | 898.0 | 751.3 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -5.56 | 234.87 | 17.65 | 260.00 | 0.3077 | 867.0 | 691.5 | |
| 0.00 | 1.98 | 0.00 | 1.05 | -13.00 | 235.19 | 17.96 | 238.77 | 0.3530 | 902.0 | 717.4 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -11.56 | 234.80 | 17.57 | 241.98 | 0.3365 | -817.0 | -699.5 | |
| 0.36 | 1.26 | 0.19 | 0.66 | -10.40 | 234.60 | 17.37 | 244.95 | 0.3256 | -821.0 | -714.9 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -6.02 | 234.18 | 16.96 | 258.10 | 0.2977 | 772.0 | 592.1 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -10.86 | 234.36 | 17.14 | 243.36 | 0.3252 | 833.0 | 648.7 | |
| 0.00 | 2.78 | 0.00 | 1.46 | -10.44 | 234.28 | 17.05 | 244.46 | 0.3210 | 671.0 | 652.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -11.02 | 234.24 | 17.02 | 242.77 | 0.3245 | 785.0 | 625.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -10.71 | 234.16 | 16.94 | 243.53 | 0.3212 | 1000.0 | 840.6 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -15.18 | 234.44 | 17.22 | 232.49 | 0.3617 | 877.0 | 681.4 | |
| 0.00 | 2.51 | 0.00 | 1.30 | -4.94 | 233.23 | 16.01 | 261.30 | 0.2792 | 1003.0 | 808.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -19.23 | 233.92 | 16.70 | 223.35 | 0.3970 | 891.0 | 718.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -10.12 | 232.18 | 14.95 | 242.55 | 0.2875 | -903.0 | -750.0 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -9.73 | 232.16 | 14.94 | 243.79 | 0.2844 | -898.0 | -683.3 | |
| 0.00 | 3.68 | 0.00 | 1.90 | -9.73 | 231.52 | 14.30 | 242.81 | 0.2749 | -733.0 | -725.4 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -12.04 | 230.71 | 13.49 | 234.17 | 0.2826 | -876.0 | -716.0 | |
| 0.27 | 347.00 | 0.14 | 180.07 | -14.26 | 230.77 | 13.54 | 228.22 | 0.3057 | 891.7 | 488.8 | |
| 0.00 | 3.86 | 0.00 | 2.02 | -15.34 | 230.83 | 13.61 | 225.73 | 0.3184 | 682.0 | 473.0 | |
| 8.71 | -46.00 | 4.53 | -46.00 | -14.32 | 230.55 | 13.32 | 227.61 | 0.3036 | 1109.4 | 999999 | |
| 37.90 | -46.00 | 19.65 | -46.00 | -13.83 | 230.42 | 13.20 | 228.61 | 0.2968 | 1440.1 | 999999 | |
| 0.00 | 2.96 | 0.00 | 1.56 | -17.87 | 230.69 | 13.47 | 220.00 | 0.3463 | 795.0 | 630.4 | |
| 5.66 | -46.00 | 2.94 | -46.00 | -14.60 | 230.40 | 13.18 | 226.61 | 0.3049 | 1070.6 | 999999 | |
| 3.32 | -46.00 | 1.72 | -46.00 | -14.26 | 230.28 | 13.06 | 227.21 | 0.2998 | 1178.0 | 999999 | |
| 1.26 | -46.00 | 0.65 | -46.00 | -14.85 | 230.32 | 13.10 | 225.83 | 0.3067 | 942.8 | 999999 | |
| 0.54 | 2.33 | 0.28 | 1.22 | -16.25 | 230.34 | 13.12 | 222.65 | 0.3231 | -1016.5 | -638.0 | |
| 2.78 | -46.00 | 1.44 | -46.00 | -14.23 | 230.15 | 12.93 | 227.01 | 0.2979 | 1272.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -15.97 | 230.16 | 12.94 | 222.88 | 0.3178 | 863.0 | 710.5 | |
| 1.53 | -46.00 | 0.79 | -46.00 | -14.36 | 230.03 | 12.81 | 226.43 | 0.2978 | 1015.9 | 999999 | |
| 1.62 | -46.00 | 0.84 | -46.00 | -13.71 | 229.84 | 12.61 | 227.68 | 0.2882 | 976.2 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.11 | -11.56 | 229.48 | 12.26 | 233.09 | 0.2613 | -640.0 | -614.9 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -13.47 | 229.31 | 12.09 | 227.15 | 0.2791 | 1020.0 | 850.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -11.25 | 229.12 | 11.90 | 233.26 | 0.2534 | -870.0 | -668.6 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -13.25 | 229.18 | 11.95 | 227.42 | 0.2750 | 1048.0 | 869.4 | |
| 0.00 | 11.85 | 0.00 | 6.11 | -14.00 | 228.77 | 11.54 | 224.45 | 0.2785 | 421.0 | 385.1 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -11.69 | 228.66 | 11.44 | 230.82 | 0.2517 | -795.0 | -651.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -12.89 | 228.68 | 11.46 | 227.27 | 0.2648 | 953.0 | 825.9 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -11.08 | 228.42 | 11.19 | 232.22 | 0.2422 | -989.0 | -703.5 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -11.41 | 228.31 | 11.08 | 230.83 | 0.2441 | -790.0 | -617.3 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -15.00 | 227.32 | 10.09 | 218.24 | 0.2748 | 812.0 | 632.5 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -14.29 | 227.03 | 9.81 | 219.16 | 0.2626 | 666.0 | 428.3 | |
| 0.00 | 1.89 | 0.00 | 0.97 | -15.19 | 226.88 | 9.66 | 216.60 | 0.2728 | -952.0 | -704.3 | |
| 0.00 | 3.68 | 0.00 | 1.89 | -14.66 | 226.64 | 9.41 | 217.12 | 0.2633 | -649.0 | -592.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -18.22 | 226.77 | 9.55 | 210.34 | 0.3134 | 668.0 | 514.2 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -15.88 | 225.96 | 8.73 | 212.45 | 0.2733 | -280.0 | -297.3 | |
| 0.90 | 2.78 | 0.46 | 1.43 | -15.60 | 225.91 | 8.69 | 212.90 | 0.2690 | -919.8 | -703.8 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -17.66 | 225.88 | 8.65 | 208.89 | 0.2980 | -769.0 | -614.5 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -14.57 | 225.74 | 8.52 | 214.66 | 0.2533 | -535.0 | -512.2 | |
| 0.00 | 2.51 | 0.00 | 1.28 | -14.33 | 225.23 | 8.01 | 213.59 | 0.2450 | -903.0 | -847.1 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -14.36 | 225.04 | 7.82 | 212.90 | 0.2437 | -1072.0 | -916.9 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -13.13 | 224.91 | 7.68 | 215.50 | 0.2252 | -786.0 | -735.1 | |
| 0.00 | 3.05 | 0.00 | 1.57 | -16.54 | 224.90 | 7.67 | 208.01 | 0.2738 | -973.0 | -813.8 | |
| 0.00 | 2.69 | 0.00 | 1.39 | -16.97 | 224.82 | 7.60 | 207.00 | 0.2797 | -1110.0 | -853.3 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -15.94 | 224.72 | 7.49 | 208.53 | 0.2637 | -807.0 | -651.1 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -14.98 | 224.65 | 7.43 | 210.24 | 0.2491 | -941.0 | -779.6 | |
| 1.80 | 4.31 | 0.92 | 2.21 | -15.76 | 224.65 | 7.42 | 208.66 | 0.2604 | -983.8 | -807.0 | |
| 0.00 | 2.87 | 0.00 | 1.48 | -17.23 | 224.67 | 7.45 | 206.13 | 0.2823 | -883.0 | -678.5 | |
| 0.00 | 6.65 | 0.00 | 3.40 | -15.35 | 224.47 | 7.25 | 208.89 | 0.2531 | -835.0 | -787.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -16.88 | 224.50 | 7.27 | 206.17 | 0.2759 | -1000.0 | -951.0 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -13.25 | 224.38 | 7.15 | 213.29 | 0.2219 | -821.0 | -619.8 | |
| 1.17 | 2.07 | 0.60 | 1.06 | -16.07 | 224.44 | 7.21 | 207.40 | 0.2633 | -935.5 | -750.7 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -15.64 | 224.32 | 7.10 | 207.85 | 0.2560 | -921.0 | -778.2 | |
| 6.82 | 22.27 | 3.49 | 11.38 | -15.11 | 224.21 | 6.99 | 208.50 | 0.2473 | -1157.2 | -814.4 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -15.57 | 224.16 | 6.94 | 207.43 | 0.2538 | -914.0 | -752.4 | |
| 0.00 | 2.16 | 0.00 | 1.10 | -14.30 | 223.75 | 6.52 | 208.52 | 0.2316 | -894.0 | -677.6 | |
| 0.00 | 2.96 | 0.00 | 1.50 | -13.38 | 223.57 | 6.34 | 209.92 | 0.2164 | -911.0 | -826.2 | |
| 0.36 | 3.59 | 0.18 | 1.83 | -14.09 | 223.49 | 6.27 | 208.02 | 0.2263 | -1132.8 | -822.3 | |
| 0.00 | 3.41 | 0.00 | 1.73 | -13.90 | 223.23 | 6.01 | 207.44 | 0.2215 | -1176.0 | -988.4 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -13.53 | 222.82 | 5.59 | 206.59 | 0.2127 | -782.0 | -822.9 | |
| 0.00 | 9.07 | 0.00 | 4.59 | -13.38 | 222.69 | 5.47 | 206.39 | 0.2094 | -624.0 | -820.0 | |
| 12.75 | 18.23 | 6.55 | 9.37 | -17.11 | 222.46 | 5.24 | 199.24 | 0.2661 | 1138.1 | 636.0 | |
| 0.36 | 1.44 | 0.18 | 0.73 | -15.11 | 222.16 | 4.94 | 201.02 | 0.2328 | -866.0 | -701.1 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -14.40 | 222.15 | 4.92 | 202.15 | 0.2214 | -810.0 | -628.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -20.39 | 222.30 | 5.08 | 195.22 | 0.3177 | -822.0 | -670.0 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -18.96 | 221.84 | 4.62 | 195.14 | 0.2928 | -930.0 | -799.0 | |
| 0.00 | 2.69 | 0.00 | 1.39 | -18.08 | 221.76 | 4.53 | 195.74 | 0.2782 | 793.0 | 524.6 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -19.66 | 221.80 | 4.57 | 194.37 | 0.3038 | -858.0 | -618.9 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -19.00 | 221.49 | 4.27 | 194.01 | 0.2918 | -971.0 | -759.1 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -19.51 | 218.83 | 1.61 | 185.20 | 0.2928 | -901.0 | -754.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -23.19 | 218.31 | 1.08 | 182.83 | 0.3531 | -750.0 | -621.8 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -18.81 | 216.78 | -0.45 | 178.48 | 0.2799 | -871.0 | -625.0 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -19.06 | 216.33 | -0.90 | 177.00 | 0.2845 | -935.0 | -773.5 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -19.50 | 215.87 | -1.35 | 175.62 | 0.2924 | -740.0 | -582.7 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -23.80 | 215.26 | -1.96 | 175.05 | 0.3640 | -850.0 | -675.6 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -21.57 | 215.20 | -2.02 | 174.22 | 0.3277 | -909.0 | -753.1 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -19.60 | 210.03 | -7.19 | 158.02 | 0.3165 | -867.0 | -628.7 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -23.17 | 201.63 | -15.59 | 144.97 | 0.4322 | -698.0 | -614.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -22.15 | 200.11 | -17.11 | 140.96 | 0.4344 | -831.0 | -713.9 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -22.06 | 200.13 | -17.10 | 140.83 | 0.4332 | -654.0 | -635.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
