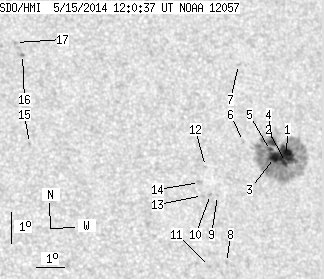

SDO HMI 2014-05-15 12:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.22 | 185.35 | 25.62 | 114.73 | 15.23 | 248.72 | 32.59 | 300.00 | 0.6022 | -481.2 | -285.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-15 12:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.77 | 169.88 | 11.69 | 105.53 | 15.26 | 249.26 | 33.13 | 299.64 | 0.6089 | -908.2 | -372.5 | |
| 5.12 | -1.00 | 3.18 | -1.00 | 15.01 | 249.17 | 33.05 | 299.32 | 0.6063 | -902.4 | 999999 | |
| 10.33 | -1.00 | 6.40 | -1.00 | 15.16 | 248.79 | 32.66 | 299.81 | 0.6025 | -1166.7 | 999999 | |
| 4.76 | -1.00 | 2.96 | -1.00 | 15.64 | 248.80 | 32.67 | 300.51 | 0.6056 | -833.3 | 999999 | |
| 2.24 | -1.00 | 1.39 | -1.00 | 15.38 | 248.68 | 32.55 | 300.22 | 0.6026 | -1081.0 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.77 | 15.64 | 247.72 | 31.59 | 301.31 | 0.5927 | -713.0 | -533.2 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 18.12 | 248.01 | 31.88 | 304.71 | 0.6128 | 761.0 | 585.1 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 11.79 | 246.53 | 30.40 | 296.12 | 0.5538 | 693.0 | 490.0 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 13.90 | 246.49 | 30.36 | 299.56 | 0.5662 | 515.0 | 435.5 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 13.92 | 246.24 | 30.11 | 299.80 | 0.5633 | 793.0 | 714.0 | |
| 0.00 | 1.44 | 0.00 | 0.85 | 11.65 | 245.90 | 29.77 | 296.34 | 0.5448 | 685.0 | 556.6 | |
| 0.00 | 1.08 | 0.00 | 0.65 | 14.81 | 246.19 | 30.06 | 301.23 | 0.5686 | 574.0 | 511.0 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 13.89 | 245.94 | 29.82 | 299.97 | 0.5593 | 700.0 | 519.1 | |
| 0.00 | 2.87 | 0.00 | 1.72 | 14.30 | 245.90 | 29.77 | 300.66 | 0.5614 | 607.0 | 536.6 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 15.42 | 240.06 | 23.94 | 308.03 | 0.4985 | 710.0 | 536.9 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 18.28 | 240.21 | 24.09 | 312.33 | 0.5263 | 809.0 | 745.2 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 18.66 | 240.03 | 23.90 | 313.11 | 0.5279 | 688.0 | 556.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
