SDO HMI 2014-05-15 12:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.30 | 592.52 | 56.34 | 308.47 | -14.38 | 229.06 | 12.93 | 225.79 | 0.3074 | 228.3 | 188.1 | |
|
previous
or next observation for the same group /

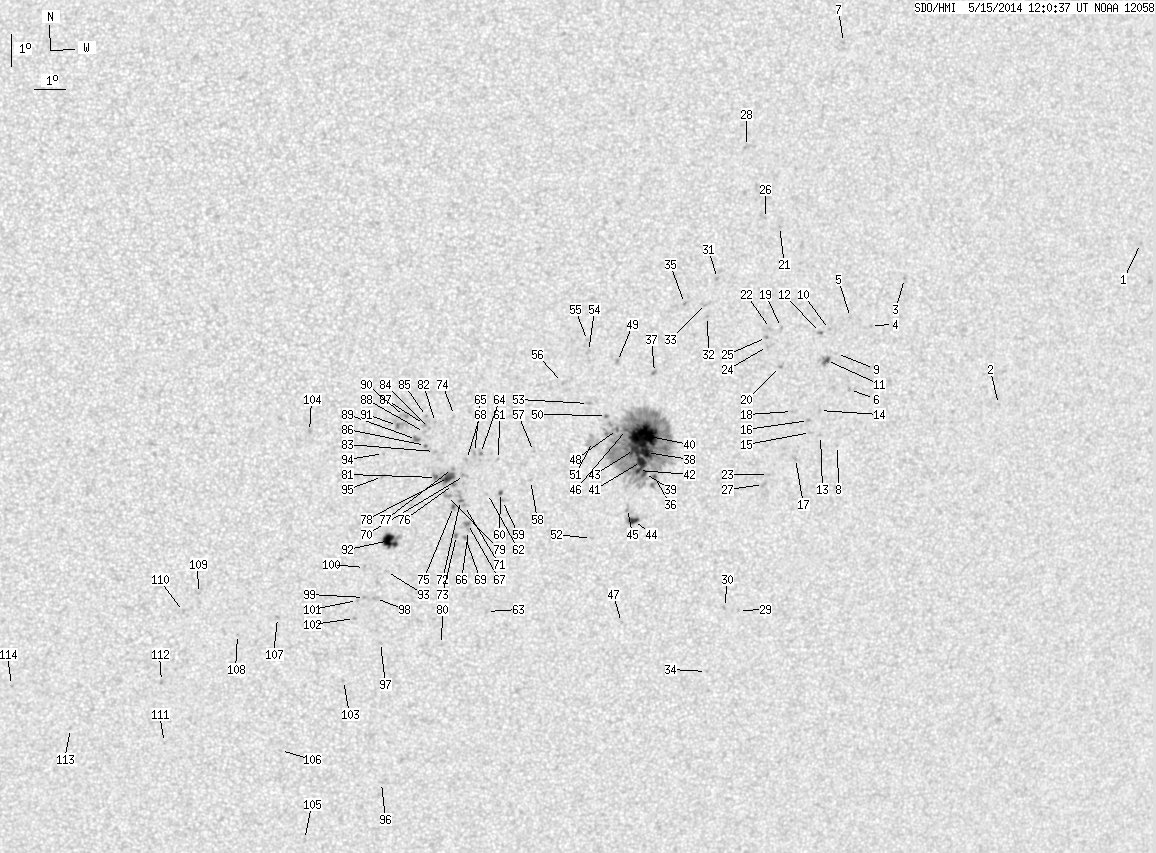

back to the solar disc SDO HMI 2014-05-15 12:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.88 | -7.64 | 246.61 | 30.49 | 259.45 | 0.5135 | 709.0 | 578.7 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -12.66 | 242.11 | 25.99 | 247.32 | 0.4653 | 652.0 | 556.6 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -8.86 | 238.61 | 22.48 | 253.49 | 0.3958 | 849.0 | 673.0 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -10.31 | 237.58 | 21.45 | 249.18 | 0.3866 | 679.0 | 627.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -10.07 | 236.90 | 20.78 | 249.22 | 0.3752 | 828.0 | 660.0 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -12.28 | 237.03 | 20.91 | 243.92 | 0.3898 | 732.0 | 604.3 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -1.73 | 236.36 | 20.23 | 272.13 | 0.3474 | 814.0 | 534.9 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -14.01 | 236.78 | 20.66 | 239.67 | 0.3983 | 781.0 | 623.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -11.18 | 236.52 | 20.39 | 246.08 | 0.3755 | 651.0 | 456.0 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -10.45 | 236.24 | 20.11 | 247.67 | 0.3671 | 789.0 | 624.8 | |
| 2.33 | 6.73 | 1.25 | 3.59 | -11.40 | 236.20 | 20.08 | 245.23 | 0.3722 | 946.5 | 746.5 | |
| 0.36 | 2.24 | 0.19 | 1.19 | -10.55 | 235.95 | 19.82 | 247.15 | 0.3633 | 994.0 | 797.4 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -13.71 | 236.19 | 20.06 | 239.68 | 0.3878 | 711.0 | 544.3 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -12.94 | 236.09 | 19.97 | 241.36 | 0.3808 | 717.0 | 531.8 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -13.62 | 235.85 | 19.73 | 239.48 | 0.3824 | 805.0 | 666.4 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -13.25 | 235.75 | 19.63 | 240.23 | 0.3783 | 1076.0 | 803.6 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -14.43 | 235.43 | 19.30 | 237.10 | 0.3829 | 748.0 | 517.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -12.98 | 235.20 | 19.08 | 240.22 | 0.3685 | 794.0 | 666.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -10.41 | 234.67 | 18.54 | 246.22 | 0.3432 | -718.0 | -515.3 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -11.60 | 234.71 | 18.58 | 243.09 | 0.3516 | -743.0 | -669.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -7.33 | 234.44 | 18.32 | 254.85 | 0.3244 | 816.0 | 730.6 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -10.45 | 234.31 | 18.18 | 245.74 | 0.3381 | 788.0 | 661.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -14.94 | 234.58 | 18.45 | 234.82 | 0.3757 | 767.0 | 610.8 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -11.00 | 234.25 | 18.12 | 244.16 | 0.3407 | 764.0 | 676.7 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -10.72 | 234.20 | 18.07 | 244.85 | 0.3382 | 993.0 | 851.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -7.10 | 233.99 | 17.86 | 255.25 | 0.3161 | 730.0 | 574.7 | |
| 0.00 | 3.14 | 0.00 | 1.68 | -15.25 | 234.44 | 18.31 | 233.93 | 0.3766 | 618.0 | 564.7 | |
| 0.00 | 2.33 | 0.00 | 1.21 | -4.92 | 233.31 | 17.18 | 261.87 | 0.2986 | 842.0 | 720.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -19.21 | 234.00 | 17.87 | 225.24 | 0.4099 | 736.0 | 552.6 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -19.12 | 233.52 | 17.39 | 224.66 | 0.4036 | 804.0 | 560.4 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -8.94 | 232.53 | 16.40 | 248.15 | 0.3018 | -843.0 | -631.6 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -10.10 | 232.26 | 16.13 | 244.26 | 0.3051 | -872.0 | -748.0 | |
| 0.00 | 3.77 | 0.00 | 1.96 | -9.71 | 232.21 | 16.08 | 245.40 | 0.3017 | -452.0 | -654.4 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -21.16 | 233.14 | 17.01 | 220.48 | 0.4221 | 666.0 | 435.2 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -9.71 | 231.51 | 15.38 | 244.44 | 0.2911 | -938.0 | -768.7 | |
| 0.81 | 359.60 | 0.42 | 187.47 | -15.04 | 230.85 | 14.72 | 228.59 | 0.3287 | 766.8 | 461.6 | |
| 0.00 | 2.07 | 0.00 | 1.07 | -11.84 | 230.65 | 14.53 | 236.67 | 0.2952 | -1070.0 | -774.3 | |
| 10.24 | -36.00 | 5.34 | -36.00 | -14.30 | 230.54 | 14.42 | 229.81 | 0.3172 | 1112.4 | 999999 | |
| 2.33 | -36.00 | 1.22 | -36.00 | -14.95 | 230.52 | 14.39 | 228.18 | 0.3237 | 796.8 | 999999 | |
| 42.47 | -36.00 | 22.12 | -36.00 | -13.78 | 230.41 | 14.29 | 230.90 | 0.3102 | 1420.9 | 999999 | |
| 8.17 | -36.00 | 4.27 | -36.00 | -14.58 | 230.40 | 14.27 | 228.84 | 0.3183 | 1047.7 | 999999 | |
| 2.33 | -36.00 | 1.22 | -36.00 | -14.86 | 230.32 | 14.19 | 228.01 | 0.3203 | 931.5 | 999999 | |
| 9.79 | -36.00 | 5.10 | -36.00 | -14.21 | 230.15 | 14.02 | 229.28 | 0.3113 | 1219.3 | 999999 | |
| 4.58 | 7.45 | 2.41 | 3.92 | -16.42 | 230.27 | 14.14 | 224.35 | 0.3367 | -928.3 | -403.2 | |
| 0.00 | 2.69 | 0.00 | 1.41 | -16.05 | 230.04 | 13.92 | 224.72 | 0.3299 | 890.0 | 591.9 | |
| 1.08 | -36.00 | 0.56 | -36.00 | -13.60 | 229.86 | 13.73 | 230.29 | 0.3012 | 1095.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -19.63 | 230.13 | 14.00 | 217.81 | 0.3734 | 693.0 | 506.4 | |
| 0.63 | -36.00 | 0.33 | -36.00 | -13.60 | 229.57 | 13.44 | 229.70 | 0.2975 | 1131.1 | 999999 | |
| 0.00 | 1.89 | 0.00 | 0.97 | -11.51 | 229.46 | 13.33 | 235.44 | 0.2756 | -887.0 | -690.4 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -13.17 | 229.19 | 13.07 | 230.08 | 0.2883 | 945.0 | 876.7 | |
| 0.00 | 13.47 | 0.00 | 6.97 | -13.98 | 228.79 | 12.66 | 227.06 | 0.2918 | 455.0 | 362.0 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -16.99 | 228.94 | 12.81 | 220.40 | 0.3287 | 656.0 | 585.6 | |
| 0.00 | 2.24 | 0.00 | 1.16 | -12.81 | 228.60 | 12.47 | 229.82 | 0.2769 | 1096.0 | 804.4 | |
| 0.00 | 2.24 | 0.00 | 1.15 | -11.21 | 228.53 | 12.40 | 234.48 | 0.2599 | -632.0 | -650.6 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -10.87 | 228.48 | 12.35 | 235.48 | 0.2562 | -655.0 | -563.5 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -12.17 | 227.74 | 11.62 | 229.74 | 0.2591 | -707.0 | -661.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -14.30 | 226.92 | 10.79 | 221.77 | 0.2736 | 579.0 | 437.1 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -15.20 | 226.87 | 10.74 | 219.46 | 0.2843 | -864.0 | -636.9 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -15.83 | 226.01 | 9.88 | 215.78 | 0.2836 | -543.0 | -422.2 | |
| 0.81 | 1.80 | 0.42 | 0.93 | -15.58 | 225.93 | 9.80 | 216.11 | 0.2795 | -870.3 | -746.5 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -14.56 | 225.82 | 9.69 | 218.16 | 0.2649 | -657.0 | -472.9 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -15.61 | 225.52 | 9.39 | 214.89 | 0.2760 | -563.0 | -433.2 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -19.31 | 225.67 | 9.55 | 208.54 | 0.3290 | 686.0 | 627.8 | |
| 0.00 | 1.89 | 0.00 | 0.97 | -14.38 | 225.24 | 9.11 | 216.92 | 0.2566 | -897.0 | -836.7 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -14.35 | 225.05 | 8.92 | 216.42 | 0.2542 | -953.0 | -711.1 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -16.77 | 224.96 | 8.84 | 210.98 | 0.2869 | -793.0 | -533.3 | |
| 0.00 | 3.23 | 0.00 | 1.67 | -16.55 | 224.92 | 8.79 | 211.28 | 0.2835 | -994.0 | -807.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -14.56 | 224.81 | 8.68 | 215.16 | 0.2548 | -935.0 | -719.5 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -16.99 | 224.88 | 8.75 | 210.33 | 0.2893 | -994.0 | -803.3 | |
| 0.00 | 2.78 | 0.00 | 1.43 | -15.06 | 224.76 | 8.63 | 213.89 | 0.2612 | -785.0 | -666.0 | |
| 0.00 | 2.15 | 0.00 | 1.11 | -15.99 | 224.80 | 8.67 | 212.03 | 0.2745 | -769.0 | -617.7 | |
| 0.54 | 5.66 | 0.28 | 2.91 | -15.84 | 224.67 | 8.54 | 211.95 | 0.2711 | -992.3 | -793.8 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -16.93 | 224.58 | 8.46 | 209.62 | 0.2860 | -1020.0 | -910.1 | |
| 0.00 | 0.54 | 0.00 | 0.27 | -13.21 | 224.38 | 8.25 | 217.20 | 0.2322 | -672.0 | -601.7 | |
| 0.72 | 2.78 | 0.37 | 1.43 | -16.03 | 224.45 | 8.32 | 210.93 | 0.2719 | -903.6 | -689.3 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -15.34 | 224.42 | 8.30 | 212.25 | 0.2620 | -1001.0 | -857.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -14.84 | 224.37 | 8.25 | 213.17 | 0.2545 | -877.0 | -753.0 | |
| 6.20 | 17.33 | 3.18 | 8.88 | -15.12 | 224.26 | 8.13 | 212.19 | 0.2574 | -1133.6 | -836.1 | |
| 0.00 | 4.40 | 0.00 | 2.26 | -15.68 | 224.25 | 8.12 | 210.99 | 0.2653 | -860.0 | -761.2 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -20.37 | 224.27 | 8.14 | 203.50 | 0.3343 | -606.0 | -307.6 | |
| 0.99 | -78.00 | 0.51 | -78.00 | -15.13 | 223.88 | 7.75 | 210.98 | 0.2541 | -966.1 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.42 | 223.79 | 7.66 | 214.63 | 0.2292 | -719.0 | -561.9 | |
| 0.00 | 2.15 | 0.00 | 1.10 | -14.32 | 223.79 | 7.66 | 212.45 | 0.2418 | -852.0 | -645.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -13.61 | 223.61 | 7.48 | 213.53 | 0.2301 | -837.0 | -658.6 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -13.24 | 223.50 | 7.37 | 214.09 | 0.2239 | -841.0 | -634.3 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -14.14 | 223.50 | 7.37 | 211.89 | 0.2365 | -936.0 | -882.5 | |
| 0.00 | 2.15 | 0.00 | 1.10 | -13.49 | 223.44 | 7.32 | 213.26 | 0.2268 | -933.0 | -871.5 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -13.74 | 223.45 | 7.33 | 212.68 | 0.2304 | -872.0 | -745.6 | |
| 0.99 | 3.86 | 0.50 | 1.97 | -13.95 | 223.21 | 7.08 | 211.30 | 0.2313 | -1092.8 | -893.2 | |
| 0.00 | 3.68 | 0.00 | 1.87 | -13.24 | 222.81 | 6.68 | 211.54 | 0.2176 | -1030.0 | -884.2 | |
| 0.54 | 8.26 | 0.27 | 4.19 | -13.52 | 222.60 | 6.47 | 210.06 | 0.2197 | -1052.3 | -803.9 | |
| 12.39 | 19.75 | 6.38 | 10.17 | -17.10 | 222.45 | 6.32 | 202.83 | 0.2726 | 1109.6 | 539.8 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -18.07 | 222.39 | 6.26 | 201.26 | 0.2873 | 709.0 | 405.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -14.39 | 222.18 | 6.05 | 206.59 | 0.2293 | -722.0 | -572.2 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -15.10 | 222.17 | 6.04 | 205.17 | 0.2401 | -1008.0 | -718.9 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -24.83 | 222.51 | 6.38 | 194.94 | 0.3931 | 692.0 | 562.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -20.31 | 222.28 | 6.15 | 198.28 | 0.3217 | -690.0 | -566.5 | |
| 0.00 | 3.59 | 0.00 | 1.86 | -18.92 | 222.06 | 5.94 | 199.21 | 0.2987 | -837.0 | -671.4 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -18.89 | 221.71 | 5.58 | 198.18 | 0.2963 | -995.0 | -832.2 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -17.95 | 221.68 | 5.55 | 199.19 | 0.2812 | 844.0 | 610.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -18.99 | 221.49 | 5.36 | 197.40 | 0.2967 | -965.0 | -840.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -19.55 | 221.41 | 5.28 | 196.58 | 0.3054 | -923.0 | -794.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -21.53 | 221.11 | 4.99 | 194.01 | 0.3356 | -718.0 | -544.5 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -13.72 | 219.85 | 3.72 | 198.14 | 0.2034 | -898.0 | -757.4 | |
| 0.00 | 1.80 | 0.00 | 0.98 | -26.72 | 219.99 | 3.86 | 188.38 | 0.4144 | 588.0 | 460.0 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -23.79 | 219.10 | 2.98 | 187.50 | 0.3658 | -539.0 | -505.7 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -19.53 | 218.92 | 2.80 | 188.99 | 0.2957 | -858.0 | -610.3 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -20.07 | 217.64 | 1.52 | 184.74 | 0.3021 | -801.0 | -622.1 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -18.77 | 216.38 | 0.26 | 180.88 | 0.2793 | -822.0 | -701.2 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -19.34 | 215.90 | -0.22 | 179.27 | 0.2889 | -694.0 | -621.8 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -23.53 | 215.26 | -0.86 | 177.78 | 0.3587 | -737.0 | -697.4 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -21.57 | 215.18 | -0.95 | 177.29 | 0.3264 | -733.0 | -612.5 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -23.07 | 212.17 | -3.96 | 169.70 | 0.3567 | -776.0 | -581.1 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -21.67 | 210.28 | -5.85 | 163.83 | 0.3415 | -595.0 | -548.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
