SDO HMI 2014-05-15 13:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.85 | 574.57 | 54.69 | 300.04 | -14.24 | 229.34 | 13.76 | 227.91 | 0.3156 | 286.1 | 212.6 | |
|
previous
or next observation for the same group /

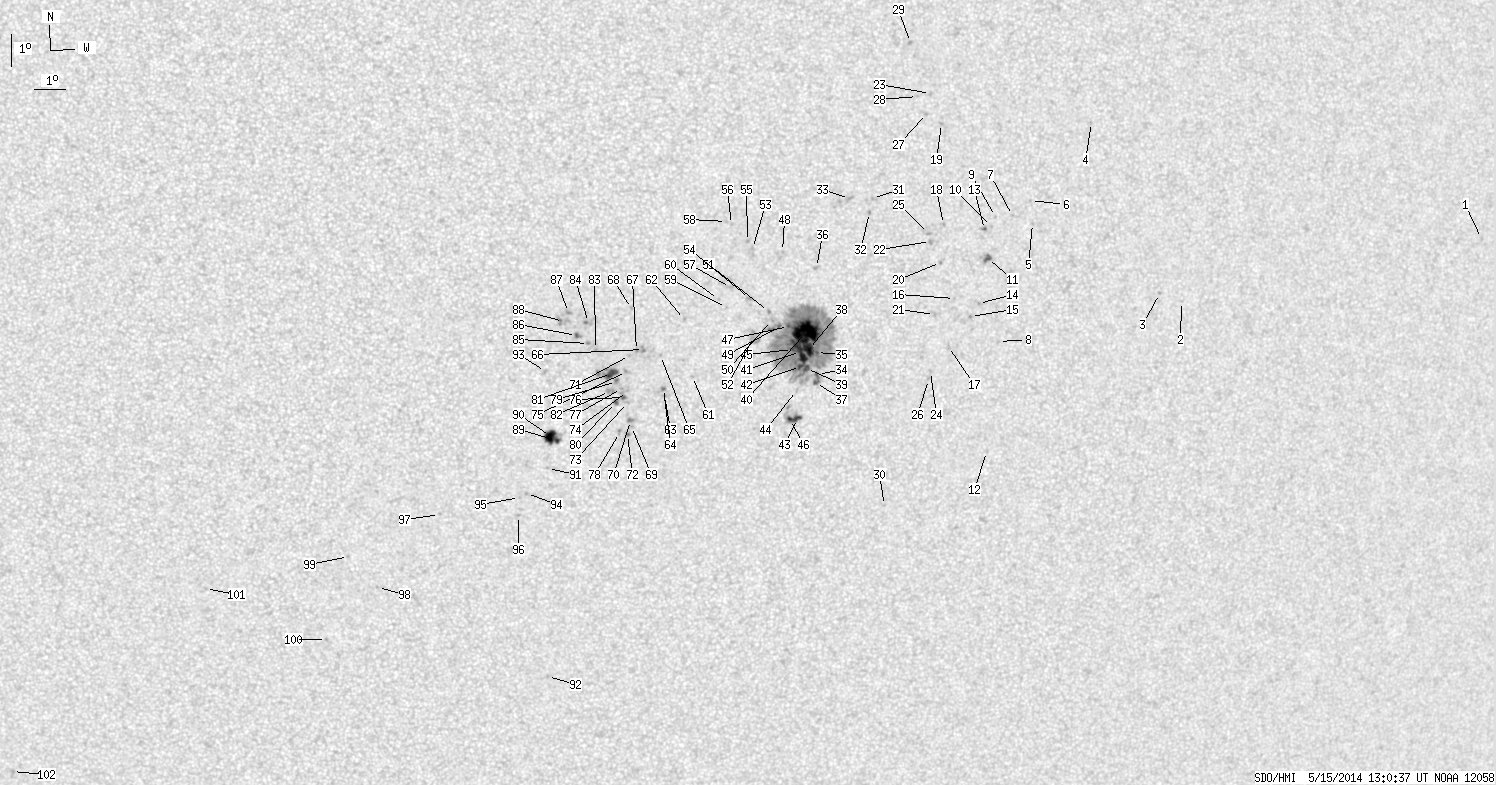

back to the solar disc SDO HMI 2014-05-15 13:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 1.02 | -10.47 | 253.66 | 38.09 | 256.46 | 0.6262 | 255.0 | 302.9 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -12.66 | 242.88 | 27.31 | 248.18 | 0.4841 | 638.0 | 452.1 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -12.42 | 242.09 | 26.51 | 248.14 | 0.4717 | 817.0 | 650.3 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -7.24 | 239.36 | 23.78 | 258.08 | 0.4106 | 753.0 | 564.1 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -10.35 | 237.59 | 22.02 | 249.51 | 0.3953 | 752.0 | 455.3 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -9.65 | 237.48 | 21.90 | 251.14 | 0.3902 | 640.0 | 456.7 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -10.12 | 236.91 | 21.34 | 249.55 | 0.3839 | 757.0 | 620.8 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -14.00 | 236.77 | 21.19 | 240.28 | 0.4055 | 732.0 | 583.3 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -10.16 | 236.35 | 20.78 | 248.99 | 0.3756 | 743.0 | 639.2 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -10.47 | 236.24 | 20.67 | 248.12 | 0.3756 | 702.0 | 595.0 | |
| 2.24 | 4.58 | 1.20 | 2.45 | -11.45 | 236.18 | 20.61 | 245.63 | 0.3803 | 1002.0 | 823.8 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -17.42 | 236.73 | 21.15 | 233.12 | 0.4323 | 632.0 | 501.6 | |
| 0.45 | 1.80 | 0.24 | 0.96 | -10.56 | 236.02 | 20.44 | 247.68 | 0.3728 | 955.4 | 714.1 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -12.83 | 235.99 | 20.42 | 242.10 | 0.3865 | 802.0 | 718.3 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -13.24 | 235.76 | 20.19 | 240.90 | 0.3861 | 955.0 | 801.0 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -12.69 | 235.19 | 19.61 | 241.55 | 0.3740 | 820.0 | 640.4 | |
| 0.00 | 2.96 | 0.00 | 1.59 | -14.17 | 235.11 | 19.54 | 237.98 | 0.3841 | 671.0 | 549.5 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -10.43 | 234.67 | 19.09 | 246.74 | 0.3516 | -779.0 | -558.7 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -7.35 | 234.44 | 18.86 | 255.18 | 0.3332 | 832.0 | 619.6 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -11.59 | 234.65 | 19.07 | 243.67 | 0.3586 | -758.0 | -609.0 | |
| 0.00 | 2.42 | 0.00 | 1.29 | -13.19 | 234.57 | 18.99 | 239.61 | 0.3689 | 718.0 | 664.0 | |
| 0.00 | 2.60 | 0.00 | 1.38 | -10.95 | 234.28 | 18.70 | 244.93 | 0.3490 | 864.0 | 684.8 | |
| 0.00 | 1.89 | 0.00 | 0.99 | -6.44 | 234.05 | 18.47 | 257.64 | 0.3237 | 736.0 | 663.8 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -14.96 | 234.59 | 19.01 | 235.54 | 0.3833 | 835.0 | 663.1 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -10.71 | 234.20 | 18.62 | 245.49 | 0.3463 | 941.0 | 787.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -15.21 | 234.54 | 18.97 | 234.93 | 0.3849 | 784.0 | 580.0 | |
| 0.00 | 1.89 | 0.00 | 0.99 | -7.05 | 233.94 | 18.37 | 255.73 | 0.3241 | 786.0 | 613.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -6.54 | 233.64 | 18.06 | 257.10 | 0.3174 | 846.0 | 665.1 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -4.91 | 233.36 | 17.78 | 262.14 | 0.3086 | 925.0 | 792.3 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -19.17 | 233.48 | 17.90 | 225.34 | 0.4099 | 839.0 | 656.9 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -9.66 | 232.33 | 16.75 | 246.34 | 0.3116 | -801.0 | -573.4 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -10.09 | 232.25 | 16.68 | 244.98 | 0.3132 | -927.0 | -793.0 | |
| 0.00 | 3.95 | 0.00 | 2.05 | -9.67 | 231.59 | 16.01 | 245.41 | 0.3004 | -980.0 | -646.6 | |
| 0.99 | 357.24 | 0.52 | 186.72 | -15.09 | 230.89 | 15.31 | 229.53 | 0.3366 | 753.7 | 461.3 | |
| 0.81 | -34.00 | 0.42 | -34.00 | -14.41 | 230.81 | 15.23 | 231.02 | 0.3287 | 756.1 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.21 | -11.79 | 230.64 | 15.07 | 237.69 | 0.3024 | -925.0 | -721.0 | |
| 0.72 | -34.00 | 0.38 | -34.00 | -15.34 | 230.84 | 15.26 | 228.87 | 0.3385 | 758.6 | 999999 | |
| 9.34 | -34.00 | 4.89 | -34.00 | -14.32 | 230.54 | 14.96 | 230.77 | 0.3244 | 1098.9 | 999999 | |
| 3.05 | -34.00 | 1.60 | -34.00 | -14.91 | 230.52 | 14.94 | 229.29 | 0.3301 | 808.1 | 999999 | |
| 39.86 | -34.00 | 20.82 | -34.00 | -13.80 | 230.41 | 14.83 | 231.85 | 0.3175 | 1422.3 | 999999 | |
| 15.17 | -34.00 | 7.93 | -34.00 | -14.39 | 230.29 | 14.71 | 230.15 | 0.3218 | 1171.8 | 999999 | |
| 2.33 | -34.00 | 1.22 | -34.00 | -14.85 | 230.32 | 14.74 | 229.07 | 0.3270 | 940.5 | 999999 | |
| 2.87 | 14.63 | 1.52 | 7.71 | -16.47 | 230.34 | 14.76 | 225.42 | 0.3445 | -864.8 | -49.2 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -15.60 | 230.24 | 14.66 | 227.18 | 0.3339 | 462.0 | 425.5 | |
| 0.27 | -34.00 | 0.14 | -34.00 | -14.33 | 230.02 | 14.45 | 229.80 | 0.3179 | 1067.0 | 999999 | |
| 2.51 | -43.00 | 1.32 | -43.00 | -16.50 | 230.11 | 14.53 | 224.92 | 0.3422 | -843.0 | 999999 | |
| 1.17 | -34.00 | 0.61 | -34.00 | -13.62 | 229.85 | 14.27 | 231.28 | 0.3085 | 1034.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -11.31 | 229.53 | 13.96 | 237.20 | 0.2826 | -717.0 | -615.0 | |
| 0.72 | -34.00 | 0.37 | -34.00 | -13.62 | 229.56 | 13.98 | 230.72 | 0.3047 | 1151.8 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -13.44 | 229.29 | 13.72 | 230.68 | 0.2994 | 880.0 | 810.7 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -13.16 | 229.18 | 13.61 | 231.20 | 0.2952 | 1016.0 | 824.0 | |
| 0.00 | 10.86 | 0.00 | 5.64 | -13.97 | 228.75 | 13.17 | 228.17 | 0.2980 | 389.0 | 392.1 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -11.23 | 228.58 | 13.00 | 235.64 | 0.2684 | -749.0 | -622.6 | |
| 0.00 | 2.87 | 0.00 | 1.48 | -12.77 | 228.55 | 12.98 | 231.02 | 0.2830 | 1087.0 | 754.4 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -11.02 | 228.41 | 12.83 | 235.99 | 0.2642 | -857.0 | -725.1 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -10.50 | 227.88 | 12.30 | 236.61 | 0.2521 | -776.0 | -604.4 | |
| 0.00 | 3.86 | 0.00 | 1.99 | -12.43 | 227.93 | 12.36 | 230.64 | 0.2715 | -750.0 | -504.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -10.41 | 227.72 | 12.14 | 236.58 | 0.2490 | -766.0 | -568.8 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -13.05 | 227.84 | 12.26 | 228.66 | 0.2767 | 613.0 | 490.0 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -12.81 | 227.57 | 11.99 | 228.74 | 0.2707 | -773.0 | -596.9 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -15.19 | 226.86 | 11.28 | 220.84 | 0.2900 | -818.0 | -553.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -13.43 | 226.52 | 10.94 | 224.43 | 0.2649 | 923.0 | 645.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -15.79 | 225.99 | 10.42 | 217.29 | 0.2885 | -498.0 | -407.1 | |
| 0.36 | 1.80 | 0.19 | 0.93 | -15.57 | 225.95 | 10.38 | 217.66 | 0.2852 | -873.8 | -806.4 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -14.55 | 225.81 | 10.23 | 219.66 | 0.2705 | -679.0 | -537.1 | |
| 0.00 | 2.69 | 0.00 | 1.38 | -14.37 | 225.26 | 9.68 | 218.59 | 0.2624 | -863.0 | -757.0 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -14.40 | 225.04 | 9.46 | 217.88 | 0.2605 | -1011.0 | -810.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.10 | 224.83 | 9.25 | 220.64 | 0.2415 | -931.0 | -621.5 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -16.76 | 224.99 | 9.41 | 212.59 | 0.2919 | -655.0 | -495.1 | |
| 0.00 | 3.41 | 0.00 | 1.76 | -16.57 | 224.94 | 9.37 | 212.84 | 0.2889 | -973.0 | -772.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -14.55 | 224.82 | 9.25 | 216.88 | 0.2603 | -933.0 | -746.8 | |
| 0.00 | 1.98 | 0.00 | 1.02 | -17.01 | 224.87 | 9.29 | 211.80 | 0.2944 | -960.0 | -764.4 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -16.01 | 224.82 | 9.25 | 213.63 | 0.2801 | -698.0 | -602.4 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -15.67 | 224.81 | 9.23 | 214.31 | 0.2752 | -733.0 | -601.8 | |
| 0.00 | 2.51 | 0.00 | 1.29 | -15.05 | 224.75 | 9.17 | 215.50 | 0.2662 | -834.0 | -689.5 | |
| 0.72 | 4.31 | 0.37 | 2.22 | -15.86 | 224.69 | 9.11 | 213.57 | 0.2767 | -933.2 | -788.7 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -15.58 | 224.61 | 9.04 | 213.94 | 0.2721 | -946.0 | -824.3 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -16.95 | 224.61 | 9.03 | 211.20 | 0.2912 | -980.0 | -814.8 | |
| 0.00 | 2.96 | 0.00 | 1.52 | -15.36 | 224.44 | 8.87 | 213.92 | 0.2676 | -932.0 | -755.2 | |
| 1.08 | 2.51 | 0.56 | 1.30 | -16.02 | 224.44 | 8.86 | 212.53 | 0.2766 | -887.2 | -694.6 | |
| 6.19 | 15.53 | 3.18 | 7.97 | -15.12 | 224.27 | 8.70 | 213.95 | 0.2626 | -1116.9 | -854.1 | |
| 0.00 | 5.21 | 0.00 | 2.68 | -15.67 | 224.23 | 8.66 | 212.63 | 0.2700 | -894.0 | -741.3 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -14.37 | 223.74 | 8.16 | 213.98 | 0.2472 | -913.0 | -802.4 | |
| 0.00 | 3.23 | 0.00 | 1.65 | -13.54 | 223.49 | 7.91 | 215.19 | 0.2333 | -856.0 | -844.2 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -14.19 | 223.51 | 7.94 | 213.67 | 0.2425 | -1063.0 | -878.2 | |
| 0.81 | 3.23 | 0.41 | 1.65 | -13.94 | 223.13 | 7.55 | 212.95 | 0.2355 | -1026.1 | -906.4 | |
| 0.00 | 2.78 | 0.00 | 1.41 | -13.24 | 222.85 | 7.28 | 213.75 | 0.2229 | -1136.0 | -938.9 | |
| 0.00 | 8.17 | 0.00 | 4.15 | -13.51 | 222.70 | 7.13 | 212.51 | 0.2255 | -674.0 | -798.0 | |
| 2.24 | 20.38 | 1.16 | 10.50 | -17.21 | 222.60 | 7.03 | 204.86 | 0.2792 | 917.9 | 602.5 | |
| 10.95 | -89.00 | 5.64 | -89.00 | -17.09 | 222.41 | 6.83 | 204.45 | 0.2759 | 1146.5 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -18.09 | 222.35 | 6.77 | 202.77 | 0.2909 | 748.0 | 446.7 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -24.75 | 222.66 | 7.08 | 196.54 | 0.3950 | 849.0 | 611.3 | |
| 0.00 | 2.15 | 0.00 | 1.10 | -15.06 | 222.18 | 6.61 | 207.25 | 0.2437 | -912.0 | -621.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -18.88 | 221.70 | 6.13 | 199.82 | 0.2992 | -978.0 | -809.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -19.01 | 221.48 | 5.91 | 199.01 | 0.2999 | -968.0 | -786.1 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -19.58 | 221.47 | 5.89 | 198.34 | 0.3088 | -959.0 | -709.6 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -19.55 | 218.92 | 3.34 | 190.69 | 0.2977 | -763.0 | -585.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -21.88 | 216.94 | 1.37 | 183.84 | 0.3320 | -794.0 | -531.0 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -20.89 | 215.99 | 0.42 | 181.25 | 0.3149 | -932.0 | -699.3 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -23.56 | 215.27 | -0.30 | 179.22 | 0.3589 | -894.0 | -684.2 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -21.90 | 211.32 | -4.25 | 168.23 | 0.3388 | -785.0 | -620.8 | |
| 0.00 | 2.60 | 0.00 | 1.45 | -27.85 | 204.42 | -11.15 | 158.17 | 0.4619 | -726.0 | -573.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
