SDO HMI 2014-05-15 13:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.23 | 314.27 | 31.64 | 181.62 | -24.05 | 192.55 | -23.03 | 136.02 | 0.5151 | 431.4 | 232.6 | |
|
previous
or next observation for the same group /

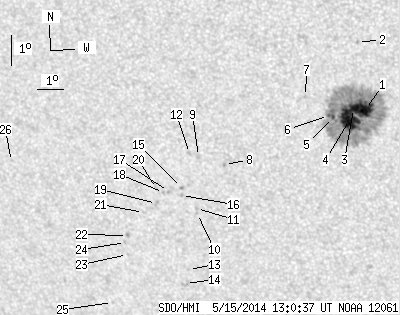

back to the solar disc SDO HMI 2014-05-15 13:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.42 | 281.91 | 9.94 | 161.52 | -23.58 | 193.78 | -21.79 | 136.67 | 0.4979 | 1261.3 | 345.6 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -21.42 | 193.86 | -21.71 | 133.36 | 0.4756 | -659.0 | -513.5 | |
| 9.43 | -1.00 | 5.39 | -1.00 | -23.54 | 193.36 | -22.21 | 136.10 | 0.5019 | 1192.5 | 999999 | |
| 26.22 | -1.00 | 15.06 | -1.00 | -23.90 | 193.16 | -22.42 | 136.39 | 0.5076 | 996.8 | 999999 | |
| 1.35 | -1.00 | 0.78 | -1.00 | -23.82 | 192.59 | -22.98 | 135.62 | 0.5127 | 668.5 | 999999 | |
| 0.81 | -1.00 | 0.47 | -1.00 | -23.75 | 192.43 | -23.15 | 135.32 | 0.5138 | 629.2 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -23.12 | 191.72 | -23.86 | 133.57 | 0.5154 | 669.0 | 558.8 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -25.28 | 188.26 | -27.32 | 133.21 | 0.5715 | -773.0 | -658.9 | |
| 0.00 | 2.24 | 0.00 | 1.36 | -25.00 | 187.35 | -28.23 | 131.97 | 0.5788 | -565.0 | -489.6 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -26.87 | 186.81 | -28.77 | 134.08 | 0.5998 | -729.0 | -590.5 | |
| 0.00 | 1.53 | 0.00 | 0.94 | -26.71 | 186.82 | -28.76 | 133.86 | 0.5984 | -755.0 | -538.5 | |
| 0.00 | 1.98 | 0.00 | 1.20 | -24.89 | 187.03 | -28.55 | 131.54 | 0.5813 | -656.0 | -581.0 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -28.74 | 185.90 | -29.68 | 135.73 | 0.6242 | -567.0 | -502.5 | |
| 0.00 | 4.22 | 0.00 | 2.69 | -29.21 | 185.63 | -29.95 | 136.10 | 0.6307 | -453.0 | -494.4 | |
| 0.00 | 1.44 | 0.00 | 0.88 | -26.00 | 186.43 | -29.15 | 132.56 | 0.5965 | -794.0 | -768.8 | |
| 0.00 | 1.44 | 0.00 | 0.89 | -26.26 | 186.36 | -29.22 | 132.86 | 0.5994 | -682.0 | -582.2 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -26.12 | 185.89 | -29.68 | 132.27 | 0.6031 | -754.0 | -615.7 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -26.15 | 185.69 | -29.89 | 132.13 | 0.6054 | -711.0 | -530.5 | |
| 0.00 | 2.24 | 0.00 | 1.40 | -26.51 | 185.31 | -30.26 | 132.30 | 0.6121 | -727.0 | -606.8 | |
| 0.00 | 2.06 | 0.00 | 1.28 | -26.01 | 185.46 | -30.12 | 131.75 | 0.6067 | -407.0 | -467.6 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -26.79 | 184.71 | -30.86 | 132.20 | 0.6204 | -614.0 | -459.4 | |
| 0.00 | 1.89 | 0.00 | 1.21 | -27.54 | 183.84 | -31.74 | 132.50 | 0.6349 | -798.0 | -644.6 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -28.18 | 183.63 | -31.95 | 133.16 | 0.6418 | -665.0 | -493.8 | |
| 0.00 | 1.62 | 0.00 | 1.04 | -27.77 | 183.68 | -31.89 | 132.68 | 0.6382 | -567.0 | -466.0 | |
| 0.00 | 1.26 | 0.00 | 0.83 | -29.78 | 182.44 | -33.14 | 134.29 | 0.6652 | -531.0 | -337.7 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -24.98 | 179.96 | -35.61 | 126.33 | 0.6575 | -547.0 | -473.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
