SDO HMI 2014-05-15 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.59 | 63.94 | 10.48 | 34.36 | 8.63 | 195.14 | -19.89 | 60.13 | 0.3891 | 55.1 | 178.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-15 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

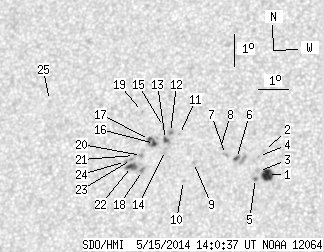

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.07 | 11.67 | 4.79 | 6.17 | 8.04 | 197.60 | -17.43 | 58.34 | 0.3499 | -1104.6 | -686.9 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 8.78 | 197.47 | -17.56 | 56.74 | 0.3581 | -691.0 | -523.5 | |
| 0.00 | 1.89 | 0.00 | 1.00 | 8.13 | 197.31 | -17.72 | 58.53 | 0.3548 | -634.0 | -584.3 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 8.60 | 197.28 | -17.74 | 57.44 | 0.3590 | -745.0 | -556.8 | |
| 0.54 | 1.71 | 0.29 | 0.90 | 7.92 | 197.22 | -17.81 | 59.17 | 0.3543 | -754.8 | -593.9 | |
| 1.17 | 6.73 | 0.62 | 3.58 | 8.55 | 196.58 | -18.45 | 58.56 | 0.3684 | -954.3 | -717.1 | |
| 0.00 | 2.42 | 0.00 | 1.29 | 8.68 | 196.21 | -18.81 | 58.74 | 0.3745 | -699.0 | -543.9 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 8.89 | 196.04 | -18.98 | 58.47 | 0.3787 | -644.0 | -374.4 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 8.45 | 195.19 | -19.84 | 60.58 | 0.3870 | -786.0 | -506.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 7.90 | 194.89 | -20.14 | 62.20 | 0.3871 | -779.0 | -608.5 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 9.32 | 194.68 | -20.35 | 59.25 | 0.4009 | 681.0 | 494.2 | |
| 0.00 | 2.24 | 0.00 | 1.22 | 9.39 | 194.38 | -20.64 | 59.47 | 0.4056 | 945.0 | 791.2 | |
| 1.62 | 3.59 | 0.88 | 1.94 | 9.17 | 194.23 | -20.80 | 60.11 | 0.4060 | 1099.4 | 879.5 | |
| 0.00 | 2.42 | 0.00 | 1.31 | 8.83 | 194.25 | -20.78 | 60.83 | 0.4031 | 861.0 | 795.3 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 9.58 | 194.14 | -20.89 | 59.35 | 0.4104 | 758.0 | 565.6 | |
| 1.89 | 7.81 | 1.02 | 4.24 | 9.06 | 193.88 | -21.15 | 60.77 | 0.4100 | 1099.7 | 796.1 | |
| 1.62 | -16.00 | 0.88 | -16.00 | 9.18 | 193.70 | -21.32 | 60.70 | 0.4134 | 793.4 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.27 | 8.23 | 193.53 | -21.50 | 62.96 | 0.4089 | 1081.0 | 909.0 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 10.06 | 193.41 | -21.61 | 59.19 | 0.4240 | 633.0 | 516.9 | |
| 0.00 | 1.80 | 0.00 | 0.98 | 8.69 | 193.47 | -21.56 | 62.01 | 0.4130 | 974.0 | 776.1 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 8.70 | 193.24 | -21.79 | 62.25 | 0.4163 | 698.0 | 411.8 | |
| 3.68 | 6.37 | 2.00 | 3.47 | 8.36 | 193.16 | -21.87 | 63.07 | 0.4151 | 1017.9 | 800.8 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 8.57 | 193.15 | -21.88 | 62.61 | 0.4168 | 809.0 | 634.9 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 8.52 | 192.95 | -22.08 | 62.94 | 0.4191 | 648.0 | 498.9 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 10.46 | 190.26 | -24.76 | 61.66 | 0.4699 | 549.0 | 394.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
