SDO HMI 2014-05-15 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.40 | 571.24 | 52.06 | 299.96 | -14.22 | 229.35 | 14.87 | 229.81 | 0.3304 | 305.1 | 206.9 | |
|
previous
or next observation for the same group /

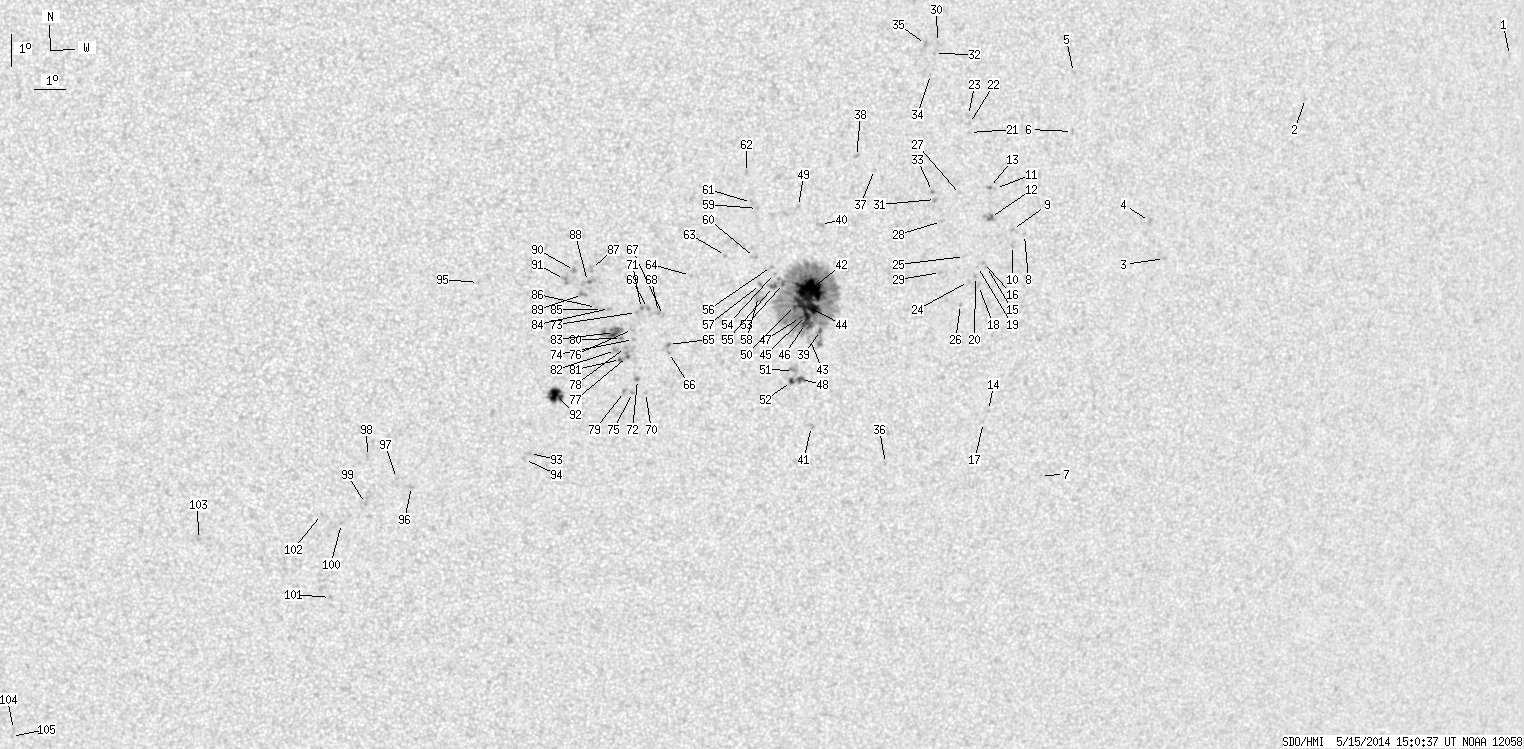

back to the solar disc SDO HMI 2014-05-15 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.99 | -6.12 | 254.35 | 39.87 | 263.58 | 0.6437 | 376.0 | 288.3 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -7.63 | 246.75 | 32.27 | 259.90 | 0.5397 | 664.0 | 581.8 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -12.62 | 242.23 | 27.76 | 248.53 | 0.4904 | 688.0 | 511.2 | |
| 0.00 | 3.23 | 0.00 | 1.82 | -11.49 | 241.59 | 27.11 | 250.38 | 0.4760 | 69.0 | 165.4 | |
| 0.00 | 1.80 | 0.00 | 0.98 | -7.00 | 238.65 | 24.17 | 258.82 | 0.4160 | 659.0 | 520.0 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -8.79 | 238.72 | 24.25 | 254.63 | 0.4227 | 781.0 | 687.5 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -19.46 | 238.83 | 24.35 | 232.95 | 0.4891 | 229.0 | 256.6 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -11.97 | 237.36 | 22.88 | 246.43 | 0.4168 | 715.0 | 514.7 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -11.82 | 236.94 | 22.47 | 246.41 | 0.4099 | 876.0 | 748.7 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -12.31 | 236.99 | 22.51 | 245.33 | 0.4133 | 692.0 | 661.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -10.58 | 236.28 | 21.80 | 248.80 | 0.3933 | 735.0 | 567.1 | |
| 1.35 | 6.28 | 0.73 | 3.39 | -11.47 | 236.18 | 21.70 | 246.58 | 0.3966 | 1056.1 | 822.6 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -10.55 | 236.07 | 21.60 | 248.70 | 0.3901 | 939.0 | 825.7 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -17.44 | 236.73 | 22.25 | 234.36 | 0.4464 | 683.0 | 541.4 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -12.97 | 236.17 | 21.70 | 243.09 | 0.4057 | 721.0 | 576.8 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -12.85 | 236.06 | 21.59 | 243.26 | 0.4034 | 805.0 | 759.9 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -17.82 | 236.60 | 22.13 | 233.50 | 0.4480 | 648.0 | 579.8 | |
| 0.00 | 2.24 | 0.00 | 1.22 | -13.56 | 235.96 | 21.48 | 241.55 | 0.4067 | 740.0 | 544.2 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -12.98 | 235.87 | 21.40 | 242.78 | 0.4015 | 673.0 | 666.5 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -13.29 | 235.83 | 21.36 | 242.04 | 0.4030 | 1055.0 | 867.5 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -8.88 | 235.31 | 20.83 | 252.32 | 0.3704 | 686.0 | 427.4 | |
| 0.00 | 2.06 | 0.00 | 1.10 | -8.61 | 235.29 | 20.82 | 253.03 | 0.3689 | 703.0 | 579.1 | |
| 0.00 | 2.42 | 0.00 | 1.29 | -8.36 | 235.24 | 20.77 | 253.64 | 0.3672 | 810.0 | 660.3 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -13.44 | 235.61 | 21.14 | 241.46 | 0.4010 | 693.0 | 580.2 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -12.68 | 235.41 | 20.94 | 243.01 | 0.3929 | 773.0 | 671.2 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -14.16 | 235.41 | 20.94 | 239.64 | 0.4033 | 829.0 | 583.8 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -10.78 | 235.13 | 20.66 | 247.33 | 0.3772 | 314.0 | 398.2 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -11.61 | 234.57 | 20.09 | 244.70 | 0.3738 | -732.0 | -496.8 | |
| 0.00 | 1.89 | 0.00 | 1.01 | -13.18 | 234.66 | 20.18 | 241.03 | 0.3856 | 890.0 | 718.7 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -6.16 | 234.13 | 19.66 | 259.11 | 0.3421 | 828.0 | 677.2 | |
| 0.00 | 2.78 | 0.00 | 1.48 | -10.94 | 234.32 | 19.85 | 246.15 | 0.3660 | 753.0 | 643.5 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -6.49 | 234.05 | 19.57 | 258.09 | 0.3417 | 847.0 | 746.6 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -10.70 | 234.21 | 19.73 | 246.66 | 0.3629 | 955.0 | 864.8 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -7.13 | 233.95 | 19.47 | 256.19 | 0.3421 | 779.0 | 696.6 | |
| 0.00 | 3.14 | 0.00 | 1.65 | -6.22 | 233.75 | 19.27 | 258.72 | 0.3360 | 940.0 | 749.3 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -19.16 | 233.42 | 18.95 | 226.91 | 0.4218 | 773.0 | 653.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -10.05 | 232.28 | 17.80 | 246.41 | 0.3300 | -782.0 | -636.1 | |
| 0.00 | 2.51 | 0.00 | 1.31 | -9.66 | 231.68 | 17.20 | 246.86 | 0.3185 | -950.0 | -757.0 | |
| 0.81 | 347.67 | 0.43 | 182.62 | -15.02 | 230.86 | 16.38 | 231.52 | 0.3495 | 697.8 | 472.4 | |
| 0.00 | 3.14 | 0.00 | 1.64 | -11.75 | 230.63 | 16.16 | 239.50 | 0.3176 | -916.0 | -638.5 | |
| 0.00 | 2.96 | 0.00 | 1.59 | -18.02 | 230.82 | 16.35 | 225.03 | 0.3799 | 689.0 | 651.5 | |
| 41.56 | -39.00 | 21.82 | -39.00 | -13.79 | 230.41 | 15.93 | 233.76 | 0.3320 | 1411.9 | 999999 | |
| 0.00 | 3.41 | 0.00 | 1.80 | -15.28 | 230.52 | 16.04 | 230.37 | 0.3477 | 482.0 | 369.7 | |
| 19.66 | -39.00 | 10.33 | -39.00 | -14.28 | 230.38 | 15.90 | 232.49 | 0.3363 | 1164.5 | 999999 | |
| 4.85 | -39.00 | 2.55 | -39.00 | -14.56 | 230.37 | 15.89 | 231.79 | 0.3388 | 1100.6 | 999999 | |
| 2.42 | -39.00 | 1.28 | -39.00 | -14.81 | 230.35 | 15.88 | 231.17 | 0.3410 | 914.5 | 999999 | |
| 1.26 | -39.00 | 0.66 | -39.00 | -14.63 | 230.18 | 15.70 | 231.31 | 0.3369 | 879.7 | 999999 | |
| 2.33 | 4.49 | 1.24 | 2.38 | -16.55 | 230.33 | 15.85 | 227.20 | 0.3584 | -911.2 | -666.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -11.21 | 229.90 | 15.42 | 239.94 | 0.3027 | -766.0 | -563.2 | |
| 1.53 | -39.00 | 0.80 | -39.00 | -14.26 | 229.99 | 15.51 | 231.89 | 0.3309 | 1045.5 | 999999 | |
| 0.00 | 4.31 | 0.00 | 2.28 | -16.28 | 230.07 | 15.60 | 227.36 | 0.3524 | -100.0 | 37.3 | |
| 1.71 | 3.68 | 0.90 | 1.95 | -16.62 | 230.04 | 15.56 | 226.55 | 0.3556 | -770.9 | -461.8 | |
| 0.90 | -39.00 | 0.47 | -39.00 | -13.58 | 229.55 | 15.08 | 232.84 | 0.3187 | 1109.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -13.28 | 229.24 | 14.77 | 233.09 | 0.3117 | 908.0 | 737.5 | |
| 1.62 | -39.00 | 0.84 | -39.00 | -13.68 | 229.24 | 14.76 | 232.02 | 0.3155 | 1095.8 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -13.06 | 229.14 | 14.66 | 233.46 | 0.3082 | 865.0 | 727.1 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -13.62 | 228.81 | 14.34 | 231.39 | 0.3094 | 887.0 | 690.6 | |
| 0.00 | 8.53 | 0.00 | 4.45 | -13.99 | 228.77 | 14.30 | 230.36 | 0.3126 | 354.0 | 392.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -11.29 | 228.59 | 14.12 | 237.56 | 0.2846 | -786.0 | -693.5 | |
| 0.00 | 2.51 | 0.00 | 1.30 | -12.79 | 228.57 | 14.10 | 233.17 | 0.2981 | 867.0 | 726.0 | |
| 0.00 | 1.97 | 0.00 | 1.02 | -11.10 | 228.39 | 13.92 | 237.76 | 0.2803 | -753.0 | -646.4 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -10.19 | 228.19 | 13.72 | 240.33 | 0.2698 | -751.0 | -673.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -12.74 | 227.64 | 13.17 | 231.49 | 0.2853 | -741.0 | -626.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -13.36 | 226.56 | 12.09 | 227.39 | 0.2780 | 533.0 | 465.9 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -15.50 | 225.97 | 11.50 | 220.62 | 0.2962 | -849.0 | -754.4 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -15.75 | 225.98 | 11.51 | 220.09 | 0.2995 | -677.0 | -552.4 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -14.61 | 225.76 | 11.29 | 222.25 | 0.2830 | -632.0 | -561.1 | |
| 0.00 | 2.15 | 0.00 | 1.11 | -14.51 | 225.60 | 11.12 | 222.07 | 0.2800 | -791.0 | -717.0 | |
| 0.00 | 1.97 | 0.00 | 1.02 | -14.39 | 225.24 | 10.77 | 221.46 | 0.2745 | -857.0 | -774.4 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -17.01 | 225.31 | 10.84 | 215.81 | 0.3087 | -657.0 | -525.9 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -14.39 | 225.05 | 10.58 | 220.96 | 0.2724 | -996.0 | -865.9 | |
| 0.00 | 2.42 | 0.00 | 1.26 | -16.60 | 225.03 | 10.56 | 215.93 | 0.3006 | -867.0 | -773.8 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -14.52 | 224.90 | 10.42 | 220.24 | 0.2723 | -971.0 | -796.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -15.36 | 224.84 | 10.37 | 218.12 | 0.2824 | -772.0 | -686.2 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -17.01 | 224.90 | 10.42 | 214.76 | 0.3047 | -1025.0 | -826.9 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -15.05 | 224.79 | 10.32 | 218.71 | 0.2779 | -743.0 | -657.3 | |
| 0.54 | 8.71 | 0.28 | 4.50 | -15.89 | 224.68 | 10.20 | 216.50 | 0.2876 | -939.7 | -711.8 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -15.61 | 224.60 | 10.12 | 216.91 | 0.2832 | -1033.0 | -750.5 | |
| 0.00 | 2.15 | 0.00 | 1.12 | -16.98 | 224.64 | 10.16 | 214.16 | 0.3019 | -1024.0 | -834.6 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -15.33 | 224.46 | 9.98 | 217.15 | 0.2781 | -1000.0 | -760.9 | |
| 0.63 | -77.00 | 0.32 | -77.00 | -15.98 | 224.46 | 9.98 | 215.72 | 0.2867 | -876.9 | 999999 | |
| 0.00 | 3.68 | 0.00 | 1.90 | -15.70 | 224.28 | 9.81 | 215.85 | 0.2813 | -954.0 | -754.5 | |
| 4.76 | 16.43 | 2.45 | 8.45 | -15.14 | 224.23 | 9.75 | 216.93 | 0.2733 | -1135.2 | -871.5 | |
| 0.00 | 1.89 | 0.00 | 0.97 | -14.40 | 224.03 | 9.56 | 218.15 | 0.2616 | -702.0 | -699.3 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -14.43 | 223.81 | 9.34 | 217.43 | 0.2597 | -959.0 | -811.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -14.37 | 223.62 | 9.15 | 217.01 | 0.2569 | -866.0 | -705.1 | |
| 0.00 | 3.50 | 0.00 | 1.79 | -13.17 | 223.42 | 8.94 | 219.50 | 0.2390 | -615.0 | -636.5 | |
| 0.00 | 6.64 | 0.00 | 3.39 | -13.57 | 223.31 | 8.83 | 218.08 | 0.2431 | -904.0 | -801.3 | |
| 0.00 | 3.77 | 0.00 | 1.93 | -13.97 | 223.16 | 8.69 | 216.60 | 0.2469 | -1074.0 | -885.5 | |
| 0.00 | 2.24 | 0.00 | 1.14 | -13.23 | 222.88 | 8.41 | 217.63 | 0.2342 | -1050.0 | -910.7 | |
| 0.00 | 3.95 | 0.00 | 2.01 | -13.51 | 222.58 | 8.10 | 215.89 | 0.2349 | -900.0 | -813.5 | |
| 13.47 | 18.94 | 6.96 | 9.78 | -17.12 | 222.43 | 7.95 | 207.81 | 0.2847 | 1103.7 | 648.5 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -18.94 | 221.67 | 7.20 | 202.83 | 0.3067 | -945.0 | -752.7 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -19.13 | 221.52 | 7.04 | 202.15 | 0.3086 | -780.0 | -640.1 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -13.62 | 219.88 | 5.41 | 205.63 | 0.2127 | -873.0 | -568.4 | |
| 0.00 | 2.42 | 0.00 | 1.26 | -20.00 | 217.89 | 3.42 | 190.63 | 0.3053 | -732.0 | -710.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -19.75 | 217.41 | 2.93 | 189.28 | 0.2998 | -768.0 | -657.4 | |
| 0.00 | 3.14 | 0.00 | 1.62 | -19.05 | 216.46 | 1.99 | 186.62 | 0.2860 | -798.0 | -547.4 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -20.54 | 216.42 | 1.94 | 185.89 | 0.3107 | -899.0 | -757.4 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -21.18 | 215.64 | 1.17 | 183.42 | 0.3203 | -903.0 | -781.2 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -23.56 | 215.30 | 0.82 | 182.11 | 0.3592 | -856.0 | -694.8 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -20.89 | 214.99 | 0.52 | 181.55 | 0.3150 | -843.0 | -696.3 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -21.68 | 210.98 | -3.49 | 170.17 | 0.3330 | -901.0 | -761.4 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -27.87 | 204.40 | -10.07 | 160.11 | 0.4561 | -799.0 | -599.9 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -28.10 | 204.31 | -10.16 | 160.14 | 0.4600 | -622.0 | -512.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
