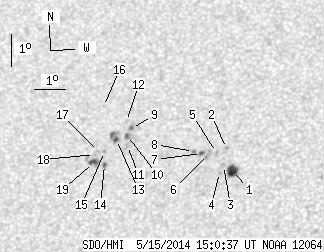

SDO HMI 2014-05-15 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.81 | 62.04 | 8.44 | 33.25 | 8.63 | 195.16 | -19.32 | 59.39 | 0.3812 | 28.8 | 217.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-15 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.08 | 10.32 | 4.26 | 5.44 | 8.03 | 197.66 | -16.82 | 57.46 | 0.3413 | -1142.3 | -790.5 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 8.71 | 197.43 | -17.04 | 56.13 | 0.3504 | -805.0 | -689.1 | |
| 0.00 | 2.96 | 0.00 | 1.56 | 8.18 | 197.36 | -17.11 | 57.52 | 0.3468 | -715.0 | -600.0 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 7.97 | 197.24 | -17.23 | 58.22 | 0.3466 | -811.0 | -683.2 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 8.59 | 197.12 | -17.36 | 56.89 | 0.3536 | -770.0 | -595.0 | |
| 0.00 | 3.50 | 0.00 | 1.86 | 8.53 | 196.83 | -17.64 | 57.45 | 0.3571 | -1062.0 | -769.7 | |
| 1.08 | 2.60 | 0.57 | 1.38 | 8.57 | 196.64 | -17.84 | 57.66 | 0.3601 | -986.7 | -756.2 | |
| 0.00 | 1.97 | 0.00 | 1.05 | 8.63 | 196.38 | -18.10 | 57.87 | 0.3642 | -865.0 | -632.5 | |
| 0.81 | 3.14 | 0.44 | 1.70 | 9.38 | 194.32 | -20.15 | 58.90 | 0.3987 | 950.8 | 723.3 | |
| 0.00 | 3.14 | 0.00 | 1.70 | 9.16 | 194.20 | -20.27 | 59.51 | 0.3986 | 1151.0 | 945.8 | |
| 0.00 | 4.85 | 0.00 | 2.61 | 8.85 | 194.22 | -20.25 | 60.17 | 0.3959 | 939.0 | 701.5 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 9.60 | 194.15 | -20.33 | 58.64 | 0.4029 | 717.0 | 534.9 | |
| 1.53 | 8.53 | 0.83 | 4.62 | 9.04 | 193.85 | -20.62 | 60.19 | 0.4026 | 1100.2 | 779.3 | |
| 0.90 | 2.15 | 0.49 | 1.16 | 8.28 | 193.50 | -20.97 | 62.29 | 0.4018 | 946.3 | 790.9 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 8.68 | 193.48 | -21.00 | 61.42 | 0.4051 | 899.0 | 795.7 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 10.08 | 193.36 | -21.12 | 58.57 | 0.4174 | 520.0 | 483.6 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 8.68 | 193.28 | -21.19 | 61.64 | 0.4079 | 612.0 | 423.8 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 8.59 | 193.15 | -21.32 | 61.97 | 0.4090 | 764.0 | 517.4 | |
| 3.41 | 8.44 | 1.85 | 4.58 | 8.35 | 193.14 | -21.34 | 62.54 | 0.4075 | 992.6 | 654.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
