SDO HMI 2014-05-15 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.74 | 568.47 | 47.69 | 298.65 | -14.32 | 228.95 | 15.03 | 230.07 | 0.3328 | 208.4 | 199.7 | |
|
previous
or next observation for the same group /

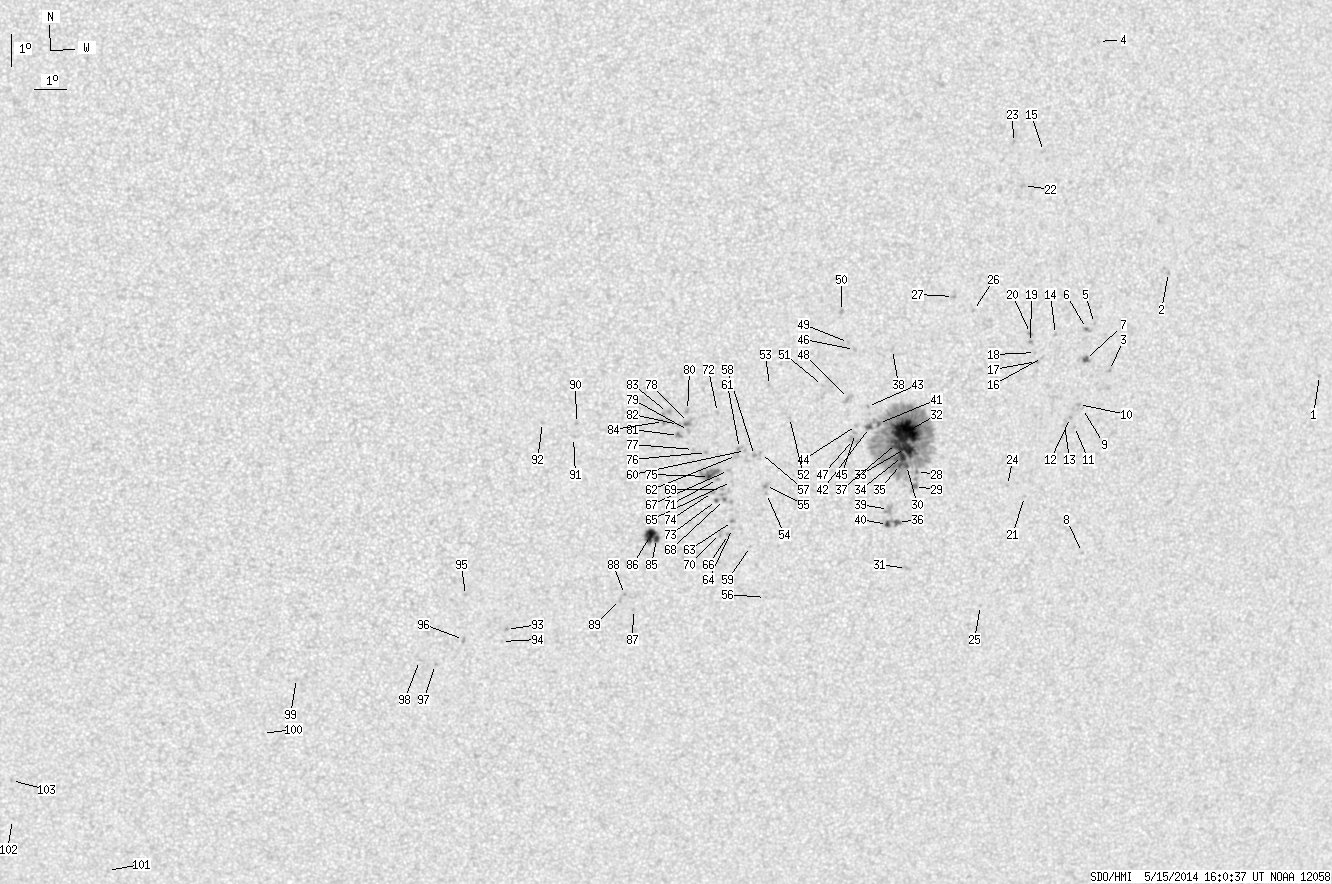

back to the solar disc SDO HMI 2014-05-15 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.73 | -11.82 | 244.29 | 30.37 | 251.45 | 0.5240 | 670.0 | 545.3 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -8.78 | 238.75 | 24.82 | 254.96 | 0.4314 | 746.0 | 647.4 | |
| 0.00 | 2.24 | 0.00 | 1.22 | -11.81 | 237.00 | 23.07 | 246.95 | 0.4187 | 812.0 | 610.1 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -1.81 | 236.14 | 22.22 | 271.62 | 0.3798 | 736.0 | 480.3 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -10.38 | 236.38 | 22.46 | 249.78 | 0.4021 | 746.0 | 599.7 | |
| 0.54 | 2.42 | 0.29 | 1.31 | -10.53 | 236.12 | 22.20 | 249.21 | 0.3990 | 925.5 | 778.2 | |
| 2.15 | 3.50 | 1.17 | 1.90 | -11.48 | 236.16 | 22.24 | 247.00 | 0.4047 | 1032.7 | 853.6 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -17.46 | 236.70 | 22.77 | 234.90 | 0.4532 | 650.0 | 565.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -12.99 | 236.20 | 22.27 | 243.60 | 0.4141 | 690.0 | 551.6 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -12.87 | 236.05 | 22.13 | 243.73 | 0.4112 | 903.0 | 819.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -13.55 | 235.98 | 22.06 | 242.16 | 0.4146 | 728.0 | 606.2 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -13.27 | 235.82 | 21.90 | 242.61 | 0.4105 | 1128.0 | 860.4 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -13.49 | 235.64 | 21.72 | 241.94 | 0.4094 | 854.0 | 624.2 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -10.73 | 235.11 | 21.19 | 247.90 | 0.3849 | 828.0 | 641.4 | |
| 0.00 | 1.97 | 0.00 | 1.05 | -5.17 | 234.42 | 20.50 | 262.26 | 0.3536 | 755.0 | 576.1 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -11.44 | 234.73 | 20.81 | 245.82 | 0.3833 | -548.0 | -351.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -11.57 | 234.54 | 20.62 | 245.33 | 0.3813 | -475.0 | -553.5 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -11.29 | 234.49 | 20.57 | 245.96 | 0.3788 | 677.0 | 486.9 | |
| 0.00 | 1.97 | 0.00 | 1.05 | -10.99 | 234.30 | 20.38 | 246.53 | 0.3743 | 840.0 | 685.5 | |
| 0.00 | 1.97 | 0.00 | 1.05 | -10.71 | 234.28 | 20.36 | 247.21 | 0.3724 | 975.0 | 790.2 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -15.74 | 234.52 | 20.60 | 235.83 | 0.4110 | 767.0 | 577.4 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -6.21 | 233.81 | 19.89 | 259.06 | 0.3460 | 941.0 | 779.1 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -4.91 | 233.45 | 19.52 | 262.70 | 0.3371 | 757.0 | 633.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -15.41 | 233.91 | 19.99 | 235.80 | 0.4002 | 761.0 | 524.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -19.18 | 233.42 | 19.50 | 227.64 | 0.4284 | 764.0 | 623.1 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -10.04 | 232.38 | 18.45 | 247.14 | 0.3398 | -831.0 | -621.0 | |
| 0.00 | 1.97 | 0.00 | 1.03 | -9.62 | 231.71 | 17.78 | 247.62 | 0.3271 | -883.0 | -745.7 | |
| 0.36 | 358.78 | 0.19 | 188.99 | -15.01 | 230.86 | 16.94 | 232.43 | 0.3567 | 651.2 | 493.4 | |
| 1.35 | -28.00 | 0.71 | -28.00 | -15.48 | 230.84 | 16.92 | 231.32 | 0.3607 | 777.9 | 999999 | |
| 1.26 | -28.00 | 0.66 | -28.00 | -14.83 | 230.52 | 16.60 | 232.32 | 0.3505 | 858.6 | 999999 | |
| 0.00 | 4.40 | 0.00 | 2.36 | -18.04 | 230.80 | 16.88 | 225.88 | 0.3863 | 794.0 | 569.8 | |
| 36.44 | -28.00 | 19.18 | -28.00 | -13.81 | 230.41 | 16.49 | 234.60 | 0.3397 | 1433.1 | 999999 | |
| 14.45 | -28.00 | 7.62 | -28.00 | -14.30 | 230.45 | 16.53 | 233.45 | 0.3446 | 1125.0 | 999999 | |
| 4.67 | -28.00 | 2.46 | -28.00 | -14.55 | 230.37 | 16.45 | 232.73 | 0.3459 | 1134.0 | 999999 | |
| 1.88 | -28.00 | 1.00 | -28.00 | -14.80 | 230.32 | 16.40 | 232.06 | 0.3477 | 956.2 | 999999 | |
| 2.33 | 8.71 | 1.24 | 4.63 | -16.60 | 230.37 | 16.45 | 228.10 | 0.3662 | -824.7 | -676.9 | |
| 4.22 | -28.00 | 2.22 | -28.00 | -14.15 | 230.15 | 16.22 | 233.33 | 0.3392 | 1301.3 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -11.26 | 229.83 | 15.91 | 240.52 | 0.3102 | -784.0 | -642.2 | |
| 0.00 | 6.82 | 0.00 | 3.62 | -16.20 | 230.04 | 16.12 | 228.42 | 0.3580 | 145.0 | 127.8 | |
| 2.15 | -36.00 | 1.14 | -36.00 | -16.67 | 230.05 | 16.13 | 227.42 | 0.3630 | -832.0 | 999999 | |
| 1.17 | -28.00 | 0.61 | -28.00 | -13.54 | 229.52 | 15.60 | 233.83 | 0.3252 | 1029.6 | 999999 | |
| 1.88 | -28.00 | 0.99 | -28.00 | -13.67 | 229.24 | 15.31 | 233.02 | 0.3226 | 1095.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -13.02 | 229.13 | 15.21 | 234.53 | 0.3152 | 783.0 | 773.6 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -13.61 | 228.81 | 14.89 | 232.43 | 0.3165 | 958.0 | 747.6 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -13.86 | 228.80 | 14.87 | 231.76 | 0.3187 | 342.0 | 272.0 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -11.27 | 228.61 | 14.69 | 238.58 | 0.2928 | -721.0 | -649.9 | |
| 0.00 | 5.92 | 0.00 | 3.10 | -14.04 | 228.74 | 14.82 | 231.20 | 0.3198 | 387.0 | 401.5 | |
| 0.00 | 6.37 | 0.00 | 3.31 | -12.78 | 228.50 | 14.58 | 234.08 | 0.3045 | 768.0 | 483.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -11.06 | 228.41 | 14.49 | 238.88 | 0.2881 | -907.0 | -733.5 | |
| 0.00 | 1.97 | 0.00 | 1.02 | -10.12 | 228.15 | 14.22 | 241.40 | 0.2767 | -892.0 | -738.7 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -12.39 | 227.65 | 13.73 | 233.59 | 0.2893 | -797.0 | -625.8 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -13.38 | 226.65 | 12.73 | 228.77 | 0.2863 | 735.0 | 533.3 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -12.40 | 225.96 | 12.04 | 230.01 | 0.2672 | -816.0 | -598.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -15.74 | 226.04 | 12.12 | 221.55 | 0.3061 | -742.0 | -563.8 | |
| 0.00 | 2.60 | 0.00 | 1.35 | -15.49 | 226.00 | 12.08 | 222.01 | 0.3025 | -764.0 | -691.6 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -19.00 | 226.23 | 12.31 | 215.45 | 0.3490 | 647.0 | 545.6 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -14.50 | 225.78 | 11.86 | 223.88 | 0.2883 | -714.0 | -609.6 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -14.57 | 225.59 | 11.67 | 223.28 | 0.2869 | -908.0 | -784.9 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -17.40 | 225.63 | 11.71 | 217.10 | 0.3224 | -729.0 | -455.5 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -14.41 | 225.30 | 11.38 | 222.94 | 0.2817 | -787.0 | -640.4 | |
| 0.00 | 2.87 | 0.00 | 1.48 | -14.35 | 225.10 | 11.18 | 222.61 | 0.2787 | -927.0 | -762.8 | |
| 0.00 | 3.05 | 0.00 | 1.57 | -14.57 | 225.02 | 11.10 | 221.86 | 0.2804 | -666.0 | -691.1 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -16.62 | 225.00 | 11.08 | 217.17 | 0.3061 | -1015.0 | -823.8 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -16.84 | 225.01 | 11.09 | 216.76 | 0.3091 | -759.0 | -563.5 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -15.38 | 224.90 | 10.98 | 219.64 | 0.2891 | -728.0 | -567.5 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -17.03 | 224.90 | 10.97 | 216.09 | 0.3103 | -944.0 | -760.1 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -15.04 | 224.79 | 10.87 | 220.15 | 0.2836 | -886.0 | -695.3 | |
| 0.45 | 9.69 | 0.23 | 5.02 | -15.94 | 224.71 | 10.78 | 217.89 | 0.2942 | -900.0 | -682.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -15.63 | 224.59 | 10.67 | 218.29 | 0.2891 | -1034.0 | -812.4 | |
| 0.00 | 2.69 | 0.00 | 1.40 | -17.00 | 224.64 | 10.71 | 215.51 | 0.3074 | -912.0 | -717.4 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -15.32 | 224.45 | 10.53 | 218.62 | 0.2836 | -972.0 | -767.5 | |
| 0.00 | 1.88 | 0.00 | 0.97 | -13.25 | 224.35 | 10.43 | 223.59 | 0.2568 | -795.0 | -567.3 | |
| 0.81 | -68.00 | 0.42 | -68.00 | -15.97 | 224.45 | 10.53 | 217.17 | 0.2921 | -780.6 | 999999 | |
| 0.00 | 2.60 | 0.00 | 1.35 | -15.72 | 224.31 | 10.39 | 217.35 | 0.2874 | -886.0 | -787.6 | |
| 1.71 | 14.72 | 0.88 | 7.59 | -15.23 | 224.19 | 10.27 | 218.15 | 0.2797 | -1168.4 | -935.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -14.48 | 224.06 | 10.14 | 219.56 | 0.2688 | -991.0 | -813.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -14.39 | 223.64 | 9.72 | 218.62 | 0.2632 | -803.0 | -573.6 | |
| 0.00 | 5.03 | 0.00 | 2.57 | -13.56 | 223.45 | 9.53 | 220.20 | 0.2504 | -927.0 | -857.9 | |
| 0.00 | 1.88 | 0.00 | 0.97 | -13.81 | 223.46 | 9.54 | 219.58 | 0.2537 | -891.0 | -736.6 | |
| 0.00 | 2.33 | 0.00 | 1.19 | -13.19 | 223.40 | 9.48 | 221.07 | 0.2453 | -867.0 | -730.6 | |
| 0.00 | 3.50 | 0.00 | 1.79 | -13.96 | 223.15 | 9.23 | 218.27 | 0.2524 | -1107.0 | -915.4 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.62 | 223.14 | 9.22 | 219.10 | 0.2479 | -991.0 | -851.9 | |
| 0.00 | 4.31 | 0.00 | 2.20 | -13.26 | 222.78 | 8.85 | 218.98 | 0.2392 | -922.0 | -835.4 | |
| 0.00 | 4.76 | 0.00 | 2.43 | -13.53 | 222.66 | 8.74 | 217.88 | 0.2417 | -1039.0 | -793.7 | |
| 2.69 | 17.41 | 1.39 | 9.01 | -17.17 | 222.59 | 8.66 | 209.76 | 0.2913 | 957.9 | 739.7 | |
| 10.23 | -85.00 | 5.29 | -85.00 | -17.08 | 222.39 | 8.47 | 209.37 | 0.2883 | 1183.1 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -19.41 | 221.95 | 8.03 | 204.48 | 0.3193 | -787.0 | -672.4 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -18.94 | 221.64 | 7.72 | 204.29 | 0.3100 | -912.0 | -811.0 | |
| 0.00 | 2.24 | 0.00 | 1.17 | -19.09 | 221.52 | 7.59 | 203.74 | 0.3116 | -1012.0 | -702.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.61 | 219.93 | 6.01 | 208.05 | 0.2173 | -904.0 | -720.3 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -14.04 | 219.85 | 5.92 | 206.79 | 0.2231 | -671.0 | -467.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.58 | 218.86 | 4.94 | 203.75 | 0.2089 | -805.0 | -606.3 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -20.06 | 217.86 | 3.94 | 192.16 | 0.3080 | -963.0 | -810.9 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -20.44 | 217.71 | 3.79 | 191.44 | 0.3137 | -629.0 | -382.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -18.98 | 216.52 | 2.60 | 188.66 | 0.2863 | -923.0 | -778.1 | |
| 0.00 | 2.51 | 0.00 | 1.31 | -20.38 | 216.48 | 2.56 | 187.81 | 0.3092 | -962.0 | -747.6 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -21.17 | 215.58 | 1.66 | 184.85 | 0.3208 | -891.0 | -779.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -21.05 | 215.06 | 1.14 | 183.36 | 0.3180 | -810.0 | -648.9 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -21.61 | 211.06 | -2.87 | 171.87 | 0.3303 | -645.0 | -571.1 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -23.38 | 209.89 | -4.03 | 169.69 | 0.3620 | -667.0 | -428.0 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -27.86 | 204.38 | -9.54 | 161.06 | 0.4534 | -639.0 | -511.5 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -26.14 | 201.26 | -12.66 | 153.81 | 0.4476 | -667.0 | -507.3 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -24.85 | 201.37 | -12.56 | 152.53 | 0.4294 | -834.0 | -663.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
