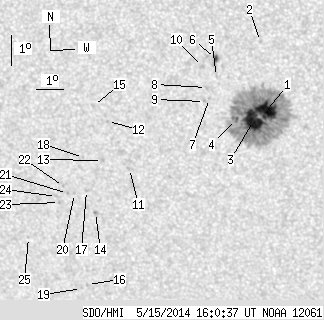

SDO HMI 2014-05-15 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.86 | 307.82 | 29.96 | 175.17 | -23.80 | 192.81 | -21.11 | 137.93 | 0.4930 | 475.0 | 301.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-15 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.50 | 276.91 | 13.85 | 156.99 | -23.57 | 193.56 | -20.36 | 138.48 | 0.4831 | 1275.2 | 383.0 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -21.35 | 193.69 | -20.23 | 135.15 | 0.4585 | -614.0 | -460.9 | |
| 25.22 | -1.00 | 14.33 | -1.00 | -23.89 | 193.05 | -20.88 | 138.29 | 0.4916 | 1044.7 | 999999 | |
| 1.17 | -1.00 | 0.67 | -1.00 | -23.85 | 192.45 | -21.47 | 137.47 | 0.4973 | 699.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -22.44 | 191.98 | -21.94 | 134.74 | 0.4881 | 463.0 | 343.5 | |
| 1.97 | 5.48 | 1.11 | 3.09 | -21.87 | 192.04 | -21.88 | 133.89 | 0.4818 | -812.2 | -298.6 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -23.15 | 191.61 | -22.31 | 135.39 | 0.4991 | 650.0 | 511.1 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -22.79 | 191.57 | -22.36 | 134.79 | 0.4960 | 738.0 | 582.7 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -23.24 | 191.42 | -22.51 | 135.30 | 0.5020 | 663.0 | 522.9 | |
| 0.00 | 2.78 | 0.00 | 1.58 | -22.11 | 191.54 | -22.38 | 133.69 | 0.4898 | 36.0 | 94.4 | |
| 0.00 | 2.15 | 0.00 | 1.28 | -25.38 | 188.24 | -25.68 | 134.96 | 0.5554 | -517.0 | -434.2 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -23.83 | 187.78 | -26.14 | 132.24 | 0.5466 | -728.0 | -656.7 | |
| 0.00 | 2.24 | 0.00 | 1.34 | -25.09 | 187.30 | -26.62 | 133.62 | 0.5626 | -785.0 | -629.2 | |
| 0.00 | 1.53 | 0.00 | 0.93 | -26.80 | 186.61 | -27.31 | 135.32 | 0.5847 | -778.0 | -588.7 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -23.30 | 187.38 | -26.55 | 131.06 | 0.5465 | -615.0 | -538.1 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -29.21 | 185.62 | -28.30 | 137.54 | 0.6153 | -553.0 | -479.2 | |
| 0.00 | 1.88 | 0.00 | 1.14 | -26.07 | 186.46 | -27.46 | 134.18 | 0.5798 | -749.0 | -546.8 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -24.98 | 186.62 | -27.31 | 132.80 | 0.5689 | -393.0 | -336.0 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -29.34 | 185.34 | -28.58 | 137.46 | 0.6190 | -577.0 | -482.8 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -26.16 | 185.98 | -27.95 | 133.85 | 0.5855 | -727.0 | -611.3 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -26.15 | 185.71 | -28.21 | 133.60 | 0.5882 | -720.0 | -567.5 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -25.92 | 185.62 | -28.30 | 133.20 | 0.5872 | -755.0 | -675.1 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -26.44 | 185.32 | -28.60 | 133.65 | 0.5946 | -810.0 | -673.2 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -26.24 | 185.26 | -28.66 | 133.32 | 0.5935 | -565.0 | -442.4 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -27.58 | 183.78 | -30.14 | 133.84 | 0.6193 | -658.0 | -564.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
