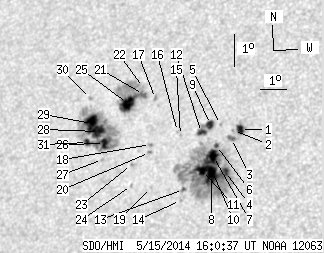

SDO HMI 2014-05-15 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.42 | 420.13 | 68.70 | 260.58 | 10.19 | 179.20 | -34.73 | 69.13 | 0.6018 | 17.3 | -47.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-15 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.03 | 8.80 | 3.02 | 5.28 | 10.57 | 182.00 | -31.92 | 66.94 | 0.5671 | -916.6 | -588.7 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 10.54 | 181.74 | -32.18 | 67.13 | 0.5704 | -543.0 | -510.4 | |
| 1.53 | 4.22 | 0.92 | 2.54 | 10.30 | 181.70 | -32.22 | 67.57 | 0.5697 | -904.4 | -730.9 | |
| 3.95 | 197.92 | 2.37 | 119.71 | 9.28 | 181.59 | -32.33 | 69.33 | 0.5663 | -1153.4 | -350.9 | |
| 0.00 | 1.17 | 0.00 | 0.71 | 10.74 | 181.25 | -32.68 | 67.11 | 0.5780 | -606.0 | -514.2 | |
| 1.35 | -4.00 | 0.81 | -4.00 | 10.09 | 181.18 | -32.75 | 68.21 | 0.5757 | -761.1 | 999999 | |
| 10.05 | -4.00 | 6.08 | -4.00 | 9.75 | 181.10 | -32.82 | 68.81 | 0.5750 | -1087.5 | 999999 | |
| 15.44 | -4.00 | 9.31 | -4.00 | 9.20 | 181.09 | -32.83 | 69.74 | 0.5727 | -1162.4 | 999999 | |
| 4.76 | 14.63 | 2.90 | 8.92 | 10.75 | 180.88 | -33.05 | 67.31 | 0.5829 | -718.4 | -206.3 | |
| 0.27 | -4.00 | 0.16 | -4.00 | 9.57 | 180.94 | -32.98 | 69.20 | 0.5764 | -1222.3 | 999999 | |
| 7.90 | -4.00 | 4.79 | -4.00 | 9.33 | 180.75 | -33.18 | 69.71 | 0.5779 | -858.6 | 999999 | |
| 3.50 | -9.00 | 2.14 | -9.00 | 10.51 | 180.57 | -33.35 | 67.87 | 0.5857 | -711.5 | 999999 | |
| 0.72 | 1.80 | 0.44 | 1.09 | 8.76 | 180.10 | -33.82 | 70.98 | 0.5840 | -542.8 | -448.4 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 8.42 | 180.03 | -33.89 | 71.57 | 0.5837 | -616.0 | -430.2 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 10.44 | 179.80 | -34.12 | 68.42 | 0.5954 | -524.0 | -397.9 | |
| 0.00 | 1.53 | 0.00 | 0.94 | 10.57 | 179.67 | -34.25 | 68.28 | 0.5977 | -161.0 | -173.8 | |
| 0.00 | 1.53 | 0.00 | 0.96 | 11.62 | 178.70 | -35.22 | 67.17 | 0.6151 | 855.0 | 681.2 | |
| 0.00 | 1.80 | 0.00 | 1.12 | 10.19 | 178.71 | -35.21 | 69.39 | 0.6086 | -665.0 | -474.6 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 8.85 | 178.86 | -35.06 | 71.43 | 0.6009 | 830.0 | 699.7 | |
| 0.00 | 1.62 | 0.00 | 1.01 | 9.94 | 178.70 | -35.22 | 69.78 | 0.6076 | -631.0 | -510.7 | |
| 2.06 | 56.28 | 1.30 | 35.78 | 11.76 | 178.23 | -35.70 | 67.22 | 0.6218 | 931.6 | 260.4 | |
| 0.00 | 1.44 | 0.00 | 0.91 | 11.98 | 178.19 | -35.73 | 66.90 | 0.6233 | 433.0 | 428.9 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 9.59 | 178.06 | -35.86 | 70.64 | 0.6144 | 712.0 | 581.0 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 8.94 | 178.14 | -35.78 | 71.63 | 0.6109 | 552.0 | 512.0 | |
| 17.23 | -21.00 | 10.94 | -21.00 | 11.50 | 177.65 | -36.27 | 67.92 | 0.6279 | 1009.4 | 999999 | |
| 5.48 | 117.95 | 3.49 | 75.70 | 10.27 | 176.94 | -36.98 | 70.12 | 0.6317 | 1121.1 | 409.7 | |
| 0.00 | 1.35 | 0.00 | 0.86 | 9.78 | 176.93 | -36.99 | 70.88 | 0.6299 | 737.0 | 546.1 | |
| 12.30 | -26.00 | 7.88 | -26.00 | 10.65 | 176.65 | -37.27 | 69.68 | 0.6369 | 1042.0 | 999999 | |
| 15.53 | -26.00 | 10.01 | -26.00 | 10.91 | 176.34 | -37.58 | 69.44 | 0.6418 | 890.2 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.34 | 11.70 | 176.18 | -37.74 | 68.35 | 0.6471 | 657.0 | 423.8 | |
| 3.32 | -26.00 | 2.14 | -26.00 | 10.32 | 176.27 | -37.65 | 70.35 | 0.6404 | 679.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
