SDO HMI 2014-05-15 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.75 | 183.32 | 17.85 | 117.38 | 15.22 | 248.75 | 35.38 | 298.10 | 0.6354 | -299.9 | -282.0 | |
|
previous
or next observation for the same group /

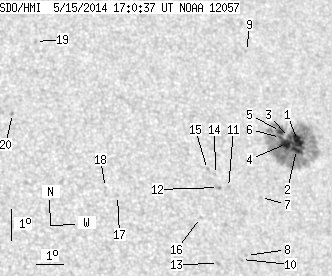

back to the solar disc SDO HMI 2014-05-15 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.80 | 167.58 | 5.68 | 107.80 | 15.38 | 249.35 | 35.98 | 297.95 | 0.6435 | -882.6 | -364.8 | |
| 4.58 | -1.00 | 2.95 | -1.00 | 15.09 | 249.25 | 35.88 | 297.59 | 0.6408 | -833.8 | 999999 | |
| 1.26 | -1.00 | 0.81 | -1.00 | 15.46 | 249.05 | 35.68 | 298.25 | 0.6405 | -873.1 | 999999 | |
| 8.62 | -1.00 | 5.53 | -1.00 | 15.27 | 248.90 | 35.53 | 298.07 | 0.6376 | -1073.8 | 999999 | |
| 4.22 | -1.00 | 2.71 | -1.00 | 15.65 | 248.74 | 35.37 | 298.71 | 0.6378 | -849.4 | 999999 | |
| 0.27 | -1.00 | 0.17 | -1.00 | 15.45 | 248.70 | 35.33 | 298.46 | 0.6363 | -1137.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 13.53 | 247.59 | 34.22 | 296.31 | 0.6122 | -194.0 | -271.6 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 11.68 | 246.78 | 33.41 | 293.96 | 0.5923 | 711.0 | 607.6 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 18.20 | 247.97 | 34.60 | 302.80 | 0.6441 | 590.0 | 416.4 | |
| 0.00 | 1.80 | 0.00 | 1.10 | 11.55 | 246.58 | 33.21 | 293.88 | 0.5890 | 628.0 | 573.4 | |
| 0.00 | 1.35 | 0.00 | 0.83 | 13.81 | 246.43 | 33.06 | 297.49 | 0.5994 | 386.0 | 406.9 | |
| 0.00 | 2.60 | 0.00 | 1.60 | 13.80 | 246.06 | 32.69 | 297.72 | 0.5947 | 762.0 | 609.0 | |
| 0.00 | 1.44 | 0.00 | 0.87 | 11.41 | 245.71 | 32.34 | 294.18 | 0.5770 | 833.0 | 729.1 | |
| 0.00 | 0.63 | 0.00 | 0.39 | 14.21 | 246.01 | 32.65 | 298.38 | 0.5966 | 436.0 | 320.4 | |
| 0.00 | 1.53 | 0.00 | 0.94 | 14.36 | 245.74 | 32.37 | 298.80 | 0.5941 | 366.0 | 427.2 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 12.84 | 245.25 | 31.88 | 296.77 | 0.5789 | 561.0 | 495.6 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 13.46 | 242.34 | 28.97 | 299.95 | 0.5457 | 659.0 | 576.9 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 13.71 | 241.94 | 28.57 | 300.68 | 0.5424 | 695.0 | 600.7 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 18.34 | 240.15 | 26.78 | 309.53 | 0.5567 | 744.0 | 683.3 | |
| 0.00 | 1.35 | 0.00 | 0.78 | 16.00 | 238.98 | 25.61 | 307.15 | 0.5234 | 721.0 | 588.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
