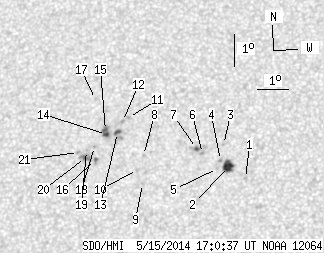

SDO HMI 2014-05-15 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.44 | 57.39 | 8.17 | 30.48 | 8.56 | 195.22 | -18.15 | 57.98 | 0.3644 | -82.3 | 217.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-15 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.84 | 7.64 | 198.32 | -15.05 | 55.56 | 0.3135 | -811.0 | -591.1 | |
| 8.35 | 10.95 | 4.37 | 5.73 | 8.02 | 197.76 | -15.60 | 55.53 | 0.3245 | -1139.6 | -689.3 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 8.70 | 197.58 | -15.79 | 54.13 | 0.3334 | -835.0 | -669.7 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 8.20 | 197.50 | -15.87 | 55.49 | 0.3298 | -895.0 | -639.1 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 7.96 | 197.42 | -15.95 | 56.26 | 0.3287 | -700.0 | -519.1 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 8.43 | 196.92 | -16.45 | 55.89 | 0.3398 | -964.0 | -776.5 | |
| 0.99 | 3.86 | 0.52 | 2.04 | 8.59 | 196.72 | -16.65 | 55.82 | 0.3439 | -1022.1 | -724.8 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 8.40 | 195.03 | -18.34 | 58.77 | 0.3656 | -745.0 | -513.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 7.53 | 195.03 | -18.34 | 60.85 | 0.3586 | -736.0 | -606.6 | |
| 0.00 | 1.97 | 0.00 | 1.05 | 7.97 | 194.85 | -18.52 | 60.03 | 0.3646 | -743.0 | -573.5 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 9.58 | 194.48 | -18.89 | 56.81 | 0.3831 | 833.0 | 633.2 | |
| 0.00 | 1.80 | 0.00 | 0.96 | 9.46 | 194.29 | -19.08 | 57.33 | 0.3846 | 915.0 | 742.8 | |
| 1.62 | 7.00 | 0.87 | 3.75 | 9.12 | 194.15 | -19.22 | 58.28 | 0.3838 | 1108.3 | 882.8 | |
| 2.06 | 7.00 | 1.11 | 3.76 | 9.06 | 193.79 | -19.58 | 58.87 | 0.3882 | 1111.5 | 800.2 | |
| 1.88 | -14.00 | 1.01 | -14.00 | 9.19 | 193.75 | -19.62 | 58.64 | 0.3898 | 877.8 | 999999 | |
| 0.54 | 2.78 | 0.29 | 1.49 | 8.30 | 193.47 | -19.89 | 61.00 | 0.3866 | 1034.0 | 815.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 10.16 | 193.37 | -20.00 | 57.03 | 0.4030 | 612.0 | 489.1 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 8.70 | 193.42 | -19.95 | 60.15 | 0.3905 | 767.0 | 658.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 8.58 | 193.17 | -20.20 | 60.73 | 0.3931 | 647.0 | 540.5 | |
| 0.00 | 6.73 | 0.00 | 3.62 | 8.37 | 193.14 | -20.22 | 61.24 | 0.3918 | 1077.0 | 880.0 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 8.52 | 192.91 | -20.46 | 61.16 | 0.3963 | 681.0 | 563.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
